Overview

Metric	PETfold_pre2.0(20)		CentroidAlifold(seed)
MCC	0.756	>	0.735
Average MCC ± 95% Confidence Intervals	0.754 ± 0.015	>	0.733 ± 0.014
Sensitivity	0.670	>	0.567
Positive Predictive Value	0.855	<	0.954
Total TP	13926	>	11784
Total TN	11333182	<	11337121
Total FP	3410	>	892
Total FP CONTRA	575	>	75
Total FP INCONS	1789	>	492
Total FP COMP	1046	>	325
Total FN	6873	<	9015
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of PETfold_pre2.0(20) and CentroidAlifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(20) and CentroidAlifold(seed)).

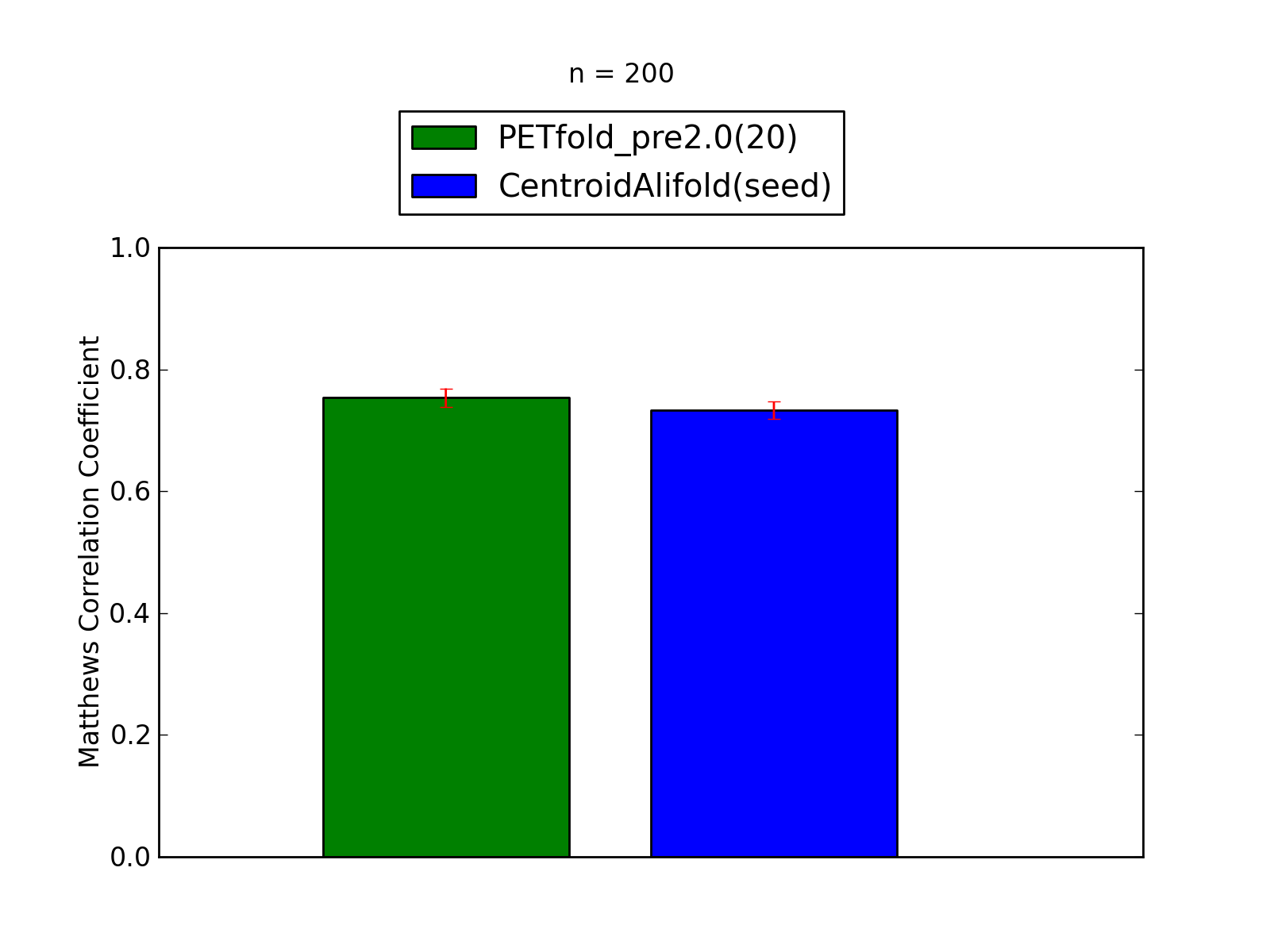

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(20) and CentroidAlifold(seed)).

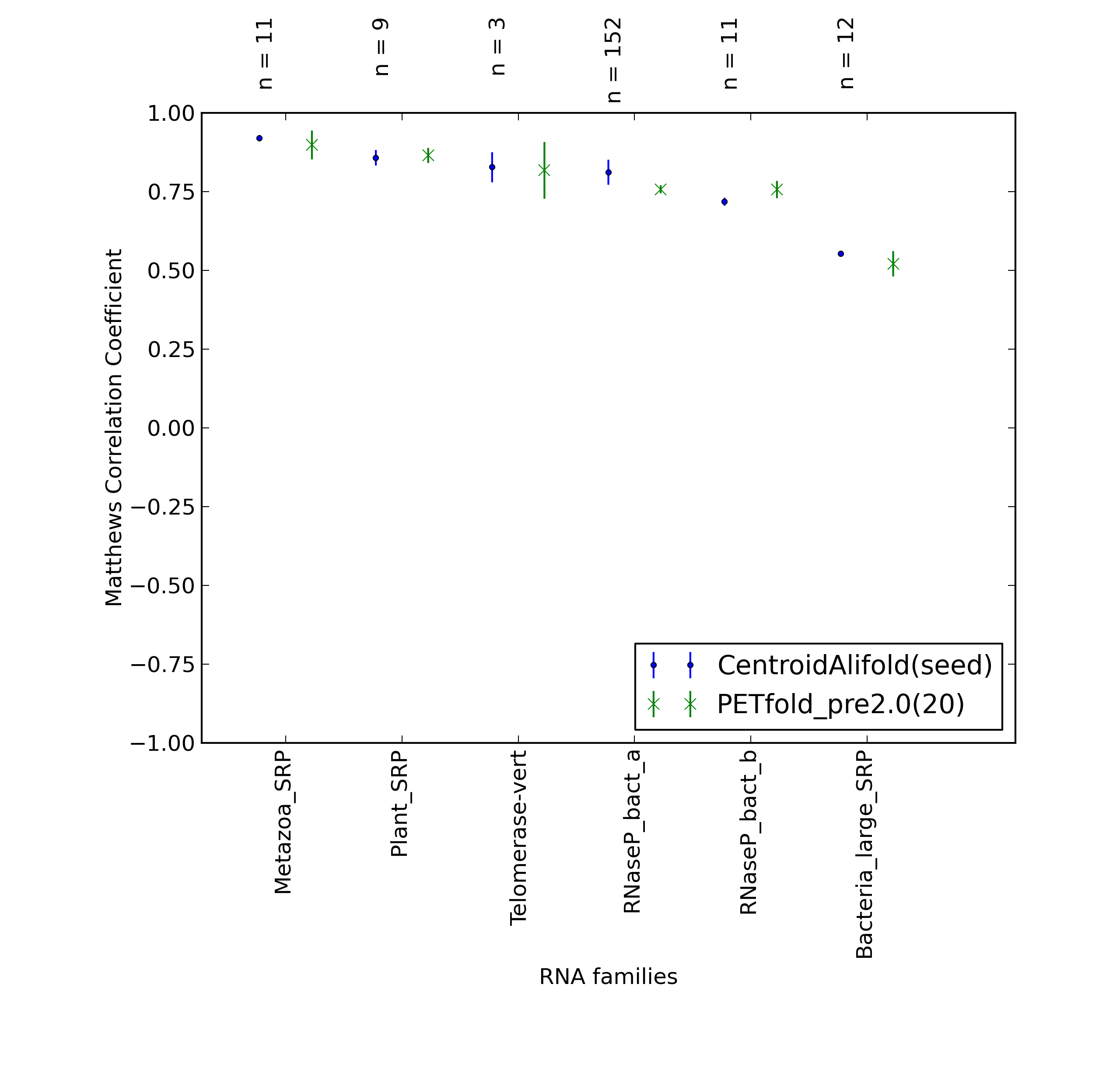

Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(20) and CentroidAlifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(20) and CentroidAlifold(seed)).

^top

Performance of PETfold_pre2.0(20) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(20)

Total Base Pair Counts
Total TP	13926
Total TN	11333182
Total FP	3410
Total FP CONTRA	575
Total FP INCONS	1789
Total FP COMP	1046
Total FN	6873

Total Scores
MCC	0.756
Average MCC ± 95% Confidence Intervals	0.754 ± 0.015
Sensitivity	0.670
Positive Predictive Value	0.855
Nr of predictions	200

^top

2. Individual counts for PETfold_pre2.0(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00004	RNaseP_bact_a links to Rfam database...	0.67	0.57	0.80	55	47826	18	1	13	4	42
ASE_00005	RNaseP_bact_a links to Rfam database...	0.76	0.65	0.88	76	57884	14	3	7	4	41
ASE_00006	RNaseP_bact_a links to Rfam database...	0.70	0.61	0.80	57	47515	17	1	13	3	36
ASE_00007	RNaseP_bact_a links to Rfam database...	0.84	0.82	0.87	90	59581	19	4	10	5	20
ASE_00012	RNaseP_bact_a links to Rfam database...	0.70	0.64	0.77	79	73818	28	5	18	5	44
ASE_00018	RNaseP_bact_a links to Rfam database...	0.77	0.68	0.87	91	80496	18	5	9	4	43
ASE_00020	RNaseP_bact_a links to Rfam database...	0.66	0.53	0.83	67	73839	20	7	7	6	59
ASE_00021	RNaseP_bact_a links to Rfam database...	0.58	0.48	0.72	76	104090	33	7	23	3	84
ASE_00022	RNaseP_bact_b links to Rfam database...	0.77	0.71	0.85	88	82924	25	3	13	9	36
ASE_00028	RNaseP_bact_b links to Rfam database...	0.74	0.65	0.85	82	84569	23	3	12	8	44
ASE_00035	RNaseP_bact_a links to Rfam database...	0.79	0.74	0.85	87	70398	23	4	11	8	31
ASE_00037	RNaseP_bact_a links to Rfam database...	0.85	0.82	0.89	90	59239	16	4	7	5	20
ASE_00038	RNaseP_bact_a links to Rfam database...	0.79	0.71	0.88	72	53546	15	3	7	5	29
ASE_00040	RNaseP_bact_a links to Rfam database...	0.82	0.72	0.92	96	78899	12	2	6	4	37
ASE_00041	RNaseP_bact_a links to Rfam database...	0.82	0.81	0.84	87	57527	19	2	14	3	21
ASE_00042	RNaseP_bact_a links to Rfam database...	0.67	0.57	0.79	83	89995	27	3	19	5	62
ASE_00044	RNaseP_bact_a links to Rfam database...	0.89	0.88	0.90	92	54513	13	4	6	3	13
ASE_00045	RNaseP_bact_b links to Rfam database...	0.77	0.76	0.78	61	47200	25	3	14	8	19
ASE_00064	RNaseP_bact_a links to Rfam database...	0.79	0.74	0.85	66	45373	18	3	9	6	23
ASE_00068	RNaseP_bact_a links to Rfam database...	0.64	0.54	0.75	46	37614	18	5	10	3	39
ASE_00074	RNaseP_bact_a links to Rfam database...	0.84	0.79	0.90	94	67792	15	4	6	5	25
ASE_00075	RNaseP_bact_a links to Rfam database...	0.60	0.48	0.76	78	108708	30	6	19	5	84
ASE_00077	RNaseP_bact_a links to Rfam database...	0.85	0.84	0.87	72	45067	17	5	6	6	14
ASE_00078	RNaseP_bact_a links to Rfam database...	0.87	0.86	0.89	71	42991	16	3	6	7	12
ASE_00080	RNaseP_bact_a links to Rfam database...	0.46	0.37	0.58	46	71551	38	4	30	4	77
ASE_00081	RNaseP_bact_a links to Rfam database...	0.81	0.72	0.91	70	49693	11	1	6	4	27
ASE_00082	RNaseP_bact_a links to Rfam database...	0.67	0.55	0.81	64	70421	23	3	12	8	52
ASE_00083	RNaseP_bact_a links to Rfam database...	0.76	0.65	0.90	71	62402	11	4	4	3	39
ASE_00084	RNaseP_bact_a links to Rfam database...	0.73	0.66	0.80	65	53547	20	5	11	4	34
ASE_00087	RNaseP_bact_a links to Rfam database...	0.64	0.47	0.89	67	88335	13	1	7	5	77
ASE_00090	RNaseP_bact_a links to Rfam database...	0.81	0.72	0.90	73	55530	13	3	5	5	28
ASE_00092	RNaseP_bact_a links to Rfam database...	0.69	0.58	0.82	65	63467	20	3	11	6	48
ASE_00099	RNaseP_bact_a links to Rfam database...	0.85	0.78	0.91	94	64517	14	3	6	5	26
ASE_00104	RNaseP_bact_a links to Rfam database...	0.85	0.81	0.90	96	64154	17	4	7	6	23
ASE_00105	RNaseP_bact_a links to Rfam database...	0.57	0.49	0.66	54	64179	33	7	21	5	57
ASE_00107	RNaseP_bact_a links to Rfam database...	0.83	0.76	0.91	96	73047	14	4	6	4	31
ASE_00114	RNaseP_bact_b links to Rfam database...	0.66	0.64	0.68	49	45379	34	1	22	11	28
ASE_00115	RNaseP_bact_a links to Rfam database...	0.78	0.68	0.88	69	54537	12	2	7	3	32
ASE_00118	RNaseP_bact_a links to Rfam database...	0.73	0.64	0.83	65	60648	18	4	9	5	37
ASE_00119	RNaseP_bact_a links to Rfam database...	0.66	0.53	0.81	57	62765	16	5	8	3	51
ASE_00123	RNaseP_bact_a links to Rfam database...	0.73	0.64	0.83	54	38438	14	4	7	3	31
ASE_00125	RNaseP_bact_a links to Rfam database...	0.72	0.61	0.86	54	39277	16	2	7	7	34
ASE_00128	RNaseP_bact_a links to Rfam database...	0.81	0.72	0.91	72	53222	11	2	5	4	28
ASE_00129	RNaseP_bact_a links to Rfam database...	0.77	0.66	0.90	73	62754	12	4	4	4	38
ASE_00131	RNaseP_bact_a links to Rfam database...	0.74	0.62	0.87	53	39279	15	3	5	7	32
ASE_00134	RNaseP_bact_a links to Rfam database...	0.78	0.73	0.83	69	50320	18	4	10	4	26
ASE_00135	RNaseP_bact_a links to Rfam database...	0.63	0.55	0.71	60	63106	27	5	19	3	49
ASE_00136	RNaseP_bact_a links to Rfam database...	0.82	0.76	0.89	70	48126	13	4	5	4	22
ASE_00137	RNaseP_bact_a links to Rfam database...	0.81	0.69	0.96	68	48445	7	2	1	4	30
ASE_00138	RNaseP_bact_a links to Rfam database...	0.83	0.79	0.88	64	40397	14	2	7	5	17
ASE_00140	RNaseP_bact_a links to Rfam database...	0.68	0.55	0.83	69	70793	20	7	7	6	56
ASE_00142	RNaseP_bact_a links to Rfam database...	0.83	0.76	0.91	93	67059	15	3	6	6	29
ASE_00146	RNaseP_bact_a links to Rfam database...	0.80	0.73	0.89	90	70775	16	4	7	5	34
ASE_00153	RNaseP_nuc links to Rfam database...	0.40	0.37	0.44	27	57569	41	7	27	7	46
ASE_00161	RNaseP_bact_b links to Rfam database...	0.74	0.72	0.76	63	53545	29	3	17	9	24
ASE_00163	RNaseP_bact_a links to Rfam database...	0.81	0.76	0.87	71	53219	15	4	7	4	22
ASE_00165	RNaseP_bact_a links to Rfam database...	0.79	0.67	0.93	68	52902	10	2	3	5	33
ASE_00170	RNaseP_bact_a links to Rfam database...	0.72	0.67	0.78	62	48748	24	5	13	6	31
ASE_00171	RNaseP_bact_a links to Rfam database...	0.82	0.76	0.90	71	48437	14	3	5	6	23
ASE_00172	RNaseP_bact_a links to Rfam database...	0.76	0.66	0.88	70	58916	14	5	5	4	36
ASE_00174	RNaseP_bact_a links to Rfam database...	0.66	0.55	0.79	60	60999	19	2	14	3	49
ASE_00175	RNaseP_bact_a links to Rfam database...	0.73	0.64	0.84	68	59950	17	2	11	4	39
ASE_00179	RNaseP_bact_a links to Rfam database...	0.82	0.80	0.85	67	44174	18	5	7	6	17
ASE_00180	RNaseP_bact_a links to Rfam database...	0.77	0.70	0.85	70	51278	16	4	8	4	30
ASE_00181	RNaseP_bact_a links to Rfam database...	0.70	0.59	0.82	63	57553	20	5	9	6	43
ASE_00182	RNaseP_bact_a links to Rfam database...	0.68	0.53	0.88	72	84173	14	4	6	4	64
ASE_00184	RNaseP_bact_a links to Rfam database...	0.76	0.68	0.86	69	54535	14	4	7	3	33
ASE_00185	RNaseP_bact_a links to Rfam database...	0.69	0.53	0.91	68	73461	12	3	4	5	60
ASE_00186	RNaseP_bact_a links to Rfam database...	0.71	0.62	0.81	82	78902	24	2	17	5	50
ASE_00190	RNaseP_bact_b links to Rfam database...	0.73	0.64	0.82	58	45380	21	3	10	8	32
ASE_00197	RNaseP_bact_a links to Rfam database...	0.67	0.56	0.80	81	89152	26	2	18	6	64
ASE_00203	RNaseP_bact_a links to Rfam database...	0.81	0.72	0.91	69	46589	11	2	5	4	27
ASE_00212	RNaseP_bact_a links to Rfam database...	0.66	0.53	0.81	79	93864	22	2	16	4	69
ASE_00214	RNaseP_bact_a links to Rfam database...	0.79	0.69	0.90	71	56201	13	3	5	5	32
ASE_00215	RNaseP_bact_a links to Rfam database...	0.60	0.47	0.77	47	48455	18	4	10	4	52
ASE_00216	RNaseP_bact_a links to Rfam database...	0.90	0.84	0.96	69	39268	9	3	0	6	13
ASE_00217	RNaseP_bact_a links to Rfam database...	0.82	0.77	0.87	69	40391	15	4	6	5	21
ASE_00221	RNaseP_bact_a links to Rfam database...	0.85	0.79	0.90	93	64517	14	4	6	4	24
ASE_00228	RNaseP_bact_a links to Rfam database...	0.75	0.69	0.83	59	46900	16	2	10	4	27
ASE_00229	RNaseP_bact_a links to Rfam database...	0.88	0.80	0.96	70	42413	7	2	1	4	17
ASE_00231	RNaseP_bact_a links to Rfam database...	0.67	0.57	0.77	55	47824	22	0	16	6	41
ASE_00232	RNaseP_bact_a links to Rfam database...	0.88	0.82	0.95	69	38430	8	3	1	4	15
ASE_00234	RNaseP_bact_a links to Rfam database...	0.64	0.52	0.79	67	75381	22	8	10	4	62
ASE_00238	RNaseP_bact_a links to Rfam database...	0.65	0.55	0.77	63	64179	25	5	14	6	51
ASE_00241	RNaseP_bact_a links to Rfam database...	0.85	0.84	0.87	73	43872	15	4	7	4	14
ASE_00242	RNaseP_bact_a links to Rfam database...	0.87	0.85	0.90	95	60969	17	4	7	6	17
ASE_00248	RNaseP_bact_a links to Rfam database...	0.84	0.81	0.88	92	62376	18	4	9	5	22
ASE_00254	RNaseP_bact_a links to Rfam database...	0.90	0.82	0.99	67	36788	6	1	0	5	15
ASE_00255	RNaseP_bact_a links to Rfam database...	0.60	0.55	0.67	71	74585	35	5	30	0	59
ASE_00257	RNaseP_bact_a links to Rfam database...	0.73	0.66	0.80	64	50960	21	5	11	5	33
ASE_00263	RNaseP_bact_a links to Rfam database...	0.74	0.61	0.89	73	70418	14	3	6	5	47
ASE_00267	RNaseP_bact_a links to Rfam database...	0.83	0.78	0.88	69	45072	15	4	5	6	19
ASE_00270	RNaseP_bact_a links to Rfam database...	0.58	0.44	0.77	56	72317	21	2	15	4	72
ASE_00274	RNaseP_bact_a links to Rfam database...	0.68	0.60	0.78	62	55531	22	5	13	4	41
ASE_00277	RNaseP_bact_a links to Rfam database...	0.73	0.67	0.79	61	48128	20	6	10	4	30
ASE_00279	RNaseP_bact_a links to Rfam database...	0.79	0.69	0.90	70	53223	13	2	6	5	31
ASE_00280	RNaseP_bact_a links to Rfam database...	0.71	0.64	0.79	63	51923	21	4	13	4	35
ASE_00281	RNaseP_bact_a links to Rfam database...	0.85	0.81	0.89	71	44471	12	4	5	3	17
ASE_00282	RNaseP_bact_a links to Rfam database...	0.71	0.57	0.90	72	77735	12	4	4	4	55
ASE_00283	RNaseP_bact_a links to Rfam database...	0.76	0.66	0.87	71	61694	14	4	7	3	36
ASE_00284	RNaseP_bact_a links to Rfam database...	0.78	0.67	0.91	72	58232	11	3	4	4	36
ASE_00285	RNaseP_bact_a links to Rfam database...	0.73	0.59	0.90	72	68926	12	2	6	4	50
ASE_00286	RNaseP_bact_a links to Rfam database...	0.83	0.78	0.89	72	46584	14	5	4	5	20
ASE_00287	RNaseP_bact_a links to Rfam database...	0.70	0.62	0.78	64	54864	24	4	14	6	39
ASE_00292	RNaseP_bact_a links to Rfam database...	0.76	0.67	0.87	93	81703	18	5	9	4	45
ASE_00294	RNaseP_bact_a links to Rfam database...	0.72	0.58	0.90	99	114371	15	4	7	4	72
ASE_00296	RNaseP_bact_a links to Rfam database...	0.75	0.64	0.87	93	91699	19	5	9	5	52
ASE_00297	RNaseP_bact_a links to Rfam database...	0.66	0.57	0.76	56	52901	21	4	14	3	42
ASE_00298	RNaseP_bact_a links to Rfam database...	0.72	0.61	0.85	69	67447	15	3	9	3	44
ASE_00305	RNaseP_bact_b links to Rfam database...	0.80	0.78	0.83	66	54535	26	2	12	12	19
ASE_00318	RNaseP_bact_b links to Rfam database...	0.76	0.69	0.84	81	80103	23	3	13	7	37
ASE_00321	RNaseP_bact_b links to Rfam database...	0.80	0.78	0.81	69	54530	26	3	13	10	19
ASE_00328	RNaseP_bact_b links to Rfam database...	0.79	0.76	0.83	85	72668	27	3	15	9	27
ASE_00332	RNaseP_bact_a links to Rfam database...	0.81	0.70	0.92	97	81705	13	2	6	5	41
ASE_00335	RNaseP_bact_b links to Rfam database...	0.77	0.72	0.83	83	75366	28	3	14	11	33
ASE_00340	RNaseP_bact_a links to Rfam database...	0.79	0.72	0.87	61	45986	16	3	6	7	24
ASE_00342	RNaseP_bact_a links to Rfam database...	0.88	0.85	0.92	98	62374	14	4	5	5	17
ASE_00353	RNaseP_bact_a links to Rfam database...	0.78	0.67	0.91	72	57891	13	2	5	6	35
ASE_00361	RNaseP_bact_a links to Rfam database...	0.69	0.54	0.89	68	75390	14	2	6	6	59
ASE_00362	RNaseP_bact_a links to Rfam database...	0.80	0.74	0.87	67	48128	17	3	7	7	24
ASE_00363	RNaseP_bact_a links to Rfam database...	0.76	0.69	0.84	65	51283	18	1	11	6	29
ASE_00364	RNaseP_bact_a links to Rfam database...	0.76	0.66	0.87	69	54206	16	2	8	6	36
ASE_00366	RNaseP_bact_a links to Rfam database...	0.77	0.69	0.85	68	58573	16	5	7	4	30
ASE_00367	RNaseP_bact_a links to Rfam database...	0.85	0.80	0.91	69	42995	12	2	5	5	17
ASE_00369	RNaseP_bact_a links to Rfam database...	0.78	0.69	0.88	74	55861	15	3	7	5	33
ASE_00370	RNaseP_bact_a links to Rfam database...	0.87	0.83	0.91	70	41828	12	2	5	5	14
ASE_00372	RNaseP_bact_a links to Rfam database...	0.79	0.69	0.90	69	51926	14	1	7	6	31
ASE_00374	RNaseP_bact_a links to Rfam database...	0.86	0.80	0.92	70	44774	10	2	4	4	18
ASE_00376	RNaseP_bact_a links to Rfam database...	0.73	0.64	0.84	67	56873	18	3	10	5	38
ASE_00377	RNaseP_bact_a links to Rfam database...	0.76	0.65	0.88	70	57550	13	3	7	3	37
ASE_00379	RNaseP_bact_a links to Rfam database...	0.88	0.83	0.94	74	45977	11	1	4	6	15
ASE_00382	RNaseP_bact_a links to Rfam database...	0.83	0.81	0.85	68	41825	20	3	9	8	16
ASE_00383	RNaseP_bact_a links to Rfam database...	0.80	0.70	0.90	74	54533	14	3	5	6	31
ASE_00384	RNaseP_bact_a links to Rfam database...	0.83	0.77	0.89	71	48436	14	3	6	5	21
ASE_00386	RNaseP_bact_a links to Rfam database...	0.80	0.72	0.88	69	50325	12	2	7	3	27
ASE_00387	RNaseP_bact_a links to Rfam database...	0.71	0.62	0.81	64	55866	19	2	13	4	40
ASE_00388	RNaseP_bact_a links to Rfam database...	0.79	0.75	0.84	67	45673	20	3	10	7	22
ASE_00390	RNaseP_bact_a links to Rfam database...	0.85	0.82	0.89	70	42116	13	3	6	4	15
ASE_00393	RNaseP_bact_a links to Rfam database...	0.71	0.67	0.77	62	47814	24	3	16	5	31
ASE_00394	RNaseP_bact_a links to Rfam database...	0.82	0.75	0.89	70	46892	15	4	5	6	23
ASE_00395	RNaseP_bact_a links to Rfam database...	0.84	0.81	0.87	68	41538	14	4	6	4	16
ASE_00396	RNaseP_bact_a links to Rfam database...	0.86	0.84	0.89	70	41537	14	4	5	5	13
ASE_00397	RNaseP_bact_a links to Rfam database...	0.79	0.69	0.90	72	54535	14	3	5	6	33
ASE_00398	RNaseP_bact_a links to Rfam database...	0.71	0.62	0.81	64	55866	18	3	12	3	40
ASE_00400	RNaseP_bact_a links to Rfam database...	0.78	0.69	0.89	73	57888	15	3	6	6	33
ASE_00401	RNaseP_bact_a links to Rfam database...	0.66	0.51	0.85	64	76953	16	4	7	5	62
ASE_00402	RNaseP_bact_a links to Rfam database...	0.81	0.79	0.83	67	42405	16	4	10	2	18
ASE_00403	RNaseP_bact_a links to Rfam database...	0.78	0.66	0.92	71	55868	12	1	5	6	36
ASE_00404	RNaseP_bact_a links to Rfam database...	0.85	0.82	0.89	70	42992	16	4	5	7	15
ASE_00406	RNaseP_bact_a links to Rfam database...	0.76	0.70	0.83	66	48748	18	3	11	4	28
ASE_00411	RNaseP_bact_a links to Rfam database...	0.69	0.67	0.71	60	49371	28	7	17	4	29
ASE_00412	RNaseP_bact_a links to Rfam database...	0.61	0.54	0.70	57	58229	28	5	20	3	48
ASE_00413	RNaseP_bact_a links to Rfam database...	0.77	0.77	0.78	62	44472	24	6	11	7	19
ASE_00415	RNaseP_bact_a links to Rfam database...	0.58	0.50	0.69	51	54872	26	2	21	3	52
ASE_00416	RNaseP_bact_a links to Rfam database...	0.74	0.67	0.81	85	77316	25	4	16	5	42
ASE_00419	RNaseP_bact_a links to Rfam database...	0.71	0.62	0.82	64	54868	18	4	10	4	39
ASE_00422	RNaseP_bact_a links to Rfam database...	0.82	0.73	0.92	69	46896	12	0	6	6	25
ASE_00423	RNaseP_bact_a links to Rfam database...	0.78	0.74	0.83	81	56855	22	2	15	5	28
ASE_00427	RNaseP_nuc links to Rfam database...	0.43	0.41	0.44	19	40712	32	9	15	8	27
ASE_00428	RNaseP_bact_a links to Rfam database...	0.76	0.70	0.81	88	76528	24	6	14	4	37
ASE_00430	RNaseP_bact_a links to Rfam database...	0.79	0.69	0.91	67	46897	12	1	6	5	30
ASE_00437	RNaseP_bact_a links to Rfam database...	0.58	0.50	0.67	68	79300	36	3	30	3	67
ASE_00441	RNaseP_bact_a links to Rfam database...	0.70	0.57	0.86	64	64187	14	2	8	4	48
ASE_00448	RNaseP_bact_a links to Rfam database...	0.81	0.79	0.84	88	64156	21	4	13	4	24
ASE_00451	RNaseP_bact_a links to Rfam database...	0.80	0.74	0.88	92	70771	17	4	9	4	33
RFA_00599	Telomerase-vert links to Rfam database...	0.86	0.82	0.90	91	101374	19	3	7	9	20
RFA_00601	Telomerase-vert links to Rfam database...	0.80	0.74	0.88	84	99139	25	3	9	13	30
RFA_00602	Telomerase-vert links to Rfam database...	0.79	0.72	0.87	84	101378	22	2	11	9	32
SRP_00006	Metazoa_SRP links to Rfam database...	0.96	0.94	0.99	95	45657	6	0	1	5	6
SRP_00011	Plant_SRP links to Rfam database...	0.83	0.80	0.86	83	46263	22	0	14	8	21
SRP_00015	Plant_SRP links to Rfam database...	0.84	0.81	0.88	80	46269	23	0	11	12	19
SRP_00024	Bacteria_large_SRP links to Rfam database...	0.47	0.28	0.80	24	37645	6	0	6	0	63
SRP_00026	Bacteria_large_SRP links to Rfam database...	0.55	0.33	0.91	29	36824	4	0	3	1	59
SRP_00027	Bacteria_large_SRP links to Rfam database...	0.56	0.34	0.91	30	37095	3	0	3	0	57
SRP_00030	Bacteria_large_SRP links to Rfam database...	0.56	0.34	0.91	30	36823	3	0	3	0	58
SRP_00031	Bacteria_large_SRP links to Rfam database...	0.54	0.33	0.91	29	36283	4	0	3	1	60
SRP_00037	Bacteria_large_SRP links to Rfam database...	0.56	0.34	0.91	30	36552	3	0	3	0	57
SRP_00050	Metazoa_SRP links to Rfam database...	0.99	0.99	1.00	98	44752	6	0	0	6	1
SRP_00066	Metazoa_SRP links to Rfam database...	0.82	0.76	0.88	76	45365	18	0	10	8	24
SRP_00086	Metazoa_SRP links to Rfam database...	0.94	0.90	0.99	90	44162	5	0	1	4	10
SRP_00088	Bacteria_large_SRP links to Rfam database...	0.49	0.29	0.84	26	34160	6	0	5	1	63
SRP_00089	Bacteria_large_SRP links to Rfam database...	0.54	0.32	0.91	29	35746	4	0	3	1	61
SRP_00090	Bacteria_large_SRP links to Rfam database...	0.54	0.32	0.91	29	35479	4	0	3	1	61
SRP_00102	Metazoa_SRP links to Rfam database...	0.79	0.76	0.82	77	44457	21	1	16	4	24
SRP_00103	Metazoa_SRP links to Rfam database...	0.84	0.77	0.92	79	45365	12	0	7	5	23
SRP_00152	Plant_SRP links to Rfam database...	0.88	0.85	0.91	88	45656	20	0	9	11	15
SRP_00171	Metazoa_SRP links to Rfam database...	0.89	0.88	0.91	77	45366	24	0	8	16	11
SRP_00174	Bacteria_large_SRP links to Rfam database...	0.56	0.35	0.91	30	38748	3	0	3	0	56
SRP_00178	Plant_SRP links to Rfam database...	0.88	0.84	0.92	86	45660	19	0	7	12	16
SRP_00179	Plant_SRP links to Rfam database...	0.89	0.84	0.94	88	45962	16	0	6	10	17
SRP_00181	Plant_SRP links to Rfam database...	0.82	0.77	0.88	79	45966	20	0	11	9	23
SRP_00182	Plant_SRP links to Rfam database...	0.92	0.90	0.94	91	45959	15	0	6	9	10
SRP_00184	Plant_SRP links to Rfam database...	0.86	0.83	0.88	83	45962	24	0	11	13	17
SRP_00188	Plant_SRP links to Rfam database...	0.87	0.85	0.89	67	31050	16	0	8	8	12
SRP_00228	Metazoa_SRP links to Rfam database...	0.93	0.89	0.98	85	45364	13	0	2	11	10
SRP_00308	Bacteria_large_SRP links to Rfam database...	0.34	0.14	0.86	12	36301	2	0	2	0	76
SRP_00317	Metazoa_SRP links to Rfam database...	0.96	0.94	0.98	92	45056	9	0	2	7	6
SRP_00337	Bacteria_large_SRP links to Rfam database...	0.55	0.33	0.91	30	35478	4	0	3	1	61
SRP_00347	Metazoa_SRP links to Rfam database...	0.91	0.86	0.97	83	46579	15	0	3	12	13
SRP_00368	Metazoa_SRP links to Rfam database...	0.83	0.81	0.86	79	43864	20	0	13	7	19

^top

Performance of CentroidAlifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	11784
Total TN	11337121
Total FP	892
Total FP CONTRA	75
Total FP INCONS	492
Total FP COMP	325
Total FN	9015

Total Scores
MCC	0.735
Average MCC ± 95% Confidence Intervals	0.733 ± 0.014
Sensitivity	0.567
Positive Predictive Value	0.954
Nr of predictions	200

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00004	RNaseP_bact_a links to Rfam database...	0.61	0.45	0.83	44	47842	9	0	9	0	53
ASE_00005	RNaseP_bact_a links to Rfam database...	0.75	0.57	0.97	67	57901	2	0	2	0	50
ASE_00006	RNaseP_bact_a links to Rfam database...	0.58	0.44	0.76	41	47532	13	0	13	0	52
ASE_00007	RNaseP_bact_a links to Rfam database...	0.83	0.71	0.98	78	59605	2	0	2	0	32
ASE_00012	RNaseP_bact_a links to Rfam database...	0.75	0.59	0.95	73	73843	7	1	3	3	50
ASE_00018	RNaseP_bact_a links to Rfam database...	0.78	0.60	1.00	81	80520	0	0	0	0	53
ASE_00020	RNaseP_bact_a links to Rfam database...	0.63	0.43	0.93	54	73862	4	3	1	0	72
ASE_00021	RNaseP_bact_a links to Rfam database...	0.63	0.44	0.90	71	104117	11	2	6	3	89
ASE_00022	RNaseP_bact_b links to Rfam database...	0.80	0.65	1.00	80	82948	5	0	0	5	44
ASE_00028	RNaseP_bact_b links to Rfam database...	0.80	0.64	1.00	81	84585	3	0	0	3	45
ASE_00035	RNaseP_bact_a links to Rfam database...	0.77	0.64	0.94	75	70420	8	0	5	3	43
ASE_00037	RNaseP_bact_a links to Rfam database...	0.84	0.71	1.00	78	59262	1	0	0	1	32
ASE_00038	RNaseP_bact_a links to Rfam database...	0.74	0.54	1.00	55	53573	0	0	0	0	46
ASE_00040	RNaseP_bact_a links to Rfam database...	0.77	0.59	1.00	79	78924	2	0	0	2	54
ASE_00041	RNaseP_bact_a links to Rfam database...	0.77	0.64	0.92	69	57555	6	0	6	0	39
ASE_00042	RNaseP_bact_a links to Rfam database...	0.65	0.49	0.87	71	90018	11	0	11	0	74
ASE_00044	RNaseP_bact_a links to Rfam database...	0.83	0.70	1.00	73	54542	0	0	0	0	32
ASE_00045	RNaseP_bact_b links to Rfam database...	0.85	0.76	0.94	61	47213	9	0	4	5	19
ASE_00064	RNaseP_bact_a links to Rfam database...	0.77	0.60	1.00	53	45398	0	0	0	0	36
ASE_00068	RNaseP_bact_a links to Rfam database...	0.54	0.38	0.78	32	37634	9	0	9	0	53
ASE_00074	RNaseP_bact_a links to Rfam database...	0.83	0.69	1.00	82	67814	1	0	0	1	37
ASE_00075	RNaseP_bact_a links to Rfam database...	0.64	0.44	0.92	71	108734	11	1	5	5	91
ASE_00077	RNaseP_bact_a links to Rfam database...	0.79	0.64	0.96	55	45093	2	1	1	0	31
ASE_00078	RNaseP_bact_a links to Rfam database...	0.83	0.69	1.00	57	43014	0	0	0	0	26
ASE_00080	RNaseP_bact_a links to Rfam database...	0.45	0.30	0.66	37	71575	19	1	18	0	86
ASE_00081	RNaseP_bact_a links to Rfam database...	0.77	0.59	1.00	57	49713	0	0	0	0	40
ASE_00082	RNaseP_bact_a links to Rfam database...	0.66	0.43	1.00	50	70450	6	0	0	6	66
ASE_00083	RNaseP_bact_a links to Rfam database...	0.72	0.52	1.00	57	62424	0	0	0	0	53
ASE_00084	RNaseP_bact_a links to Rfam database...	0.75	0.57	0.98	56	53571	1	1	0	0	43
ASE_00087	RNaseP_bact_a links to Rfam database...	0.60	0.38	0.95	54	88353	3	0	3	0	90
ASE_00090	RNaseP_bact_a links to Rfam database...	0.75	0.56	1.00	57	55554	0	0	0	0	44
ASE_00092	RNaseP_bact_a links to Rfam database...	0.70	0.50	0.98	56	63489	1	1	0	0	57
ASE_00099	RNaseP_bact_a links to Rfam database...	0.82	0.67	1.00	80	64540	0	0	0	0	40
ASE_00104	RNaseP_bact_a links to Rfam database...	0.81	0.67	0.99	80	64180	1	0	1	0	39
ASE_00105	RNaseP_bact_a links to Rfam database...	0.55	0.40	0.76	44	64203	14	4	10	0	67
ASE_00107	RNaseP_bact_a links to Rfam database...	0.78	0.63	0.96	80	73070	3	0	3	0	47
ASE_00114	RNaseP_bact_b links to Rfam database...	0.69	0.62	0.76	48	45388	20	0	15	5	29
ASE_00115	RNaseP_bact_a links to Rfam database...	0.74	0.54	1.00	55	54560	0	0	0	0	46
ASE_00118	RNaseP_bact_a links to Rfam database...	0.68	0.49	0.94	50	60673	4	1	2	1	52
ASE_00119	RNaseP_bact_a links to Rfam database...	0.66	0.44	0.98	48	62786	1	1	0	0	60
ASE_00123	RNaseP_bact_a links to Rfam database...	0.68	0.48	0.95	41	38460	2	0	2	0	44
ASE_00125	RNaseP_bact_a links to Rfam database...	0.67	0.47	0.95	41	39297	2	0	2	0	47
ASE_00128	RNaseP_bact_a links to Rfam database...	0.73	0.54	1.00	54	53247	0	0	0	0	46
ASE_00129	RNaseP_bact_a links to Rfam database...	0.71	0.50	1.00	56	62779	0	0	0	0	55
ASE_00131	RNaseP_bact_a links to Rfam database...	0.65	0.44	0.97	37	39302	1	1	0	0	48
ASE_00134	RNaseP_bact_a links to Rfam database...	0.69	0.54	0.89	51	50346	6	0	6	0	44
ASE_00135	RNaseP_bact_a links to Rfam database...	0.53	0.39	0.74	42	63133	15	0	15	0	67
ASE_00136	RNaseP_bact_a links to Rfam database...	0.75	0.59	0.95	54	48148	3	0	3	0	38
ASE_00137	RNaseP_bact_a links to Rfam database...	0.70	0.53	0.93	52	48460	4	0	4	0	46
ASE_00138	RNaseP_bact_a links to Rfam database...	0.79	0.63	1.00	51	40419	0	0	0	0	30
ASE_00140	RNaseP_bact_a links to Rfam database...	0.64	0.43	0.95	54	70819	3	3	0	0	71
ASE_00142	RNaseP_bact_a links to Rfam database...	0.77	0.61	0.97	75	67084	4	0	2	2	47
ASE_00146	RNaseP_bact_a links to Rfam database...	0.78	0.62	0.97	77	70797	2	0	2	0	47
ASE_00153	RNaseP_nuc links to Rfam database...	0.67	0.53	0.85	39	57584	7	1	6	0	34
ASE_00161	RNaseP_bact_b links to Rfam database...	0.86	0.78	0.94	68	53556	8	0	4	4	19
ASE_00163	RNaseP_bact_a links to Rfam database...	0.77	0.59	1.00	55	53246	0	0	0	0	38
ASE_00165	RNaseP_bact_a links to Rfam database...	0.69	0.50	0.94	51	52921	4	1	2	1	50
ASE_00170	RNaseP_bact_a links to Rfam database...	0.78	0.60	1.00	56	48772	0	0	0	0	37
ASE_00171	RNaseP_bact_a links to Rfam database...	0.76	0.59	1.00	55	48461	1	0	0	1	39
ASE_00172	RNaseP_bact_a links to Rfam database...	0.72	0.53	0.98	56	58939	1	1	0	0	50
ASE_00174	RNaseP_bact_a links to Rfam database...	0.60	0.43	0.82	47	61018	10	1	9	0	62
ASE_00175	RNaseP_bact_a links to Rfam database...	0.71	0.51	0.98	55	59975	1	1	0	0	52
ASE_00179	RNaseP_bact_a links to Rfam database...	0.79	0.63	0.98	53	44199	2	0	1	1	31
ASE_00180	RNaseP_bact_a links to Rfam database...	0.73	0.54	0.98	54	51305	1	1	0	0	46
ASE_00181	RNaseP_bact_a links to Rfam database...	0.71	0.52	0.96	55	57573	3	2	0	1	51
ASE_00182	RNaseP_bact_a links to Rfam database...	0.61	0.40	0.95	54	84198	3	0	3	0	82
ASE_00184	RNaseP_bact_a links to Rfam database...	0.75	0.56	1.00	57	54558	0	0	0	0	45
ASE_00185	RNaseP_bact_a links to Rfam database...	0.64	0.41	0.98	53	73482	1	1	0	0	75
ASE_00186	RNaseP_bact_a links to Rfam database...	0.66	0.51	0.86	67	78925	14	0	11	3	65
ASE_00190	RNaseP_bact_b links to Rfam database...	0.74	0.54	1.00	49	45402	3	0	0	3	41
ASE_00197	RNaseP_bact_a links to Rfam database...	0.63	0.46	0.86	67	89175	12	0	11	1	78
ASE_00203	RNaseP_bact_a links to Rfam database...	0.72	0.55	0.93	53	46608	4	2	2	0	43
ASE_00212	RNaseP_bact_a links to Rfam database...	0.63	0.45	0.89	66	93887	9	0	8	1	82
ASE_00214	RNaseP_bact_a links to Rfam database...	0.73	0.54	0.98	56	56223	2	1	0	1	47
ASE_00215	RNaseP_bact_a links to Rfam database...	0.51	0.32	0.82	32	48477	7	0	7	0	67
ASE_00216	RNaseP_bact_a links to Rfam database...	0.81	0.66	1.00	54	39286	0	0	0	0	28
ASE_00217	RNaseP_bact_a links to Rfam database...	0.82	0.67	1.00	60	40410	1	0	0	1	30
ASE_00221	RNaseP_bact_a links to Rfam database...	0.83	0.70	0.99	82	64537	1	0	1	0	35
ASE_00228	RNaseP_bact_a links to Rfam database...	0.72	0.57	0.91	49	46917	6	3	2	1	37
ASE_00229	RNaseP_bact_a links to Rfam database...	0.78	0.61	1.00	53	42433	2	0	0	2	34
ASE_00231	RNaseP_bact_a links to Rfam database...	0.59	0.45	0.78	43	47840	12	0	12	0	53
ASE_00232	RNaseP_bact_a links to Rfam database...	0.81	0.65	1.00	55	38448	0	0	0	0	29
ASE_00234	RNaseP_bact_a links to Rfam database...	0.64	0.43	0.95	55	75408	3	3	0	0	74
ASE_00238	RNaseP_bact_a links to Rfam database...	0.61	0.44	0.86	50	64203	8	2	6	0	64
ASE_00241	RNaseP_bact_a links to Rfam database...	0.79	0.64	0.98	56	43899	1	0	1	0	31
ASE_00242	RNaseP_bact_a links to Rfam database...	0.85	0.72	1.00	81	60994	1	0	0	1	31
ASE_00248	RNaseP_bact_a links to Rfam database...	0.84	0.71	1.00	81	62400	1	0	0	1	33
ASE_00254	RNaseP_bact_a links to Rfam database...	0.81	0.66	1.00	54	36802	0	0	0	0	28
ASE_00255	RNaseP_bact_a links to Rfam database...	0.64	0.51	0.80	66	74609	16	0	16	0	64
ASE_00257	RNaseP_bact_a links to Rfam database...	0.68	0.52	0.91	50	50985	5	1	4	0	47
ASE_00263	RNaseP_bact_a links to Rfam database...	0.68	0.47	0.98	56	70443	1	1	0	0	64
ASE_00267	RNaseP_bact_a links to Rfam database...	0.80	0.64	1.00	56	45094	0	0	0	0	32
ASE_00270	RNaseP_bact_a links to Rfam database...	0.55	0.34	0.90	43	72342	6	0	5	1	85
ASE_00274	RNaseP_bact_a links to Rfam database...	0.71	0.53	0.95	55	55553	3	3	0	0	48
ASE_00277	RNaseP_bact_a links to Rfam database...	0.73	0.57	0.93	52	48149	4	3	1	0	39
ASE_00279	RNaseP_bact_a links to Rfam database...	0.73	0.54	0.98	55	53245	1	0	1	0	46
ASE_00280	RNaseP_bact_a links to Rfam database...	0.74	0.57	0.97	56	51945	2	1	1	0	42
ASE_00281	RNaseP_bact_a links to Rfam database...	0.78	0.63	0.98	55	44495	1	0	1	0	33
ASE_00282	RNaseP_bact_a links to Rfam database...	0.66	0.45	0.98	57	77757	1	1	0	0	70
ASE_00283	RNaseP_bact_a links to Rfam database...	0.72	0.52	0.98	56	61719	1	0	1	0	51
ASE_00284	RNaseP_bact_a links to Rfam database...	0.72	0.53	0.98	57	58253	1	1	0	0	51
ASE_00285	RNaseP_bact_a links to Rfam database...	0.68	0.47	1.00	57	68949	0	0	0	0	65
ASE_00286	RNaseP_bact_a links to Rfam database...	0.78	0.61	1.00	56	46609	0	0	0	0	36
ASE_00287	RNaseP_bact_a links to Rfam database...	0.67	0.50	0.89	51	54889	6	0	6	0	52
ASE_00292	RNaseP_bact_a links to Rfam database...	0.76	0.58	1.00	80	81730	1	0	0	1	58
ASE_00294	RNaseP_bact_a links to Rfam database...	0.68	0.47	0.98	81	114398	2	0	2	0	90
ASE_00296	RNaseP_bact_a links to Rfam database...	0.73	0.54	0.98	79	91725	3	0	2	1	66
ASE_00297	RNaseP_bact_a links to Rfam database...	0.61	0.45	0.83	44	52922	9	2	7	0	54
ASE_00298	RNaseP_bact_a links to Rfam database...	0.70	0.50	0.98	56	67471	1	1	0	0	57
ASE_00305	RNaseP_bact_b links to Rfam database...	0.87	0.79	0.96	67	54545	8	0	3	5	18
ASE_00318	RNaseP_bact_b links to Rfam database...	0.79	0.62	1.00	73	80127	6	0	0	6	45
ASE_00321	RNaseP_bact_b links to Rfam database...	0.89	0.80	1.00	70	54545	5	0	0	5	18
ASE_00328	RNaseP_bact_b links to Rfam database...	0.83	0.70	1.00	78	72693	5	0	0	5	34
ASE_00332	RNaseP_bact_a links to Rfam database...	0.78	0.60	1.00	83	81727	0	0	0	0	55
ASE_00335	RNaseP_bact_b links to Rfam database...	0.81	0.66	1.00	77	75389	7	0	0	7	39
ASE_00340	RNaseP_bact_a links to Rfam database...	0.73	0.56	0.94	48	46005	7	0	3	4	37
ASE_00342	RNaseP_bact_a links to Rfam database...	0.84	0.71	1.00	82	62399	0	0	0	0	33
ASE_00353	RNaseP_bact_a links to Rfam database...	0.72	0.52	0.98	56	57913	2	1	0	1	51
ASE_00361	RNaseP_bact_a links to Rfam database...	0.65	0.43	0.98	55	75410	1	1	0	0	72
ASE_00362	RNaseP_bact_a links to Rfam database...	0.78	0.62	1.00	56	48149	1	0	0	1	35
ASE_00363	RNaseP_bact_a links to Rfam database...	0.70	0.54	0.89	51	51303	6	0	6	0	43
ASE_00364	RNaseP_bact_a links to Rfam database...	0.66	0.49	0.89	51	54228	6	1	5	0	54
ASE_00366	RNaseP_bact_a links to Rfam database...	0.69	0.53	0.90	52	58595	6	2	4	0	46
ASE_00367	RNaseP_bact_a links to Rfam database...	0.81	0.65	1.00	56	43015	1	0	0	1	30
ASE_00369	RNaseP_bact_a links to Rfam database...	0.73	0.53	1.00	57	55888	0	0	0	0	50
ASE_00370	RNaseP_bact_a links to Rfam database...	0.78	0.62	0.98	52	41852	1	0	1	0	32
ASE_00372	RNaseP_bact_a links to Rfam database...	0.73	0.54	0.98	54	51948	1	0	1	0	46
ASE_00374	RNaseP_bact_a links to Rfam database...	0.78	0.60	1.00	53	44797	0	0	0	0	35
ASE_00376	RNaseP_bact_a links to Rfam database...	0.68	0.50	0.93	53	56896	4	0	4	0	52
ASE_00377	RNaseP_bact_a links to Rfam database...	0.67	0.50	0.91	53	57572	5	1	4	0	54
ASE_00379	RNaseP_bact_a links to Rfam database...	0.79	0.63	1.00	56	46000	1	0	0	1	33
ASE_00382	RNaseP_bact_a links to Rfam database...	0.80	0.64	1.00	54	41851	1	0	0	1	30
ASE_00383	RNaseP_bact_a links to Rfam database...	0.74	0.54	1.00	57	54558	0	0	0	0	48
ASE_00384	RNaseP_bact_a links to Rfam database...	0.78	0.61	1.00	56	48460	0	0	0	0	36
ASE_00386	RNaseP_bact_a links to Rfam database...	0.77	0.59	1.00	57	50346	0	0	0	0	39
ASE_00387	RNaseP_bact_a links to Rfam database...	0.63	0.46	0.87	48	55890	7	0	7	0	56
ASE_00388	RNaseP_bact_a links to Rfam database...	0.77	0.60	1.00	53	45700	1	0	0	1	36
ASE_00390	RNaseP_bact_a links to Rfam database...	0.78	0.62	0.98	53	42141	1	0	1	0	32
ASE_00393	RNaseP_bact_a links to Rfam database...	0.71	0.56	0.91	52	47838	5	0	5	0	41
ASE_00394	RNaseP_bact_a links to Rfam database...	0.76	0.58	1.00	54	46917	0	0	0	0	39
ASE_00395	RNaseP_bact_a links to Rfam database...	0.80	0.64	1.00	54	41562	0	0	0	0	30
ASE_00396	RNaseP_bact_a links to Rfam database...	0.81	0.65	1.00	54	41562	0	0	0	0	29
ASE_00397	RNaseP_bact_a links to Rfam database...	0.74	0.54	1.00	57	54558	0	0	0	0	48
ASE_00398	RNaseP_bact_a links to Rfam database...	0.72	0.52	1.00	54	55891	0	0	0	0	50
ASE_00400	RNaseP_bact_a links to Rfam database...	0.72	0.52	1.00	55	57915	1	0	0	1	51
ASE_00401	RNaseP_bact_a links to Rfam database...	0.62	0.40	0.96	50	76976	2	1	1	0	76
ASE_00402	RNaseP_bact_a links to Rfam database...	0.80	0.65	1.00	55	42431	0	0	0	0	30
ASE_00403	RNaseP_bact_a links to Rfam database...	0.73	0.53	1.00	57	55888	0	0	0	0	50
ASE_00404	RNaseP_bact_a links to Rfam database...	0.80	0.65	1.00	55	43016	1	0	0	1	30
ASE_00406	RNaseP_bact_a links to Rfam database...	0.78	0.61	1.00	57	48771	0	0	0	0	37
ASE_00411	RNaseP_bact_a links to Rfam database...	0.67	0.55	0.82	49	49395	11	5	6	0	40
ASE_00412	RNaseP_bact_a links to Rfam database...	0.63	0.47	0.84	49	58253	9	2	7	0	56
ASE_00413	RNaseP_bact_a links to Rfam database...	0.72	0.57	0.90	46	44500	7	2	3	2	35
ASE_00415	RNaseP_bact_a links to Rfam database...	0.57	0.40	0.80	41	54895	10	0	10	0	62
ASE_00416	RNaseP_bact_a links to Rfam database...	0.76	0.61	0.94	78	77338	5	1	4	0	49
ASE_00419	RNaseP_bact_a links to Rfam database...	0.67	0.50	0.89	51	54889	6	2	4	0	52
ASE_00422	RNaseP_bact_a links to Rfam database...	0.74	0.57	0.96	54	46915	3	0	2	1	40
ASE_00423	RNaseP_bact_a links to Rfam database...	0.77	0.64	0.93	70	56878	6	0	5	1	39
ASE_00427	RNaseP_nuc links to Rfam database...	0.86	0.74	1.00	34	40721	0	0	0	0	12
ASE_00428	RNaseP_bact_a links to Rfam database...	0.77	0.62	0.94	78	76553	5	1	4	0	47
ASE_00430	RNaseP_bact_a links to Rfam database...	0.73	0.55	0.98	53	46917	1	0	1	0	44
ASE_00437	RNaseP_bact_a links to Rfam database...	0.52	0.40	0.67	54	79320	27	0	27	0	81
ASE_00441	RNaseP_bact_a links to Rfam database...	0.65	0.44	0.96	49	64210	3	0	2	1	63
ASE_00448	RNaseP_bact_a links to Rfam database...	0.81	0.69	0.95	77	64180	4	0	4	0	35
ASE_00451	RNaseP_bact_a links to Rfam database...	0.79	0.64	0.96	80	70793	3	0	3	0	45
RFA_00599	Telomerase-vert links to Rfam database...	0.85	0.73	0.99	81	101393	4	0	1	3	30
RFA_00601	Telomerase-vert links to Rfam database...	0.82	0.71	0.95	81	99150	9	0	4	5	33
RFA_00602	Telomerase-vert links to Rfam database...	0.81	0.71	0.93	82	101387	10	0	6	4	34
SRP_00006	Metazoa_SRP links to Rfam database...	0.91	0.82	1.00	83	45670	7	0	0	7	18
SRP_00011	Plant_SRP links to Rfam database...	0.81	0.74	0.89	77	46273	15	0	10	5	27
SRP_00015	Plant_SRP links to Rfam database...	0.82	0.75	0.89	74	46277	19	0	9	10	25
SRP_00024	Bacteria_large_SRP links to Rfam database...	0.56	0.31	1.00	27	37648	4	0	0	4	60
SRP_00026	Bacteria_large_SRP links to Rfam database...	0.55	0.31	1.00	27	36829	4	0	0	4	61
SRP_00027	Bacteria_large_SRP links to Rfam database...	0.57	0.32	1.00	28	37100	4	0	0	4	59
SRP_00030	Bacteria_large_SRP links to Rfam database...	0.55	0.31	1.00	27	36829	4	0	0	4	61
SRP_00031	Bacteria_large_SRP links to Rfam database...	0.54	0.29	1.00	26	36289	5	0	0	5	63
SRP_00037	Bacteria_large_SRP links to Rfam database...	0.56	0.31	1.00	27	36558	4	0	0	4	60
SRP_00050	Metazoa_SRP links to Rfam database...	0.94	0.88	1.00	87	44763	5	0	0	5	12
SRP_00066	Metazoa_SRP links to Rfam database...	0.91	0.82	1.00	82	45369	10	0	0	10	18
SRP_00086	Metazoa_SRP links to Rfam database...	0.94	0.88	1.00	88	44165	4	0	0	4	12
SRP_00088	Bacteria_large_SRP links to Rfam database...	0.55	0.30	1.00	27	34164	4	0	0	4	62
SRP_00089	Bacteria_large_SRP links to Rfam database...	0.55	0.30	1.00	27	35751	4	0	0	4	63
SRP_00090	Bacteria_large_SRP links to Rfam database...	0.55	0.30	1.00	27	35484	4	0	0	4	63
SRP_00102	Metazoa_SRP links to Rfam database...	0.93	0.86	1.00	87	44464	5	0	0	5	14
SRP_00103	Metazoa_SRP links to Rfam database...	0.93	0.86	1.00	88	45363	4	0	0	4	14
SRP_00152	Plant_SRP links to Rfam database...	0.86	0.79	0.93	81	45666	11	0	6	5	22
SRP_00171	Metazoa_SRP links to Rfam database...	0.92	0.85	1.00	75	45376	17	0	0	17	13
SRP_00174	Bacteria_large_SRP links to Rfam database...	0.56	0.31	1.00	27	38754	4	0	0	4	59
SRP_00178	Plant_SRP links to Rfam database...	0.91	0.83	0.99	85	45667	7	0	1	6	17
SRP_00179	Plant_SRP links to Rfam database...	0.89	0.79	1.00	83	45973	9	0	0	9	22
SRP_00181	Plant_SRP links to Rfam database...	0.85	0.78	0.93	80	45970	13	0	6	7	22
SRP_00182	Plant_SRP links to Rfam database...	0.87	0.79	0.95	80	45972	11	0	4	7	21
SRP_00184	Plant_SRP links to Rfam database...	0.85	0.78	0.92	78	45971	15	0	7	8	22
SRP_00188	Plant_SRP links to Rfam database...	0.88	0.85	0.91	67	31051	13	0	7	6	12
SRP_00228	Metazoa_SRP links to Rfam database...	0.92	0.86	0.99	82	45368	10	0	1	9	13
SRP_00308	Bacteria_large_SRP links to Rfam database...	0.55	0.31	1.00	27	36288	4	0	0	4	61
SRP_00317	Metazoa_SRP links to Rfam database...	0.90	0.84	0.98	82	45066	10	0	2	8	16
SRP_00337	Bacteria_large_SRP links to Rfam database...	0.54	0.30	1.00	27	35484	4	0	0	4	64
SRP_00347	Metazoa_SRP links to Rfam database...	0.90	0.83	0.96	80	46582	12	0	3	9	16
SRP_00368	Metazoa_SRP links to Rfam database...	0.93	0.87	1.00	85	43871	7	0	0	7	13

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of PETfold_pre2.0(20) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(20)

2. Individual counts for PETfold_pre2.0(20) [ download as .csv ]

Performance of CentroidAlifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]
