Overview

Metric	CentroidAlifold(20)		McQFold
MCC	0.810	>	0.629
Average MCC ± 95% Confidence Intervals	0.802 ± 0.071	>	0.668 ± 0.131
Sensitivity	0.716	>	0.641
Positive Predictive Value	0.921	>	0.624
Total TP	499	>	447
Total TN	74687	>	74513
Total FP	122	<	347
Total FP CONTRA	21	<	95
Total FP INCONS	22	<	174
Total FP COMP	79	>	78
Total FN	198	<	250
P-value	3.56938820447e-08

^top

Performance plots

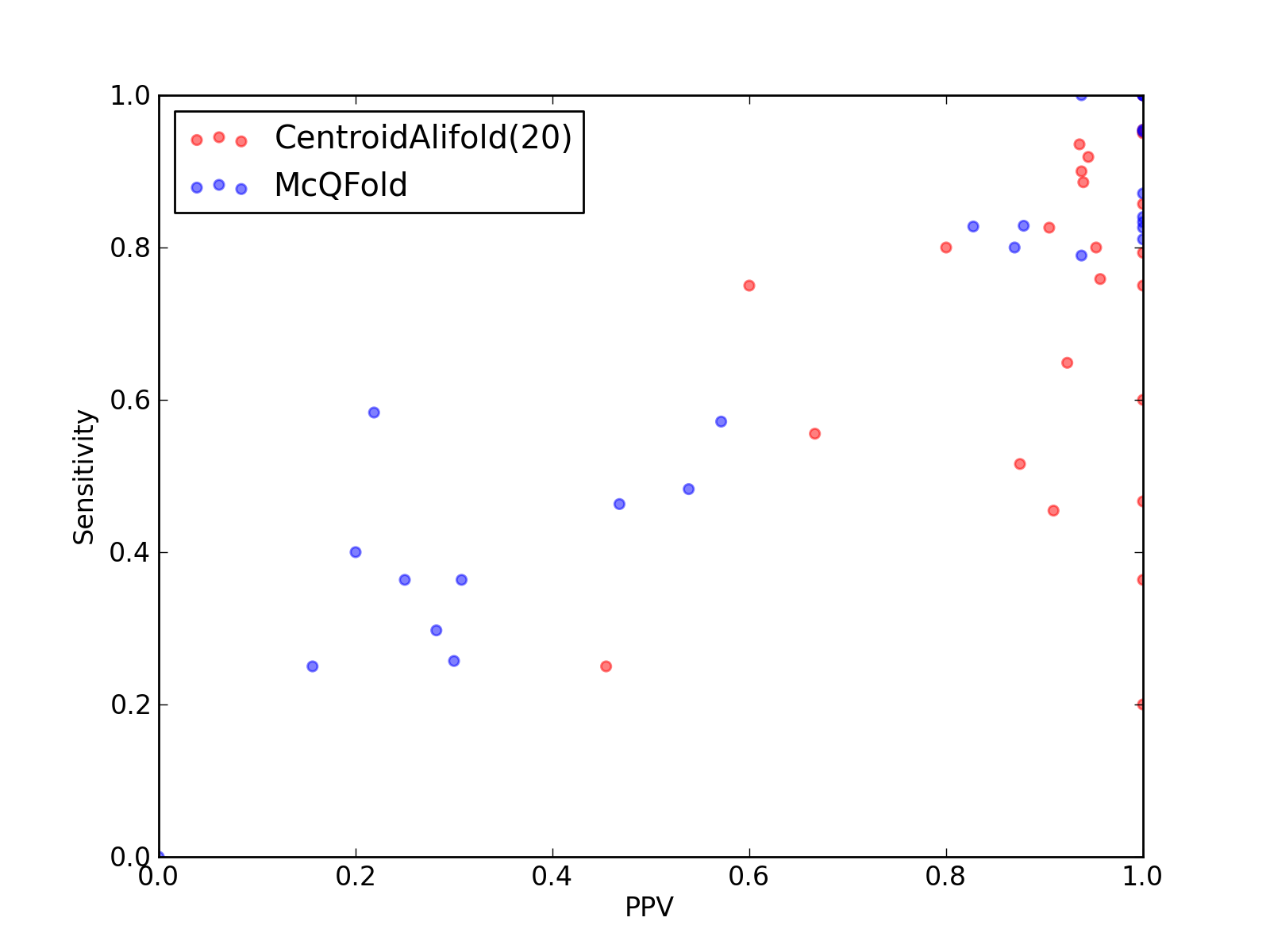

Comparison of performance of CentroidAlifold(20) and McQFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(20) and McQFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(20) and McQFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(20) and McQFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(20) and McQFold).

^top

Performance of CentroidAlifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(20)

Total Base Pair Counts
Total TP	499
Total TN	74687
Total FP	122
Total FP CONTRA	21
Total FP INCONS	22
Total FP COMP	79
Total FN	198

Total Scores
MCC	0.810
Average MCC ± 95% Confidence Intervals	0.802 ± 0.071
Sensitivity	0.716
Positive Predictive Value	0.921
Nr of predictions	26

^top

2. Individual counts for CentroidAlifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.59	0.56	0.67	10	342	6	0	5	1	8
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	7	0	0	7	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.20	1.00	7	2038	4	0	0	4	28
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3AMU_B	tRNA links to Rfam database...	1.00	1.00	1.00	19	1138	2	0	0	2	0
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.67	0.52	0.88	49	25480	9	7	0	2	46
3IZF_C	5S_rRNA links to Rfam database...	0.91	0.89	0.94	31	2607	6	0	2	4	4
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_3	5S_rRNA links to Rfam database...	0.80	0.80	0.80	12	2363	23	0	3	20	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.67	0.75	0.60	9	4741	9	5	1	3	3
3LA5_A	Purine links to Rfam database...	0.87	0.80	0.95	20	933	1	1	0	0	5
3NPB_A	SAM links to Rfam database...	0.77	0.65	0.92	24	2252	6	1	1	4	13
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	9	0	2	7	2
3O58_3	5_8S_rRNA links to Rfam database...	0.64	0.45	0.91	10	4753	2	1	0	1	12
3PDR_A	ykoK links to Rfam database...	0.92	0.90	0.94	45	4792	5	1	2	2	5
3RKF_A	Purine links to Rfam database...	0.86	0.75	1.00	18	848	0	0	0	0	6
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.25	0.45	5	4505	8	3	3	2	15
4A1C_3	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	2727	4	0	2	2	3
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.77	0.60	1.00	9	463	0	0	0	0	6
4ENC_A	crcB links to Rfam database...	0.68	0.47	1.00	7	489	0	0	0	0	8

^top

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	447
Total TN	74513
Total FP	347
Total FP CONTRA	95
Total FP INCONS	174
Total FP COMP	78
Total FN	250

Total Scores
MCC	0.629
Average MCC ± 95% Confidence Intervals	0.668 ± 0.131
Sensitivity	0.641
Positive Predictive Value	0.624
Nr of predictions	26

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.33	0.36	0.31	4	1822	27	2	7	18	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.27	0.26	0.30	9	2015	22	0	21	1	26
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3AMU_B	tRNA links to Rfam database...	0.86	0.79	0.94	15	1141	4	0	1	3	4
3GX2_A	SAM links to Rfam database...	0.56	0.57	0.57	16	1421	13	4	8	1	12
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.46	0.46	0.47	44	25442	56	14	36	6	51
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	7	0	4	3	6
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1091	20	4	16	0	20
3JYX_3	5S_rRNA links to Rfam database...	0.28	0.40	0.20	6	2348	24	17	7	0	9
3JYX_4	5_8S_rRNA links to Rfam database...	0.35	0.58	0.22	7	4724	33	17	8	8	5
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.90	0.81	1.00	30	2248	5	0	0	5	7
3O58_2	5S_rRNA links to Rfam database...	0.93	0.87	1.00	27	2727	2	0	0	2	4
3O58_3	5_8S_rRNA links to Rfam database...	0.30	0.36	0.25	8	4732	27	15	9	3	14
3PDR_A	ykoK links to Rfam database...	0.83	0.80	0.87	40	4794	9	2	4	3	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	1	4	0	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	33	11	16	6	15
4A1C_3	5S_rRNA links to Rfam database...	0.28	0.30	0.28	11	2724	30	4	24	2	26
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
