Overview

Metric	CentroidAlifold(20)		Vsfold5
MCC	0.810	>	0.494
Average MCC ± 95% Confidence Intervals	0.802 ± 0.071	>	0.541 ± 0.148
Sensitivity	0.716	>	0.495
Positive Predictive Value	0.921	>	0.502
Total TP	499	>	345
Total TN	74687	>	74542
Total FP	122	<	430
Total FP CONTRA	21	<	93
Total FP INCONS	22	<	249
Total FP COMP	79	<	88
Total FN	198	<	352
P-value	5.02343278931e-08

^top

Performance plots

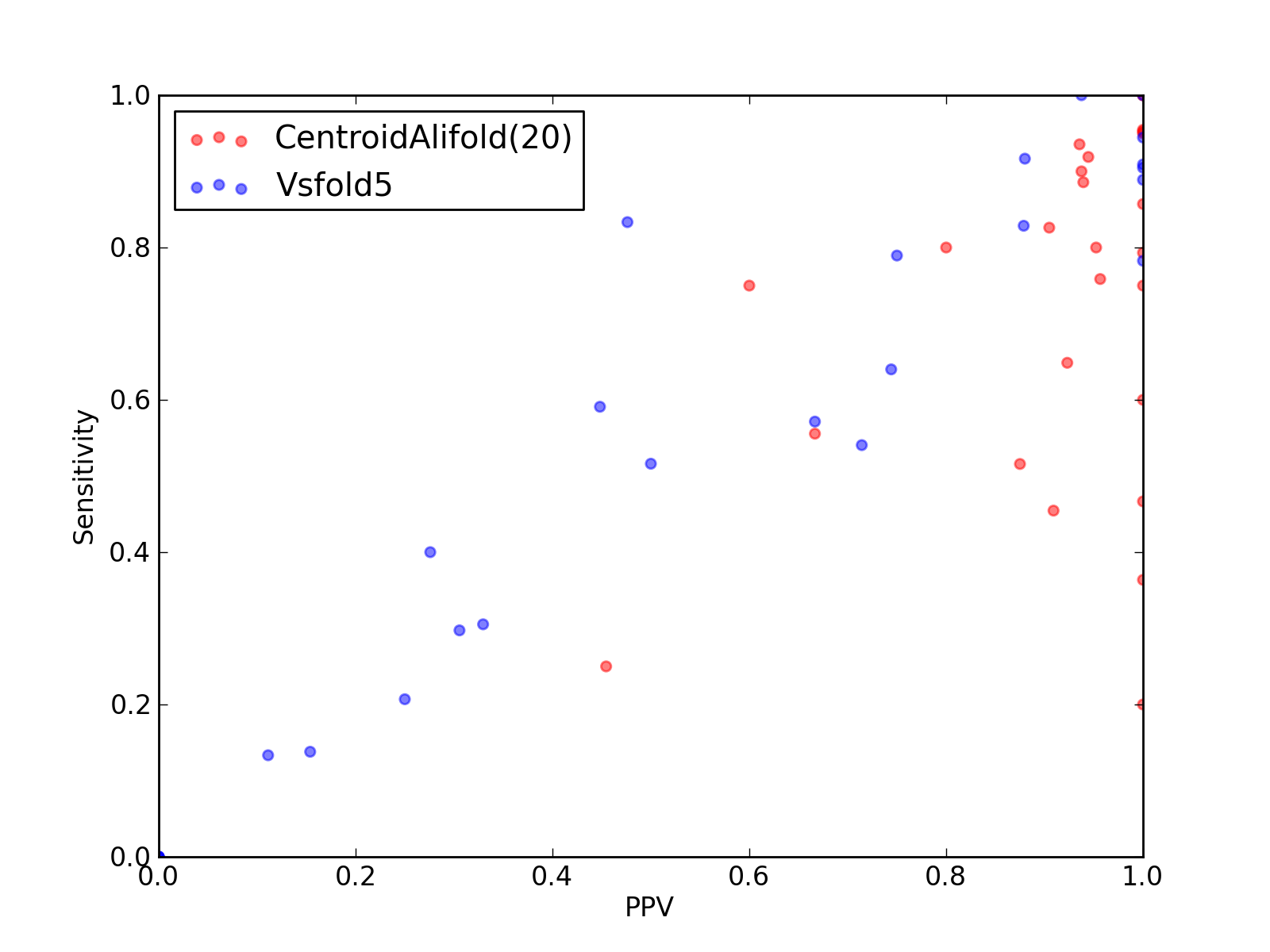

Comparison of performance of CentroidAlifold(20) and Vsfold5. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(20) and Vsfold5).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(20) and Vsfold5).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(20) and Vsfold5. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(20) and Vsfold5).

^top

Performance of CentroidAlifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(20)

Total Base Pair Counts
Total TP	499
Total TN	74687
Total FP	122
Total FP CONTRA	21
Total FP INCONS	22
Total FP COMP	79
Total FN	198

Total Scores
MCC	0.810
Average MCC ± 95% Confidence Intervals	0.802 ± 0.071
Sensitivity	0.716
Positive Predictive Value	0.921
Nr of predictions	26

^top

2. Individual counts for CentroidAlifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.59	0.56	0.67	10	342	6	0	5	1	8
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	7	0	0	7	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.20	1.00	7	2038	4	0	0	4	28
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3AMU_B	tRNA links to Rfam database...	1.00	1.00	1.00	19	1138	2	0	0	2	0
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.67	0.52	0.88	49	25480	9	7	0	2	46
3IZF_C	5S_rRNA links to Rfam database...	0.91	0.89	0.94	31	2607	6	0	2	4	4
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_3	5S_rRNA links to Rfam database...	0.80	0.80	0.80	12	2363	23	0	3	20	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.67	0.75	0.60	9	4741	9	5	1	3	3
3LA5_A	Purine links to Rfam database...	0.87	0.80	0.95	20	933	1	1	0	0	5
3NPB_A	SAM links to Rfam database...	0.77	0.65	0.92	24	2252	6	1	1	4	13
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	9	0	2	7	2
3O58_3	5_8S_rRNA links to Rfam database...	0.64	0.45	0.91	10	4753	2	1	0	1	12
3PDR_A	ykoK links to Rfam database...	0.92	0.90	0.94	45	4792	5	1	2	2	5
3RKF_A	Purine links to Rfam database...	0.86	0.75	1.00	18	848	0	0	0	0	6
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.25	0.45	5	4505	8	3	3	2	15
4A1C_3	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	2727	4	0	2	2	3
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.77	0.60	1.00	9	463	0	0	0	0	6
4ENC_A	crcB links to Rfam database...	0.68	0.47	1.00	7	489	0	0	0	0	8

^top

Performance of Vsfold5 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold5

Total Base Pair Counts
Total TP	345
Total TN	74542
Total FP	430
Total FP CONTRA	93
Total FP INCONS	249
Total FP COMP	88
Total FN	352

Total Scores
MCC	0.494
Average MCC ± 95% Confidence Intervals	0.541 ± 0.148
Sensitivity	0.495
Positive Predictive Value	0.502
Nr of predictions	26

^top

2. Individual counts for Vsfold5 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.97	0.94	1.00	17	340	1	0	0	1	1
2WRQ_Y	tRNA links to Rfam database...	0.94	0.89	1.00	8	1144	13	0	0	13	1
2XKV_B	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	1803	32	17	15	0	11
2XQD_Y	tRNA links to Rfam database...	0.95	0.90	1.00	19	1110	1	0	0	1	2
2XXA_G	Bacteria_small_SRP links to Rfam database...	-0.02	0.00	0.00	0	2014	31	2	29	0	35
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3AMU_B	tRNA links to Rfam database...	0.77	0.79	0.75	15	1137	8	0	5	3	4
3GX2_A	SAM links to Rfam database...	0.61	0.57	0.67	16	1425	9	0	8	1	12
3IVN_B	Purine links to Rfam database...	0.88	0.78	1.00	18	885	0	0	0	0	5
3IZ4_A	tmRNA links to Rfam database...	0.31	0.31	0.33	29	25448	65	14	45	6	66
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	5	0	4	1	6
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1092	19	4	15	0	20
3JYX_3	5S_rRNA links to Rfam database...	0.12	0.13	0.11	2	2360	20	6	10	4	13
3JYX_4	5_8S_rRNA links to Rfam database...	0.63	0.83	0.48	10	4735	32	9	2	21	2
3LA5_A	Purine links to Rfam database...	-0.02	0.00	0.00	0	938	16	0	16	0	25
3NPB_A	SAM links to Rfam database...	0.62	0.54	0.71	20	2250	10	1	7	2	17
3O58_2	5S_rRNA links to Rfam database...	0.50	0.52	0.50	16	2722	19	3	13	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.59	0.45	13	4735	28	11	5	12	9
3PDR_A	ykoK links to Rfam database...	0.69	0.64	0.74	32	4797	13	3	8	2	18
3RKF_A	Purine links to Rfam database...	0.90	0.92	0.88	22	841	3	3	0	0	2
3SD1_A	THF links to Rfam database...	0.13	0.14	0.15	4	1507	22	5	17	0	25
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.40	0.28	8	4487	37	8	13	16	12
4A1C_3	5S_rRNA links to Rfam database...	0.29	0.30	0.31	11	2727	26	4	21	1	26
4AOB_A	SAM links to Rfam database...	0.21	0.21	0.25	6	1413	19	2	16	1	23
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
