Overview

Metric	CentroidAlifold(seed)		RSpredict(20)
MCC	0.728	>	0.660
Average MCC ± 95% Confidence Intervals	0.708 ± 0.063	>	0.644 ± 0.119
Sensitivity	0.580	<	0.590
Positive Predictive Value	0.918	>	0.745
Total TP	404	<	411
Total TN	74789	>	74677
Total FP	89	<	230
Total FP CONTRA	17	<	61
Total FP INCONS	19	<	80
Total FP COMP	53	<	89
Total FN	293	>	286
P-value	5.19332990918e-08

^top

Performance plots

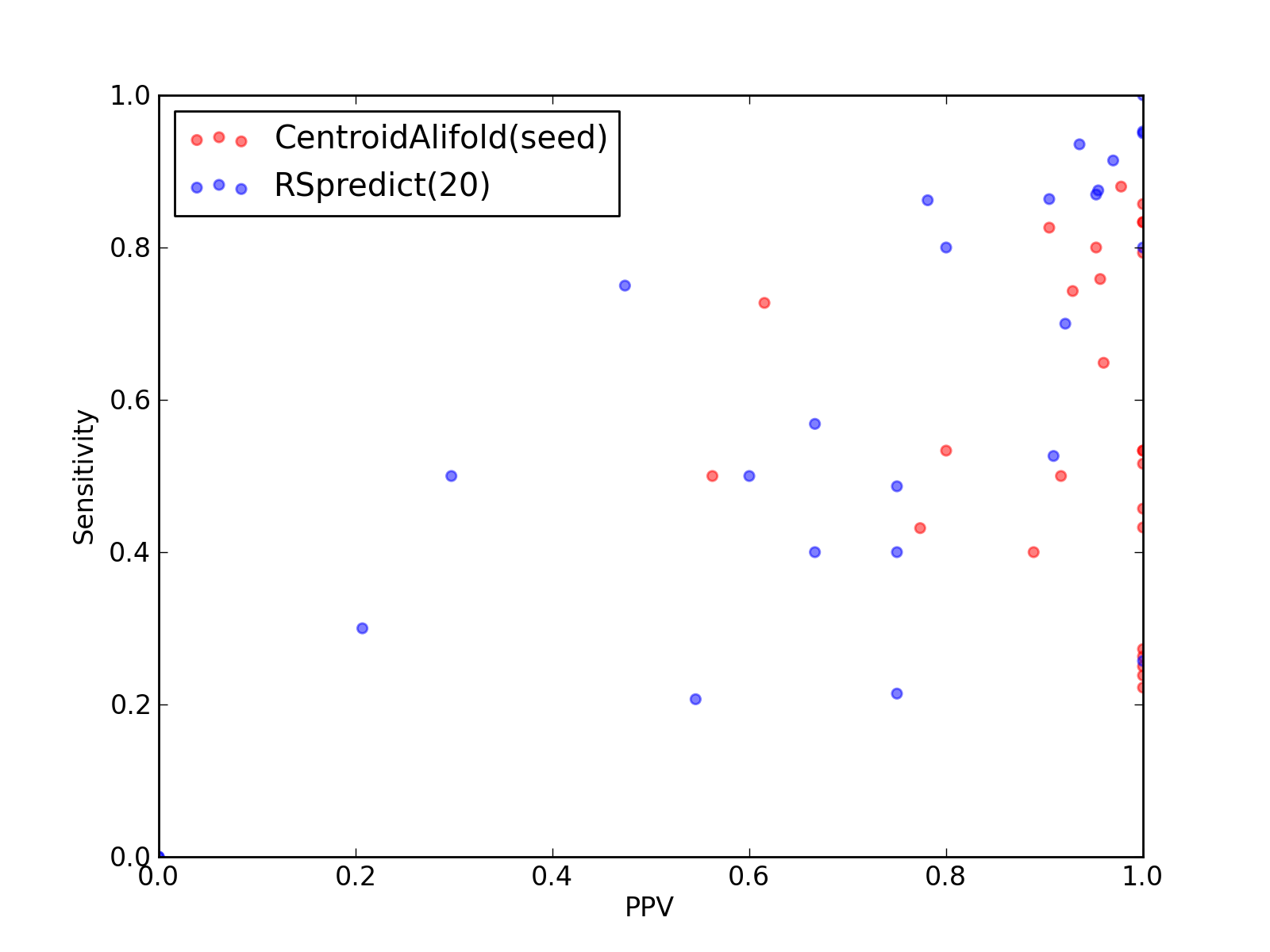

Comparison of performance of CentroidAlifold(seed) and RSpredict(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and RSpredict(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and RSpredict(20)).

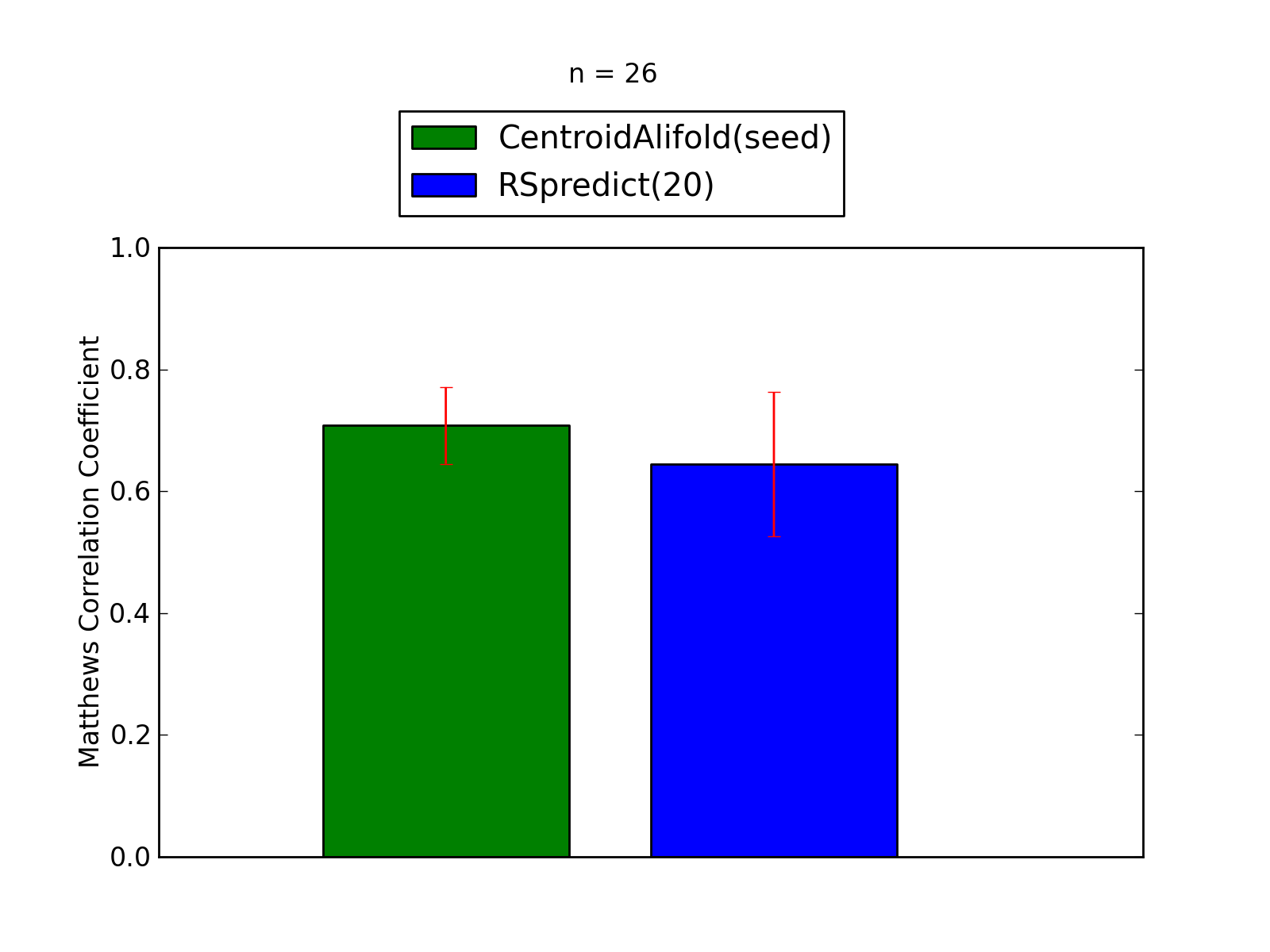

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and RSpredict(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and RSpredict(20)).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	404
Total TN	74789
Total FP	89
Total FP CONTRA	17
Total FP INCONS	19
Total FP COMP	53
Total FN	293

Total Scores
MCC	0.728
Average MCC ± 95% Confidence Intervals	0.708 ± 0.063
Sensitivity	0.580
Positive Predictive Value	0.918
Nr of predictions	26

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2WRQ_Y	tRNA links to Rfam database...	0.47	0.22	1.00	2	1150	4	0	0	4	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.67	0.73	0.62	8	1822	22	0	5	17	3
2XQD_Y	tRNA links to Rfam database...	0.48	0.24	1.00	5	1124	1	0	0	1	16
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.83	0.74	0.93	26	2017	4	0	2	2	9
3A2K_C	tRNA links to Rfam database...	0.52	0.27	1.00	6	1102	0	0	0	0	16
3AMU_B	tRNA links to Rfam database...	0.51	0.26	1.00	5	1152	1	0	0	1	14
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.58	0.43	0.77	41	25483	17	12	0	5	54
3IZF_C	5S_rRNA links to Rfam database...	0.67	0.46	1.00	16	2624	0	0	0	0	19
3JYV_7	tRNA links to Rfam database...	0.50	0.25	1.00	5	1106	1	0	0	1	15
3JYX_3	5S_rRNA links to Rfam database...	0.65	0.53	0.80	8	2368	8	0	2	6	7
3JYX_4	5_8S_rRNA links to Rfam database...	0.91	0.83	1.00	10	4746	3	0	0	3	2
3LA5_A	Purine links to Rfam database...	0.87	0.80	0.95	20	933	1	1	0	0	5
3NPB_A	SAM links to Rfam database...	0.79	0.65	0.96	24	2253	5	0	1	4	13
3O58_2	5S_rRNA links to Rfam database...	0.72	0.52	1.00	16	2738	0	0	0	0	15
3O58_3	5_8S_rRNA links to Rfam database...	0.68	0.50	0.92	11	4752	2	1	0	1	11
3PDR_A	ykoK links to Rfam database...	0.93	0.88	0.98	44	4795	3	0	1	2	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
4A1C_2	5_8S_rRNA links to Rfam database...	0.60	0.40	0.89	8	4507	3	1	0	2	12
4A1C_3	5S_rRNA links to Rfam database...	0.66	0.43	1.00	16	2747	0	0	0	0	21
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.72	0.53	1.00	8	464	0	0	0	0	7
4ENC_A	crcB links to Rfam database...	0.73	0.53	1.00	8	488	0	0	0	0	7

^top

Performance of RSpredict(20) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	411
Total TN	74677
Total FP	230
Total FP CONTRA	61
Total FP INCONS	80
Total FP COMP	89
Total FN	286

Total Scores
MCC	0.660
Average MCC ± 95% Confidence Intervals	0.644 ± 0.119
Sensitivity	0.590
Positive Predictive Value	0.745
Nr of predictions	26

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.60	9	342	7	0	6	1	9
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	1831	4	1	3	0	11
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.50	0.26	1.00	9	2036	0	0	0	0	26
3A2K_C	tRNA links to Rfam database...	0.88	0.86	0.90	19	1087	2	0	2	0	3
3AMU_B	tRNA links to Rfam database...	0.69	0.53	0.91	10	1146	2	0	1	1	9
3GX2_A	SAM links to Rfam database...	0.40	0.21	0.75	6	1441	2	1	1	0	22
3IVN_B	Purine links to Rfam database...	0.91	0.87	0.95	20	882	1	1	0	0	3
3IZ4_A	tmRNA links to Rfam database...	0.61	0.57	0.67	54	25455	38	13	14	11	41
3IZF_C	5S_rRNA links to Rfam database...	0.94	0.91	0.97	32	2607	4	0	1	3	3
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_3	5S_rRNA links to Rfam database...	0.80	0.80	0.80	12	2363	16	0	3	13	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.59	0.75	0.47	9	4737	33	9	1	23	3
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3NPB_A	SAM links to Rfam database...	-0.01	0.00	0.00	0	2272	6	1	5	0	37
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	10	0	2	8	2
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.50	0.30	11	4727	29	15	11	3	11
3PDR_A	ykoK links to Rfam database...	0.80	0.70	0.92	35	4802	5	1	2	2	15
3RKF_A	Purine links to Rfam database...	0.91	0.88	0.95	21	844	1	1	0	0	3
3SD1_A	THF links to Rfam database...	0.82	0.86	0.78	25	1501	7	5	2	0	4
4A1C_2	5_8S_rRNA links to Rfam database...	0.25	0.30	0.21	6	4487	30	12	11	7	14
4A1C_3	5S_rRNA links to Rfam database...	0.60	0.49	0.75	18	2739	8	0	6	2	19
4AOB_A	SAM links to Rfam database...	0.33	0.21	0.55	6	1426	5	1	4	0	23
4ENB_A	crcB links to Rfam database...	0.54	0.40	0.75	6	464	2	0	2	0	9
4ENC_A	crcB links to Rfam database...	0.51	0.40	0.67	6	487	3	0	3	0	9

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
