Overview

Metric	CentroidFold		Carnac(20)
MCC	0.708	>	0.694
Average MCC ± 95% Confidence Intervals	0.721 ± 0.101	>	0.644 ± 0.121
Sensitivity	0.697	>	0.516
Positive Predictive Value	0.724	<	0.938
Total TP	486	>	360
Total TN	74558	<	74845
Total FP	278	>	71
Total FP CONTRA	66	>	6
Total FP INCONS	119	>	18
Total FP COMP	93	>	47
Total FN	211	<	337
P-value	1.43482349379e-06

^top

Performance plots

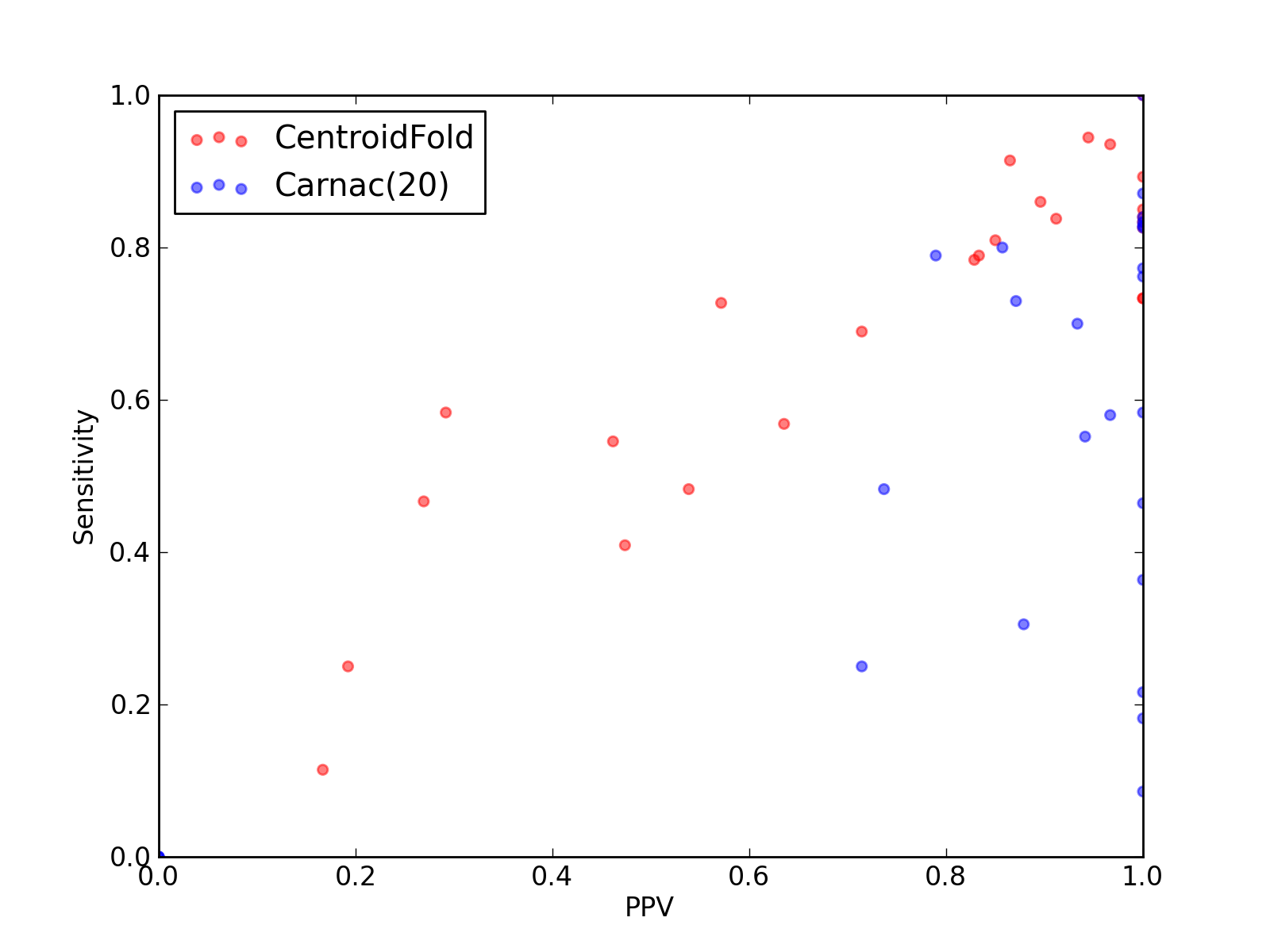

Comparison of performance of CentroidFold and Carnac(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and Carnac(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and Carnac(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and Carnac(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and Carnac(20)).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	486
Total TN	74558
Total FP	278
Total FP CONTRA	66
Total FP INCONS	119
Total FP COMP	93
Total FN	211

Total Scores
MCC	0.708
Average MCC ± 95% Confidence Intervals	0.721 ± 0.101
Sensitivity	0.697
Positive Predictive Value	0.724
Nr of predictions	26

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	13	0	0	13	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	27	0	6	21	3
2XQD_Y	tRNA links to Rfam database...	0.83	0.81	0.85	17	1109	4	0	3	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.13	0.11	0.17	4	2021	21	2	18	1	31
3A2K_C	tRNA links to Rfam database...	0.49	0.55	0.46	12	1082	14	3	11	0	10
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.94	0.89	1.00	25	1424	1	0	0	1	3
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.60	0.57	0.64	54	25451	38	16	15	7	41
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	11	0	5	6	3
3JYV_7	tRNA links to Rfam database...	0.92	0.85	1.00	17	1094	2	0	0	2	3
3JYX_3	5S_rRNA links to Rfam database...	0.35	0.47	0.27	7	2352	21	14	5	2	8
3JYX_4	5_8S_rRNA links to Rfam database...	0.41	0.58	0.29	7	4732	25	11	6	8	5
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.87	0.84	0.91	31	2244	8	1	2	5	6
3O58_2	5S_rRNA links to Rfam database...	0.95	0.94	0.97	29	2724	7	0	1	6	2
3O58_3	5_8S_rRNA links to Rfam database...	0.44	0.41	0.47	9	4745	11	1	9	1	13
3PDR_A	ykoK links to Rfam database...	0.88	0.86	0.90	43	4792	7	2	3	2	7
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.70	0.69	0.71	20	1505	8	4	4	0	9
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.19	5	4490	29	9	12	8	15
4A1C_3	5S_rRNA links to Rfam database...	0.80	0.78	0.83	29	2728	8	0	6	2	8
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	1	0	0	1	4
4ENC_A	crcB links to Rfam database...	0.85	0.73	1.00	11	485	1	0	0	1	4

^top

Performance of Carnac(20) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(20)

Total Base Pair Counts
Total TP	360
Total TN	74845
Total FP	71
Total FP CONTRA	6
Total FP INCONS	18
Total FP COMP	47
Total FN	337

Total Scores
MCC	0.694
Average MCC ± 95% Confidence Intervals	0.644 ± 0.121
Sensitivity	0.516
Positive Predictive Value	0.938
Nr of predictions	26

^top

2. Individual counts for Carnac(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.00	0.00	0.00	0	357	0	0	0	0	18
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.43	0.18	1.00	2	1833	1	0	0	1	9
2XQD_Y	tRNA links to Rfam database...	0.87	0.76	1.00	16	1113	1	0	0	1	5
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.29	0.09	1.00	3	2042	0	0	0	0	32
3A2K_C	tRNA links to Rfam database...	0.88	0.77	1.00	17	1091	0	0	0	0	5
3AMU_B	tRNA links to Rfam database...	0.79	0.79	0.79	15	1138	7	0	4	3	4
3GX2_A	SAM links to Rfam database...	0.68	0.46	1.00	13	1436	0	0	0	0	15
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.52	0.31	0.88	29	25503	4	3	1	0	66
3IZF_C	5S_rRNA links to Rfam database...	0.91	0.83	1.00	29	2611	2	0	0	2	6
3JYV_7	tRNA links to Rfam database...	0.81	0.70	0.93	14	1096	3	0	1	2	6
3JYX_3	5S_rRNA links to Rfam database...	0.83	0.80	0.86	12	2364	13	0	2	11	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.76	0.58	1.00	7	4749	2	0	0	2	5
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.46	0.22	1.00	8	2270	3	0	0	3	29
3O58_2	5S_rRNA links to Rfam database...	0.93	0.87	1.00	27	2727	2	0	0	2	4
3O58_3	5_8S_rRNA links to Rfam database...	0.60	0.36	1.00	8	4756	1	0	0	1	14
3PDR_A	ykoK links to Rfam database...	0.75	0.58	0.97	29	4810	3	1	0	2	21
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.72	0.55	0.94	16	1516	1	0	1	0	13
4A1C_2	5_8S_rRNA links to Rfam database...	0.42	0.25	0.71	5	4509	3	0	2	1	15
4A1C_3	5S_rRNA links to Rfam database...	0.79	0.73	0.87	27	2732	5	0	4	1	10
4AOB_A	SAM links to Rfam database...	0.59	0.48	0.74	14	1418	6	2	3	1	15
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
