Overview

Metric	CentroidFold		Carnac(seed)
MCC	0.779	>	0.276
Average MCC ± 95% Confidence Intervals	0.778 ± 0.099	>	0.140 ± 0.110
Sensitivity	0.768	>	0.077
Positive Predictive Value	0.796	<	1.000
Total TP	536	>	54
Total TN	49235	<	49854
Total FP	207	>	1
Total FP CONTRA	48	>	0
Total FP INCONS	89	>	0
Total FP COMP	70	>	1
Total FN	162	<	644
P-value	5.23657817852e-08

^top

Performance plots

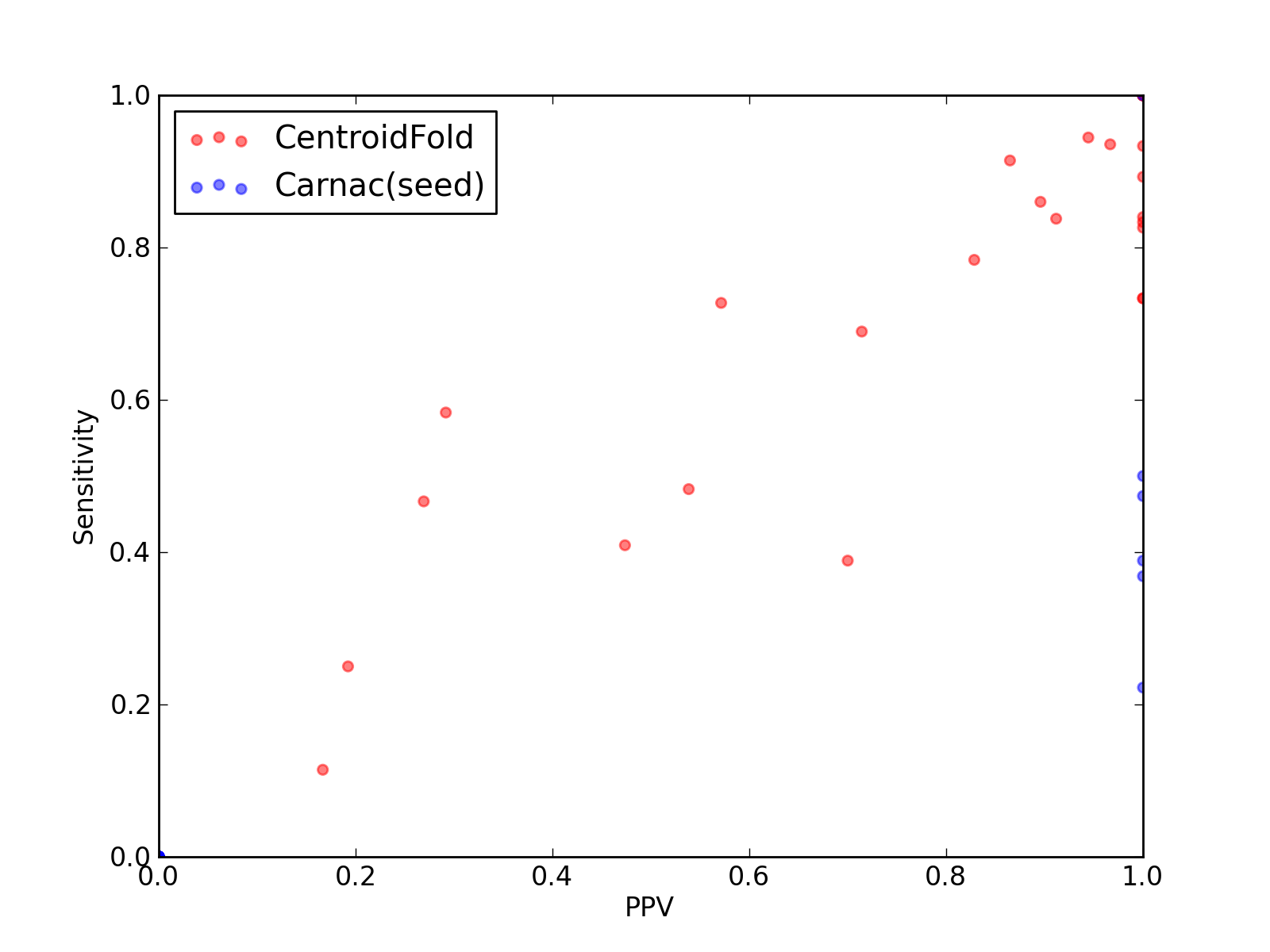

Comparison of performance of CentroidFold and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and Carnac(seed)).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	536
Total TN	49235
Total FP	207
Total FP CONTRA	48
Total FP INCONS	89
Total FP COMP	70
Total FN	162

Total Scores
MCC	0.779
Average MCC ± 95% Confidence Intervals	0.778 ± 0.099
Sensitivity	0.768
Positive Predictive Value	0.796
Nr of predictions	29

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
2LC8_A	GP_knot1 links to Rfam database...	0.51	0.39	0.70	7	518	3	1	2	0	11
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	27	0	6	21	3
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.13	0.11	0.17	4	2021	21	2	18	1	31
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.94	0.89	1.00	25	1424	1	0	0	1	3
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	11	0	5	6	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.41	0.58	0.29	7	4732	25	11	6	8	5
3JYX_3	5S_rRNA links to Rfam database...	0.35	0.47	0.27	7	2352	21	14	5	2	8
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.87	0.84	0.91	31	2244	8	1	2	5	6
3O58_2	5S_rRNA links to Rfam database...	0.95	0.94	0.97	29	2724	7	0	1	6	2
3O58_3	5_8S_rRNA links to Rfam database...	0.44	0.41	0.47	9	4745	11	1	9	1	13
3PDR_A	ykoK links to Rfam database...	0.88	0.86	0.90	43	4792	7	2	3	2	7
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.70	0.69	0.71	20	1505	8	4	4	0	9
4A1C_3	5S_rRNA links to Rfam database...	0.80	0.78	0.83	29	2728	8	0	6	2	8
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.19	5	4490	29	9	12	8	15
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	1	0	0	1	4
4ENC_A	crcB links to Rfam database...	0.85	0.73	1.00	11	485	1	0	0	1	4

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	54
Total TN	49854
Total FP	1
Total FP CONTRA	0
Total FP INCONS	0
Total FP COMP	1
Total FN	644

Total Scores
MCC	0.276
Average MCC ± 95% Confidence Intervals	0.140 ± 0.110
Sensitivity	0.077
Positive Predictive Value	1.000
Nr of predictions	29

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.00	0.00	0.00	0	467	0	0	0	0	18
2KUR_A	K10_TLS links to Rfam database...	0.60	0.37	1.00	7	460	0	0	0	0	12
2KUU_A	K10_TLS links to Rfam database...	0.62	0.39	1.00	7	440	0	0	0	0	11
2KUV_A	K10_TLS links to Rfam database...	0.68	0.47	1.00	9	430	0	0	0	0	10
2KUW_A	K10_TLS links to Rfam database...	0.70	0.50	1.00	9	461	0	0	0	0	9
2L1F_A	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	763	0	0	0	0	23
2L1F_B	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	791	0	0	0	0	24
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.47	0.22	1.00	4	524	0	0	0	0	14
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	1835	0	0	0	0	11
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	2045	0	0	0	0	35
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1500	0	0	0	0	30
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1449	0	0	0	0	28
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	23
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2640	0	0	0	0	35
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4756	0	0	0	0	12
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2378	0	0	0	0	15
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	954	0	0	0	0	25
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	2278	0	0	0	0	37
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2754	0	0	0	0	31
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4764	0	0	0	0	22
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4840	0	0	0	0	50
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	866	0	0	0	0	24
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2763	0	0	0	0	37
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
