Overview

Metric	CentroidFold		Fold
MCC	0.786	>	0.777
Average MCC ± 95% Confidence Intervals	0.829 ± 0.055	>	0.802 ± 0.067
Sensitivity	0.781	<	0.796
Positive Predictive Value	0.797	>	0.764
Total TP	1193	<	1216
Total TN	121145	>	121050
Total FP	452	<	552
Total FP CONTRA	99	<	116
Total FP INCONS	204	<	259
Total FP COMP	149	<	177
Total FN	335	>	312
P-value	1.06521910535e-06

^top

Performance plots

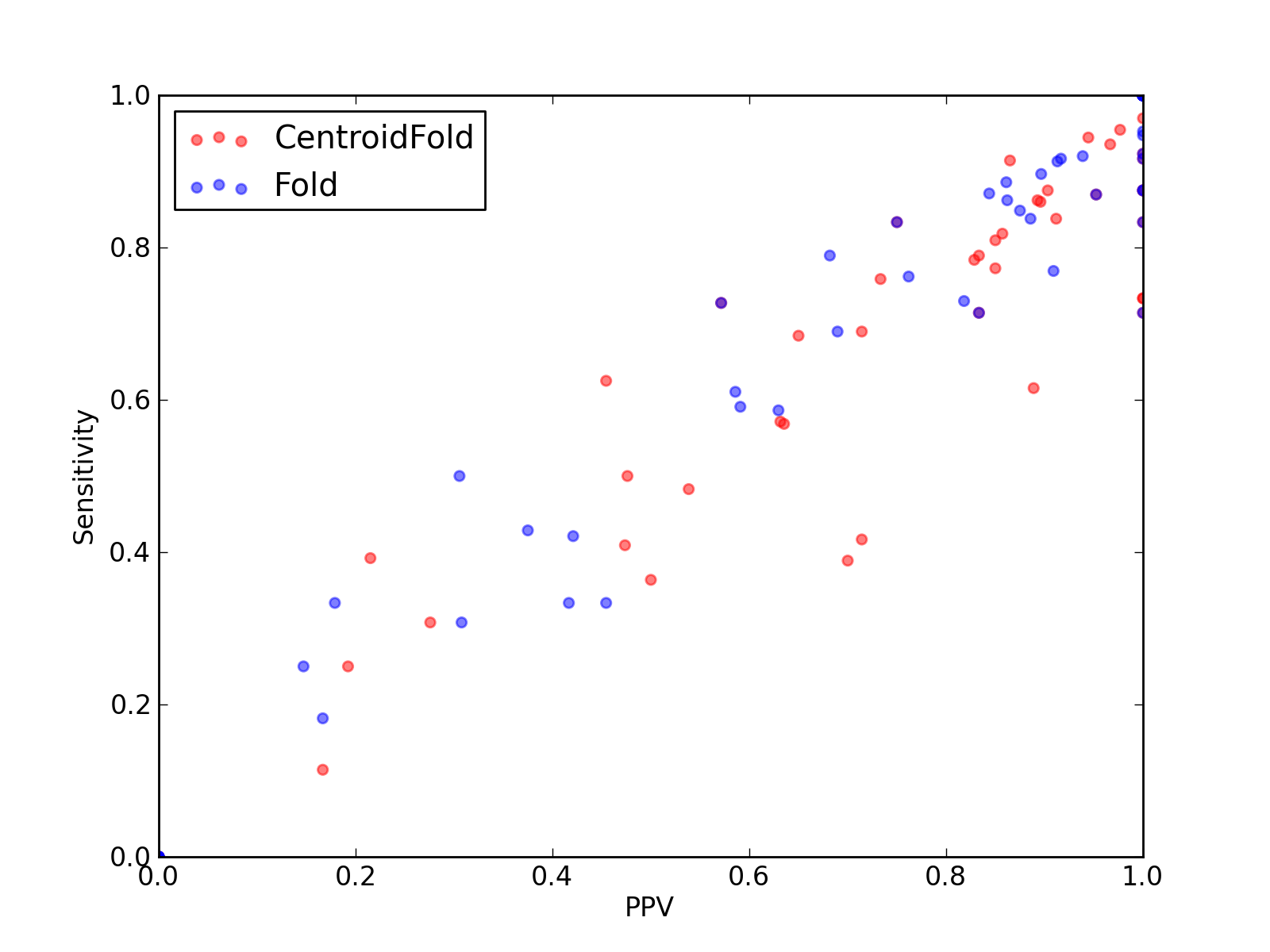

Comparison of performance of CentroidFold and Fold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and Fold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and Fold).

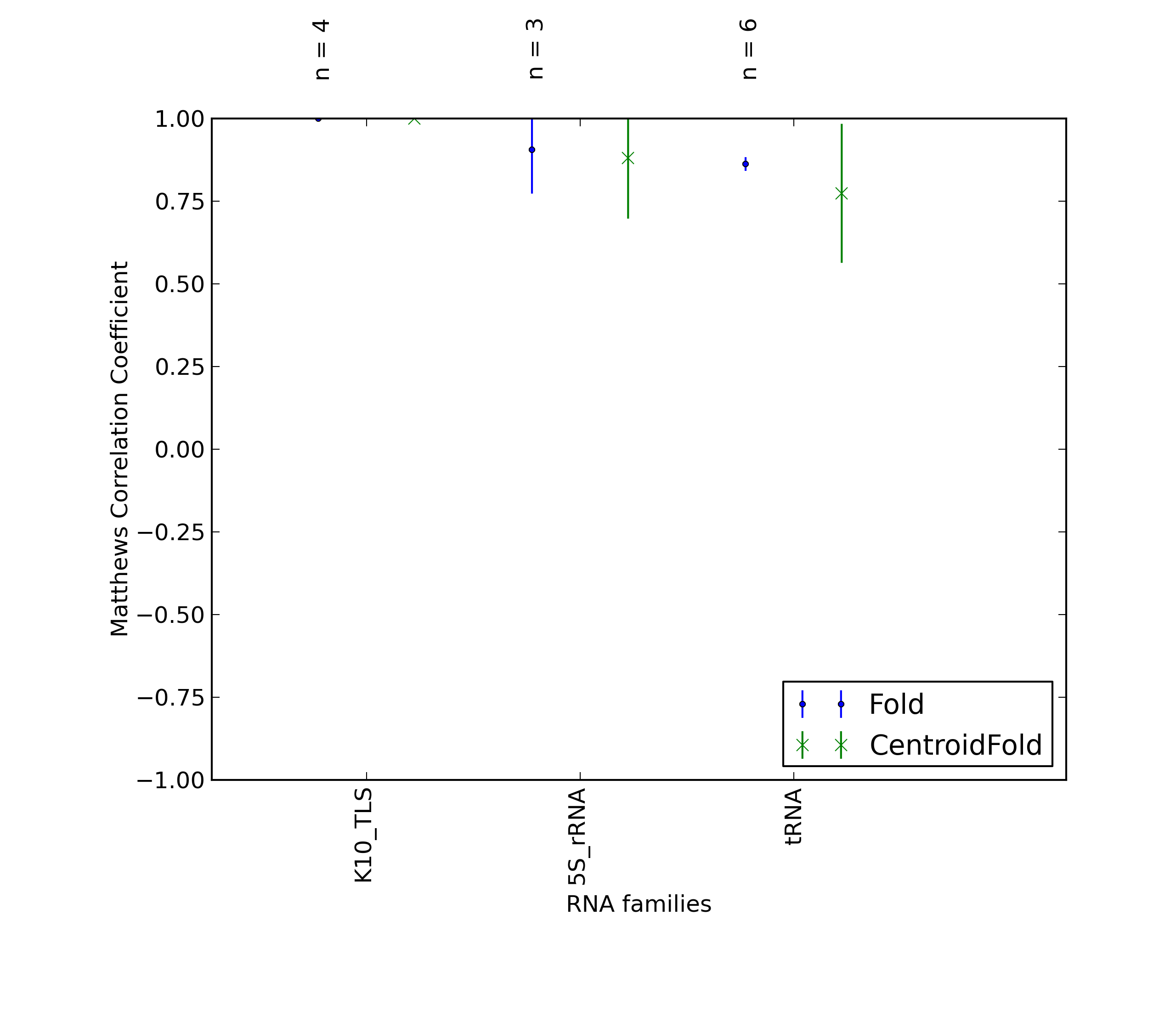

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and Fold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and Fold).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	1193
Total TN	121145
Total FP	452
Total FP CONTRA	99
Total FP INCONS	204
Total FP COMP	149
Total FN	335

Total Scores
MCC	0.786
Average MCC ± 95% Confidence Intervals	0.829 ± 0.055
Sensitivity	0.781
Positive Predictive Value	0.797
Nr of predictions	82

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KU0_A	-	0.53	0.42	0.71	5	285	2	2	0	0	7
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	1.00	1.00	1.00	8	141	0	0	0	0	0
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
2LA5_A	-	0.77	0.71	0.83	5	269	2	0	1	1	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.51	0.39	0.70	7	518	3	1	2	0	11
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.88	0.86	0.89	25	2412	8	0	3	5	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	3	0	0	3	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	27	0	6	21	3
2XQD_Y	tRNA links to Rfam database...	0.83	0.81	0.85	17	1109	4	0	3	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.13	0.11	0.17	4	2021	21	2	18	1	31
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_X	-	1.00	1.00	1.00	7	537	3	0	0	3	0
2YIE_Z	-	0.53	0.63	0.45	5	591	6	4	2	0	3
3ADB_C	-	0.98	0.97	1.00	32	1787	0	0	0	0	1
3AKZ_H	tRNA links to Rfam database...	0.48	0.50	0.48	10	1106	13	3	8	2	10
3AM1_B	-	0.74	0.76	0.73	22	1436	8	3	5	0	7
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3IYQ_A	tmRNA links to Rfam database...	0.29	0.39	0.22	20	22347	86	39	34	13	31
3IZ4_A	tmRNA links to Rfam database...	0.60	0.57	0.64	54	25451	38	16	15	7	41
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	11	0	5	6	3
3J0L_7	-	-0.01	0.00	0.00	0	514	5	1	4	0	10
3J0L_a	-	0.41	0.36	0.50	4	403	5	3	1	1	7
3J0L_1	-	0.73	0.62	0.89	8	475	3	0	1	2	5
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_h	-	0.89	0.88	0.90	28	2109	5	0	3	2	4
3J0L_g	-	0.00	0.00	0.00	0	176	0	0	0	0	2
3J0L_2	-	0.28	0.31	0.28	8	2221	24	2	19	3	18
3J16_L	tRNA links to Rfam database...	0.59	0.57	0.63	12	1140	7	0	7	0	9
3NDB_M	-	0.97	0.95	0.98	42	3671	6	0	1	5	2
3NKB_B	-	0.66	0.68	0.65	13	715	7	0	7	0	6
3NMU_E	-	1.00	1.00	1.00	3	213	3	0	0	3	0
3NPB_A	SAM links to Rfam database...	0.87	0.84	0.91	31	2244	8	1	2	5	6
3O58_2	5S_rRNA links to Rfam database...	0.95	0.94	0.97	29	2724	7	0	1	6	2
3O58_3	5_8S_rRNA links to Rfam database...	0.44	0.41	0.47	9	4745	11	1	9	1	13
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	1	0	0	1	0
3PDR_A	ykoK links to Rfam database...	0.88	0.86	0.90	43	4792	7	2	3	2	7
3R4F_A	-	0.83	0.82	0.86	18	885	4	2	1	1	4
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.70	0.69	0.71	20	1505	8	4	4	0	9
3SIU_F	-	0.93	0.88	1.00	7	138	0	0	0	0	1
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.81	0.77	0.85	17	1256	5	0	3	2	5
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	7	0	0	7	2
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_3	5S_rRNA links to Rfam database...	0.80	0.78	0.83	29	2728	8	0	6	2	8
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.19	5	4490	29	9	12	8	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	1	0	0	1	4
4ENC_A	crcB links to Rfam database...	0.85	0.73	1.00	11	485	1	0	0	1	4

^top

Performance of Fold - scored lower in this pairwise comparison

1. Total counts & total scores for Fold

Total Base Pair Counts
Total TP	1216
Total TN	121050
Total FP	552
Total FP CONTRA	116
Total FP INCONS	259
Total FP COMP	177
Total FN	312

Total Scores
MCC	0.777
Average MCC ± 95% Confidence Intervals	0.802 ± 0.067
Sensitivity	0.796
Positive Predictive Value	0.764
Nr of predictions	82

^top

2. Individual counts for Fold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KU0_A	-	0.96	0.92	1.00	11	281	0	0	0	0	1
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.93	0.88	1.00	7	142	0	0	0	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	0.91	0.92	0.92	22	767	2	0	2	0	2
2L1F_A	Gammaretro_CES links to Rfam database...	0.91	0.91	0.91	21	740	2	0	2	0	2
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.90	0.90	0.90	26	2411	10	0	3	7	3
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WWQ_V	tRNA links to Rfam database...	0.97	0.95	1.00	18	1186	3	0	0	3	1
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	1.00	1.00	1.00	35	2010	1	0	0	1	0
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_X	-	0.39	0.43	0.38	3	536	8	1	4	3	4
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
3ADB_C	-	0.86	0.85	0.88	28	1787	4	0	4	0	5
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	2	0	0	2	0
3AM1_B	-	0.86	0.86	0.86	25	1437	4	0	4	0	4
3AMU_B	tRNA links to Rfam database...	0.73	0.79	0.68	15	1135	10	0	7	3	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.18	17	22345	95	40	38	17	34
3IZ4_A	tmRNA links to Rfam database...	0.60	0.61	0.59	58	25437	47	16	25	6	37
3IZF_C	5S_rRNA links to Rfam database...	0.87	0.89	0.86	31	2604	8	0	5	3	4
3J0L_7	-	-0.02	0.00	0.00	0	507	12	2	10	0	10
3J0L_a	-	0.15	0.18	0.17	2	399	11	4	6	1	9
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_h	-	0.93	0.88	1.00	28	2112	2	0	0	2	4
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J16_L	tRNA links to Rfam database...	0.76	0.76	0.76	16	1138	5	0	5	0	5
3NDB_M	-	1.00	1.00	1.00	44	3670	4	0	0	4	0
3NKB_B	-	0.41	0.42	0.42	8	716	11	4	7	0	11
3NMU_E	-	-0.02	0.00	0.00	0	207	11	6	3	2	3
3NPB_A	SAM links to Rfam database...	0.77	0.73	0.82	27	2245	11	0	6	5	10
3O58_2	5S_rRNA links to Rfam database...	0.86	0.87	0.84	27	2722	12	0	5	7	4
3O58_3	5_8S_rRNA links to Rfam database...	0.39	0.50	0.31	11	4728	41	9	16	16	11
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.68	0.69	0.69	20	1504	9	4	5	0	9
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	8	0	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_3	5S_rRNA links to Rfam database...	0.86	0.84	0.89	31	2728	7	0	4	3	6
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.37	0.33	0.45	5	461	7	0	6	1	10
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
