Overview

Metric	CentroidFold		Mastr(seed)
MCC	0.724	>	0.311
Average MCC ± 95% Confidence Intervals	0.758 ± 0.082	>	0.138 ± 0.099
Sensitivity	0.727	>	0.109
Positive Predictive Value	0.726	<	0.899
Total TP	774	>	116
Total TN	109971	<	110908
Total FP	423	>	16
Total FP CONTRA	114	>	0
Total FP INCONS	178	>	13
Total FP COMP	131	>	3
Total FN	290	<	948
P-value	3.56938820447e-08

^top

Performance plots

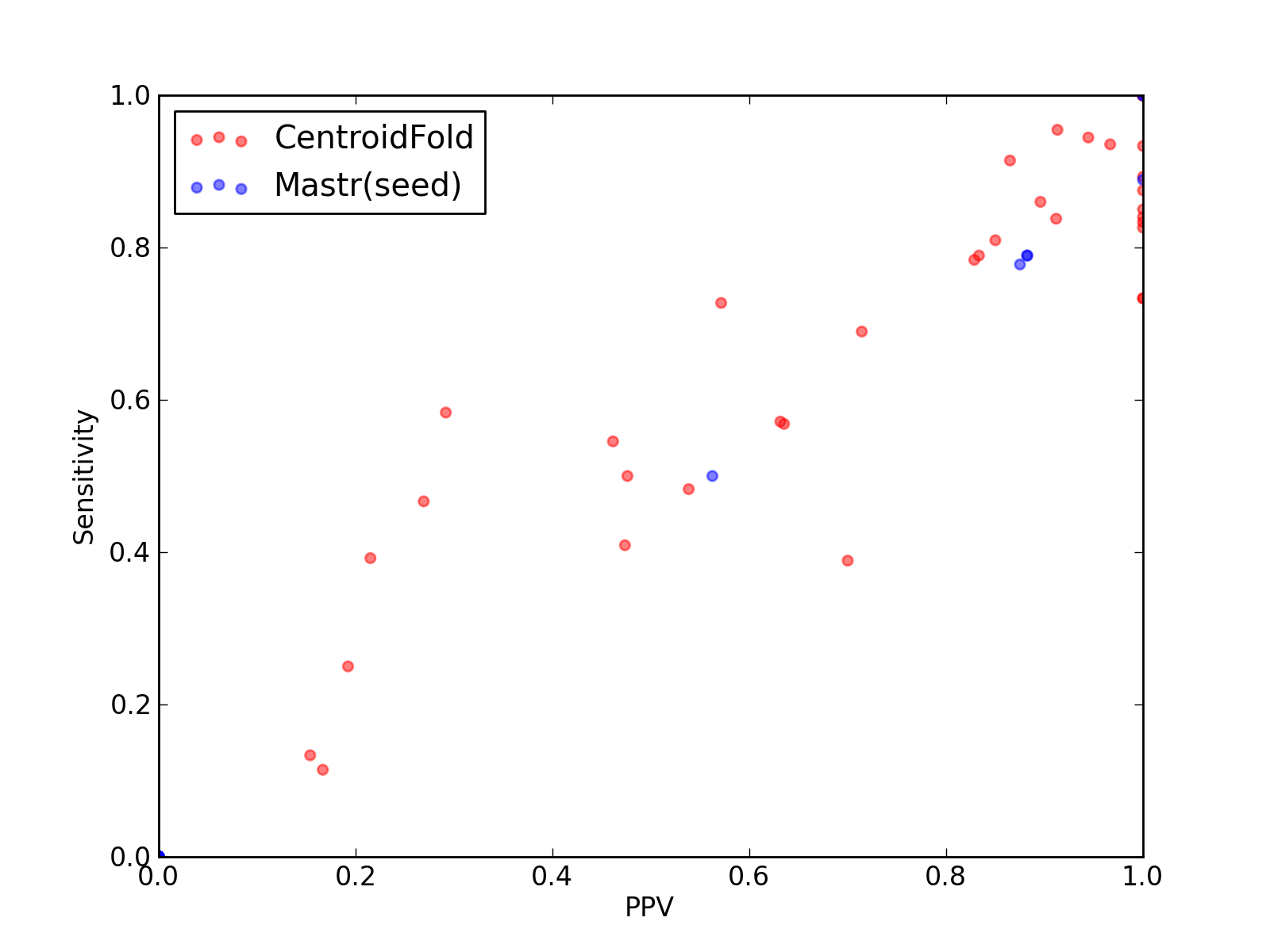

Comparison of performance of CentroidFold and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and Mastr(seed)).

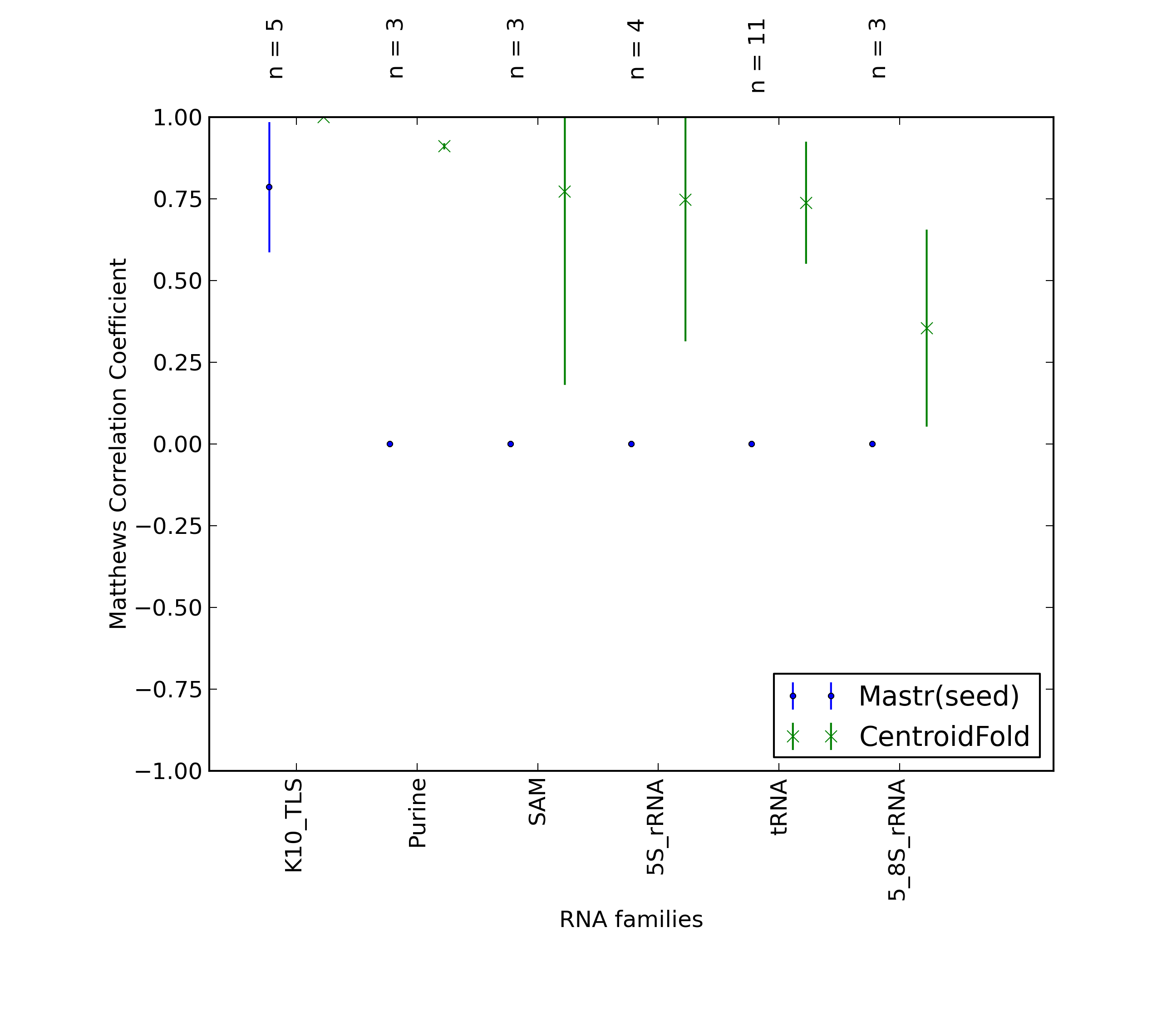

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and Mastr(seed)).

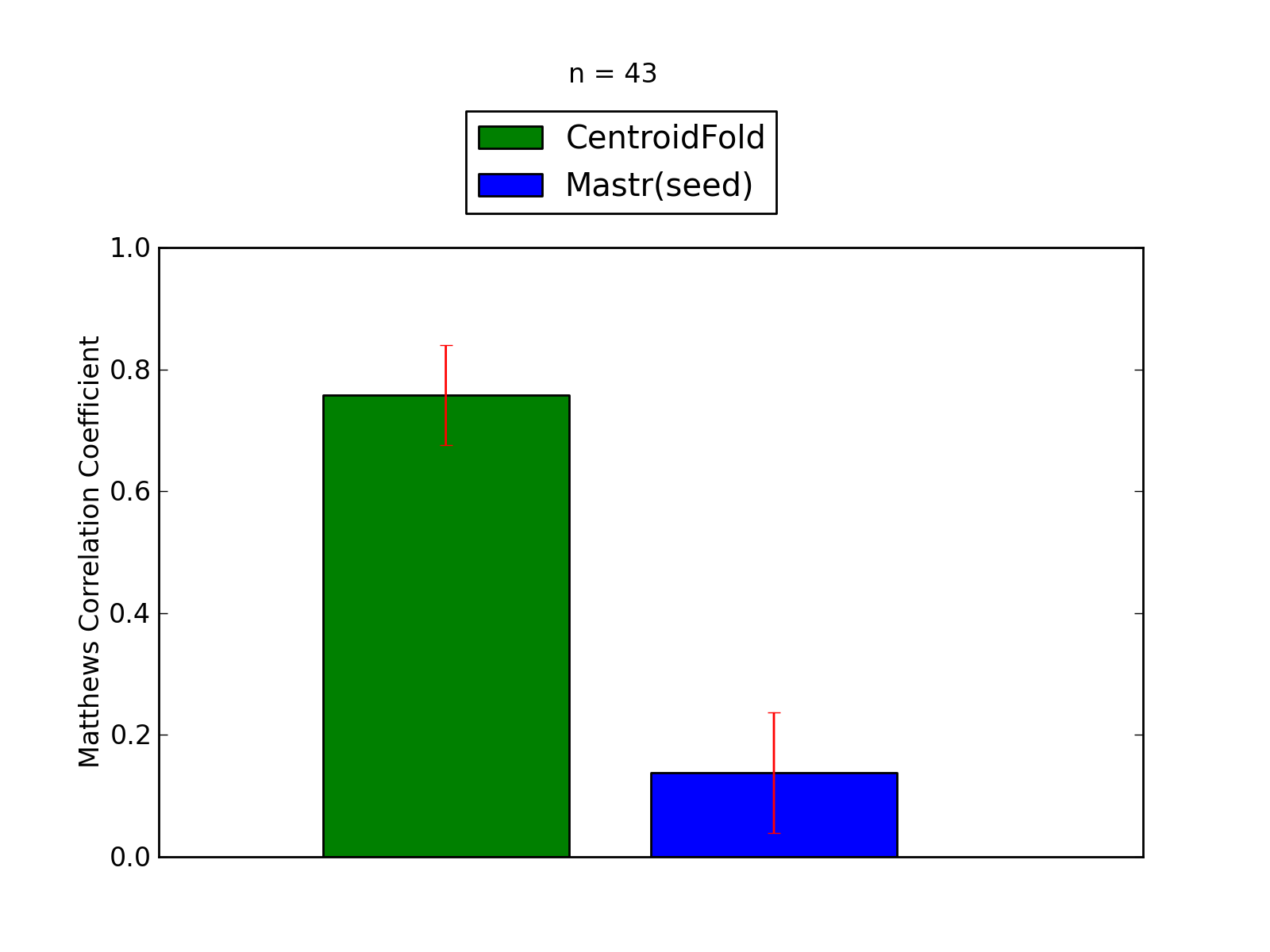

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and Mastr(seed)).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	774
Total TN	109971
Total FP	423
Total FP CONTRA	114
Total FP INCONS	178
Total FP COMP	131
Total FN	290

Total Scores
MCC	0.724
Average MCC ± 95% Confidence Intervals	0.758 ± 0.082
Sensitivity	0.727
Positive Predictive Value	0.726
Nr of predictions	43

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
2LC8_A	GP_knot1 links to Rfam database...	0.51	0.39	0.70	7	518	3	1	2	0	11
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	13	0	0	13	0
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	3	0	0	3	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	27	0	6	21	3
2XQD_Y	tRNA links to Rfam database...	0.83	0.81	0.85	17	1109	4	0	3	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.13	0.11	0.17	4	2021	21	2	18	1	31
2ZZM_B	tRNA links to Rfam database...	0.13	0.13	0.15	2	1345	20	3	8	9	13
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	3	2	0	1	1
3A2K_C	tRNA links to Rfam database...	0.49	0.55	0.46	12	1082	14	3	11	0	10
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3AKZ_H	tRNA links to Rfam database...	0.48	0.50	0.48	10	1106	13	3	8	2	10
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.94	0.89	1.00	25	1424	1	0	0	1	3
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.29	0.39	0.22	20	22347	86	39	34	13	31
3IZ4_A	tmRNA links to Rfam database...	0.60	0.57	0.64	54	25451	38	16	15	7	41
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	11	0	5	6	3
3J16_L	tRNA links to Rfam database...	0.59	0.57	0.63	12	1140	7	0	7	0	9
3JYV_7	tRNA links to Rfam database...	0.92	0.85	1.00	17	1094	2	0	0	2	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.41	0.58	0.29	7	4732	25	11	6	8	5
3JYX_3	5S_rRNA links to Rfam database...	0.35	0.47	0.27	7	2352	21	14	5	2	8
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.87	0.84	0.91	31	2244	8	1	2	5	6
3O58_2	5S_rRNA links to Rfam database...	0.95	0.94	0.97	29	2724	7	0	1	6	2
3O58_3	5_8S_rRNA links to Rfam database...	0.44	0.41	0.47	9	4745	11	1	9	1	13
3PDR_A	ykoK links to Rfam database...	0.88	0.86	0.90	43	4792	7	2	3	2	7
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.70	0.69	0.71	20	1505	8	4	4	0	9
3UZL_B	tRNA links to Rfam database...	0.93	0.88	1.00	14	1279	7	0	0	7	2
4A1C_3	5S_rRNA links to Rfam database...	0.80	0.78	0.83	29	2728	8	0	6	2	8
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.19	5	4490	29	9	12	8	15
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	1	0	0	1	4
4ENC_A	crcB links to Rfam database...	0.85	0.73	1.00	11	485	1	0	0	1	4

^top

Performance of Mastr(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(seed)

Total Base Pair Counts
Total TP	116
Total TN	110908
Total FP	16
Total FP CONTRA	0
Total FP INCONS	13
Total FP COMP	3
Total FN	948

Total Scores
MCC	0.311
Average MCC ± 95% Confidence Intervals	0.138 ± 0.099
Sensitivity	0.109
Positive Predictive Value	0.899
Nr of predictions	43

^top

2. Individual counts for Mastr(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.94	0.89	1.00	16	451	1	0	0	1	2
2KUR_A	K10_TLS links to Rfam database...	0.83	0.79	0.88	15	450	2	0	2	0	4
2KUU_A	K10_TLS links to Rfam database...	0.82	0.78	0.88	14	431	3	0	2	1	4
2KUV_A	K10_TLS links to Rfam database...	0.83	0.79	0.88	15	422	2	0	2	0	4
2KUW_A	K10_TLS links to Rfam database...	0.51	0.50	0.56	9	454	8	0	7	1	9
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	371	0	0	0	0	16
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.00	0.00	0.00	0	357	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	1152	0	0	0	0	9
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	1204	0	0	0	0	19
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	1835	0	0	0	0	11
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	1129	0	0	0	0	21
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	2045	0	0	0	0	35
2ZZM_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1358	0	0	0	0	15
2ZZN_D	tRNA links to Rfam database...	0.00	0.00	0.00	0	984	0	0	0	0	22
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	1108	0	0	0	0	22
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1500	0	0	0	0	30
3AKZ_H	tRNA links to Rfam database...	0.00	0.00	0.00	0	1127	0	0	0	0	20
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1157	0	0	0	0	19
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1449	0	0	0	0	28
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	23
3IYQ_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	22440	0	0	0	0	51
3IZ4_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	25536	0	0	0	0	95
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2640	0	0	0	0	35
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	1159	0	0	0	0	21
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	1111	0	0	0	0	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4756	0	0	0	0	12
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2378	0	0	0	0	15
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	954	0	0	0	0	25
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	2278	0	0	0	0	37
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2754	0	0	0	0	31
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4764	0	0	0	0	22
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4840	0	0	0	0	50
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	866	0	0	0	0	24
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1293	0	0	0	0	16
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2763	0	0	0	0	37
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
