Overview
| Metric | CentroidHomfold‑LAST | MCFold | |
|---|---|---|---|
| MCC | 0.786 | > | 0.669 |
| Average MCC ± 95% Confidence Intervals | 0.796 ± 0.097 | > | 0.652 ± 0.122 |
| Sensitivity | 0.705 | > | 0.701 |
| Positive Predictive Value | 0.885 | > | 0.652 |
| Total TP | 391 | > | 389 |
| Total TN | 27518 | > | 27363 |
| Total FP | 90 | < | 301 |
| Total FP CONTRA | 10 | < | 43 |
| Total FP INCONS | 41 | < | 165 |
| Total FP COMP | 39 | < | 93 |
| Total FN | 164 | < | 166 |
| P-value | 3.56938820447e-08 | ||
Performance plots
-

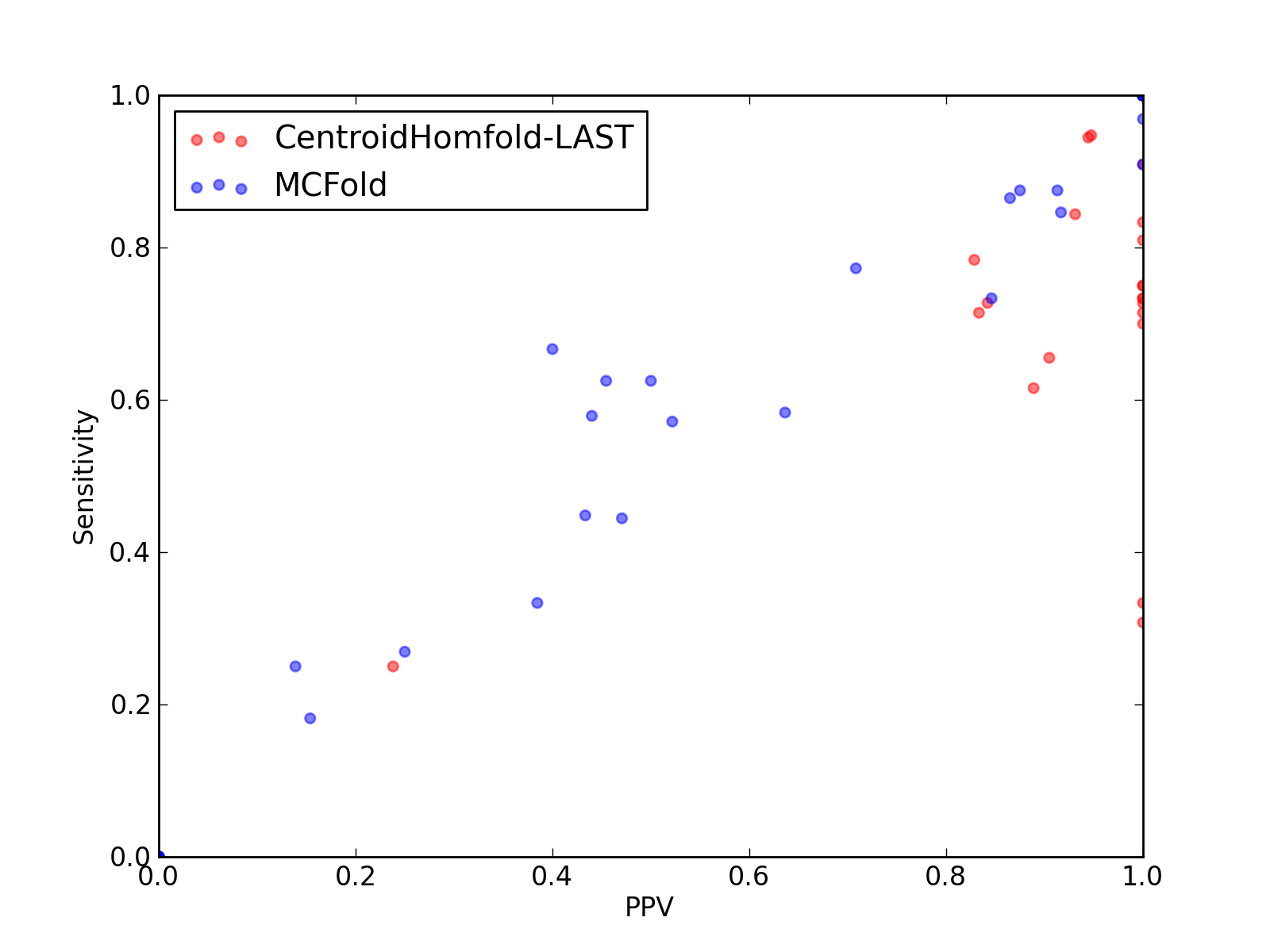

Comparison of performance of CentroidHomfold-LAST and MCFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and MCFold).
-

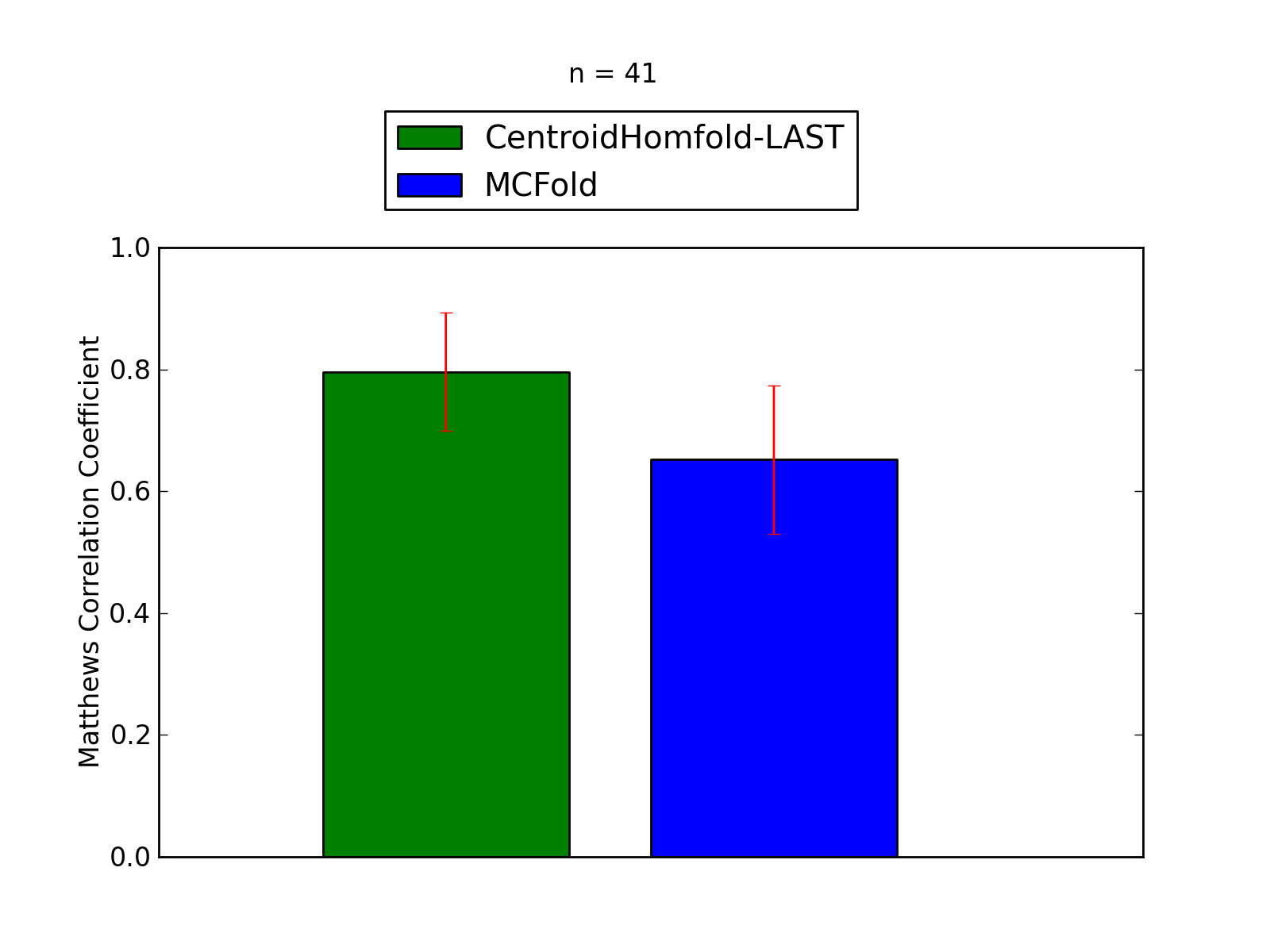

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and MCFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and MCFold).
Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison
1. Total counts & total scores for CentroidHomfold‑LAST
| Total Base Pair Counts | |
|---|---|
| Total TP | 391 |
| Total TN | 27518 |
| Total FP | 90 |
| Total FP CONTRA | 10 |
| Total FP INCONS | 41 |
| Total FP COMP | 39 |
| Total FN | 164 |
| Total Scores | |
|---|---|
| MCC | 0.786 |
| Average MCC ± 95% Confidence Intervals | 0.796 ± 0.097 |
| Sensitivity | 0.705 |
| Positive Predictive Value | 0.885 |
| Nr of predictions | 41 |
2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]
| RNA Chain | Rfam family | MCC | SENS | PPV | TP | TN | FP | FP CONTRA | FP INCONS | FP COMP | FN |
| 2L94_A | 0.94 | 0.94 | 0.94 | 17 | 339 | 2 | 0 | 1 | 1 | 1 | |
| 2LA5_A | - | 0.77 | 0.71 | 0.83 | 5 | 269 | 1 | 0 | 1 | 0 | 2 |
| 2LBS_A | - | 1.00 | 1.00 | 1.00 | 14 | 193 | 0 | 0 | 0 | 0 | 0 |
| 2LC8_A | -0.03 | 0.00 | 0.00 | 0 | 517 | 11 | 0 | 11 | 0 | 18 | |
| 2LDL_A | - | 1.00 | 1.00 | 1.00 | 9 | 131 | 1 | 0 | 0 | 1 | 0 |
| 2LDT_A | - | 0.84 | 0.73 | 1.00 | 8 | 154 | 0 | 0 | 0 | 0 | 3 |
| 2LHP_A | - | 1.00 | 1.00 | 1.00 | 15 | 246 | 0 | 0 | 0 | 0 | 0 |
| 2LJJ_A | - | 1.00 | 1.00 | 1.00 | 7 | 123 | 3 | 0 | 0 | 3 | 0 |
| 2LK3_A | - | 1.00 | 1.00 | 1.00 | 9 | 91 | 0 | 0 | 0 | 0 | 0 |
| 2LKR_A | - | 0.00 | 0.00 | 0.00 | 0 | 2436 | 4 | 0 | 4 | 0 | 29 |
| 2LQZ_A | - | 1.00 | 1.00 | 1.00 | 8 | 124 | 2 | 0 | 0 | 2 | 0 |
| 2LWK_A | - | 0.95 | 0.91 | 1.00 | 10 | 197 | 1 | 0 | 0 | 1 | 1 |
| 2RRC_A | - | 0.83 | 0.71 | 1.00 | 5 | 70 | 0 | 0 | 0 | 0 | 2 |
| 2Y8W_B | - | 1.00 | 1.00 | 1.00 | 6 | 82 | 1 | 0 | 0 | 1 | 0 |
| 2YIE_Z | - | 1.00 | 1.00 | 1.00 | 8 | 594 | 0 | 0 | 0 | 0 | 0 |
| 2YIE_X | - | 1.00 | 1.00 | 1.00 | 7 | 537 | 0 | 0 | 0 | 0 | 0 |
| 3AMU_B | 0.95 | 0.95 | 0.95 | 18 | 1138 | 4 | 0 | 1 | 3 | 1 | |
| 3J0L_1 | - | 0.73 | 0.62 | 0.89 | 8 | 475 | 3 | 0 | 1 | 2 | 5 |
| 3J0L_7 | - | 0.83 | 0.70 | 1.00 | 7 | 512 | 1 | 0 | 0 | 1 | 3 |
| 3J0L_g | - | 0.00 | 0.00 | 0.00 | 0 | 176 | 0 | 0 | 0 | 0 | 2 |
| 3J0L_2 | - | 0.55 | 0.31 | 1.00 | 8 | 2242 | 0 | 0 | 0 | 0 | 18 |
| 3J0L_h | - | 0.88 | 0.84 | 0.93 | 27 | 2111 | 4 | 0 | 2 | 2 | 5 |
| 3J0L_a | - | -0.01 | 0.00 | 0.00 | 0 | 408 | 3 | 1 | 2 | 0 | 11 |
| 3J0L_8 | - | 1.00 | 1.00 | 1.00 | 7 | 69 | 0 | 0 | 0 | 0 | 0 |
| 3J16_L | 0.90 | 0.81 | 1.00 | 17 | 1142 | 0 | 0 | 0 | 0 | 4 | |
| 3NMU_E | - | 0.57 | 0.33 | 1.00 | 1 | 215 | 3 | 0 | 0 | 3 | 2 |
| 3R9X_C | - | 1.00 | 1.00 | 1.00 | 8 | 221 | 2 | 0 | 0 | 2 | 0 |
| 3RKF_A | 0.86 | 0.75 | 1.00 | 18 | 848 | 0 | 0 | 0 | 0 | 6 | |
| 3SD1_A | 0.77 | 0.66 | 0.90 | 19 | 1512 | 2 | 1 | 1 | 0 | 10 | |
| 3SIU_F | - | 0.86 | 0.75 | 1.00 | 6 | 139 | 0 | 0 | 0 | 0 | 2 |
| 3SN2_B | 0.91 | 0.83 | 1.00 | 10 | 144 | 0 | 0 | 0 | 0 | 2 | |
| 3TRZ_Z | - | 1.00 | 1.00 | 1.00 | 5 | 87 | 1 | 0 | 0 | 1 | 0 |
| 3TS0_U | - | 1.00 | 1.00 | 1.00 | 6 | 112 | 1 | 0 | 0 | 1 | 0 |
| 3TS2_V | - | 1.00 | 1.00 | 1.00 | 5 | 103 | 0 | 0 | 0 | 0 | 0 |
| 3U4M_B | - | 0.78 | 0.73 | 0.84 | 16 | 1257 | 4 | 0 | 3 | 1 | 6 |
| 3VJR_D | - | 1.00 | 1.00 | 1.00 | 12 | 239 | 0 | 0 | 0 | 0 | 0 |
| 4A1C_2 | 0.24 | 0.25 | 0.24 | 5 | 4495 | 29 | 8 | 8 | 13 | 15 | |
| 4A1C_3 | 0.80 | 0.78 | 0.83 | 29 | 2728 | 7 | 0 | 6 | 1 | 8 | |
| 4A4U_A | - | 1.00 | 1.00 | 1.00 | 9 | 96 | 0 | 0 | 0 | 0 | 0 |
| 4ENB_A | 0.85 | 0.73 | 1.00 | 11 | 461 | 0 | 0 | 0 | 0 | 4 | |
| 4ENC_A | 0.85 | 0.73 | 1.00 | 11 | 485 | 0 | 0 | 0 | 0 | 4 |
Performance of MCFold - scored lower in this pairwise comparison
1. Total counts & total scores for MCFold
| Total Base Pair Counts | |
|---|---|
| Total TP | 389 |
| Total TN | 27363 |
| Total FP | 301 |
| Total FP CONTRA | 43 |
| Total FP INCONS | 165 |
| Total FP COMP | 93 |
| Total FN | 166 |
| Total Scores | |
|---|---|
| MCC | 0.669 |
| Average MCC ± 95% Confidence Intervals | 0.652 ± 0.122 |
| Sensitivity | 0.701 |
| Positive Predictive Value | 0.652 |
| Nr of predictions | 41 |
2. Individual counts for MCFold [ download as .csv ]
| RNA Chain | Rfam family | MCC | SENS | PPV | TP | TN | FP | FP CONTRA | FP INCONS | FP COMP | FN |
| 2L94_A | 1.00 | 1.00 | 1.00 | 18 | 339 | 1 | 0 | 0 | 1 | 0 | |
| 2LA5_A | - | -0.03 | 0.00 | 0.00 | 0 | 265 | 10 | 0 | 10 | 0 | 7 |
| 2LBS_A | - | 1.00 | 1.00 | 1.00 | 14 | 193 | 1 | 0 | 0 | 1 | 0 |
| 2LC8_A | 0.44 | 0.44 | 0.47 | 8 | 511 | 10 | 0 | 9 | 1 | 10 | |
| 2LDL_A | - | 1.00 | 1.00 | 1.00 | 9 | 131 | 1 | 0 | 0 | 1 | 0 |
| 2LDT_A | - | 0.95 | 0.91 | 1.00 | 10 | 152 | 0 | 0 | 0 | 0 | 1 |
| 2LHP_A | - | 1.00 | 1.00 | 1.00 | 15 | 246 | 1 | 0 | 0 | 1 | 0 |
| 2LJJ_A | - | 1.00 | 1.00 | 1.00 | 7 | 123 | 3 | 0 | 0 | 3 | 0 |
| 2LK3_A | - | 1.00 | 1.00 | 1.00 | 9 | 91 | 0 | 0 | 0 | 0 | 0 |
| 2LKR_A | - | 1.00 | 1.00 | 1.00 | 29 | 2411 | 11 | 0 | 0 | 11 | 0 |
| 2LQZ_A | - | 1.00 | 1.00 | 1.00 | 8 | 124 | 3 | 0 | 0 | 3 | 0 |
| 2LWK_A | - | 1.00 | 1.00 | 1.00 | 11 | 196 | 2 | 0 | 0 | 2 | 0 |
| 2RRC_A | - | 1.00 | 1.00 | 1.00 | 7 | 68 | 1 | 0 | 0 | 1 | 0 |
| 2Y8W_B | - | 1.00 | 1.00 | 1.00 | 6 | 82 | 2 | 0 | 0 | 2 | 0 |
| 2YIE_Z | - | 0.53 | 0.63 | 0.45 | 5 | 591 | 8 | 2 | 4 | 2 | 3 |
| 2YIE_X | - | -0.01 | 0.00 | 0.00 | 0 | 535 | 15 | 1 | 8 | 6 | 7 |
| 3AMU_B | 0.50 | 0.58 | 0.44 | 11 | 1132 | 15 | 4 | 10 | 1 | 8 | |
| 3J0L_1 | - | 0.88 | 0.85 | 0.92 | 11 | 472 | 5 | 0 | 1 | 4 | 2 |
| 3J0L_7 | - | -0.02 | 0.00 | 0.00 | 0 | 504 | 15 | 6 | 9 | 0 | 10 |
| 3J0L_g | - | -0.02 | 0.00 | 0.00 | 0 | 170 | 7 | 4 | 2 | 1 | 2 |
| 3J0L_2 | - | 0.25 | 0.27 | 0.25 | 7 | 2222 | 29 | 4 | 17 | 8 | 19 |
| 3J0L_h | - | 0.98 | 0.97 | 1.00 | 31 | 2109 | 2 | 0 | 0 | 2 | 1 |
| 3J0L_a | - | 0.14 | 0.18 | 0.15 | 2 | 398 | 13 | 1 | 10 | 2 | 9 |
| 3J0L_8 | - | 1.00 | 1.00 | 1.00 | 7 | 69 | 0 | 0 | 0 | 0 | 0 |
| 3J16_L | 0.54 | 0.57 | 0.52 | 12 | 1136 | 12 | 4 | 7 | 1 | 9 | |
| 3NMU_E | - | 0.51 | 0.67 | 0.40 | 2 | 211 | 8 | 1 | 2 | 5 | 1 |
| 3R9X_C | - | 0.87 | 0.88 | 0.88 | 7 | 221 | 5 | 0 | 1 | 4 | 1 |
| 3RKF_A | 0.89 | 0.88 | 0.91 | 21 | 843 | 3 | 0 | 2 | 1 | 3 | |
| 3SD1_A | 0.43 | 0.45 | 0.43 | 13 | 1503 | 17 | 1 | 16 | 0 | 16 | |
| 3SIU_F | - | 0.53 | 0.63 | 0.50 | 5 | 135 | 5 | 2 | 3 | 0 | 3 |
| 3SN2_B | 0.58 | 0.58 | 0.64 | 7 | 143 | 4 | 0 | 4 | 0 | 5 | |
| 3TRZ_Z | - | -0.05 | 0.00 | 0.00 | 0 | 88 | 4 | 0 | 4 | 0 | 5 |
| 3TS0_U | - | 1.00 | 1.00 | 1.00 | 6 | 112 | 1 | 0 | 0 | 1 | 0 |
| 3TS2_V | - | -0.05 | 0.00 | 0.00 | 0 | 102 | 7 | 0 | 6 | 1 | 5 |
| 3U4M_B | - | 0.74 | 0.77 | 0.71 | 17 | 1252 | 10 | 1 | 6 | 3 | 5 |
| 3VJR_D | - | 1.00 | 1.00 | 1.00 | 12 | 239 | 1 | 0 | 0 | 1 | 0 |
| 4A1C_2 | 0.18 | 0.25 | 0.14 | 5 | 4480 | 45 | 12 | 19 | 14 | 15 | |
| 4A1C_3 | 0.86 | 0.86 | 0.86 | 32 | 2726 | 9 | 0 | 5 | 4 | 5 | |
| 4A4U_A | - | 1.00 | 1.00 | 1.00 | 9 | 96 | 0 | 0 | 0 | 0 | 0 |
| 4ENB_A | 0.78 | 0.73 | 0.85 | 11 | 459 | 4 | 0 | 2 | 2 | 4 | |
| 4ENC_A | 0.34 | 0.33 | 0.38 | 5 | 483 | 11 | 0 | 8 | 3 | 10 |
Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
