Overview

Metric	Fold		Mastr(seed)
MCC	0.722	>	0.326
Average MCC ± 95% Confidence Intervals	0.758 ± 0.106	>	0.161 ± 0.125
Sensitivity	0.750	>	0.121
Positive Predictive Value	0.700	<	0.885
Total TP	619	>	100
Total TN	92033	<	92804
Total FP	382	>	15
Total FP CONTRA	88	>	0
Total FP INCONS	177	>	13
Total FP COMP	117	>	2
Total FN	206	<	725
P-value	3.56938820447e-08

^top

Performance plots

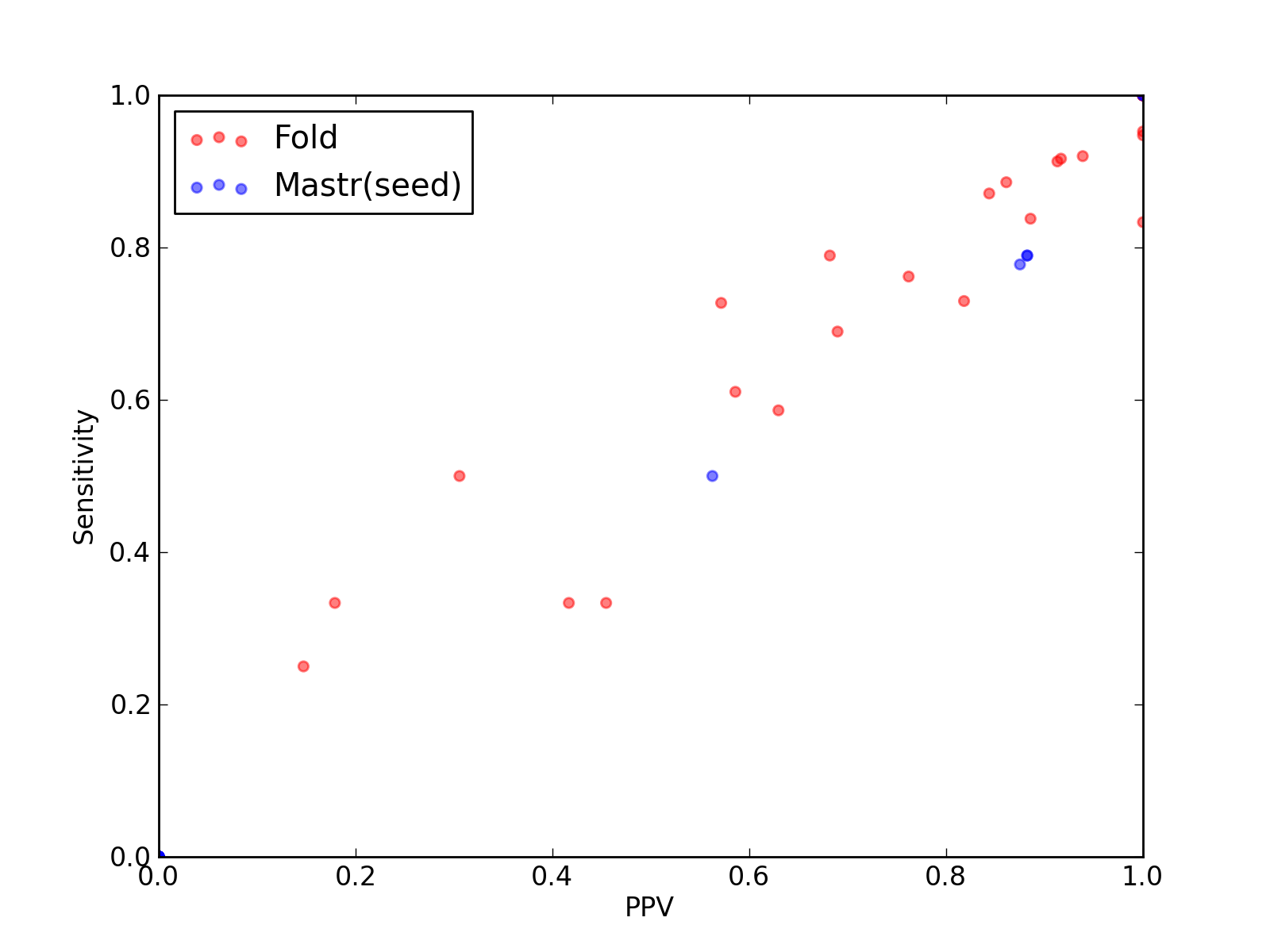

Comparison of performance of Fold and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Fold and Mastr(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Fold and Mastr(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Fold and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Fold and Mastr(seed)).

^top

Performance of Fold - scored higher in this pairwise comparison

1. Total counts & total scores for Fold

Total Base Pair Counts
Total TP	619
Total TN	92033
Total FP	382
Total FP CONTRA	88
Total FP INCONS	177
Total FP COMP	117
Total FN	206

Total Scores
MCC	0.722
Average MCC ± 95% Confidence Intervals	0.758 ± 0.106
Sensitivity	0.750
Positive Predictive Value	0.700
Nr of predictions	31

^top

2. Individual counts for Fold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	0.91	0.91	0.91	21	740	2	0	2	0	2
2L1F_B	Gammaretro_CES links to Rfam database...	0.91	0.92	0.92	22	767	2	0	2	0	2
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2WWQ_V	tRNA links to Rfam database...	0.97	0.95	1.00	18	1186	3	0	0	3	1
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	1.00	1.00	1.00	35	2010	1	0	0	1	0
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	2	0	0	2	0
3AMU_B	tRNA links to Rfam database...	0.73	0.79	0.68	15	1135	10	0	7	3	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.18	17	22345	95	40	38	17	34
3IZ4_A	tmRNA links to Rfam database...	0.60	0.61	0.59	58	25437	47	16	25	6	37
3IZF_C	5S_rRNA links to Rfam database...	0.87	0.89	0.86	31	2604	8	0	5	3	4
3J16_L	tRNA links to Rfam database...	0.76	0.76	0.76	16	1138	5	0	5	0	5
3NPB_A	SAM links to Rfam database...	0.77	0.73	0.82	27	2245	11	0	6	5	10
3O58_3	5_8S_rRNA links to Rfam database...	0.39	0.50	0.31	11	4728	41	9	16	16	11
3O58_2	5S_rRNA links to Rfam database...	0.86	0.87	0.84	27	2722	12	0	5	7	4
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.68	0.69	0.69	20	1504	9	4	5	0	9
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	8	0	0	8	0
4A1C_3	5S_rRNA links to Rfam database...	0.86	0.84	0.89	31	2728	7	0	4	3	6
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.37	0.33	0.45	5	461	7	0	6	1	10
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10

^top

Performance of Mastr(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(seed)

Total Base Pair Counts
Total TP	100
Total TN	92804
Total FP	15
Total FP CONTRA	0
Total FP INCONS	13
Total FP COMP	2
Total FN	725

Total Scores
MCC	0.326
Average MCC ± 95% Confidence Intervals	0.161 ± 0.125
Sensitivity	0.121
Positive Predictive Value	0.885
Nr of predictions	31

^top

2. Individual counts for Mastr(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KUR_A	K10_TLS links to Rfam database...	0.83	0.79	0.88	15	450	2	0	2	0	4
2KUU_A	K10_TLS links to Rfam database...	0.82	0.78	0.88	14	431	3	0	2	1	4
2KUV_A	K10_TLS links to Rfam database...	0.83	0.79	0.88	15	422	2	0	2	0	4
2KUW_A	K10_TLS links to Rfam database...	0.51	0.50	0.56	9	454	8	0	7	1	9
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	371	0	0	0	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.00	0.00	0.00	0	357	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	1204	0	0	0	0	19
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	1835	0	0	0	0	11
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	1129	0	0	0	0	21
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	2045	0	0	0	0	35
3AKZ_H	tRNA links to Rfam database...	0.00	0.00	0.00	0	1127	0	0	0	0	20
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1157	0	0	0	0	19
3IYQ_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	22440	0	0	0	0	51
3IZ4_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	25536	0	0	0	0	95
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2640	0	0	0	0	35
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	1159	0	0	0	0	21
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	2278	0	0	0	0	37
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4764	0	0	0	0	22
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2754	0	0	0	0	31
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4840	0	0	0	0	50
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	866	0	0	0	0	24
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1293	0	0	0	0	16
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2763	0	0	0	0	37
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
