Overview

Metric	Fold		MaxExpect
MCC	0.777	>	0.758
Average MCC ± 95% Confidence Intervals	0.802 ± 0.067	>	0.788 ± 0.069
Sensitivity	0.796	>	0.773
Positive Predictive Value	0.764	>	0.749
Total TP	1216	>	1181
Total TN	121050	<	121064
Total FP	552	<	566
Total FP CONTRA	116	>	110
Total FP INCONS	259	<	286
Total FP COMP	177	>	170
Total FN	312	<	347
P-value	4.48494289621e-08

^top

Performance plots

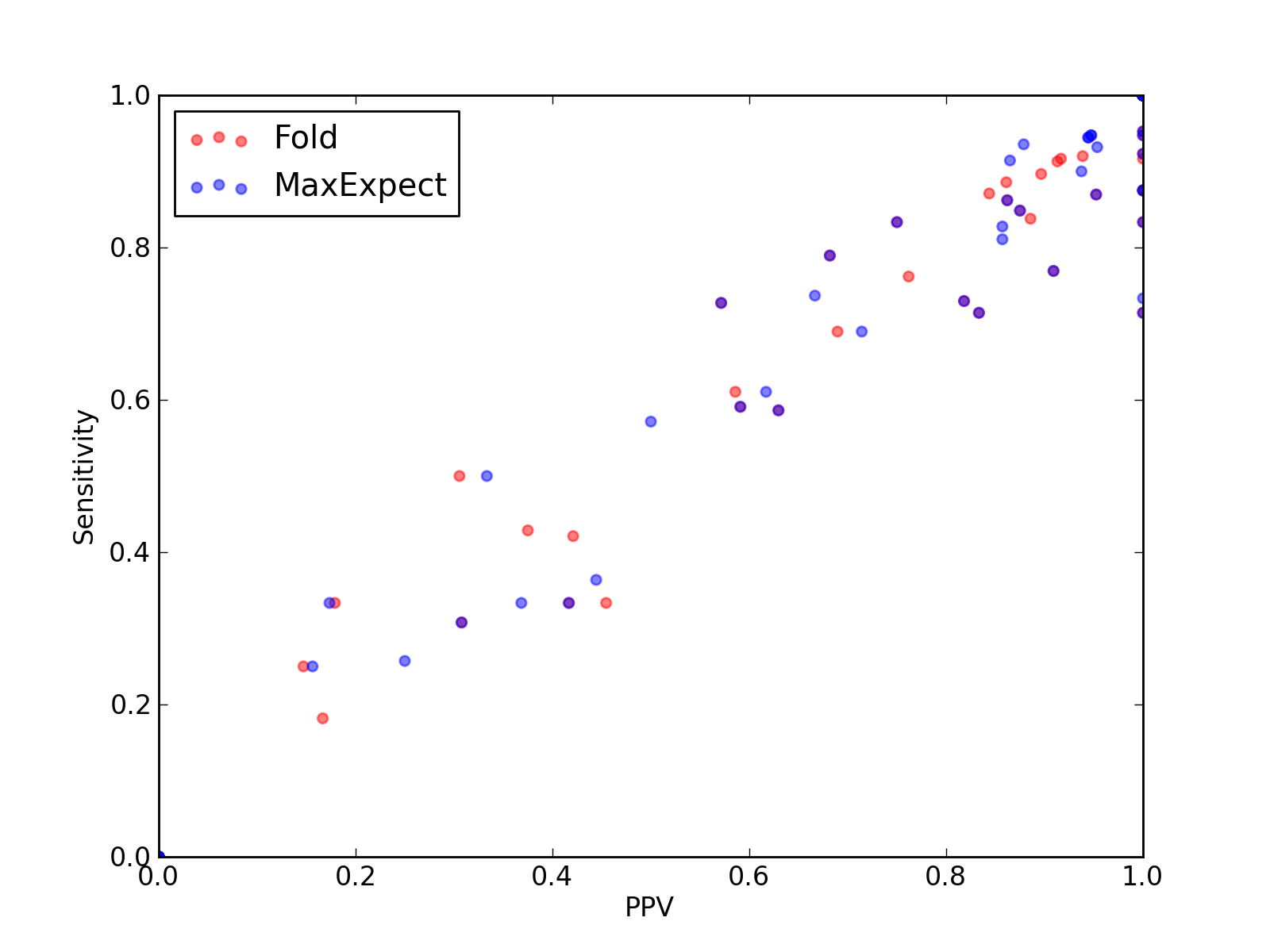

Comparison of performance of Fold and MaxExpect. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Fold and MaxExpect).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Fold and MaxExpect).
Comparison of average Matthews Correlation Coefficients (MCCs) for Fold and MaxExpect. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Fold and MaxExpect).

^top

Performance of Fold - scored higher in this pairwise comparison

1. Total counts & total scores for Fold

Total Base Pair Counts
Total TP	1216
Total TN	121050
Total FP	552
Total FP CONTRA	116
Total FP INCONS	259
Total FP COMP	177
Total FN	312

Total Scores
MCC	0.777
Average MCC ± 95% Confidence Intervals	0.802 ± 0.067
Sensitivity	0.796
Positive Predictive Value	0.764
Nr of predictions	82

^top

2. Individual counts for Fold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KU0_A	-	0.96	0.92	1.00	11	281	0	0	0	0	1
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.93	0.88	1.00	7	142	0	0	0	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	0.91	0.92	0.92	22	767	2	0	2	0	2
2L1F_A	Gammaretro_CES links to Rfam database...	0.91	0.91	0.91	21	740	2	0	2	0	2
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.90	0.90	0.90	26	2411	10	0	3	7	3
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WWQ_V	tRNA links to Rfam database...	0.97	0.95	1.00	18	1186	3	0	0	3	1
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	1.00	1.00	1.00	35	2010	1	0	0	1	0
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.39	0.43	0.38	3	536	8	1	4	3	4
3ADB_C	-	0.86	0.85	0.88	28	1787	4	0	4	0	5
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	2	0	0	2	0
3AM1_B	-	0.86	0.86	0.86	25	1437	4	0	4	0	4
3AMU_B	tRNA links to Rfam database...	0.73	0.79	0.68	15	1135	10	0	7	3	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.18	17	22345	95	40	38	17	34
3IZ4_A	tmRNA links to Rfam database...	0.60	0.61	0.59	58	25437	47	16	25	6	37
3IZF_C	5S_rRNA links to Rfam database...	0.87	0.89	0.86	31	2604	8	0	5	3	4
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.15	0.18	0.17	2	399	11	4	6	1	9
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_h	-	0.93	0.88	1.00	28	2112	2	0	0	2	4
3J0L_7	-	-0.02	0.00	0.00	0	507	12	2	10	0	10
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J16_L	tRNA links to Rfam database...	0.76	0.76	0.76	16	1138	5	0	5	0	5
3NDB_M	-	1.00	1.00	1.00	44	3670	4	0	0	4	0
3NKB_B	-	0.41	0.42	0.42	8	716	11	4	7	0	11
3NMU_E	-	-0.02	0.00	0.00	0	207	11	6	3	2	3
3NPB_A	SAM links to Rfam database...	0.77	0.73	0.82	27	2245	11	0	6	5	10
3O58_3	5_8S_rRNA links to Rfam database...	0.39	0.50	0.31	11	4728	41	9	16	16	11
3O58_2	5S_rRNA links to Rfam database...	0.86	0.87	0.84	27	2722	12	0	5	7	4
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.68	0.69	0.69	20	1504	9	4	5	0	9
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	8	0	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4A1C_3	5S_rRNA links to Rfam database...	0.86	0.84	0.89	31	2728	7	0	4	3	6
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.37	0.33	0.45	5	461	7	0	6	1	10
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10

^top

Performance of MaxExpect - scored lower in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	1181
Total TN	121064
Total FP	566
Total FP CONTRA	110
Total FP INCONS	286
Total FP COMP	170
Total FN	347

Total Scores
MCC	0.758
Average MCC ± 95% Confidence Intervals	0.788 ± 0.069
Sensitivity	0.773
Positive Predictive Value	0.749
Nr of predictions	82

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KU0_A	-	-0.04	0.00	0.00	0	283	9	1	8	0	12
2KUR_A	K10_TLS links to Rfam database...	0.95	0.95	0.95	18	448	1	0	1	0	1
2KUU_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	429	2	0	1	1	1
2KUV_A	K10_TLS links to Rfam database...	0.94	0.95	0.95	18	420	1	0	1	0	1
2KUW_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	452	2	0	1	1	1
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.93	0.88	1.00	7	142	0	0	0	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.84	0.83	0.86	24	2412	11	0	4	7	5
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WWQ_V	tRNA links to Rfam database...	0.97	0.95	1.00	18	1186	3	0	0	3	1
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.24	0.26	0.25	9	2009	28	1	26	1	26
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
3ADB_C	-	0.86	0.85	0.88	28	1787	4	0	4	0	5
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	2	0	0	2	0
3AM1_B	-	0.86	0.86	0.86	25	1437	4	0	4	0	4
3AMU_B	tRNA links to Rfam database...	0.73	0.79	0.68	15	1135	10	0	7	3	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.17	17	22342	96	41	40	15	34
3IZ4_A	tmRNA links to Rfam database...	0.61	0.61	0.62	58	25442	42	14	22	6	37
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	8	0	5	3	3
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.39	0.36	0.44	4	402	6	4	1	1	7
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_h	-	0.93	0.88	1.00	28	2112	2	0	0	2	4
3J0L_7	-	-0.02	0.00	0.00	0	507	12	3	9	0	10
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J16_L	tRNA links to Rfam database...	0.34	0.33	0.37	7	1140	12	0	12	0	14
3NDB_M	-	0.94	0.93	0.95	41	3671	7	0	2	5	3
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	-0.02	0.00	0.00	0	208	10	5	3	2	3
3NPB_A	SAM links to Rfam database...	0.77	0.73	0.82	27	2245	10	0	6	4	10
3O58_3	5_8S_rRNA links to Rfam database...	0.40	0.50	0.33	11	4731	36	8	14	14	11
3O58_2	5S_rRNA links to Rfam database...	0.91	0.94	0.88	29	2721	11	0	4	7	2
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.92	0.90	0.94	45	4792	5	1	2	2	5
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.70	0.69	0.71	20	1505	8	3	5	0	9
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	8	0	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	41	10	17	14	15
4A1C_3	5S_rRNA links to Rfam database...	0.83	0.81	0.86	30	2728	7	0	5	2	7
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
