Overview

Metric	HotKnots		McQFold
MCC	0.770	>	0.718
Average MCC ± 95% Confidence Intervals	0.809 ± 0.052	>	0.761 ± 0.055
Sensitivity	0.791	>	0.719
Positive Predictive Value	0.755	>	0.725
Total TP	1600	>	1453
Total TN	149728	<	149842
Total FP	783	>	747
Total FP CONTRA	180	<	199
Total FP INCONS	338	<	352
Total FP COMP	265	>	196
Total FN	422	<	569
P-value	3.56938820447e-08

^top

Performance plots

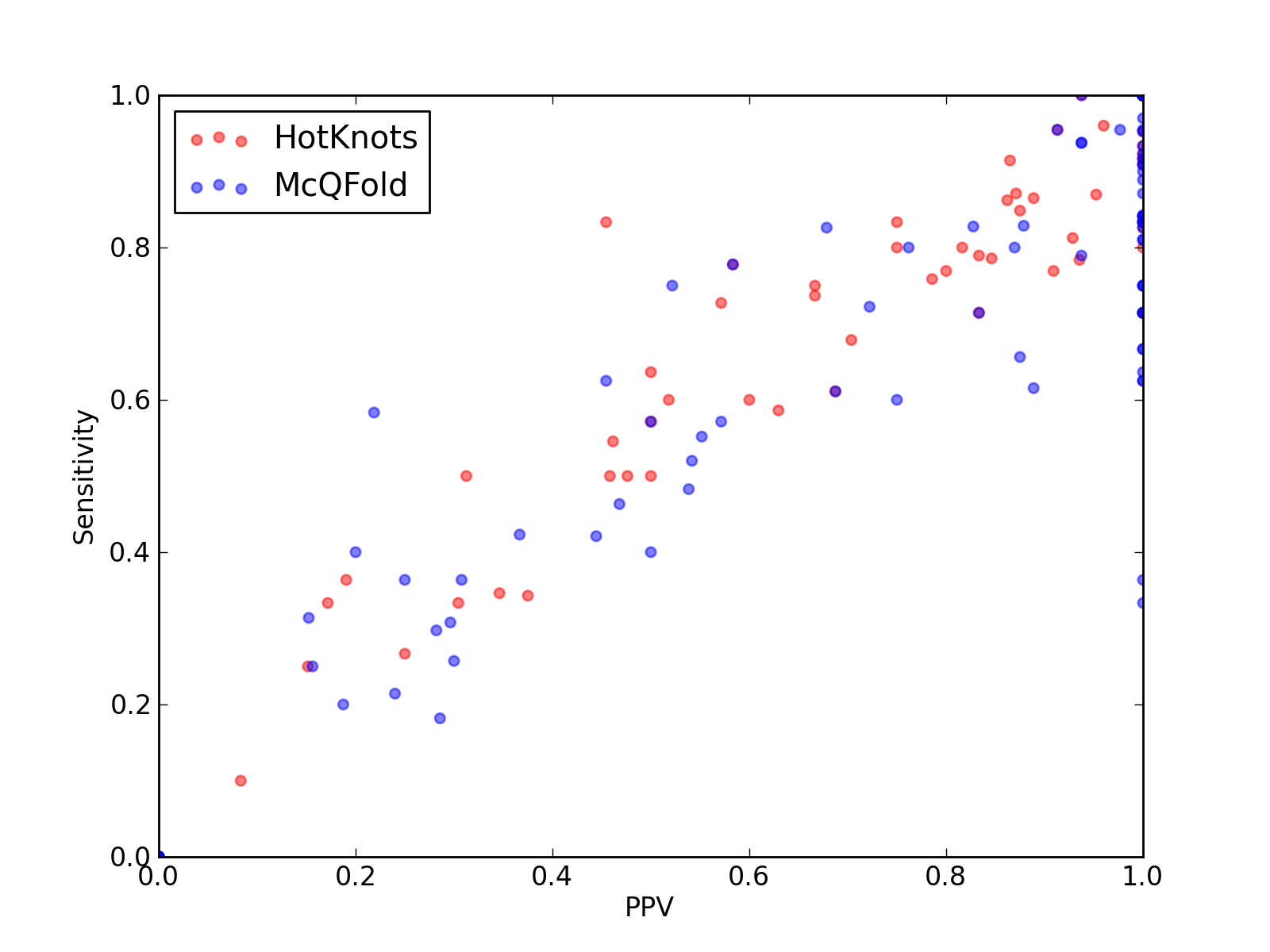

Comparison of performance of HotKnots and McQFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for HotKnots and McQFold).

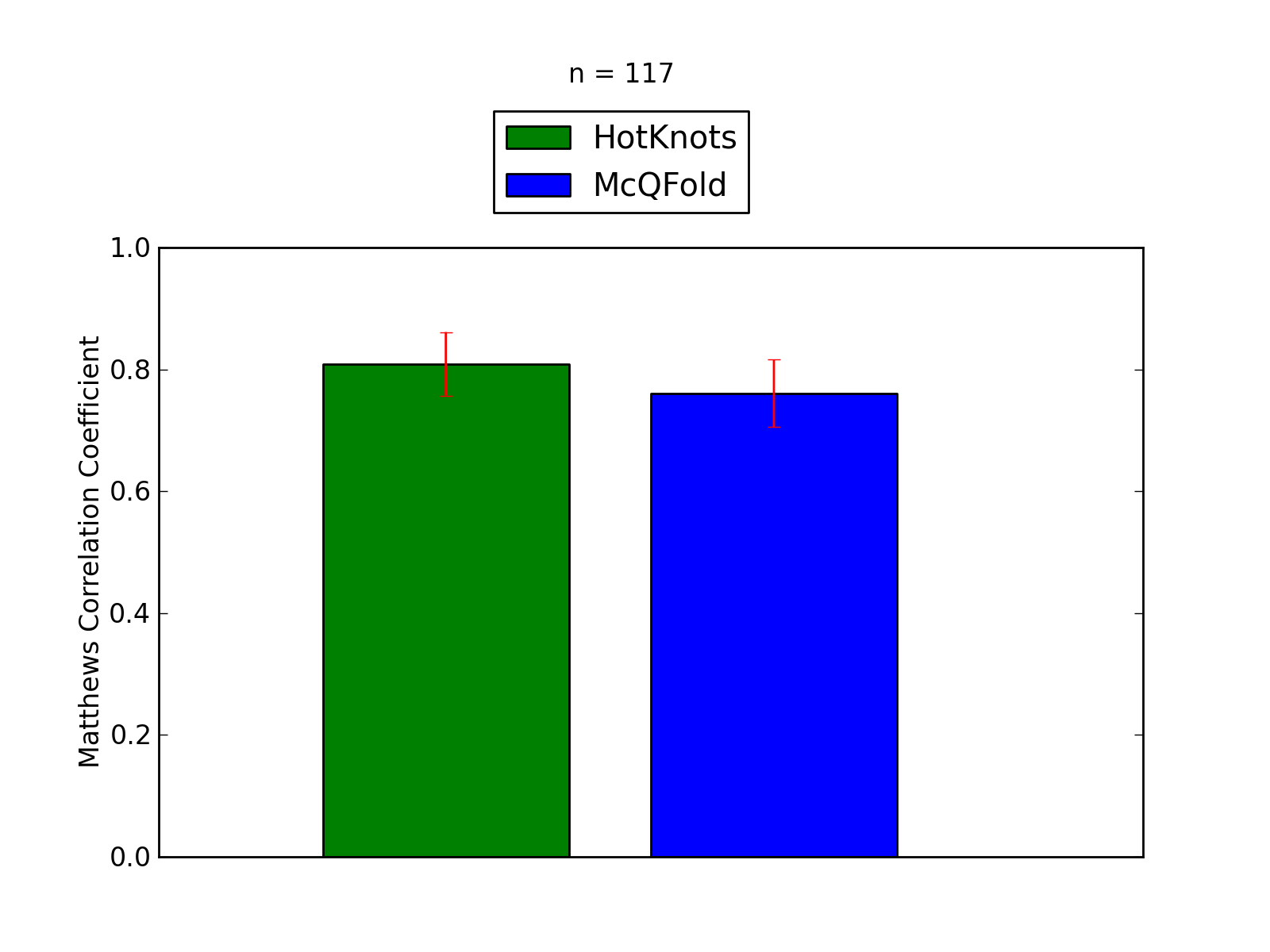

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for HotKnots and McQFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for HotKnots and McQFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for HotKnots and McQFold).

^top

Performance of HotKnots - scored higher in this pairwise comparison

1. Total counts & total scores for HotKnots

Total Base Pair Counts
Total TP	1600
Total TN	149728
Total FP	783
Total FP CONTRA	180
Total FP INCONS	338
Total FP COMP	265
Total FN	422

Total Scores
MCC	0.770
Average MCC ± 95% Confidence Intervals	0.809 ± 0.052
Sensitivity	0.791
Positive Predictive Value	0.755
Nr of predictions	117

^top

2. Individual counts for HotKnots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	175	0	0	0	0	0
2K63_A	-	1.00	1.00	1.00	9	159	0	0	0	0	0
2K66_A	-	1.00	1.00	1.00	9	80	0	0	0	0	0
2KD8_A	-	1.00	1.00	1.00	9	99	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KEZ_A	-	1.00	1.00	1.00	8	94	0	0	0	0	0
2KFC_A	-	-0.03	0.00	0.00	0	229	7	1	6	0	8
2KGP_A	-	1.00	1.00	1.00	9	112	1	0	0	1	0
2KMJ_A	-	1.00	1.00	1.00	11	157	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KU0_A	-	0.96	0.92	1.00	11	281	0	0	0	0	1
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	1.00	1.00	1.00	8	141	0	0	0	0	0
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	0	5	0	7
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	1.00	1.00	1.00	29	2411	8	0	0	8	0
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2RPT_A	-	1.00	1.00	1.00	7	65	0	0	0	0	0
2RRC_A	-	1.00	1.00	1.00	7	68	0	0	0	0	0
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2WW9_F	-	0.68	0.75	0.67	6	103	4	1	2	1	2
2WW9_D	-	0.08	0.10	0.08	1	729	15	2	9	4	9
2WW9_E	-	0.89	0.80	1.00	4	168	0	0	0	0	1
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	5	0	0	5	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2ZY6_A	-	0.66	0.78	0.58	7	264	5	3	2	0	2
2ZZM_B	tRNA links to Rfam database...	0.25	0.27	0.25	4	1342	20	3	9	8	11
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	3	2	0	1	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3ADB_C	-	0.86	0.85	0.88	28	1787	5	0	4	1	5
3AKZ_H	tRNA links to Rfam database...	0.48	0.50	0.48	10	1106	13	4	7	2	10
3AM1_B	-	0.86	0.86	0.86	25	1437	4	0	4	0	4
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3DW4_A	-	-0.03	0.00	0.00	0	136	6	1	3	2	6
3G4S_9	5S_rRNA links to Rfam database...	0.78	0.77	0.80	20	2711	14	2	3	9	6
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3HAY_E	-	1.00	1.00	1.00	14	910	7	0	0	7	0
3HJW_D	-	1.00	1.00	1.00	16	593	2	0	0	2	0
3IAB_R	-	1.00	1.00	1.00	12	373	0	0	0	0	0
3ID5_D	-	0.59	0.60	0.60	3	224	5	0	2	3	2
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.69	0.68	0.70	19	1445	9	1	7	1	9
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.17	17	22341	96	47	35	14	34
3IZ4_A	tmRNA links to Rfam database...	0.56	0.60	0.52	57	25426	57	26	27	4	38
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_2	-	0.34	0.35	0.35	9	2224	23	2	15	6	17
3J0L_g	-	-0.01	0.00	0.00	0	173	5	1	2	2	2
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.55	0.64	0.50	7	397	8	5	2	1	4
3J0L_7	-	0.38	0.50	0.31	5	503	12	4	7	1	5
3J16_L	tRNA links to Rfam database...	0.31	0.33	0.30	7	1136	16	3	13	0	14
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1089	22	4	18	0	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	31	10	2	19	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	27	0	4	23	3
3KTW_C	-	0.96	0.96	0.96	24	1755	9	0	1	8	1
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NDB_M	-	1.00	1.00	1.00	44	3670	4	0	0	4	0
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	1.00	1.00	1.00	3	213	5	0	0	5	0
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	6	0	2	4	8
3O58_3	5_8S_rRNA links to Rfam database...	0.26	0.36	0.19	8	4722	35	16	18	1	14
3O58_2	5S_rRNA links to Rfam database...	0.87	0.87	0.87	27	2723	12	0	4	8	4
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.81	0.80	0.82	40	4791	11	3	6	2	10
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	42	12	16	14	15
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	1453
Total TN	149842
Total FP	747
Total FP CONTRA	199
Total FP INCONS	352
Total FP COMP	196
Total FN	569

Total Scores
MCC	0.718
Average MCC ± 95% Confidence Intervals	0.761 ± 0.055
Sensitivity	0.719
Positive Predictive Value	0.725
Nr of predictions	117

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	0.59	0.36	1.00	4	182	0	0	0	0	7
2K63_A	-	1.00	1.00	1.00	9	159	0	0	0	0	0
2K66_A	-	1.00	1.00	1.00	9	80	0	0	0	0	0
2KD8_A	-	1.00	1.00	1.00	9	99	1	0	0	1	0
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.91	0.83	1.00	15	452	1	0	0	1	3
2KEZ_A	-	1.00	1.00	1.00	8	94	0	0	0	0	0
2KFC_A	-	0.79	0.63	1.00	5	231	0	0	0	0	3
2KGP_A	-	0.81	0.67	1.00	6	115	1	0	0	1	3
2KMJ_A	-	1.00	1.00	1.00	11	157	1	0	0	1	0
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.75	0.83	0.68	19	1996	15	7	2	6	4
2KU0_A	-	0.86	0.75	1.00	9	283	0	0	0	0	3
2KUR_A	K10_TLS links to Rfam database...	0.91	0.84	1.00	16	451	0	0	0	0	3
2KUU_A	K10_TLS links to Rfam database...	0.91	0.83	1.00	15	432	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.91	0.84	1.00	16	423	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.94	0.89	1.00	16	454	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.93	0.94	0.94	15	355	1	0	1	0	1
2KXM_A	-	0.78	0.63	1.00	5	144	0	0	0	0	3
2KZL_A	-	1.00	1.00	1.00	13	507	2	0	0	2	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	1	0	0	1	0
2L3C_B	-	1.00	1.00	1.00	14	225	1	0	0	1	0
2L3E_A	-	1.00	1.00	1.00	12	228	2	0	0	2	0
2L3J_B	mir-2985-2 links to Rfam database...	0.95	0.90	1.00	27	958	0	0	0	0	3
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	1	0	1	0	2
2LBS_A	-	1.00	1.00	1.00	14	193	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	1	4	0	7
2LDL_A	-	0.81	0.67	1.00	6	134	0	0	0	0	3
2LDT_A	-	0.79	0.64	1.00	7	155	0	0	0	0	4
2LHP_A	-	1.00	1.00	1.00	15	246	1	0	0	1	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.55	0.55	0.55	16	2411	15	5	8	2	13
2LQZ_A	-	1.00	1.00	1.00	8	124	3	0	0	3	0
2LWK_A	-	0.95	0.91	1.00	10	197	2	0	0	2	1
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2RPT_A	-	1.00	1.00	1.00	7	65	0	0	0	0	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2WW9_F	-	0.86	0.75	1.00	6	106	1	0	0	1	2
2WW9_D	-	0.44	0.40	0.50	4	733	9	4	0	5	6
2WW9_E	-	-0.03	0.00	0.00	0	168	5	0	4	1	5
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	1204	0	0	0	0	19
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.33	0.36	0.31	4	1822	27	2	7	18	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.27	0.26	0.30	9	2015	22	0	21	1	26
2Y8W_B	-	1.00	1.00	1.00	6	82	2	0	0	2	0
2Y9C_V	-	0.72	0.72	0.72	13	888	8	0	5	3	5
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
2YIE_Z	-	0.53	0.63	0.45	5	591	6	4	2	0	3
2ZY6_A	-	0.66	0.78	0.58	7	264	5	3	2	0	2
2ZZM_B	tRNA links to Rfam database...	0.18	0.20	0.19	3	1342	22	4	9	9	12
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3ADB_C	-	0.98	0.97	1.00	32	1787	1	0	0	1	1
3AKZ_H	tRNA links to Rfam database...	0.78	0.80	0.76	16	1106	7	2	3	2	4
3AM1_B	-	1.00	1.00	1.00	29	1437	1	0	0	1	0
3AMU_B	tRNA links to Rfam database...	0.86	0.79	0.94	15	1141	4	0	1	3	4
3DW4_A	-	-0.03	0.00	0.00	0	137	3	0	3	0	6
3G4S_9	5S_rRNA links to Rfam database...	0.39	0.42	0.37	11	2706	22	6	13	3	15
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.56	0.57	0.57	16	1421	13	4	8	1	12
3HAY_E	-	1.00	1.00	1.00	14	910	4	0	0	4	0
3HJW_D	-	0.94	0.94	0.94	15	593	3	0	1	2	1
3IAB_R	-	1.00	1.00	1.00	12	373	0	0	0	0	0
3ID5_D	-	0.66	0.60	0.75	3	225	6	0	1	5	2
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.21	0.21	0.24	6	1447	19	2	17	0	22
3IYQ_A	tmRNA links to Rfam database...	0.22	0.31	0.15	16	22335	100	45	44	11	35
3IZ4_A	tmRNA links to Rfam database...	0.46	0.46	0.47	44	25442	56	14	36	6	51
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	7	0	4	3	6
3J0L_h	-	0.75	0.66	0.88	21	2116	3	0	3	0	11
3J0L_1	-	0.73	0.62	0.89	8	475	4	0	1	3	5
3J0L_2	-	0.29	0.31	0.30	8	2223	21	1	18	2	18
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.21	0.18	0.29	2	404	6	3	2	1	9
3J0L_7	-	-0.02	0.00	0.00	0	509	10	2	8	0	10
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1091	20	4	16	0	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.35	0.58	0.22	7	4724	33	17	8	8	5
3JYX_3	5S_rRNA links to Rfam database...	0.28	0.40	0.20	6	2348	24	17	7	0	9
3KTW_C	-	0.52	0.52	0.54	13	1756	17	2	9	6	12
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NDB_M	-	0.97	0.95	0.98	42	3671	5	0	1	4	2
3NKB_B	-	0.42	0.42	0.44	8	717	10	2	8	0	11
3NMU_E	-	0.57	0.33	1.00	1	215	3	0	0	3	2
3NPB_A	SAM links to Rfam database...	0.90	0.81	1.00	30	2248	5	0	0	5	7
3O58_3	5_8S_rRNA links to Rfam database...	0.30	0.36	0.25	8	4732	27	15	9	3	14
3O58_2	5S_rRNA links to Rfam database...	0.93	0.87	1.00	27	2727	2	0	0	2	4
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.83	0.80	0.87	40	4794	9	2	4	3	10
3R4F_A	-	1.00	1.00	1.00	22	884	2	0	0	2	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	1	4	0	5
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	2	0	0	2	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.95	0.91	1.00	20	1256	2	0	0	2	2
3UZL_B	tRNA links to Rfam database...	0.62	0.75	0.52	12	1270	17	8	3	6	4
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	33	11	16	6	15
4A1C_3	5S_rRNA links to Rfam database...	0.28	0.30	0.28	11	2724	30	4	24	2	26
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of HotKnots - scored higher in this pairwise comparison

1. Total counts & total scores for HotKnots

2. Individual counts for HotKnots [ download as .csv ]

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

2. Individual counts for McQFold [ download as .csv ]
