Overview

Metric	MCFold		Murlet(seed)
MCC	0.638	>	0.619
Average MCC ± 95% Confidence Intervals	0.666 ± 0.130	>	0.614 ± 0.077
Sensitivity	0.677	>	0.447
Positive Predictive Value	0.612	<	0.867
Total TP	355	>	234
Total TN	35252	<	35562
Total FP	294	>	46
Total FP CONTRA	64	>	4
Total FP INCONS	161	>	32
Total FP COMP	69	>	10
Total FN	169	<	290
P-value	2.45762693015e-06

^top

Performance plots

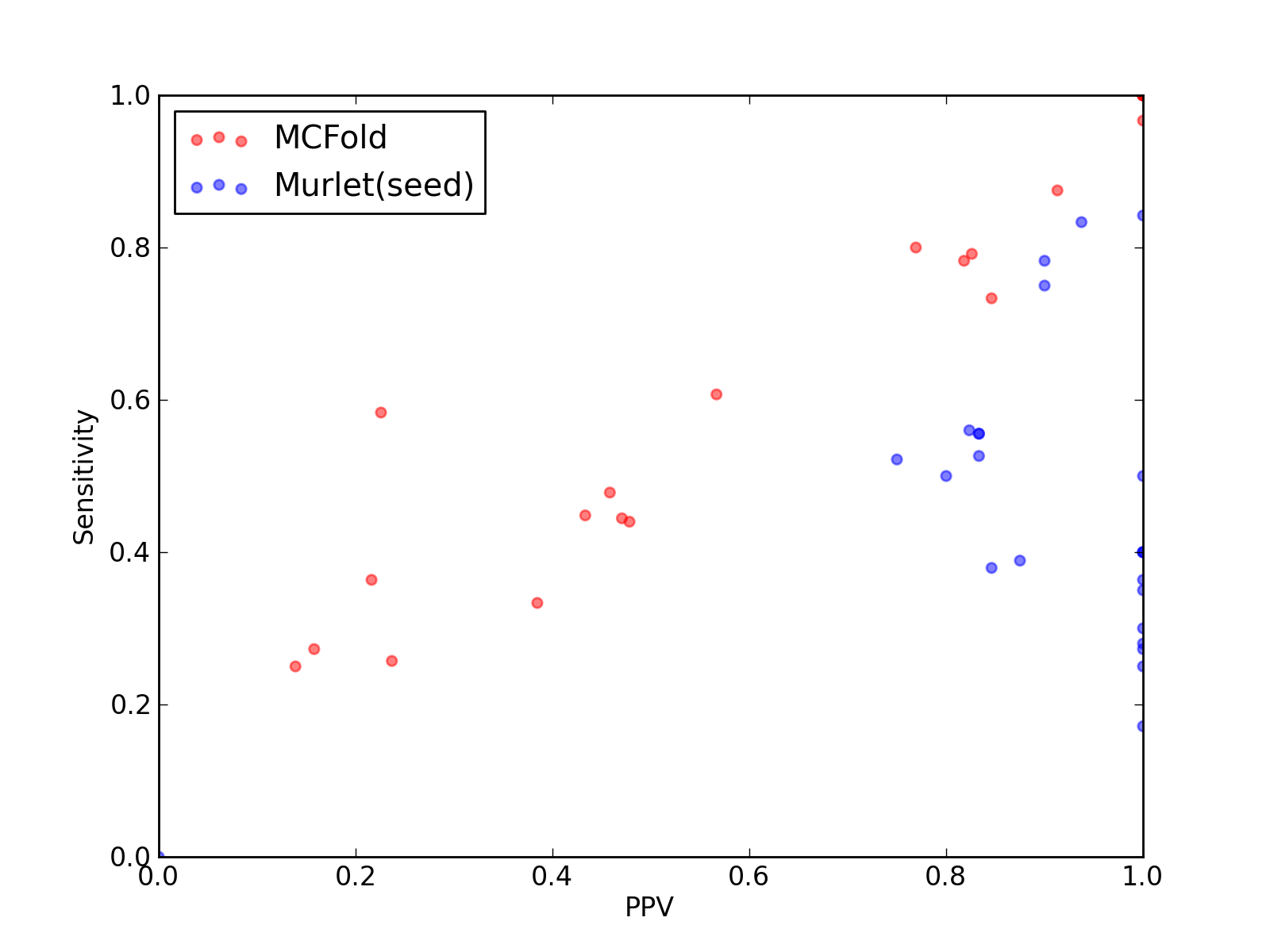

Comparison of performance of MCFold and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MCFold and Murlet(seed)).

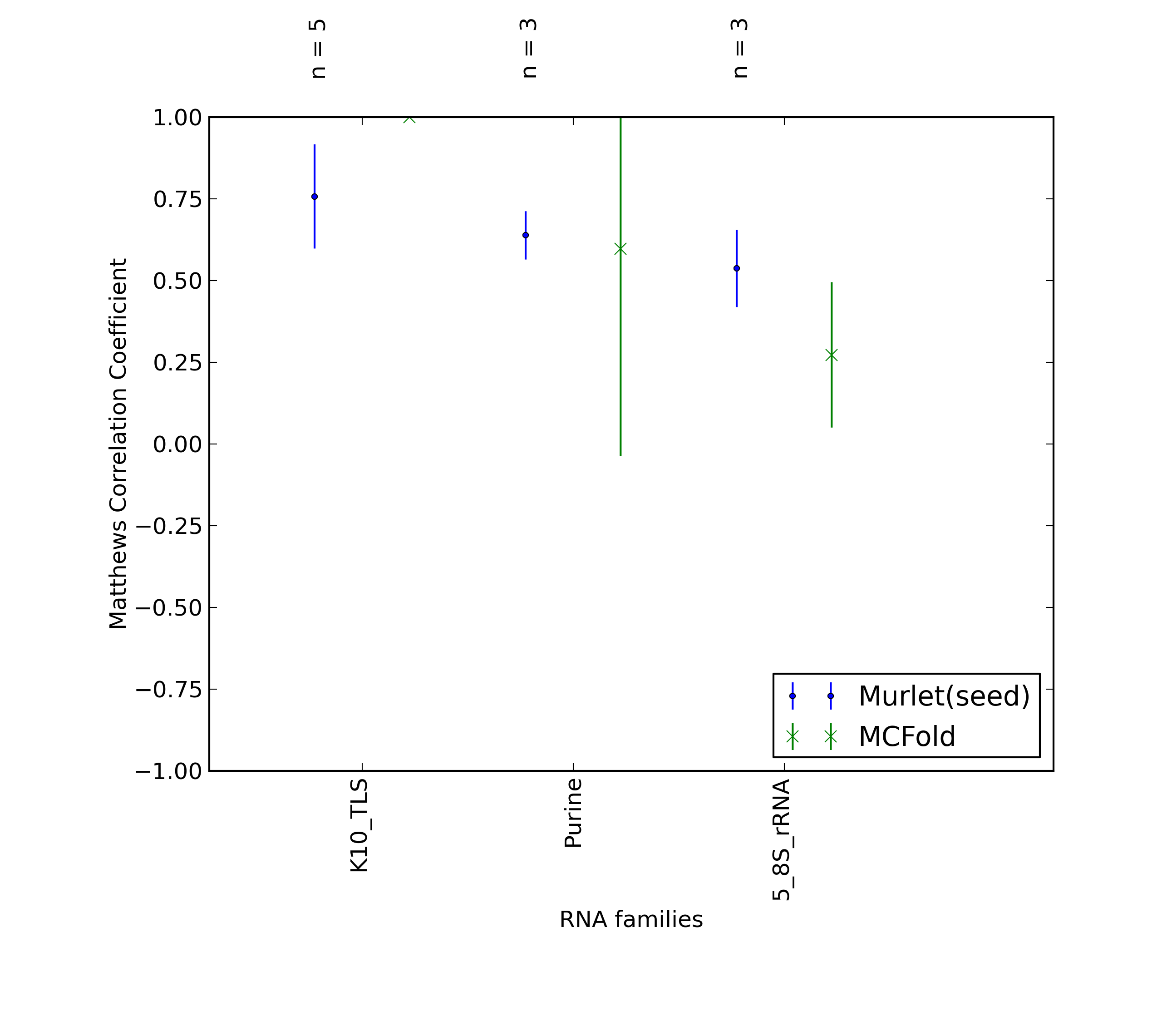

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MCFold and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MCFold and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MCFold and Murlet(seed)).

^top

Performance of MCFold - scored higher in this pairwise comparison

1. Total counts & total scores for MCFold

Total Base Pair Counts
Total TP	355
Total TN	35252
Total FP	294
Total FP CONTRA	64
Total FP INCONS	161
Total FP COMP	69
Total FN	169

Total Scores
MCC	0.638
Average MCC ± 95% Confidence Intervals	0.666 ± 0.130
Sensitivity	0.677
Positive Predictive Value	0.612
Nr of predictions	24

^top

2. Individual counts for MCFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	1	0	0	1	0
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	0.80	0.79	0.83	19	768	4	0	4	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.79	0.78	0.82	18	741	4	0	4	0	5
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.44	0.47	8	511	10	0	9	1	10
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.20	0.27	0.16	3	1816	30	4	12	14	8
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.23	0.26	0.24	9	2007	30	1	28	1	26
3A3A_A	tRNA-Sec links to Rfam database...	0.98	0.97	1.00	29	1471	0	0	0	0	1
3GX2_A	SAM links to Rfam database...	0.58	0.61	0.57	17	1419	15	1	12	2	11
3IVN_B	Purine links to Rfam database...	0.45	0.48	0.46	11	879	14	5	8	1	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.36	0.58	0.23	7	4725	37	19	5	13	5
3LA5_A	Purine links to Rfam database...	0.44	0.44	0.48	11	931	12	2	10	0	14
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.36	0.22	8	4727	39	14	15	10	14
3PDR_A	ykoK links to Rfam database...	0.78	0.80	0.77	40	4788	14	5	7	2	10
3RKF_A	Purine links to Rfam database...	0.89	0.88	0.91	21	843	3	0	2	1	3
3SD1_A	THF links to Rfam database...	0.43	0.45	0.43	13	1503	17	1	16	0	16
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4480	45	12	19	14	15
4ENB_A	crcB links to Rfam database...	0.78	0.73	0.85	11	459	4	0	2	2	4
4ENC_A	crcB links to Rfam database...	0.34	0.33	0.38	5	483	11	0	8	3	10

^top

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	234
Total TN	35562
Total FP	46
Total FP CONTRA	4
Total FP INCONS	32
Total FP COMP	10
Total FN	290

Total Scores
MCC	0.619
Average MCC ± 95% Confidence Intervals	0.614 ± 0.077
Sensitivity	0.447
Positive Predictive Value	0.867
Nr of predictions	24

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.54	0.30	1.00	3	171	0	0	0	0	7
2KE6_A	K10_TLS links to Rfam database...	0.67	0.56	0.83	10	455	2	0	2	0	8
2KUR_A	K10_TLS links to Rfam database...	0.65	0.53	0.83	10	455	2	0	2	0	9
2KUU_A	K10_TLS links to Rfam database...	0.67	0.56	0.83	10	435	2	0	2	0	8
2KUV_A	K10_TLS links to Rfam database...	0.91	0.84	1.00	16	423	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.88	0.83	0.94	15	454	2	0	1	1	3
2L1F_B	Gammaretro_CES links to Rfam database...	0.82	0.75	0.90	18	771	2	0	2	0	6
2L1F_A	Gammaretro_CES links to Rfam database...	0.83	0.78	0.90	18	743	2	0	2	0	5
2L94_A	HIV_FE links to Rfam database...	0.57	0.39	0.88	7	349	2	0	1	1	11
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	516	12	0	12	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	2	0	0	2	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	2039	0	0	0	0	29
3A3A_A	tRNA-Sec links to Rfam database...	0.63	0.40	1.00	12	1488	0	0	0	0	18
3GX2_A	SAM links to Rfam database...	0.70	0.50	1.00	14	1435	1	0	0	1	14
3IVN_B	Purine links to Rfam database...	0.62	0.52	0.75	12	887	4	2	2	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	3	4753	4	0	0	4	9
3LA5_A	Purine links to Rfam database...	0.67	0.56	0.82	14	937	3	1	2	0	11
3O58_3	5_8S_rRNA links to Rfam database...	0.52	0.27	1.00	6	4758	1	0	0	1	16
3PDR_A	ykoK links to Rfam database...	0.53	0.28	1.00	14	4826	0	0	0	0	36
3RKF_A	Purine links to Rfam database...	0.62	0.50	0.80	12	851	3	1	2	0	12
3SD1_A	THF links to Rfam database...	0.56	0.38	0.85	11	1520	2	0	2	0	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.59	0.35	1.00	7	4509	0	0	0	0	13
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
