Overview

Metric	MCFold		RDfolder
MCC	0.705	>	0.703
Average MCC ± 95% Confidence Intervals	0.707 ± 0.075	>	0.703 ± 0.077
Sensitivity	0.737	>	0.660
Positive Predictive Value	0.689	<	0.764
Total TP	910	>	814
Total TN	45348	<	45603
Total FP	560	>	315
Total FP CONTRA	97	>	61
Total FP INCONS	313	>	190
Total FP COMP	150	>	64
Total FN	324	<	420
P-value	0.154221523985

^top

Performance plots

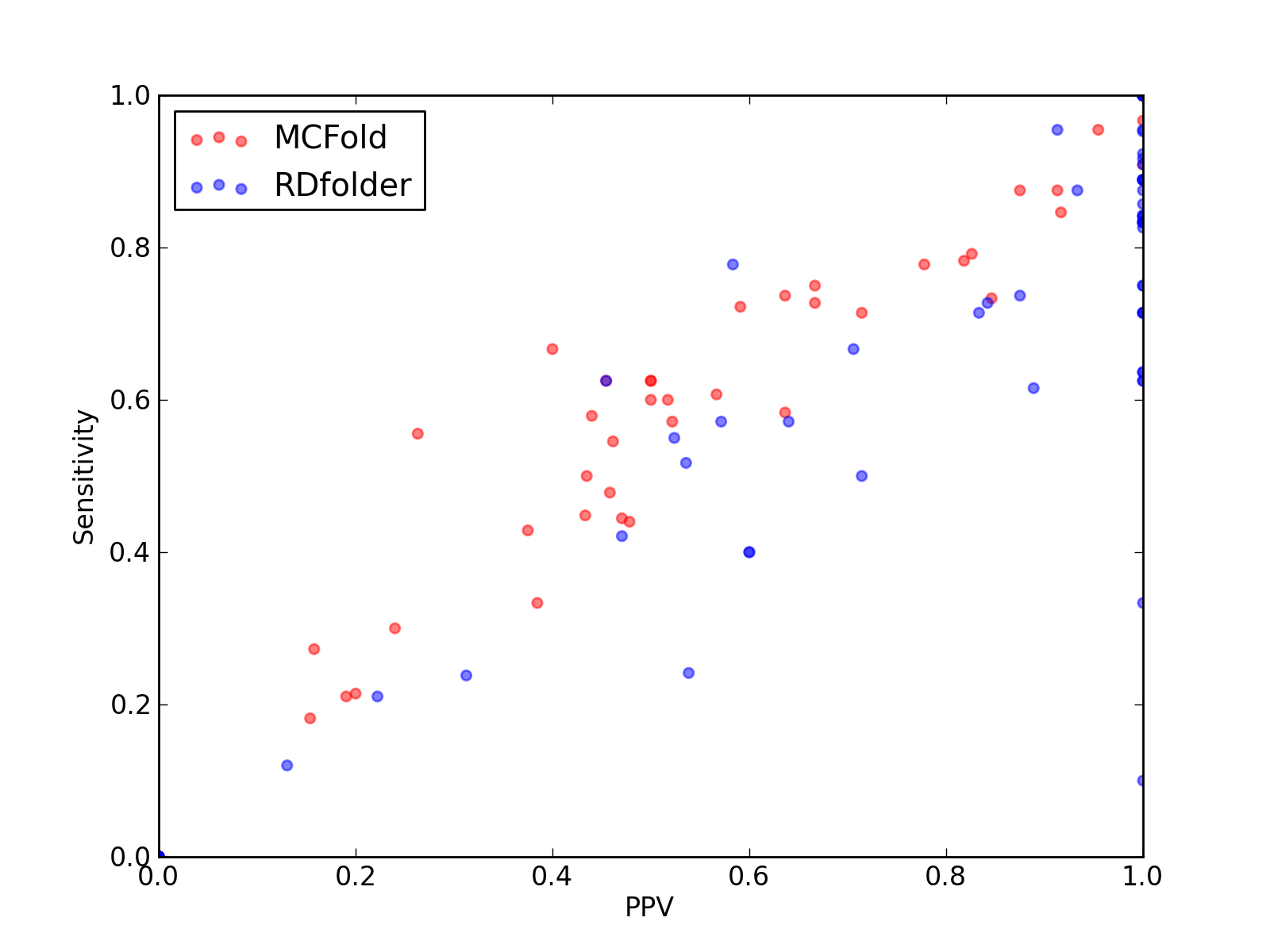

Comparison of performance of MCFold and RDfolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MCFold and RDfolder).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MCFold and RDfolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for MCFold and RDfolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MCFold and RDfolder).

^top

Performance of MCFold - scored higher in this pairwise comparison

1. Total counts & total scores for MCFold

Total Base Pair Counts
Total TP	910
Total TN	45348
Total FP	560
Total FP CONTRA	97
Total FP INCONS	313
Total FP COMP	150
Total FN	324

Total Scores
MCC	0.705
Average MCC ± 95% Confidence Intervals	0.707 ± 0.075
Sensitivity	0.737
Positive Predictive Value	0.689
Nr of predictions	89

^top

2. Individual counts for MCFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	175	0	0	0	0	0
2K63_A	-	1.00	1.00	1.00	9	159	4	0	0	4	0
2K66_A	-	1.00	1.00	1.00	9	80	0	0	0	0	0
2KD8_A	-	1.00	1.00	1.00	9	99	1	0	0	1	0
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	1	0	0	1	0
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KEZ_A	-	1.00	1.00	1.00	8	94	0	0	0	0	0
2KFC_A	-	0.54	0.63	0.50	5	226	5	2	3	0	3
2KGP_A	-	1.00	1.00	1.00	9	112	1	0	0	1	0
2KMJ_A	-	1.00	1.00	1.00	11	157	1	0	0	1	0
2KPV_A	-	1.00	1.00	1.00	13	200	0	0	0	0	0
2KU0_A	-	1.00	1.00	1.00	12	280	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	1.00	1.00	1.00	8	141	1	0	0	1	0
2KZL_A	-	1.00	1.00	1.00	13	507	5	0	0	5	0
2L1F_B	Gammaretro_CES links to Rfam database...	0.80	0.79	0.83	19	768	4	0	4	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.79	0.78	0.82	18	741	4	0	4	0	5
2L2K_A	-	1.00	1.00	1.00	17	332	1	0	0	1	0
2L3C_B	-	1.00	1.00	1.00	14	225	1	0	0	1	0
2L3E_A	-	1.00	1.00	1.00	12	228	2	0	0	2	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	-0.03	0.00	0.00	0	265	10	0	10	0	7
2LBS_A	-	1.00	1.00	1.00	14	193	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.44	0.47	8	511	10	0	9	1	10
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	0.95	0.91	1.00	10	152	0	0	0	0	1
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2RP0_A	-	0.70	0.71	0.71	5	109	2	1	1	0	2
2RPT_A	-	1.00	1.00	1.00	7	65	0	0	0	0	0
2RRC_A	-	1.00	1.00	1.00	7	68	1	0	0	1	0
2WRQ_Y	tRNA links to Rfam database...	0.38	0.56	0.26	5	1133	21	8	6	7	4
2WW9_D	-	-0.02	0.00	0.00	0	723	21	6	12	3	10
2WW9_E	-	-0.03	0.00	0.00	0	165	8	1	6	1	5
2WW9_F	-	0.68	0.75	0.67	6	103	4	1	2	1	2
2WWQ_V	tRNA links to Rfam database...	0.19	0.21	0.19	4	1183	20	3	14	3	15
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.20	0.27	0.16	3	1816	30	4	12	14	8
2XQD_Y	tRNA links to Rfam database...	0.39	0.43	0.38	9	1105	18	2	13	3	12
2Y8W_B	-	1.00	1.00	1.00	6	82	2	0	0	2	0
2Y9C_V	-	0.65	0.72	0.59	13	884	12	1	8	3	5
2YIE_X	-	-0.01	0.00	0.00	0	535	15	1	8	6	7
2YIE_Z	-	0.53	0.63	0.45	5	591	8	2	4	2	3
2ZY6_A	-	0.77	0.78	0.78	7	267	6	1	1	4	2
2ZZN_D	tRNA links to Rfam database...	0.69	0.73	0.67	16	960	11	1	7	3	6
3A2K_C	tRNA links to Rfam database...	0.49	0.55	0.46	12	1082	14	3	11	0	10
3A3A_A	tRNA-Sec links to Rfam database...	0.98	0.97	1.00	29	1471	0	0	0	0	1
3AKZ_H	tRNA links to Rfam database...	0.46	0.50	0.43	10	1104	16	5	8	3	10
3AM1_B	-	1.00	1.00	1.00	29	1437	1	0	0	1	0
3AMU_B	tRNA links to Rfam database...	0.50	0.58	0.44	11	1132	15	4	10	1	8
3DW4_A	-	1.00	1.00	1.00	6	134	3	0	0	3	0
3GCA_A	-	-0.05	0.00	0.00	0	150	8	4	4	0	7
3GX2_A	SAM links to Rfam database...	0.58	0.61	0.57	17	1419	15	1	12	2	11
3HAY_E	-	1.00	1.00	1.00	14	910	10	0	0	10	0
3HJW_D	-	1.00	1.00	1.00	16	593	5	0	0	5	0
3IAB_R	-	1.00	1.00	1.00	12	373	4	0	0	4	0
3ID5_D	-	0.54	0.60	0.50	3	223	7	1	2	4	2
3IVN_B	Purine links to Rfam database...	0.45	0.48	0.46	11	879	14	5	8	1	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.19	0.21	0.20	6	1442	24	5	19	0	22
3J0L_a	-	0.14	0.18	0.15	2	398	13	1	10	2	9
3J0L_1	-	0.88	0.85	0.92	11	472	5	0	1	4	2
3J0L_7	-	-0.02	0.00	0.00	0	504	15	6	9	0	10
3J0L_g	-	-0.02	0.00	0.00	0	170	7	4	2	1	2
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J16_L	tRNA links to Rfam database...	0.54	0.57	0.52	12	1136	12	4	7	1	9
3JYV_7	tRNA links to Rfam database...	0.25	0.30	0.24	6	1086	20	8	11	1	14
3KTW_C	-	0.55	0.60	0.52	15	1751	20	4	10	6	10
3LA5_A	Purine links to Rfam database...	0.44	0.44	0.48	11	931	12	2	10	0	14
3NKB_B	-	0.68	0.74	0.64	14	713	8	2	6	0	5
3NMU_E	-	0.51	0.67	0.40	2	211	8	1	2	5	1
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	1	0	0	1	0
3R4F_A	-	0.95	0.95	0.95	21	884	4	0	1	3	1
3R9X_C	-	0.87	0.88	0.88	7	221	5	0	1	4	1
3RKF_A	Purine links to Rfam database...	0.89	0.88	0.91	21	843	3	0	2	1	3
3SD1_A	THF links to Rfam database...	0.43	0.45	0.43	13	1503	17	1	16	0	16
3SIU_F	-	0.53	0.63	0.50	5	135	5	2	3	0	3
3SN2_B	IRE_II links to Rfam database...	0.58	0.58	0.64	7	143	4	0	4	0	5
3TRZ_Z	-	-0.05	0.00	0.00	0	88	4	0	4	0	5
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	-0.05	0.00	0.00	0	102	7	0	6	1	5
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4ENB_A	crcB links to Rfam database...	0.78	0.73	0.85	11	459	4	0	2	2	4
4ENC_A	crcB links to Rfam database...	0.34	0.33	0.38	5	483	11	0	8	3	10

^top

Performance of RDfolder - scored lower in this pairwise comparison

1. Total counts & total scores for RDfolder

Total Base Pair Counts
Total TP	814
Total TN	45603
Total FP	315
Total FP CONTRA	61
Total FP INCONS	190
Total FP COMP	64
Total FN	420

Total Scores
MCC	0.703
Average MCC ± 95% Confidence Intervals	0.703 ± 0.077
Sensitivity	0.660
Positive Predictive Value	0.764
Nr of predictions	89

^top

2. Individual counts for RDfolder [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	0.79	0.64	1.00	7	179	0	0	0	0	4
2K63_A	-	0.94	0.89	1.00	8	160	0	0	0	0	1
2K66_A	-	0.94	0.89	1.00	8	81	0	0	0	0	1
2KD8_A	-	0.94	0.89	1.00	8	100	0	0	0	0	1
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.91	0.83	1.00	15	452	1	0	0	1	3
2KEZ_A	-	1.00	1.00	1.00	8	94	0	0	0	0	0
2KFC_A	-	0.79	0.63	1.00	5	231	0	0	0	0	3
2KGP_A	-	1.00	1.00	1.00	9	112	0	0	0	0	0
2KMJ_A	-	1.00	1.00	1.00	11	157	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KU0_A	-	-0.03	0.00	0.00	0	285	7	2	5	0	12
2KUR_A	K10_TLS links to Rfam database...	0.91	0.84	1.00	16	451	0	0	0	0	3
2KUU_A	K10_TLS links to Rfam database...	0.91	0.83	1.00	15	432	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.91	0.84	1.00	16	423	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.94	0.89	1.00	16	454	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.93	0.88	1.00	14	357	0	0	0	0	2
2KXM_A	-	0.78	0.63	1.00	5	144	0	0	0	0	3
2KZL_A	-	1.00	1.00	1.00	13	507	4	0	0	4	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	-0.02	0.00	0.00	0	750	13	2	11	0	23
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	1	0	1	0	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	514	14	3	11	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	0	0	0	0	0
2LDT_A	-	0.79	0.64	1.00	7	155	0	0	0	0	4
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2RPT_A	-	-0.07	0.00	0.00	0	68	4	1	3	0	7
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	13	0	0	13	0
2WW9_D	-	0.31	0.10	1.00	1	740	3	0	0	3	9
2WW9_E	-	-0.03	0.00	0.00	0	168	5	0	4	1	5
2WW9_F	-	0.86	0.75	1.00	6	106	1	0	0	1	2
2WWQ_V	tRNA links to Rfam database...	0.80	0.74	0.88	14	1188	4	0	2	2	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	1813	22	10	12	0	11
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.68	0.67	0.71	12	889	7	0	5	2	6
2YIE_X	-	0.57	0.57	0.57	4	537	5	0	3	2	3
2YIE_Z	-	0.53	0.63	0.45	5	591	6	4	2	0	3
2ZY6_A	-	0.66	0.78	0.58	7	264	5	3	2	0	2
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3A3A_A	tRNA-Sec links to Rfam database...	0.59	0.50	0.71	15	1479	6	0	6	0	15
3AKZ_H	tRNA links to Rfam database...	0.53	0.55	0.52	11	1106	12	1	9	2	9
3AM1_B	-	0.52	0.52	0.54	15	1438	13	4	9	0	14
3AMU_B	tRNA links to Rfam database...	0.20	0.21	0.22	4	1139	16	4	10	2	15
3DW4_A	-	-0.03	0.00	0.00	0	136	4	1	3	0	6
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.60	0.57	0.64	16	1424	10	2	7	1	12
3HAY_E	-	1.00	1.00	1.00	14	910	7	0	0	7	0
3HJW_D	-	0.90	0.88	0.93	14	594	3	0	1	2	2
3IAB_R	-	1.00	1.00	1.00	12	373	4	0	0	4	0
3ID5_D	-	-0.02	0.00	0.00	0	223	6	3	3	0	5
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	-0.01	0.00	0.00	0	1462	10	1	9	0	28
3J0L_a	-	-0.02	0.00	0.00	0	407	4	3	1	0	11
3J0L_1	-	0.73	0.62	0.89	8	475	3	0	1	2	5
3J0L_7	-	-0.01	0.00	0.00	0	514	5	1	4	0	10
3J0L_g	-	-0.01	0.00	0.00	0	173	3	2	1	0	2
3J0L_8	-	0.92	0.86	1.00	6	70	0	0	0	0	1
3J16_L	tRNA links to Rfam database...	0.26	0.24	0.31	5	1143	11	0	11	0	16
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1091	20	4	16	0	20
3KTW_C	-	0.11	0.12	0.13	3	1757	23	3	17	3	22
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.43	0.42	0.47	8	718	9	2	7	0	11
3NMU_E	-	0.57	0.33	1.00	1	215	3	0	0	3	2
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	0.95	0.91	1.00	10	302	0	0	0	0	1
3R4F_A	-	0.78	0.73	0.84	16	887	4	2	1	1	6
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.35	0.24	0.54	7	1520	6	1	5	0	22
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	0	0	0	0	0
3TS0_U	-	0.91	0.83	1.00	5	113	0	0	0	0	1
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4ENB_A	crcB links to Rfam database...	0.48	0.40	0.60	6	462	4	0	4	0	9
4ENC_A	crcB links to Rfam database...	0.48	0.40	0.60	6	486	4	0	4	0	9

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of MCFold - scored higher in this pairwise comparison

1. Total counts & total scores for MCFold

2. Individual counts for MCFold [ download as .csv ]

Performance of RDfolder - scored lower in this pairwise comparison

1. Total counts & total scores for RDfolder

2. Individual counts for RDfolder [ download as .csv ]
