Overview

Metric	MXScarna(seed)		Carnac(seed)
MCC	0.781	>	0.299
Average MCC ± 95% Confidence Intervals	0.756 ± 0.078	>	0.169 ± 0.121
Sensitivity	0.746	>	0.090
Positive Predictive Value	0.825	<	1.000
Total TP	528	>	64
Total TN	49442	<	50018
Total FP	229	>	1
Total FP CONTRA	33	>	0
Total FP INCONS	79	>	0
Total FP COMP	117	>	1
Total FN	180	<	644
P-value	3.56938820447e-08

^top

Performance plots

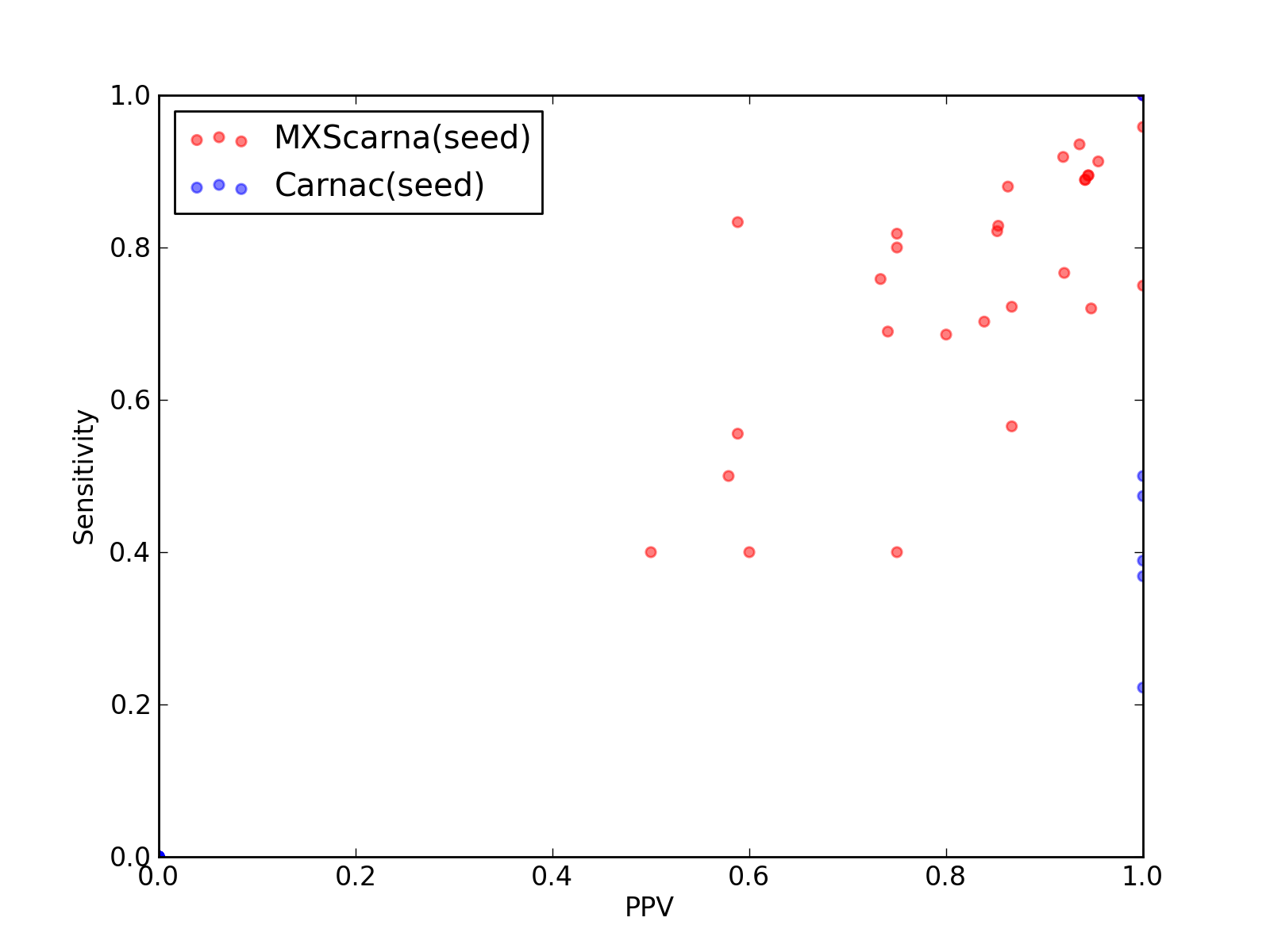

Comparison of performance of MXScarna(seed) and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and Carnac(seed)).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	528
Total TN	49442
Total FP	229
Total FP CONTRA	33
Total FP INCONS	79
Total FP COMP	117
Total FN	180

Total Scores
MCC	0.781
Average MCC ± 95% Confidence Intervals	0.756 ± 0.078
Sensitivity	0.746
Positive Predictive Value	0.825
Nr of predictions	30

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.91	0.89	0.94	16	450	2	0	1	1	2
2KUR_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	449	1	0	1	0	2
2KUU_A	K10_TLS links to Rfam database...	0.91	0.89	0.94	16	430	2	0	1	1	2
2KUV_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	421	1	0	1	0	2
2KUW_A	K10_TLS links to Rfam database...	0.78	0.72	0.87	13	455	3	0	2	1	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.93	0.91	0.95	21	741	1	0	1	0	2
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	768	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.55	0.56	0.59	10	340	8	0	7	1	8
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	518	12	0	10	2	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.78	0.82	0.75	9	1823	20	0	3	17	2
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.74	0.69	0.80	24	2015	7	0	6	1	11
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.77	0.92	23	1475	4	0	2	2	7
3GX2_A	SAM links to Rfam database...	0.83	0.82	0.85	23	1422	7	2	2	3	5
3IVN_B	Purine links to Rfam database...	0.69	0.57	0.87	13	888	2	2	0	0	10
3IZF_C	5S_rRNA links to Rfam database...	0.84	0.83	0.85	29	2606	11	0	5	6	6
3JYX_4	5_8S_rRNA links to Rfam database...	0.70	0.83	0.59	10	4739	21	6	1	14	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	24	0	4	20	3
3LA5_A	Purine links to Rfam database...	0.82	0.72	0.95	18	935	1	1	0	0	7
3NPB_A	SAM links to Rfam database...	0.76	0.70	0.84	26	2247	10	2	3	5	11
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	11	0	2	9	2
3O58_3	5_8S_rRNA links to Rfam database...	0.54	0.50	0.58	11	4745	20	5	3	12	11
3PDR_A	ykoK links to Rfam database...	0.87	0.88	0.86	44	4789	10	4	3	3	6
3RKF_A	Purine links to Rfam database...	0.86	0.75	1.00	18	848	0	0	0	0	6
3SD1_A	THF links to Rfam database...	0.74	0.76	0.73	22	1503	9	4	4	1	7
4A1C_2	5_8S_rRNA links to Rfam database...	0.45	0.40	0.50	8	4500	20	4	4	12	12
4A1C_3	5S_rRNA links to Rfam database...	0.92	0.92	0.92	34	2726	6	0	3	3	3
4AOB_A	SAM links to Rfam database...	0.71	0.69	0.74	20	1410	10	2	5	3	9
4ENB_A	crcB links to Rfam database...	0.54	0.40	0.75	6	464	2	0	2	0	9
4ENC_A	crcB links to Rfam database...	0.48	0.40	0.60	6	486	4	1	3	0	9

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	64
Total TN	50018
Total FP	1
Total FP CONTRA	0
Total FP INCONS	0
Total FP COMP	1
Total FN	644

Total Scores
MCC	0.299
Average MCC ± 95% Confidence Intervals	0.169 ± 0.121
Sensitivity	0.090
Positive Predictive Value	1.000
Nr of predictions	30

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.00	0.00	0.00	0	467	0	0	0	0	18
2KUR_A	K10_TLS links to Rfam database...	0.60	0.37	1.00	7	460	0	0	0	0	12
2KUU_A	K10_TLS links to Rfam database...	0.62	0.39	1.00	7	440	0	0	0	0	11
2KUV_A	K10_TLS links to Rfam database...	0.68	0.47	1.00	9	430	0	0	0	0	10
2KUW_A	K10_TLS links to Rfam database...	0.70	0.50	1.00	9	461	0	0	0	0	9
2L1F_A	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	763	0	0	0	0	23
2L1F_B	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	791	0	0	0	0	24
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.47	0.22	1.00	4	524	0	0	0	0	14
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	1835	0	0	0	0	11
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	2045	0	0	0	0	35
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1500	0	0	0	0	30
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1449	0	0	0	0	28
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	23
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2640	0	0	0	0	35
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4756	0	0	0	0	12
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2378	0	0	0	0	15
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	954	0	0	0	0	25
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	2278	0	0	0	0	37
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2754	0	0	0	0	31
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4764	0	0	0	0	22
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4840	0	0	0	0	50
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	866	0	0	0	0	24
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2763	0	0	0	0	37
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
