Table of contents:
- Overview
- Performance Plots
- Performance of Mastr(20) - scored higher in this pairwise comparison
- Performance of Vsfold4 - scored lower in this pairwise comparison
- Compile and download dataset for Mastr(20) & Vsfold4 [.zip] - may take several seconds...
Overview
| Metric | Mastr(20) | Vsfold4 | |
|---|---|---|---|
| MCC | 0.636 | > | 0.531 |
| Average MCC ± 95% Confidence Intervals | 0.618 ± 0.136 | > | 0.581 ± 0.130 |
| Sensitivity | 0.483 | < | 0.528 |
| Positive Predictive Value | 0.845 | > | 0.544 |
| Total TP | 354 | < | 387 |
| Total TN | 77720 | > | 77427 |
| Total FP | 137 | < | 410 |
| Total FP CONTRA | 12 | < | 87 |
| Total FP INCONS | 53 | < | 238 |
| Total FP COMP | 72 | < | 85 |
| Total FN | 379 | > | 346 |
| P-value | 5.23657817852e-08 | ||
Performance plots
-

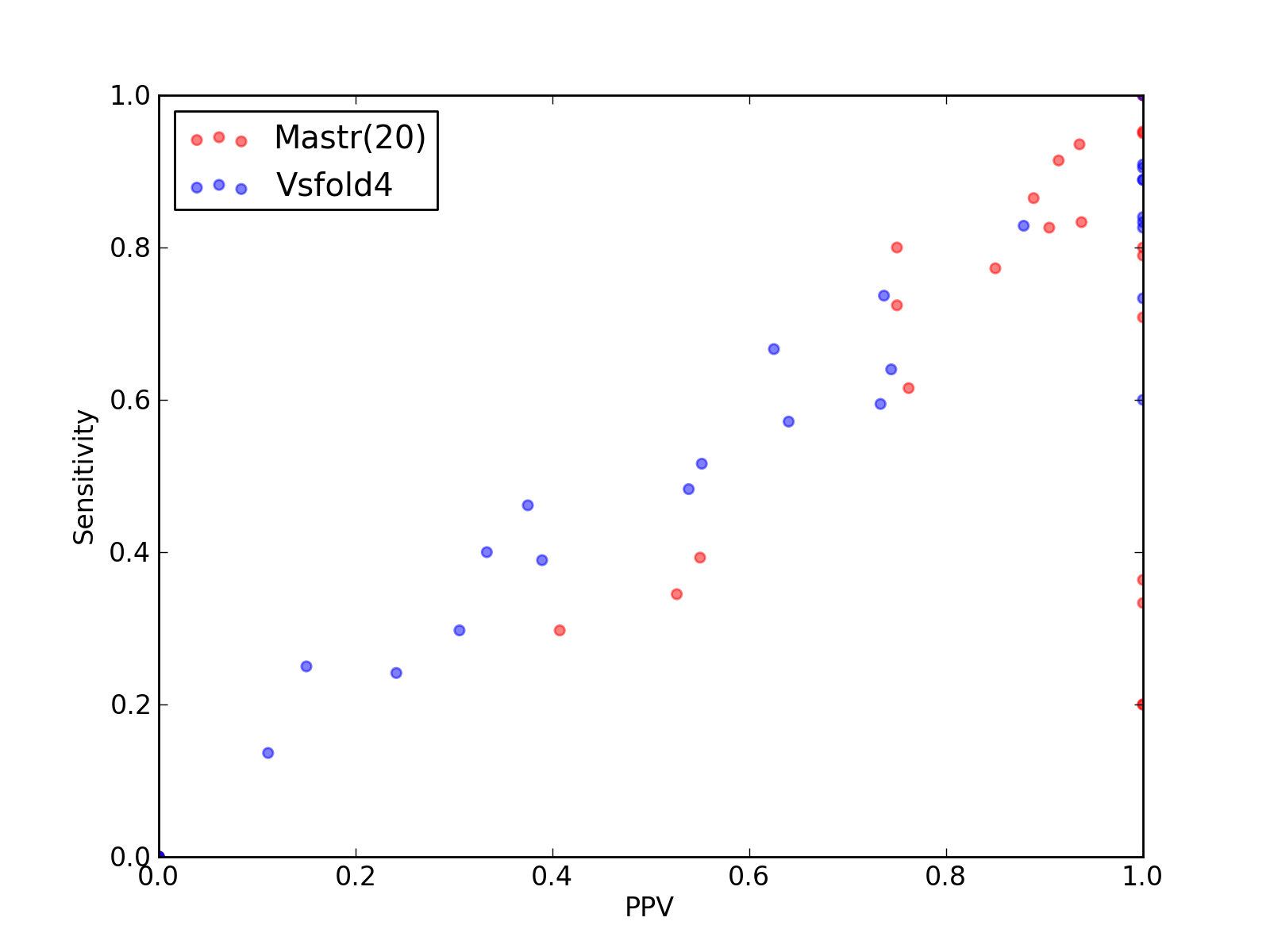

Comparison of performance of Mastr(20) and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Mastr(20) and Vsfold4).
-

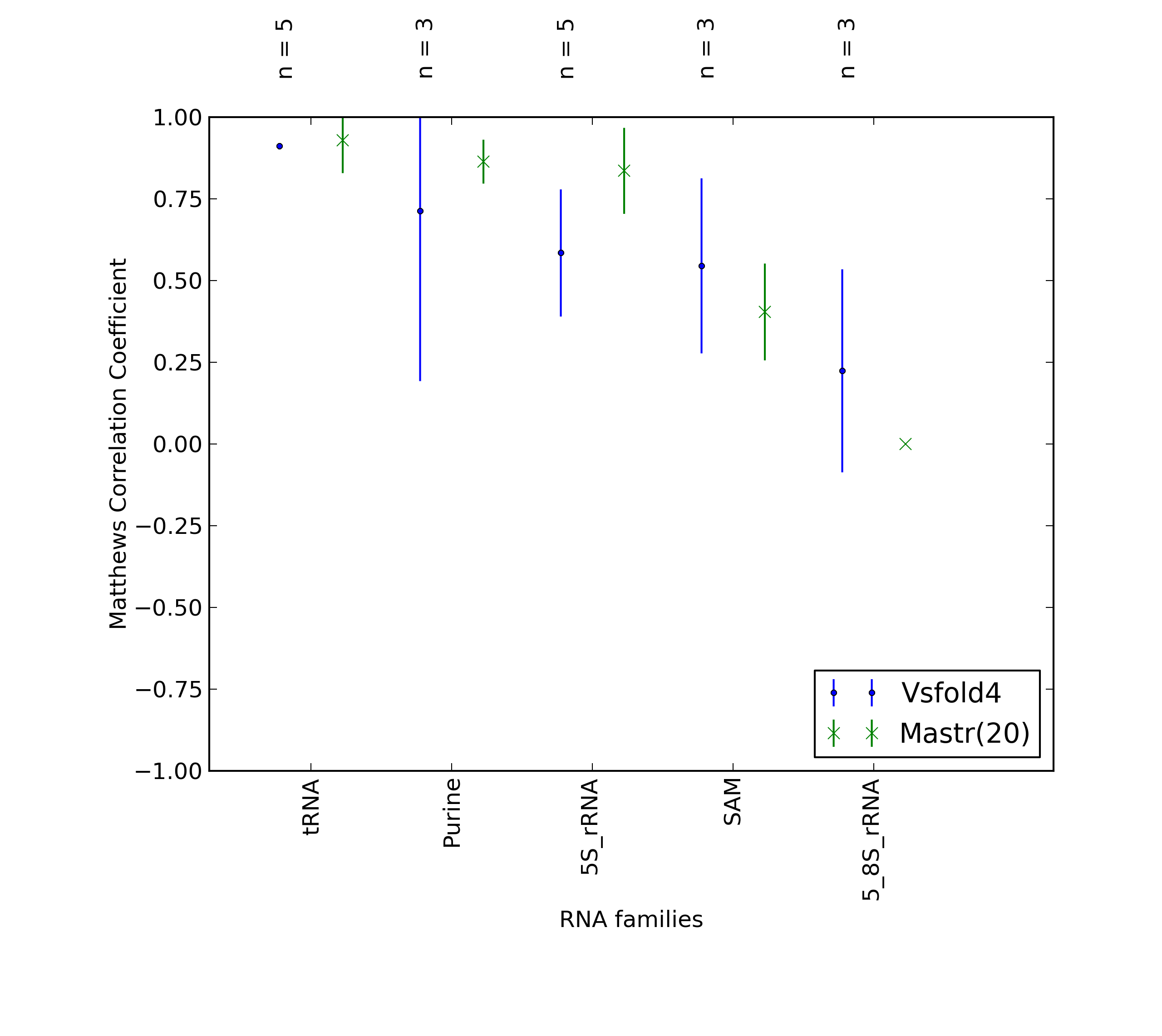

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Mastr(20) and Vsfold4).
-
Comparison of average Matthews Correlation Coefficients (MCCs) for Mastr(20) and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Mastr(20) and Vsfold4).
Performance of Mastr(20) - scored higher in this pairwise comparison
1. Total counts & total scores for Mastr(20)
| Total Base Pair Counts | |
|---|---|
| Total TP | 354 |
| Total TN | 77720 |
| Total FP | 137 |
| Total FP CONTRA | 12 |
| Total FP INCONS | 53 |
| Total FP COMP | 72 |
| Total FN | 379 |
| Total Scores | |
|---|---|
| MCC | 0.636 |
| Average MCC ± 95% Confidence Intervals | 0.618 ± 0.136 |
| Sensitivity | 0.483 |
| Positive Predictive Value | 0.845 |
| Nr of predictions | 28 |
2. Individual counts for Mastr(20) [ download as .csv ]
| RNA Chain | Rfam family | MCC | SENS | PPV | TP | TN | FP | FP CONTRA | FP INCONS | FP COMP | FN |
| 2KDQ_B | 1.00 | 1.00 | 1.00 | 10 | 164 | 0 | 0 | 0 | 0 | 0 | |
| 2L94_A | 0.88 | 0.83 | 0.94 | 15 | 341 | 2 | 0 | 1 | 1 | 3 | |
| 2WRQ_Y | 1.00 | 1.00 | 1.00 | 9 | 1143 | 13 | 0 | 0 | 13 | 0 | |
| 2XKV_B | 0.60 | 0.36 | 1.00 | 4 | 1831 | 3 | 0 | 0 | 3 | 7 | |
| 2XQD_Y | 0.98 | 0.95 | 1.00 | 20 | 1109 | 1 | 0 | 0 | 1 | 1 | |
| 2XXA_G | 0.44 | 0.20 | 1.00 | 7 | 2038 | 0 | 0 | 0 | 0 | 28 | |
| 3A2K_C | 0.81 | 0.77 | 0.85 | 17 | 1088 | 3 | 0 | 3 | 0 | 5 | |
| 3AMU_B | 0.89 | 0.79 | 1.00 | 15 | 1142 | 2 | 0 | 0 | 2 | 4 | |
| 3G4S_9 | 0.68 | 0.62 | 0.76 | 16 | 2715 | 10 | 2 | 3 | 5 | 10 | |
| 3GX2_A | 0.46 | 0.39 | 0.55 | 11 | 1429 | 10 | 2 | 7 | 1 | 17 | |
| 3IVN_B | 0.86 | 0.83 | 0.90 | 19 | 882 | 2 | 2 | 0 | 0 | 4 | |
| 3IZ4_A | 0.00 | 0.00 | 0.00 | 0 | 25536 | 0 | 0 | 0 | 0 | 95 | |
| 3IZF_C | 0.91 | 0.91 | 0.91 | 32 | 2605 | 9 | 0 | 3 | 6 | 3 | |
| 3JYV_7 | 0.97 | 0.95 | 1.00 | 19 | 1092 | 2 | 0 | 0 | 2 | 1 | |
| 3JYX_3 | 0.77 | 0.80 | 0.75 | 12 | 2362 | 26 | 0 | 4 | 22 | 3 | |
| 3JYX_4 | 0.00 | 0.00 | 0.00 | 0 | 4756 | 0 | 0 | 0 | 0 | 12 | |
| 3LA5_A | 0.89 | 0.80 | 1.00 | 20 | 934 | 0 | 0 | 0 | 0 | 5 | |
| 3NPB_A | 0.34 | 0.30 | 0.41 | 11 | 2251 | 18 | 1 | 15 | 2 | 26 | |
| 3O58_2 | 0.93 | 0.94 | 0.94 | 29 | 2723 | 12 | 0 | 2 | 10 | 2 | |
| 3O58_3 | 0.00 | 0.00 | 0.00 | 0 | 4764 | 0 | 0 | 0 | 0 | 22 | |
| 3PDR_A | 0.00 | 0.00 | 0.00 | 0 | 4840 | 0 | 0 | 0 | 0 | 50 | |
| 3RKF_A | 0.84 | 0.71 | 1.00 | 17 | 849 | 0 | 0 | 0 | 0 | 7 | |
| 3SD1_A | 0.73 | 0.72 | 0.75 | 21 | 1505 | 7 | 4 | 3 | 0 | 8 | |
| 4A1C_3 | 0.88 | 0.86 | 0.89 | 32 | 2727 | 7 | 0 | 4 | 3 | 5 | |
| 4A1C_2 | 0.00 | 0.00 | 0.00 | 0 | 4516 | 0 | 0 | 0 | 0 | 20 | |
| 4AOB_A | 0.42 | 0.34 | 0.53 | 10 | 1418 | 10 | 1 | 8 | 1 | 19 | |
| 4ENB_A | 0.44 | 0.20 | 1.00 | 3 | 469 | 0 | 0 | 0 | 0 | 12 | |
| 4ENC_A | 0.57 | 0.33 | 1.00 | 5 | 491 | 0 | 0 | 0 | 0 | 10 |
Performance of Vsfold4 - scored lower in this pairwise comparison
1. Total counts & total scores for Vsfold4
| Total Base Pair Counts | |
|---|---|
| Total TP | 387 |
| Total TN | 77427 |
| Total FP | 410 |
| Total FP CONTRA | 87 |
| Total FP INCONS | 238 |
| Total FP COMP | 85 |
| Total FN | 346 |
| Total Scores | |
|---|---|
| MCC | 0.531 |
| Average MCC ± 95% Confidence Intervals | 0.581 ± 0.130 |
| Sensitivity | 0.528 |
| Positive Predictive Value | 0.544 |
| Nr of predictions | 28 |
2. Individual counts for Vsfold4 [ download as .csv ]
| RNA Chain | Rfam family | MCC | SENS | PPV | TP | TN | FP | FP CONTRA | FP INCONS | FP COMP | FN |
| 2KDQ_B | 1.00 | 1.00 | 1.00 | 10 | 164 | 0 | 0 | 0 | 0 | 0 | |
| 2L94_A | 0.94 | 0.89 | 1.00 | 16 | 341 | 1 | 0 | 0 | 1 | 2 | |
| 2WRQ_Y | 0.94 | 0.89 | 1.00 | 8 | 1144 | 13 | 0 | 0 | 13 | 1 | |
| 2XKV_B | -0.01 | 0.00 | 0.00 | 0 | 1808 | 27 | 13 | 14 | 0 | 11 | |
| 2XQD_Y | 0.95 | 0.90 | 1.00 | 19 | 1110 | 1 | 0 | 0 | 1 | 2 | |
| 2XXA_G | -0.02 | 0.00 | 0.00 | 0 | 2016 | 29 | 1 | 28 | 0 | 35 | |
| 3A2K_C | 0.95 | 0.91 | 1.00 | 20 | 1088 | 0 | 0 | 0 | 0 | 2 | |
| 3AMU_B | 0.73 | 0.74 | 0.74 | 14 | 1138 | 8 | 0 | 5 | 3 | 5 | |
| 3G4S_9 | 0.41 | 0.46 | 0.38 | 12 | 2704 | 21 | 10 | 10 | 1 | 14 | |
| 3GX2_A | 0.60 | 0.57 | 0.64 | 16 | 1424 | 10 | 0 | 9 | 1 | 12 | |
| 3IVN_B | 0.91 | 0.83 | 1.00 | 19 | 884 | 0 | 0 | 0 | 0 | 4 | |
| 3IZ4_A | 0.39 | 0.39 | 0.39 | 37 | 25441 | 63 | 15 | 43 | 5 | 58 | |
| 3IZF_C | 0.85 | 0.83 | 0.88 | 29 | 2607 | 6 | 0 | 4 | 2 | 6 | |
| 3JYV_7 | -0.02 | 0.00 | 0.00 | 0 | 1092 | 19 | 4 | 15 | 0 | 20 | |
| 3JYX_3 | 0.64 | 0.67 | 0.63 | 10 | 2362 | 16 | 5 | 1 | 10 | 5 | |
| 3JYX_4 | 0.19 | 0.25 | 0.15 | 3 | 4736 | 33 | 9 | 8 | 16 | 9 | |
| 3LA5_A | 0.91 | 0.84 | 1.00 | 21 | 933 | 0 | 0 | 0 | 0 | 4 | |
| 3NPB_A | 0.66 | 0.59 | 0.73 | 22 | 2248 | 10 | 0 | 8 | 2 | 15 | |
| 3O58_2 | 0.53 | 0.52 | 0.55 | 16 | 2725 | 16 | 3 | 10 | 3 | 15 | |
| 3O58_3 | 0.12 | 0.14 | 0.11 | 3 | 4737 | 35 | 8 | 16 | 11 | 19 | |
| 3PDR_A | 0.69 | 0.64 | 0.74 | 32 | 4797 | 13 | 3 | 8 | 2 | 18 | |
| 3RKF_A | 0.91 | 0.83 | 1.00 | 20 | 846 | 0 | 0 | 0 | 0 | 4 | |
| 3SD1_A | 0.23 | 0.24 | 0.24 | 7 | 1504 | 22 | 5 | 17 | 0 | 22 | |
| 4A1C_3 | 0.29 | 0.30 | 0.31 | 11 | 2727 | 26 | 4 | 21 | 1 | 26 | |
| 4A1C_2 | 0.36 | 0.40 | 0.33 | 8 | 4492 | 28 | 4 | 12 | 12 | 12 | |
| 4AOB_A | 0.50 | 0.48 | 0.54 | 14 | 1411 | 13 | 3 | 9 | 1 | 15 | |
| 4ENB_A | 0.85 | 0.73 | 1.00 | 11 | 461 | 0 | 0 | 0 | 0 | 4 | |
| 4ENC_A | 0.77 | 0.60 | 1.00 | 9 | 487 | 0 | 0 | 0 | 0 | 6 |
Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
