Overview

Metric	MaxExpect		Cylofold
MCC	0.791	>	0.741
Average MCC ± 95% Confidence Intervals	0.783 ± 0.079	>	0.752 ± 0.068
Sensitivity	0.796	>	0.724
Positive Predictive Value	0.794	>	0.767
Total TP	881	>	802
Total TN	59455	<	59519
Total FP	345	>	330
Total FP CONTRA	44	<	65
Total FP INCONS	184	>	178
Total FP COMP	117	>	87
Total FN	226	<	305
P-value	3.56938820447e-08

^top

Performance plots

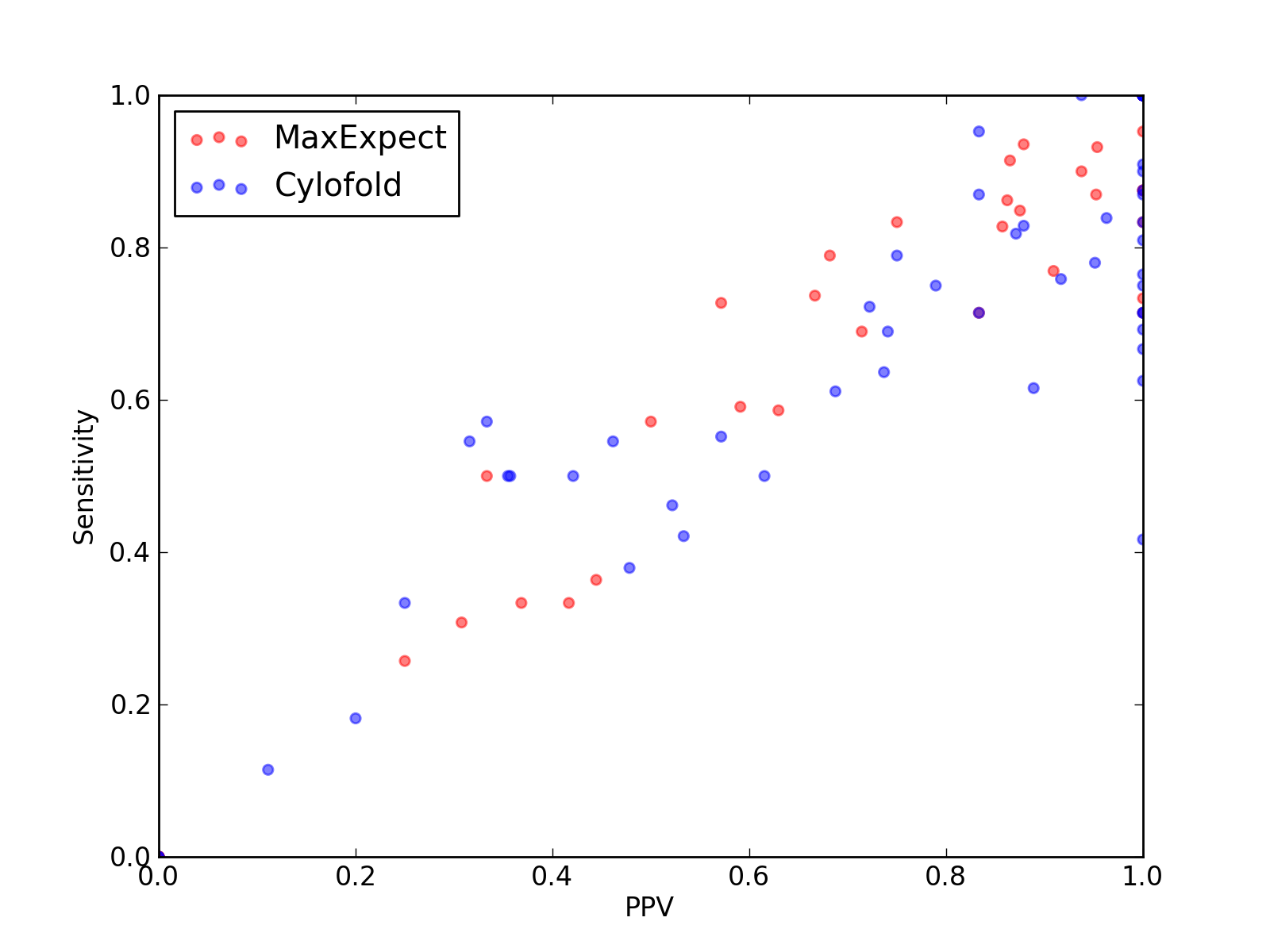

Comparison of performance of MaxExpect and Cylofold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MaxExpect and Cylofold).

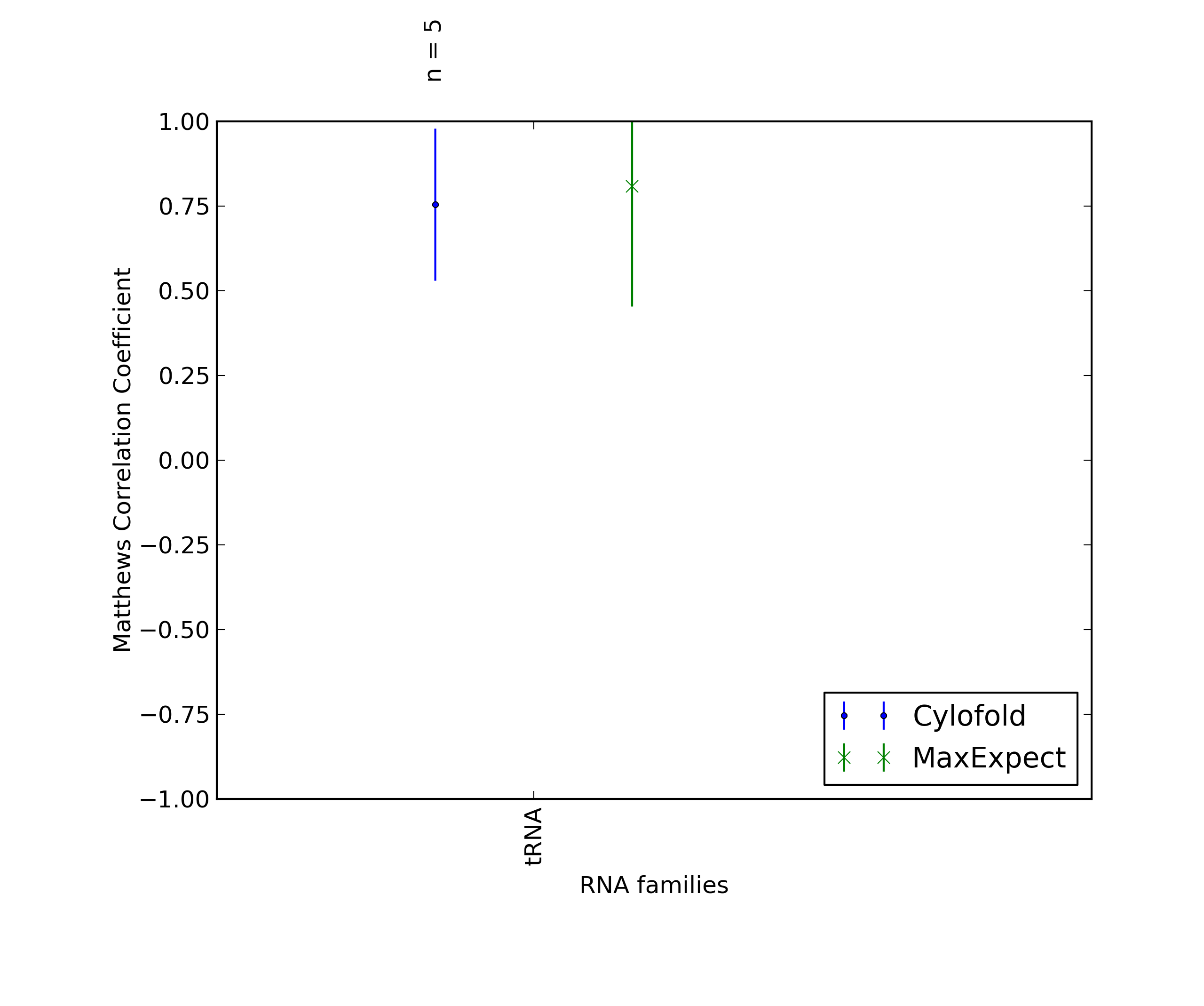

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MaxExpect and Cylofold).
Comparison of average Matthews Correlation Coefficients (MCCs) for MaxExpect and Cylofold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MaxExpect and Cylofold).

^top

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	881
Total TN	59455
Total FP	345
Total FP CONTRA	44
Total FP INCONS	184
Total FP COMP	117
Total FN	226

Total Scores
MCC	0.791
Average MCC ± 95% Confidence Intervals	0.783 ± 0.079
Sensitivity	0.796
Positive Predictive Value	0.794
Nr of predictions	63

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.93	0.88	1.00	7	142	0	0	0	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.84	0.83	0.86	24	2412	11	0	4	7	5
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.24	0.26	0.25	9	2009	28	1	26	1	26
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
3ADB_C	-	0.86	0.85	0.88	28	1787	4	0	4	0	5
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	2	0	0	2	0
3AM1_B	-	0.86	0.86	0.86	25	1437	4	0	4	0	4
3AMU_B	tRNA links to Rfam database...	0.73	0.79	0.68	15	1135	10	0	7	3	4
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	8	0	5	3	3
3J0L_7	-	-0.02	0.00	0.00	0	507	12	3	9	0	10
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J0L_a	-	0.39	0.36	0.44	4	402	6	4	1	1	7
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_h	-	0.93	0.88	1.00	28	2112	2	0	0	2	4
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J16_L	tRNA links to Rfam database...	0.34	0.33	0.37	7	1140	12	0	12	0	14
3NDB_M	-	0.94	0.93	0.95	41	3671	7	0	2	5	3
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	-0.02	0.00	0.00	0	208	10	5	3	2	3
3O58_3	5_8S_rRNA links to Rfam database...	0.40	0.50	0.33	11	4731	36	8	14	14	11
3O58_2	5S_rRNA links to Rfam database...	0.91	0.94	0.88	29	2721	11	0	4	7	2
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.92	0.90	0.94	45	4792	5	1	2	2	5
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.70	0.69	0.71	20	1505	8	3	5	0	9
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	8	0	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10

^top

Performance of Cylofold - scored lower in this pairwise comparison

1. Total counts & total scores for Cylofold

Total Base Pair Counts
Total TP	802
Total TN	59519
Total FP	330
Total FP CONTRA	65
Total FP INCONS	178
Total FP COMP	87
Total FN	305

Total Scores
MCC	0.741
Average MCC ± 95% Confidence Intervals	0.752 ± 0.068
Sensitivity	0.724
Positive Predictive Value	0.767
Nr of predictions	63

^top

2. Individual counts for Cylofold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.85	0.87	0.83	20	2000	12	4	0	8	3
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.78	0.63	1.00	5	144	0	0	0	0	3
2KZL_A	-	0.83	0.69	1.00	9	511	1	0	0	1	4
2L1F_A	Gammaretro_CES links to Rfam database...	0.93	0.87	1.00	20	743	0	0	0	0	3
2L1F_B	Gammaretro_CES links to Rfam database...	0.93	0.88	1.00	21	770	0	0	0	0	3
2L2K_A	-	0.87	0.76	1.00	13	336	0	0	0	0	4
2L3C_B	-	0.84	0.71	1.00	10	229	0	0	0	0	4
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	0.95	0.90	1.00	27	958	0	0	0	0	3
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	1	0	1	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	1	4	0	7
2LDL_A	-	0.81	0.67	1.00	6	134	0	0	0	0	3
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.56	0.55	0.57	16	2412	13	4	8	1	13
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.41	0.55	0.32	6	1816	25	9	4	12	5
2XQD_Y	tRNA links to Rfam database...	0.89	0.95	0.83	20	1105	5	4	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.10	0.11	0.11	4	2009	32	2	30	0	31
2Y9C_V	-	0.72	0.72	0.72	13	888	8	0	5	3	5
2YIE_Z	-	-0.02	0.00	0.00	0	591	11	5	6	0	8
2YIE_X	-	0.43	0.57	0.33	4	532	10	2	6	2	3
3ADB_C	-	0.84	0.82	0.87	27	1788	4	0	4	0	6
3AKZ_H	tRNA links to Rfam database...	0.77	0.75	0.79	15	1108	7	0	4	3	5
3AM1_B	-	0.83	0.76	0.92	22	1442	2	0	2	0	7
3AMU_B	tRNA links to Rfam database...	0.77	0.79	0.75	15	1137	8	0	5	3	4
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	7	0	4	3	6
3J0L_7	-	0.41	0.50	0.36	5	505	10	3	6	1	5
3J0L_2	-	0.49	0.46	0.52	12	2227	18	0	11	7	14
3J0L_a	-	0.17	0.18	0.20	2	401	9	3	5	1	9
3J0L_1	-	0.73	0.62	0.89	8	475	3	0	1	2	5
3J0L_h	-	0.55	0.50	0.62	16	2114	10	2	8	0	16
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3NDB_M	-	0.68	0.64	0.74	28	3676	14	2	8	4	16
3NKB_B	-	0.46	0.42	0.53	8	720	7	0	7	0	11
3NMU_E	-	0.28	0.33	0.25	1	212	6	1	2	3	2
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.50	0.35	11	4733	30	9	11	10	11
3O58_2	5S_rRNA links to Rfam database...	0.90	0.84	0.96	26	2727	3	0	1	2	5
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.86	0.78	0.95	39	4799	4	1	1	2	11
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.71	0.69	0.74	20	1506	7	2	5	0	9
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.63	0.42	1.00	5	149	0	0	0	0	7
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.45	0.50	0.42	8	1274	18	4	7	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.42	0.38	0.48	11	1414	13	3	9	1	18
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
