Overview

Metric	MaxExpect		UNAFold
MCC	0.729	>	0.686
Average MCC ± 95% Confidence Intervals	0.772 ± 0.062	<	0.802 ± 0.055
Sensitivity	0.740	>	0.701
Positive Predictive Value	0.719	>	0.672
Total TP	1912	>	1811
Total TN	1624910	>	1624874
Total FP	1044	<	1180
Total FP CONTRA	218	<	222
Total FP INCONS	529	<	662
Total FP COMP	297	>	296
Total FN	671	<	772
P-value	7.5939721025e-08

^top

Performance plots

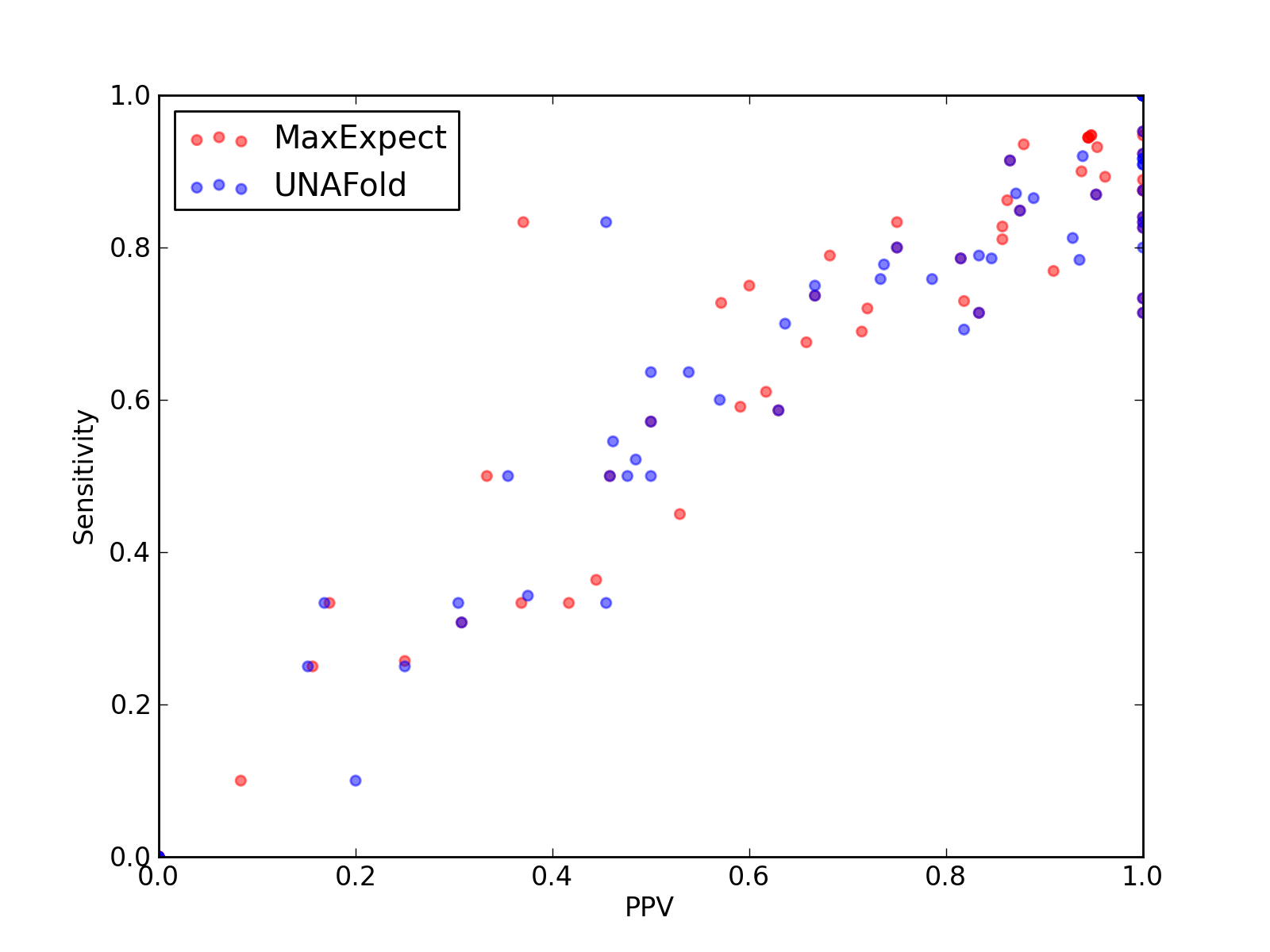

Comparison of performance of MaxExpect and UNAFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MaxExpect and UNAFold).

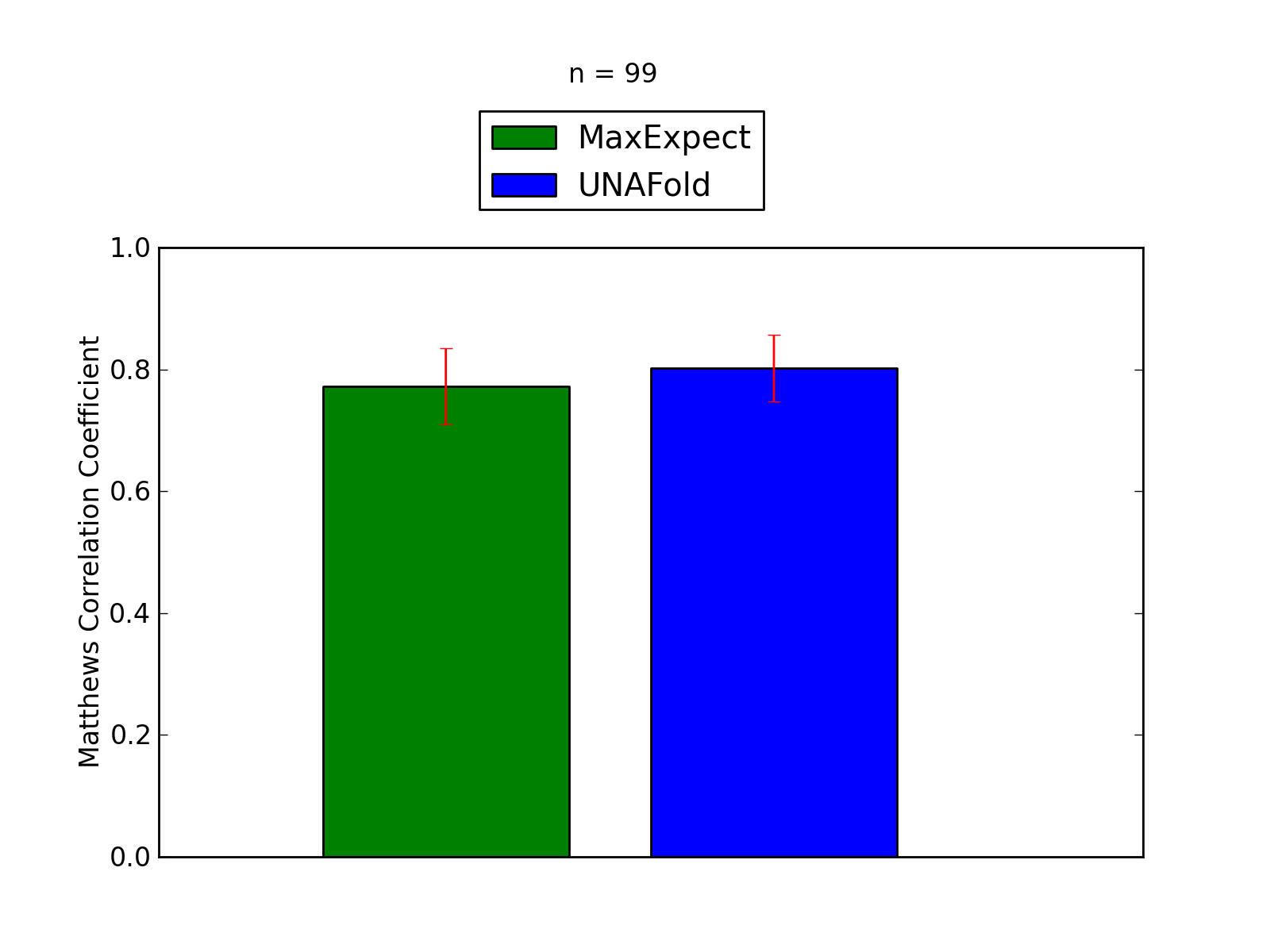

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MaxExpect and UNAFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for MaxExpect and UNAFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MaxExpect and UNAFold).

^top

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	1912
Total TN	1624910
Total FP	1044
Total FP CONTRA	218
Total FP INCONS	529
Total FP COMP	297
Total FN	671

Total Scores
MCC	0.729
Average MCC ± 95% Confidence Intervals	0.772 ± 0.062
Sensitivity	0.740
Positive Predictive Value	0.719
Nr of predictions	99

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KD8_A	-	1.00	1.00	1.00	9	99	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	449	2	0	1	1	1
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KU0_A	-	-0.04	0.00	0.00	0	283	9	1	8	0	12
2KUR_A	K10_TLS links to Rfam database...	0.95	0.95	0.95	18	448	1	0	1	0	1
2KUU_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	429	2	0	1	1	1
2KUV_A	K10_TLS links to Rfam database...	0.94	0.95	0.95	18	420	1	0	1	0	1
2KUW_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	452	2	0	1	1	1
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.93	0.88	1.00	7	142	0	0	0	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.84	0.83	0.86	24	2412	11	0	4	7	5
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WRQ_Y	tRNA links to Rfam database...	0.94	0.89	1.00	8	1144	14	0	0	14	1
2WW9_D	-	0.08	0.10	0.08	1	729	15	2	9	4	9
2WW9_F	-	0.64	0.75	0.60	6	102	4	1	3	0	2
2WW9_E	-	-0.03	0.00	0.00	0	168	5	0	4	1	5
2WWQ_V	tRNA links to Rfam database...	0.97	0.95	1.00	18	1186	3	0	0	3	1
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.24	0.26	0.25	9	2009	28	1	26	1	26
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3ADB_C	-	0.86	0.85	0.88	28	1787	4	0	4	0	5
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	2	0	0	2	0
3AM1_B	-	0.86	0.86	0.86	25	1437	4	0	4	0	4
3AMU_B	tRNA links to Rfam database...	0.73	0.79	0.68	15	1135	10	0	7	3	4
3GX2_A	SAM links to Rfam database...	0.93	0.89	0.96	25	1423	2	1	0	1	3
3IAB_R	-	1.00	1.00	1.00	12	373	0	0	0	0	0
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.80	0.79	0.81	22	1445	6	1	4	1	6
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.17	17	22342	96	41	40	15	34
3IZ4_A	tmRNA links to Rfam database...	0.61	0.61	0.62	58	25442	42	14	22	6	37
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	8	0	5	3	3
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.39	0.36	0.44	4	402	6	4	1	1	7
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_h	-	0.93	0.88	1.00	28	2112	2	0	0	2	4
3J0L_7	-	-0.02	0.00	0.00	0	507	12	3	9	0	10
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J16_L	tRNA links to Rfam database...	0.34	0.33	0.37	7	1140	12	0	12	0	14
3JYV_7	tRNA links to Rfam database...	0.48	0.45	0.53	9	1094	9	3	5	1	11
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	24	0	4	20	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.55	0.83	0.37	10	4729	34	14	3	17	2
3KIY_A	-	0.67	0.68	0.66	531	1485073	336	81	195	60	255
3KTW_C	-	0.72	0.72	0.72	18	1755	14	2	5	7	7
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NDB_M	-	0.94	0.93	0.95	41	3671	7	0	2	5	3
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	-0.02	0.00	0.00	0	208	10	5	3	2	3
3NPB_A	SAM links to Rfam database...	0.77	0.73	0.82	27	2245	10	0	6	4	10
3O58_2	5S_rRNA links to Rfam database...	0.91	0.94	0.88	29	2721	11	0	4	7	2
3O58_3	5_8S_rRNA links to Rfam database...	0.40	0.50	0.33	11	4731	36	8	14	14	11
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.92	0.90	0.94	45	4792	5	1	2	2	5
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.70	0.69	0.71	20	1505	8	3	5	0	9
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	8	0	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_3	5S_rRNA links to Rfam database...	0.83	0.81	0.86	30	2728	7	0	5	2	7
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	41	10	17	14	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10

^top

Performance of UNAFold - scored lower in this pairwise comparison

1. Total counts & total scores for UNAFold

Total Base Pair Counts
Total TP	1811
Total TN	1624874
Total FP	1180
Total FP CONTRA	222
Total FP INCONS	662
Total FP COMP	296
Total FN	772

Total Scores
MCC	0.686
Average MCC ± 95% Confidence Intervals	0.802 ± 0.055
Sensitivity	0.701
Positive Predictive Value	0.672
Nr of predictions	99

^top

2. Individual counts for UNAFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KD8_A	-	1.00	1.00	1.00	9	99	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KU0_A	-	0.96	0.92	1.00	11	281	0	0	0	0	1
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.93	0.88	1.00	7	142	0	0	0	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	0.95	0.91	1.00	10	152	0	0	0	0	1
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	1.00	1.00	1.00	29	2411	6	0	0	6	0
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2WW9_D	-	0.13	0.10	0.20	1	736	9	1	3	5	9
2WW9_F	-	0.68	0.75	0.67	6	103	4	1	2	1	2
2WW9_E	-	0.89	0.80	1.00	4	168	0	0	0	0	1
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	3	0	0	3	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.58	0.64	0.54	7	1822	23	0	6	17	4
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.75	0.78	0.74	14	887	8	0	5	3	4
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3ADB_C	-	0.86	0.85	0.88	28	1787	4	0	4	0	5
3AKZ_H	tRNA links to Rfam database...	0.48	0.50	0.48	10	1106	13	4	7	2	10
3AM1_B	-	0.74	0.76	0.73	22	1436	8	3	5	0	7
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3IAB_R	-	1.00	1.00	1.00	12	373	0	0	0	0	0
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.80	0.79	0.81	22	1445	6	1	4	1	6
3IYQ_A	tmRNA links to Rfam database...	0.23	0.33	0.17	17	22339	96	46	38	12	34
3IZ4_A	tmRNA links to Rfam database...	0.58	0.60	0.57	57	25436	53	12	31	10	38
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.55	0.64	0.50	7	397	8	5	2	1	4
3J0L_1	-	0.75	0.69	0.82	9	473	4	0	2	2	4
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_7	-	0.66	0.70	0.64	7	508	5	2	2	1	3
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J16_L	tRNA links to Rfam database...	0.31	0.33	0.30	7	1136	16	3	13	0	14
3JYV_7	tRNA links to Rfam database...	0.24	0.25	0.25	5	1091	16	7	8	1	15
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	27	0	4	23	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	31	10	2	19	2
3KIY_A	-	0.50	0.52	0.48	410	1485034	486	79	357	50	376
3KTW_C	-	1.00	1.00	1.00	25	1755	7	0	0	7	0
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NDB_M	-	1.00	1.00	1.00	44	3670	4	0	0	4	0
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	1.00	1.00	1.00	3	213	5	0	0	5	0
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	6	0	2	4	8
3O58_2	5S_rRNA links to Rfam database...	0.87	0.87	0.87	27	2723	12	0	4	8	4
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.50	0.35	11	4733	34	5	15	14	11
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	42	11	17	14	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

2. Individual counts for MaxExpect [ download as .csv ]

Performance of UNAFold - scored lower in this pairwise comparison

1. Total counts & total scores for UNAFold

2. Individual counts for UNAFold [ download as .csv ]
