Overview

Metric	McQFold		RSpredict(seed)
MCC	0.655	>	0.372
Average MCC ± 95% Confidence Intervals	0.707 ± 0.097	>	0.306 ± 0.107
Sensitivity	0.671	>	0.222
Positive Predictive Value	0.646	>	0.636
Total TP	721	>	238
Total TN	110095	<	110837
Total FP	503	>	161
Total FP CONTRA	157	>	28
Total FP INCONS	238	>	108
Total FP COMP	108	>	25
Total FN	353	<	836
P-value	3.56938820447e-08

^top

Performance plots

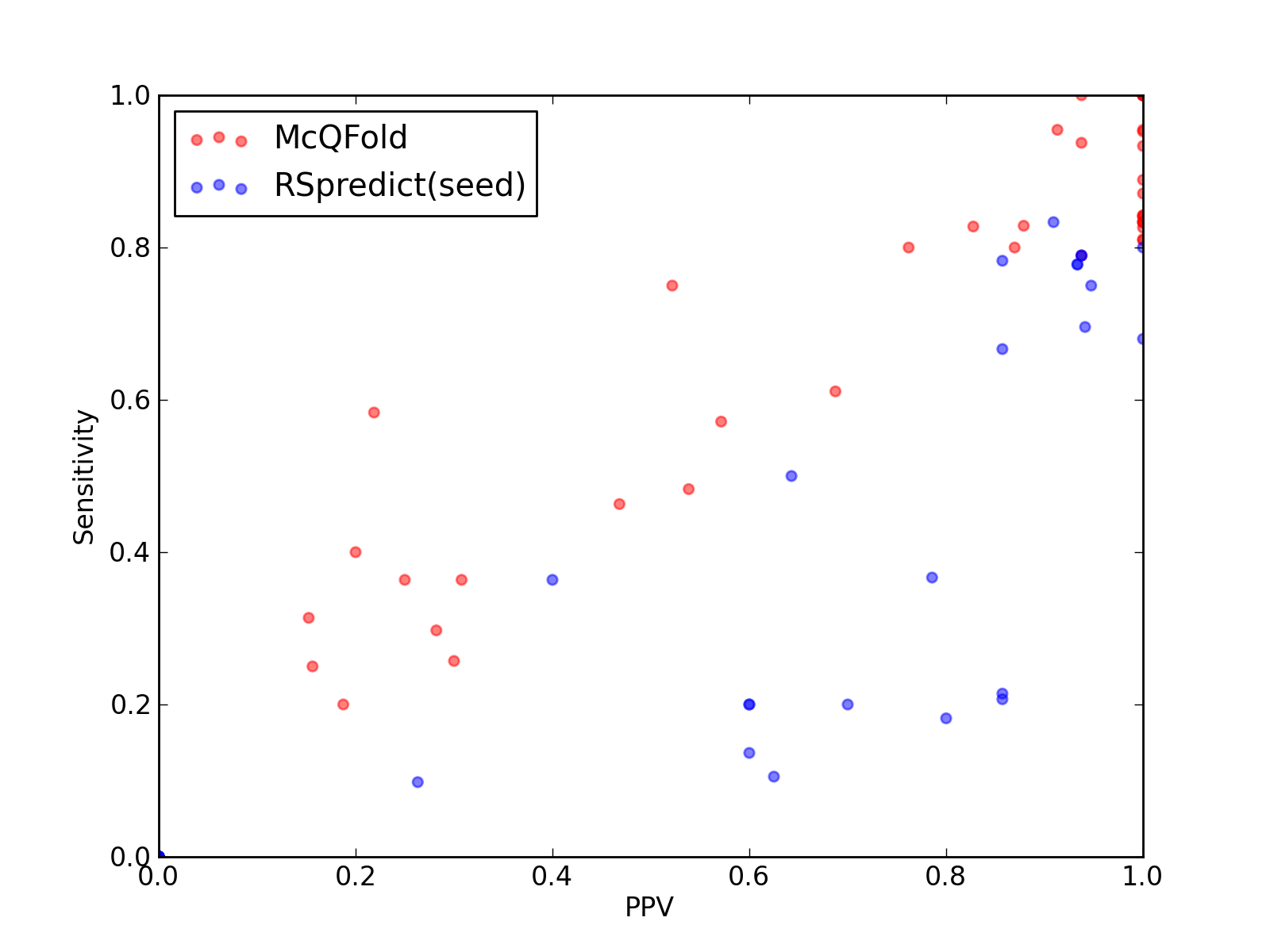

Comparison of performance of McQFold and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for McQFold and RSpredict(seed)).

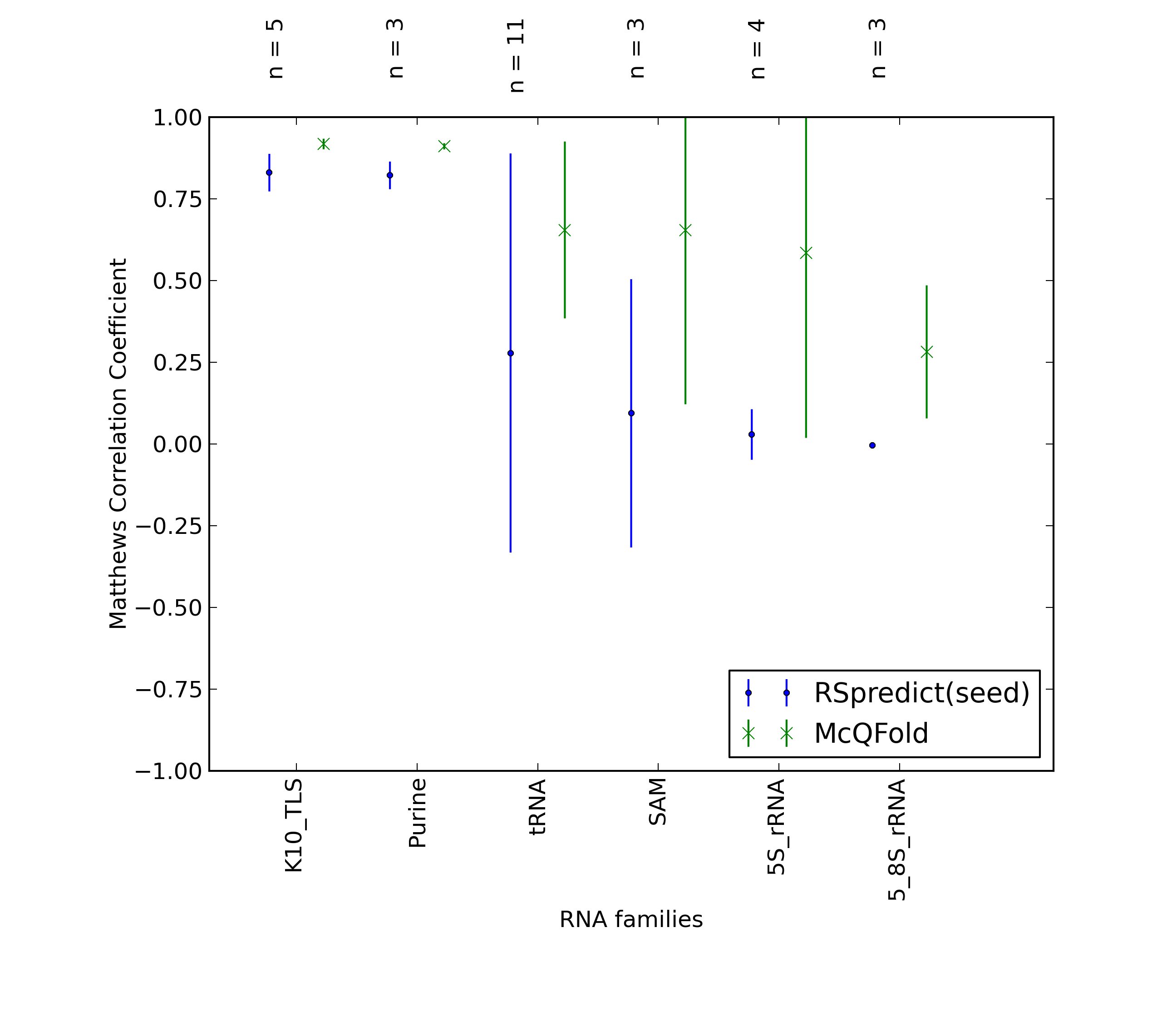

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for McQFold and RSpredict(seed)).

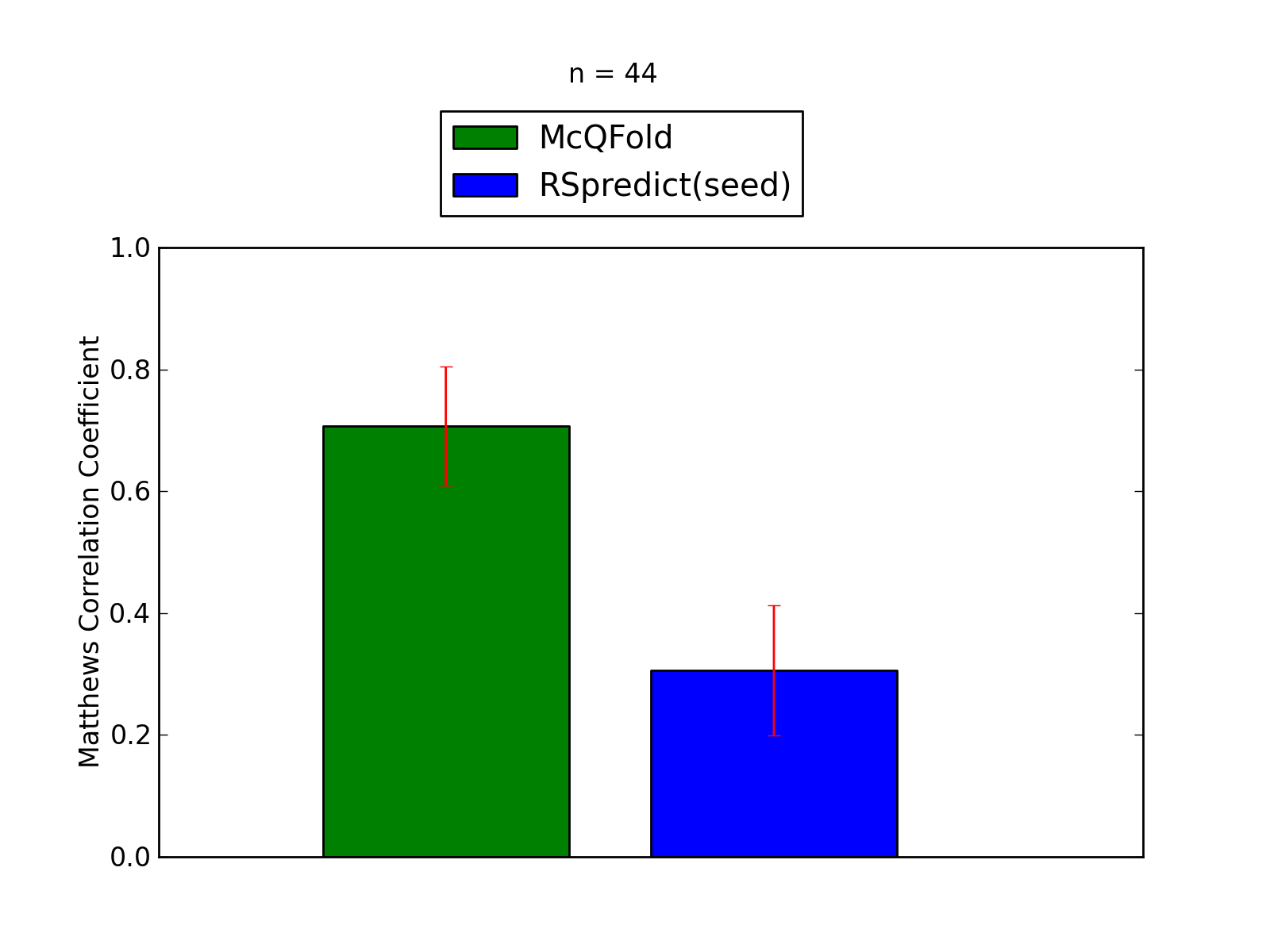

Comparison of average Matthews Correlation Coefficients (MCCs) for McQFold and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for McQFold and RSpredict(seed)).

^top

Performance of McQFold - scored higher in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	721
Total TN	110095
Total FP	503
Total FP CONTRA	157
Total FP INCONS	238
Total FP COMP	108
Total FN	353

Total Scores
MCC	0.655
Average MCC ± 95% Confidence Intervals	0.707 ± 0.097
Sensitivity	0.671
Positive Predictive Value	0.646
Nr of predictions	44

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.91	0.83	1.00	15	452	1	0	0	1	3
2KUR_A	K10_TLS links to Rfam database...	0.91	0.84	1.00	16	451	0	0	0	0	3
2KUU_A	K10_TLS links to Rfam database...	0.91	0.83	1.00	15	432	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.91	0.84	1.00	16	423	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.94	0.89	1.00	16	454	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.93	0.94	0.94	15	355	1	0	1	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	1	4	0	7
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	1204	0	0	0	0	19
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.33	0.36	0.31	4	1822	27	2	7	18	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.27	0.26	0.30	9	2015	22	0	21	1	26
2ZZM_B	tRNA links to Rfam database...	0.18	0.20	0.19	3	1342	22	4	9	9	12
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3AKZ_H	tRNA links to Rfam database...	0.78	0.80	0.76	16	1106	7	2	3	2	4
3AMU_B	tRNA links to Rfam database...	0.86	0.79	0.94	15	1141	4	0	1	3	4
3GX2_A	SAM links to Rfam database...	0.56	0.57	0.57	16	1421	13	4	8	1	12
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.22	0.31	0.15	16	22335	100	45	44	11	35
3IZ4_A	tmRNA links to Rfam database...	0.46	0.46	0.47	44	25442	56	14	36	6	51
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	7	0	4	3	6
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1091	20	4	16	0	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.35	0.58	0.22	7	4724	33	17	8	8	5
3JYX_3	5S_rRNA links to Rfam database...	0.28	0.40	0.20	6	2348	24	17	7	0	9
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.90	0.81	1.00	30	2248	5	0	0	5	7
3O58_2	5S_rRNA links to Rfam database...	0.93	0.87	1.00	27	2727	2	0	0	2	4
3O58_3	5_8S_rRNA links to Rfam database...	0.30	0.36	0.25	8	4732	27	15	9	3	14
3PDR_A	ykoK links to Rfam database...	0.83	0.80	0.87	40	4794	9	2	4	3	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	1	4	0	5
3UZL_B	tRNA links to Rfam database...	0.62	0.75	0.52	12	1270	17	8	3	6	4
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	33	11	16	6	15
4A1C_3	5S_rRNA links to Rfam database...	0.28	0.30	0.28	11	2724	30	4	24	2	26
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	238
Total TN	110837
Total FP	161
Total FP CONTRA	28
Total FP INCONS	108
Total FP COMP	25
Total FN	836

Total Scores
MCC	0.372
Average MCC ± 95% Confidence Intervals	0.306 ± 0.107
Sensitivity	0.222
Positive Predictive Value	0.636
Nr of predictions	44

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.89	0.80	1.00	8	166	0	0	0	0	2
2KE6_A	K10_TLS links to Rfam database...	0.85	0.78	0.93	14	452	2	0	1	1	4
2KUR_A	K10_TLS links to Rfam database...	0.86	0.79	0.94	15	451	1	0	1	0	4
2KUU_A	K10_TLS links to Rfam database...	0.85	0.78	0.93	14	432	2	0	1	1	4
2KUV_A	K10_TLS links to Rfam database...	0.85	0.79	0.94	15	423	1	0	1	0	4
2KUW_A	K10_TLS links to Rfam database...	0.75	0.67	0.86	12	456	3	0	2	1	6
2KX8_A	7SK links to Rfam database...	-0.01	0.00	0.00	0	370	1	0	1	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	0.81	0.78	0.86	18	742	3	0	3	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.87	0.83	0.91	20	769	2	0	2	0	4
2L94_A	HIV_FE links to Rfam database...	0.55	0.50	0.64	9	343	6	0	5	1	9
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	515	13	0	13	0	18
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	1150	3	1	1	1	9
2WWQ_V	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1199	6	0	5	1	19
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.38	0.36	0.40	4	1825	8	4	2	2	7
2XQD_Y	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1124	5	0	5	0	21
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.37	0.20	0.70	7	2035	3	0	3	0	28
2ZZM_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1358	4	0	0	4	15
2ZZN_D	tRNA links to Rfam database...	0.38	0.18	0.80	4	979	1	1	0	0	18
3A2K_C	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1106	2	0	2	0	22
3A3A_A	tRNA-Sec links to Rfam database...	0.53	0.37	0.79	11	1486	3	0	3	0	19
3AKZ_H	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1125	2	0	2	0	20
3AMU_B	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1155	2	0	2	0	19
3GX2_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1442	1	0	1	0	22
3IVN_B	Purine links to Rfam database...	0.81	0.70	0.94	16	886	1	1	0	0	7
3IYQ_A	tmRNA links to Rfam database...	0.16	0.10	0.26	5	22421	21	10	4	7	46
3IZ4_A	tmRNA links to Rfam database...	0.26	0.11	0.63	10	25520	7	2	4	1	85
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2635	5	0	5	0	35
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	1158	1	0	1	0	21
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1108	4	0	3	1	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4754	5	0	2	3	12
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2373	5	1	4	0	15
3LA5_A	Purine links to Rfam database...	0.82	0.68	1.00	17	937	0	0	0	0	8
3NPB_A	SAM links to Rfam database...	-0.01	0.00	0.00	0	2274	4	0	4	0	37
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2751	3	0	3	0	31
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.14	0.60	3	4759	2	0	2	0	19
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4832	8	0	8	0	50
3RKF_A	Purine links to Rfam database...	0.84	0.75	0.95	18	847	1	1	0	0	6
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
3UZL_B	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1287	6	3	3	0	16
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4512	5	2	2	1	20
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2759	4	2	2	0	37
4AOB_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1430	1	0	1	0	23
4ENB_A	crcB links to Rfam database...	0.34	0.20	0.60	3	467	2	0	2	0	12
4ENC_A	crcB links to Rfam database...	0.34	0.20	0.60	3	491	2	0	2	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
