Overview

Metric	Murlet(20)		RSpredict(seed)
MCC	0.698	>	0.298
Average MCC ± 95% Confidence Intervals	0.700 ± 0.074	>	0.246 ± 0.122
Sensitivity	0.590	>	0.156
Positive Predictive Value	0.832	>	0.582
Total TP	417	>	110
Total TN	74902	<	75214
Total FP	150	>	89
Total FP CONTRA	21	>	14
Total FP INCONS	63	<	65
Total FP COMP	66	>	10
Total FN	290	<	597
P-value	3.56938820447e-08

^top

Performance plots

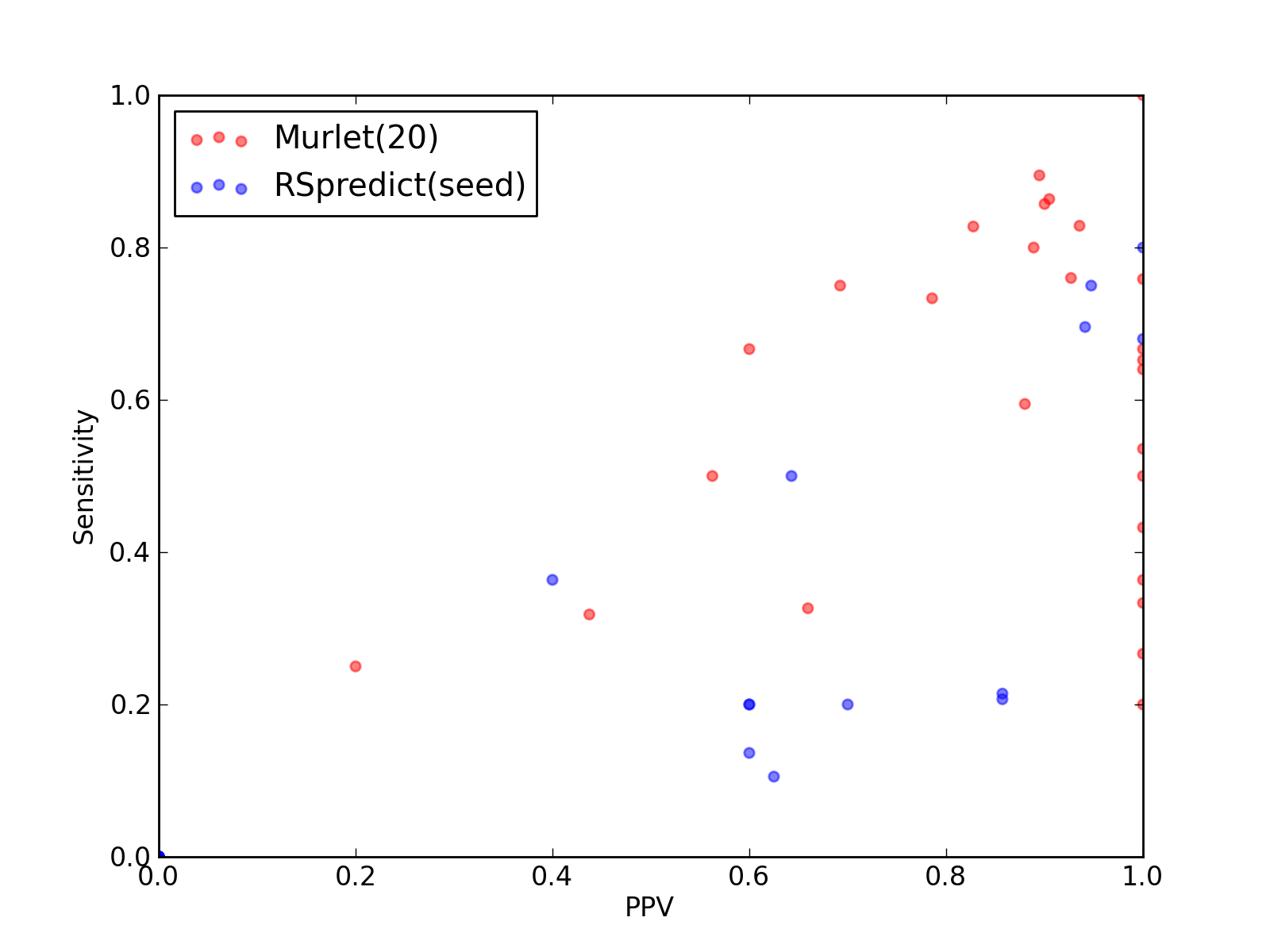

Comparison of performance of Murlet(20) and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Murlet(20) and RSpredict(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Murlet(20) and RSpredict(seed)).

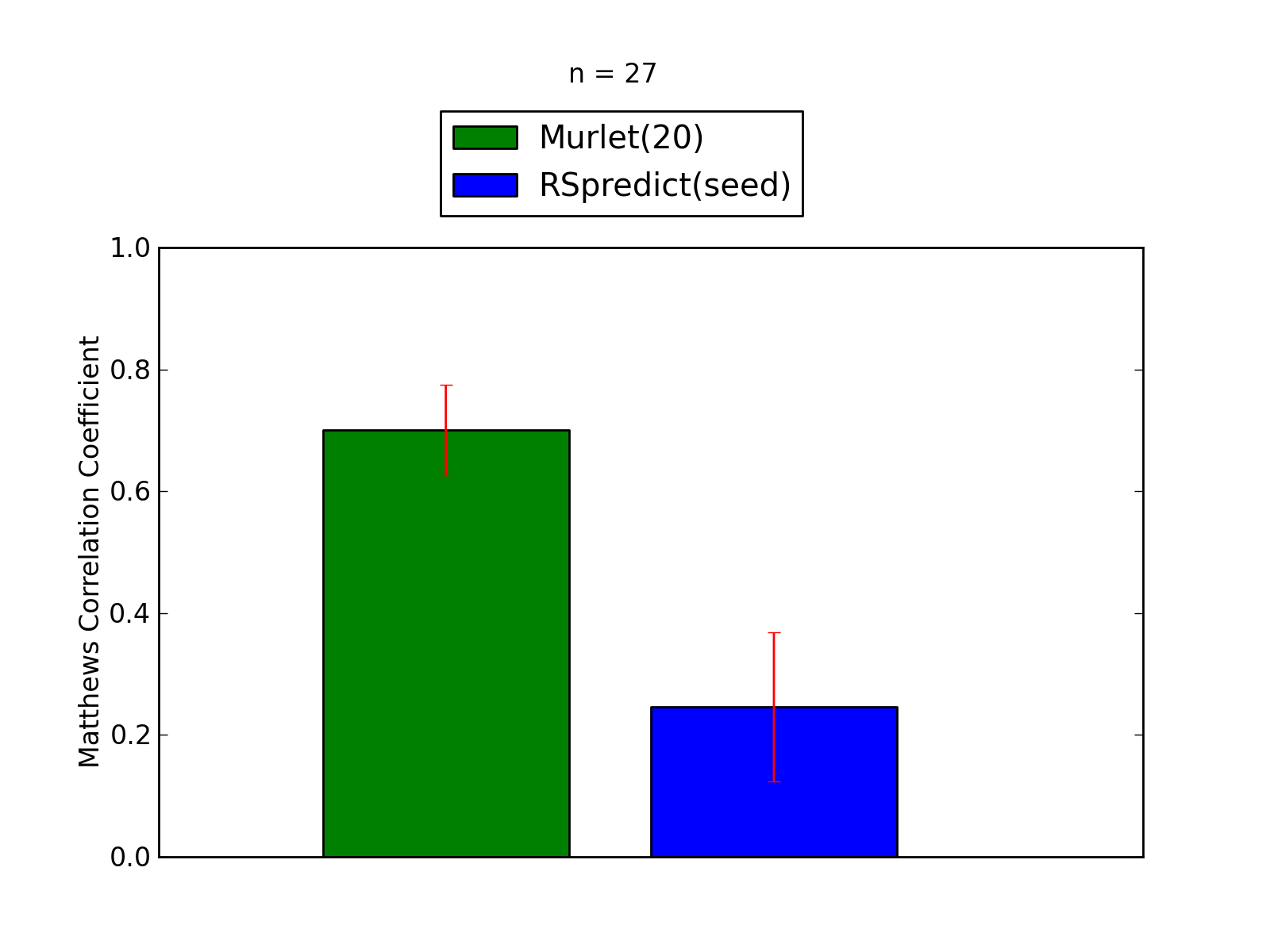

Comparison of average Matthews Correlation Coefficients (MCCs) for Murlet(20) and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Murlet(20) and RSpredict(seed)).

^top

Performance of Murlet(20) - scored higher in this pairwise comparison

1. Total counts & total scores for Murlet(20)

Total Base Pair Counts
Total TP	417
Total TN	74902
Total FP	150
Total FP CONTRA	21
Total FP INCONS	63
Total FP COMP	66
Total FN	290

Total Scores
MCC	0.698
Average MCC ± 95% Confidence Intervals	0.700 ± 0.074
Sensitivity	0.590
Positive Predictive Value	0.832
Nr of predictions	27

^top

2. Individual counts for Murlet(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.70	0.50	1.00	5	169	0	0	0	0	5
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2WRQ_Y	tRNA links to Rfam database...	0.63	0.67	0.60	6	1142	13	1	3	9	3
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	3	0	0	3	7
2XQD_Y	tRNA links to Rfam database...	0.88	0.86	0.90	18	1109	3	0	2	1	3
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.20	1.00	7	2038	0	0	0	0	28
3A2K_C	tRNA links to Rfam database...	0.88	0.86	0.90	19	1087	2	0	2	0	3
3AMU_B	tRNA links to Rfam database...	0.89	0.89	0.89	17	1138	4	0	2	2	2
3GX2_A	SAM links to Rfam database...	0.73	0.54	1.00	15	1434	1	0	0	1	13
3IVN_B	Purine links to Rfam database...	0.80	0.65	1.00	15	888	0	0	0	0	8
3IZ4_A	tmRNA links to Rfam database...	0.46	0.33	0.66	31	25489	22	3	13	6	64
3IZF_C	5S_rRNA links to Rfam database...	0.88	0.83	0.94	29	2609	5	0	2	3	6
3JYV_7	tRNA links to Rfam database...	0.84	0.80	0.89	16	1093	4	0	2	2	4
3JYX_3	5S_rRNA links to Rfam database...	0.76	0.73	0.79	11	2364	14	0	3	11	4
3JYX_4	5_8S_rRNA links to Rfam database...	0.72	0.75	0.69	9	4743	15	3	1	11	3
3LA5_A	Purine links to Rfam database...	0.80	0.64	1.00	16	938	0	0	0	0	9
3NPB_A	SAM links to Rfam database...	0.65	0.43	1.00	16	2262	2	0	0	2	21
3O58_2	5S_rRNA links to Rfam database...	1.00	1.00	1.00	31	2723	2	0	0	2	0
3O58_3	5_8S_rRNA links to Rfam database...	0.37	0.32	0.44	7	4748	13	4	5	4	15
3PDR_A	ykoK links to Rfam database...	0.84	0.76	0.93	38	4799	3	1	2	0	12
3RKF_A	Purine links to Rfam database...	0.81	0.67	1.00	16	850	0	0	0	0	8
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	4	1	0	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.20	5	4491	24	5	15	4	15
4A1C_3	5S_rRNA links to Rfam database...	0.72	0.59	0.88	22	2738	4	0	3	1	15
4AOB_A	SAM links to Rfam database...	0.87	0.76	1.00	22	1415	3	0	0	3	7
4ENB_A	crcB links to Rfam database...	0.51	0.27	1.00	4	468	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.57	0.33	1.00	5	491	0	0	0	0	10

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	110
Total TN	75214
Total FP	89
Total FP CONTRA	14
Total FP INCONS	65
Total FP COMP	10
Total FN	597

Total Scores
MCC	0.298
Average MCC ± 95% Confidence Intervals	0.246 ± 0.122
Sensitivity	0.156
Positive Predictive Value	0.582
Nr of predictions	27

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.89	0.80	1.00	8	166	0	0	0	0	2
2L94_A	HIV_FE links to Rfam database...	0.55	0.50	0.64	9	343	6	0	5	1	9
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	1150	3	1	1	1	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.38	0.36	0.40	4	1825	8	4	2	2	7
2XQD_Y	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1124	5	0	5	0	21
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.37	0.20	0.70	7	2035	3	0	3	0	28
3A2K_C	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1106	2	0	2	0	22
3AMU_B	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1155	2	0	2	0	19
3GX2_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1442	1	0	1	0	22
3IVN_B	Purine links to Rfam database...	0.81	0.70	0.94	16	886	1	1	0	0	7
3IZ4_A	tmRNA links to Rfam database...	0.26	0.11	0.63	10	25520	7	2	4	1	85
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2635	5	0	5	0	35
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1108	4	0	3	1	20
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2373	5	1	4	0	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4754	5	0	2	3	12
3LA5_A	Purine links to Rfam database...	0.82	0.68	1.00	17	937	0	0	0	0	8
3NPB_A	SAM links to Rfam database...	-0.01	0.00	0.00	0	2274	4	0	4	0	37
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2751	3	0	3	0	31
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.14	0.60	3	4759	2	0	2	0	19
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4832	8	0	8	0	50
3RKF_A	Purine links to Rfam database...	0.84	0.75	0.95	18	847	1	1	0	0	6
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4512	5	2	2	1	20
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2759	4	2	2	0	37
4AOB_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1430	1	0	1	0	23
4ENB_A	crcB links to Rfam database...	0.34	0.20	0.60	3	467	2	0	2	0	12
4ENC_A	crcB links to Rfam database...	0.34	0.20	0.60	3	491	2	0	2	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
