Overview

Metric	PknotsRG		Pknots
MCC	0.782	>	0.740
Average MCC ± 95% Confidence Intervals	0.803 ± 0.051	>	0.768 ± 0.057
Sensitivity	0.794	>	0.763
Positive Predictive Value	0.779	>	0.726
Total TP	1501	>	1443
Total TN	102131	>	102072
Total FP	675	<	747
Total FP CONTRA	109	<	179
Total FP INCONS	318	<	365
Total FP COMP	248	>	203
Total FN	389	<	447
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of PknotsRG and Pknots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PknotsRG and Pknots).

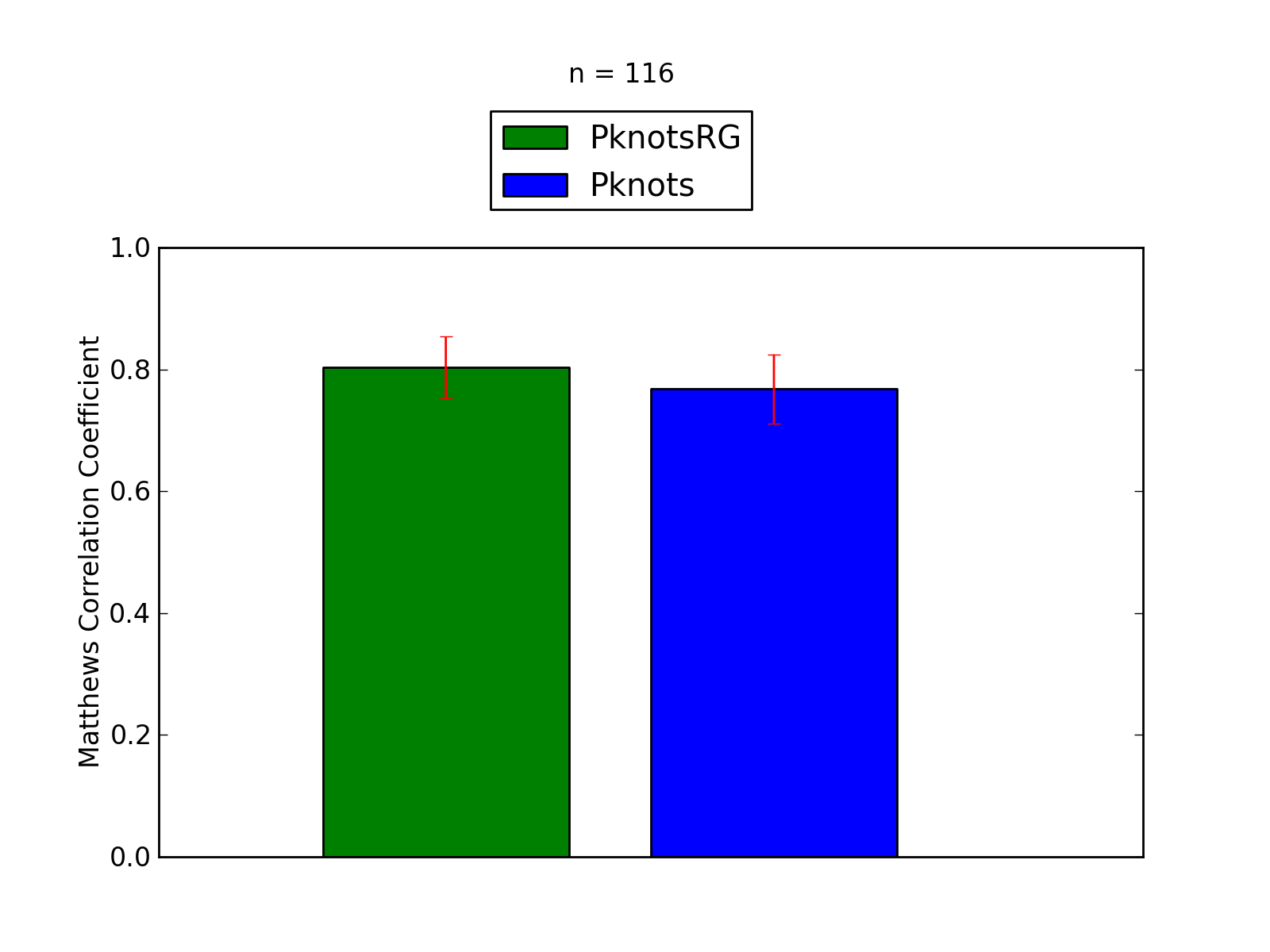

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PknotsRG and Pknots).
Comparison of average Matthews Correlation Coefficients (MCCs) for PknotsRG and Pknots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PknotsRG and Pknots).

^top

Performance of PknotsRG - scored higher in this pairwise comparison

1. Total counts & total scores for PknotsRG

Total Base Pair Counts
Total TP	1501
Total TN	102131
Total FP	675
Total FP CONTRA	109
Total FP INCONS	318
Total FP COMP	248
Total FN	389

Total Scores
MCC	0.782
Average MCC ± 95% Confidence Intervals	0.803 ± 0.051
Sensitivity	0.794
Positive Predictive Value	0.779
Nr of predictions	116

^top

2. Individual counts for PknotsRG [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	175	0	0	0	0	0
2K63_A	-	1.00	1.00	1.00	9	159	0	0	0	0	0
2K66_A	-	1.00	1.00	1.00	9	80	0	0	0	0	0
2KD8_A	-	1.00	1.00	1.00	9	99	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	449	3	0	2	1	2
2KEZ_A	-	1.00	1.00	1.00	8	94	0	0	0	0	0
2KFC_A	-	0.77	0.88	0.70	7	226	3	2	1	0	1
2KGP_A	-	0.69	0.67	0.75	6	113	2	0	2	0	3
2KMJ_A	-	1.00	1.00	1.00	11	157	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.85	0.87	0.83	20	2000	12	4	0	8	3
2KU0_A	-	0.96	0.92	1.00	11	281	0	0	0	0	1
2KUR_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	448	2	0	2	0	2
2KUU_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	429	3	0	2	1	2
2KUV_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	420	2	0	2	0	2
2KUW_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	452	2	0	1	1	1
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.93	0.88	1.00	7	142	0	0	0	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.66	0.61	0.73	11	513	4	2	2	0	7
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.81	0.86	0.76	25	2407	10	6	2	2	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RP0_A	-	0.87	1.00	0.78	7	107	2	2	0	0	0
2RPT_A	-	1.00	1.00	1.00	7	65	0	0	0	0	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WRQ_Y	tRNA links to Rfam database...	0.94	0.89	1.00	8	1144	14	0	0	14	1
2WW9_F	-	0.64	0.75	0.60	6	102	4	1	3	0	2
2WW9_D	-	0.08	0.10	0.08	1	729	15	2	9	4	9
2WW9_E	-	0.89	0.80	1.00	4	168	0	0	0	0	1
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	5	0	0	5	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	24	0	6	18	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.43	0.57	0.33	4	532	10	2	6	2	3
2ZY6_A	-	0.66	0.78	0.58	7	264	5	3	2	0	2
2ZZM_B	tRNA links to Rfam database...	0.25	0.27	0.25	4	1342	20	3	9	8	11
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3ADB_C	-	0.35	0.36	0.36	12	1786	21	1	20	0	21
3AKZ_H	tRNA links to Rfam database...	0.46	0.50	0.43	10	1104	15	6	7	2	10
3AM1_B	-	0.74	0.76	0.73	22	1436	8	3	5	0	7
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3DW4_A	-	-0.03	0.00	0.00	0	137	3	0	3	0	6
3G4S_9	5S_rRNA links to Rfam database...	0.83	0.85	0.81	22	2709	12	2	3	7	4
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.80	0.79	0.81	22	1422	6	2	3	1	6
3HAY_E	-	1.00	1.00	1.00	14	910	7	0	0	7	0
3HJW_D	-	1.00	1.00	1.00	16	593	2	0	0	2	0
3IAB_R	-	1.00	1.00	1.00	12	373	0	0	0	0	0
3ID5_D	-	0.54	0.60	0.50	3	223	6	1	2	3	2
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.21	0.21	0.24	6	1447	19	1	18	0	22
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.77	0.73	27	2603	15	0	10	5	8
3J0L_a	-	0.18	0.18	0.22	2	402	8	3	4	1	9
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_7	-	0.38	0.50	0.31	5	503	12	3	8	1	5
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_2	-	0.29	0.31	0.29	8	2222	27	2	18	7	18
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1089	22	4	18	0	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	33	10	2	21	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	27	0	4	23	3
3KTW_C	-	1.00	1.00	1.00	25	1755	7	0	0	7	0
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NDB_M	-	0.93	0.93	0.93	41	3670	9	0	3	6	3
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	1.00	1.00	1.00	3	213	5	0	0	5	0
3NPB_A	SAM links to Rfam database...	0.93	0.86	1.00	32	2246	4	0	0	4	5
3O58_2	5S_rRNA links to Rfam database...	0.72	0.74	0.70	23	2721	19	0	10	9	8
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.73	0.72	0.75	21	1505	7	4	3	0	8
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4480	43	11	20	12	15
4A1C_3	5S_rRNA links to Rfam database...	0.85	0.84	0.86	31	2727	8	0	5	3	6
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	1443
Total TN	102072
Total FP	747
Total FP CONTRA	179
Total FP INCONS	365
Total FP COMP	203
Total FN	447

Total Scores
MCC	0.740
Average MCC ± 95% Confidence Intervals	0.768 ± 0.057
Sensitivity	0.763
Positive Predictive Value	0.726
Nr of predictions	116

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	0.90	0.82	1.00	9	177	0	0	0	0	2
2K63_A	-	1.00	1.00	1.00	9	159	0	0	0	0	0
2K66_A	-	1.00	1.00	1.00	9	80	0	0	0	0	0
2KD8_A	-	1.00	1.00	1.00	9	99	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KEZ_A	-	1.00	1.00	1.00	8	94	0	0	0	0	0
2KFC_A	-	0.17	0.25	0.17	2	224	10	3	7	0	6
2KGP_A	-	0.81	0.67	1.00	6	115	1	0	0	1	3
2KMJ_A	-	1.00	1.00	1.00	11	157	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.79	0.83	0.76	19	1999	13	5	1	7	4
2KU0_A	-	-0.04	0.00	0.00	0	282	10	0	10	0	12
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	-0.04	0.00	0.00	0	144	5	0	5	0	8
2KZL_A	-	0.66	0.69	0.64	9	506	6	2	3	1	4
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	0.96	0.93	1.00	13	226	0	0	0	0	1
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.94	0.94	0.94	17	339	2	0	1	1	1
2LA5_A	-	0.77	0.71	0.83	5	269	1	0	1	0	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.83	0.83	0.83	15	510	3	2	1	0	3
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.48	0.55	0.43	16	2403	23	9	12	2	13
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.38	0.27	0.60	3	202	3	0	2	1	8
2RP0_A	-	0.87	1.00	0.78	7	107	2	2	0	0	0
2RPT_A	-	1.00	1.00	1.00	7	65	0	0	0	0	0
2RRC_A	-	0.92	0.86	1.00	6	69	0	0	0	0	1
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	13	0	0	13	0
2WW9_F	-	0.68	0.75	0.67	6	103	4	1	2	1	2
2WW9_D	-	0.52	0.60	0.46	6	728	13	5	2	6	4
2WW9_E	-	0.79	0.80	0.80	4	167	3	0	1	2	1
2WWQ_V	tRNA links to Rfam database...	0.29	0.32	0.29	6	1183	16	3	12	1	13
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.21	0.27	0.17	3	1817	33	3	12	18	8
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.32	0.34	0.32	12	2008	26	1	24	1	23
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.70	0.67	0.75	12	890	6	0	4	2	6
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
2ZY6_A	-	0.66	0.78	0.58	7	264	5	3	2	0	2
2ZZM_B	tRNA links to Rfam database...	0.18	0.20	0.19	3	1342	23	4	9	10	12
2ZZN_D	tRNA links to Rfam database...	0.95	0.95	0.95	21	962	1	1	0	0	1
3A2K_C	tRNA links to Rfam database...	0.50	0.55	0.48	12	1083	13	3	10	0	10
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3ADB_C	-	0.98	0.97	1.00	32	1787	0	0	0	0	1
3AKZ_H	tRNA links to Rfam database...	1.00	1.00	1.00	20	1107	2	0	0	2	0
3AM1_B	-	1.00	1.00	1.00	29	1437	0	0	0	0	0
3AMU_B	tRNA links to Rfam database...	1.00	1.00	1.00	19	1138	3	0	0	3	0
3DW4_A	-	0.91	0.83	1.00	5	135	0	0	0	0	1
3G4S_9	5S_rRNA links to Rfam database...	0.37	0.46	0.31	12	2697	27	14	13	0	14
3GCA_A	-	0.66	0.57	0.80	4	153	3	0	1	2	3
3GX2_A	SAM links to Rfam database...	0.55	0.57	0.55	16	1420	14	4	9	1	12
3HAY_E	-	1.00	1.00	1.00	14	910	6	0	0	6	0
3HJW_D	-	1.00	1.00	1.00	16	593	3	0	0	3	0
3IAB_R	-	1.00	1.00	1.00	12	373	4	0	0	4	0
3ID5_D	-	-0.02	0.00	0.00	0	224	5	1	4	0	5
3IVN_B	Purine links to Rfam database...	0.91	0.87	0.95	20	882	1	0	1	0	3
3IWN_A	c-di-GMP-I links to Rfam database...	0.22	0.21	0.25	6	1448	18	2	16	0	22
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J0L_a	-	0.35	0.36	0.36	4	400	8	3	4	1	7
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_1	-	0.73	0.62	0.89	8	475	3	0	1	2	5
3J0L_h	-	0.67	0.66	0.70	21	2110	11	4	5	2	11
3J0L_7	-	0.38	0.50	0.31	5	503	12	3	8	1	5
3J0L_g	-	-0.02	0.00	0.00	0	171	5	3	2	0	2
3J0L_2	-	0.44	0.46	0.43	12	2222	23	1	15	7	14
3J16_L	tRNA links to Rfam database...	0.41	0.43	0.41	9	1137	13	1	12	0	12
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_4	5_8S_rRNA links to Rfam database...	0.33	0.58	0.19	7	4720	41	22	7	12	5
3JYX_3	5S_rRNA links to Rfam database...	0.37	0.53	0.27	8	2348	26	17	5	4	7
3KTW_C	-	0.63	0.68	0.59	17	1751	18	3	9	6	8
3LA5_A	Purine links to Rfam database...	0.94	0.88	1.00	22	932	0	0	0	0	3
3NDB_M	-	0.92	0.93	0.91	41	3669	8	3	1	4	3
3NKB_B	-	0.64	0.68	0.62	13	714	8	0	8	0	6
3NMU_E	-	1.00	1.00	1.00	3	213	5	0	0	5	0
3NPB_A	SAM links to Rfam database...	0.84	0.81	0.88	30	2244	9	0	4	5	7
3O58_2	5S_rRNA links to Rfam database...	0.93	0.90	0.97	28	2725	3	0	1	2	3
3O58_3	5_8S_rRNA links to Rfam database...	0.32	0.45	0.24	10	4722	39	18	14	7	12
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.64	0.64	0.65	32	4791	19	4	13	2	18
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	0.87	0.88	0.88	7	221	5	0	1	4	1
3RKF_A	Purine links to Rfam database...	0.91	0.88	0.95	21	844	1	0	1	0	3
3SD1_A	THF links to Rfam database...	0.78	0.76	0.81	22	1506	5	1	4	0	7
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.33	0.36	0.32	8	1251	17	4	13	0	14
3UZL_B	tRNA links to Rfam database...	1.00	1.00	1.00	16	1277	7	0	0	7	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.40	0.29	8	4488	36	9	11	16	12
4A1C_3	5S_rRNA links to Rfam database...	0.28	0.30	0.28	11	2723	30	4	25	1	26
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.19	0.21	0.21	6	1409	23	3	19	1	23
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	2	0	0	2	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of PknotsRG - scored higher in this pairwise comparison

1. Total counts & total scores for PknotsRG

2. Individual counts for PknotsRG [ download as .csv ]

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

2. Individual counts for Pknots [ download as .csv ]
