Overview

Metric	PknotsRG		Vsfold4
MCC	0.752	>	0.650
Average MCC ± 95% Confidence Intervals	0.797 ± 0.051	>	0.701 ± 0.061
Sensitivity	0.774	>	0.640
Positive Predictive Value	0.737	>	0.669
Total TP	1575	>	1303
Total TN	149897	<	150088
Total FP	826	>	814
Total FP CONTRA	179	<	181
Total FP INCONS	384	<	463
Total FP COMP	263	>	170
Total FN	461	<	733
P-value	3.56938820447e-08

^top

Performance plots

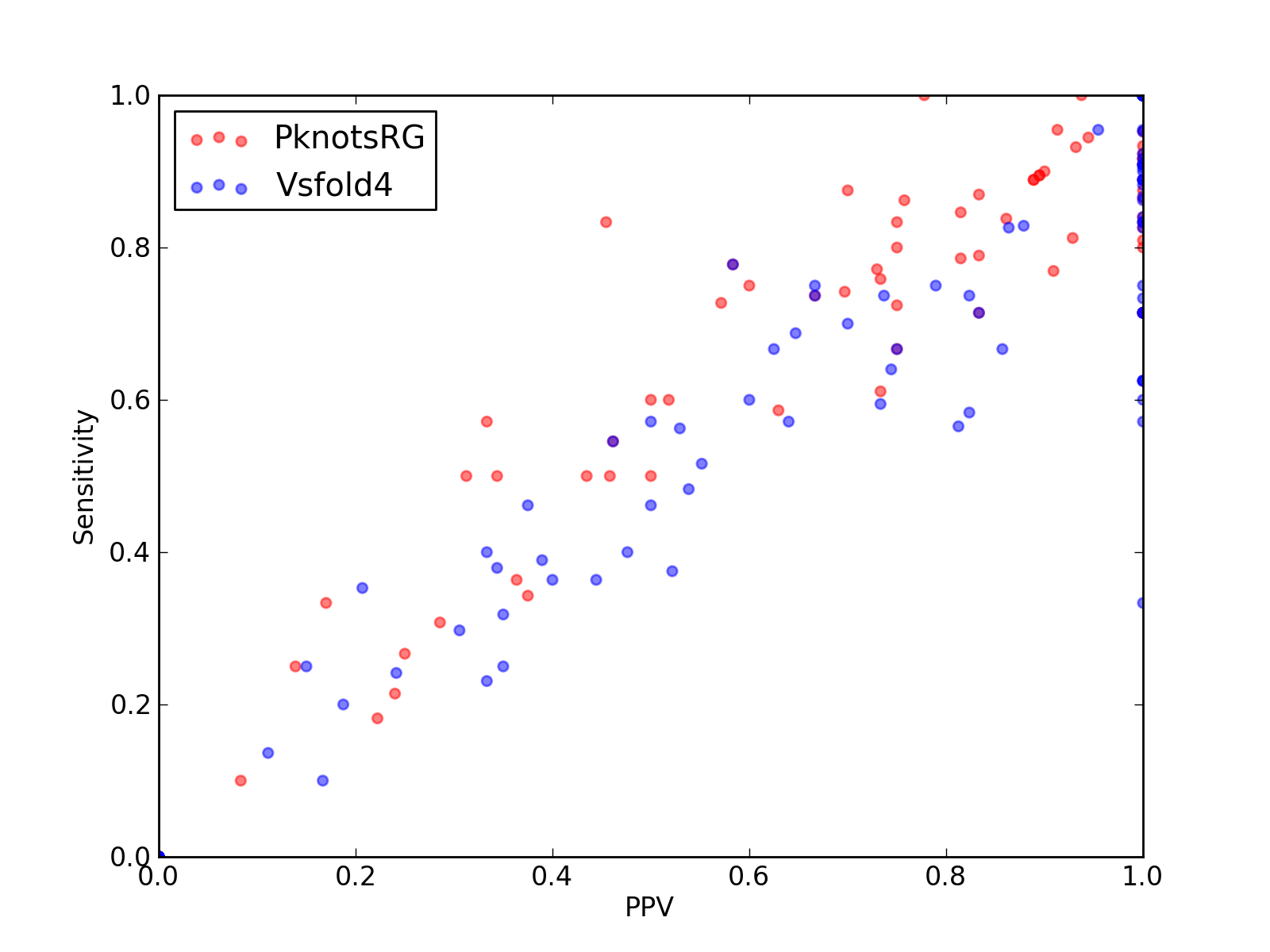

Comparison of performance of PknotsRG and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PknotsRG and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PknotsRG and Vsfold4).
Comparison of average Matthews Correlation Coefficients (MCCs) for PknotsRG and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PknotsRG and Vsfold4).

^top

Performance of PknotsRG - scored higher in this pairwise comparison

1. Total counts & total scores for PknotsRG

Total Base Pair Counts
Total TP	1575
Total TN	149897
Total FP	826
Total FP CONTRA	179
Total FP INCONS	384
Total FP COMP	263
Total FN	461

Total Scores
MCC	0.752
Average MCC ± 95% Confidence Intervals	0.797 ± 0.051
Sensitivity	0.774
Positive Predictive Value	0.737
Nr of predictions	118

^top

2. Individual counts for PknotsRG [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	175	0	0	0	0	0
2K63_A	-	1.00	1.00	1.00	9	159	0	0	0	0	0
2K66_A	-	1.00	1.00	1.00	9	80	0	0	0	0	0
2KD8_A	-	1.00	1.00	1.00	9	99	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	449	3	0	2	1	2
2KEZ_A	-	1.00	1.00	1.00	8	94	0	0	0	0	0
2KFC_A	-	0.77	0.88	0.70	7	226	3	2	1	0	1
2KGP_A	-	0.69	0.67	0.75	6	113	2	0	2	0	3
2KMJ_A	-	1.00	1.00	1.00	11	157	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.85	0.87	0.83	20	2000	12	4	0	8	3
2KU0_A	-	0.96	0.92	1.00	11	281	0	0	0	0	1
2KUR_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	448	2	0	2	0	2
2KUU_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	429	3	0	2	1	2
2KUV_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	420	2	0	2	0	2
2KUW_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	452	2	0	1	1	1
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.93	0.88	1.00	7	142	0	0	0	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.66	0.61	0.73	11	513	4	2	2	0	7
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.81	0.86	0.76	25	2407	10	6	2	2	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RP0_A	-	0.87	1.00	0.78	7	107	2	2	0	0	0
2RPT_A	-	1.00	1.00	1.00	7	65	0	0	0	0	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WRQ_Y	tRNA links to Rfam database...	0.94	0.89	1.00	8	1144	14	0	0	14	1
2WW9_D	-	0.08	0.10	0.08	1	729	15	2	9	4	9
2WW9_E	-	0.89	0.80	1.00	4	168	0	0	0	0	1
2WW9_F	-	0.64	0.75	0.60	6	102	4	1	3	0	2
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	5	0	0	5	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	24	0	6	18	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_X	-	0.43	0.57	0.33	4	532	10	2	6	2	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2ZY6_A	-	0.66	0.78	0.58	7	264	5	3	2	0	2
2ZZM_B	tRNA links to Rfam database...	0.25	0.27	0.25	4	1342	20	3	9	8	11
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3ADB_C	-	0.35	0.36	0.36	12	1786	21	1	20	0	21
3AKZ_H	tRNA links to Rfam database...	0.46	0.50	0.43	10	1104	15	6	7	2	10
3AM1_B	-	0.74	0.76	0.73	22	1436	8	3	5	0	7
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3DW4_A	-	-0.03	0.00	0.00	0	137	3	0	3	0	6
3G4S_9	5S_rRNA links to Rfam database...	0.83	0.85	0.81	22	2709	12	2	3	7	4
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.80	0.79	0.81	22	1422	6	2	3	1	6
3HAY_E	-	1.00	1.00	1.00	14	910	7	0	0	7	0
3HJW_D	-	1.00	1.00	1.00	16	593	2	0	0	2	0
3IAB_R	-	1.00	1.00	1.00	12	373	0	0	0	0	0
3ID5_D	-	0.54	0.60	0.50	3	223	6	1	2	3	2
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.21	0.21	0.24	6	1447	19	1	18	0	22
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.17	17	22340	94	45	38	11	34
3IZ4_A	tmRNA links to Rfam database...	0.56	0.60	0.52	57	25426	57	25	28	4	38
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.77	0.73	27	2603	15	0	10	5	8
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_a	-	0.18	0.18	0.22	2	402	8	3	4	1	9
3J0L_2	-	0.29	0.31	0.29	8	2222	27	2	18	7	18
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_7	-	0.38	0.50	0.31	5	503	12	3	8	1	5
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1089	22	4	18	0	20
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	27	0	4	23	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	33	10	2	21	2
3KTW_C	-	1.00	1.00	1.00	25	1755	7	0	0	7	0
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NDB_M	-	0.93	0.93	0.93	41	3670	9	0	3	6	3
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	1.00	1.00	1.00	3	213	5	0	0	5	0
3NPB_A	SAM links to Rfam database...	0.93	0.86	1.00	32	2246	4	0	0	4	5
3O58_2	5S_rRNA links to Rfam database...	0.72	0.74	0.70	23	2721	19	0	10	9	8
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.73	0.72	0.75	21	1505	7	4	3	0	8
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4480	43	11	20	12	15
4A1C_3	5S_rRNA links to Rfam database...	0.85	0.84	0.86	31	2727	8	0	5	3	6
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	1303
Total TN	150088
Total FP	814
Total FP CONTRA	181
Total FP INCONS	463
Total FP COMP	170
Total FN	733

Total Scores
MCC	0.650
Average MCC ± 95% Confidence Intervals	0.701 ± 0.061
Sensitivity	0.640
Positive Predictive Value	0.669
Nr of predictions	118

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	0.35	0.36	0.40	4	176	6	0	6	0	7
2K63_A	-	1.00	1.00	1.00	9	159	0	0	0	0	0
2K66_A	-	1.00	1.00	1.00	9	80	0	0	0	0	0
2KD8_A	-	1.00	1.00	1.00	9	99	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KEZ_A	-	0.78	0.63	1.00	5	97	0	0	0	0	3
2KFC_A	-	0.79	0.63	1.00	5	231	0	0	0	0	3
2KGP_A	-	-0.05	0.00	0.00	0	117	4	0	4	0	9
2KMJ_A	-	1.00	1.00	1.00	11	157	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	201	0	0	0	0	1
2KRL_A	-	0.84	0.83	0.86	19	2002	9	2	1	6	4
2KU0_A	-	-0.04	0.00	0.00	0	283	9	2	7	0	12
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.78	0.63	1.00	5	144	0	0	0	0	3
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_A	Gammaretro_CES links to Rfam database...	0.67	0.57	0.81	13	747	3	0	3	0	10
2L1F_B	Gammaretro_CES links to Rfam database...	0.69	0.58	0.82	14	774	3	0	3	0	10
2L2K_A	-	0.94	0.88	1.00	15	334	0	0	0	0	2
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	0.93	0.87	1.00	26	959	0	0	0	0	4
2L5Z_A	-	0.68	0.67	0.75	6	103	2	0	2	0	3
2L94_A	HIV_FE links to Rfam database...	0.94	0.89	1.00	16	341	1	0	0	1	2
2LA5_A	-	0.77	0.71	0.83	5	269	1	0	1	0	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	515	13	0	13	0	18
2LDL_A	-	0.94	0.89	1.00	8	132	1	0	0	1	1
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.35	0.38	0.34	11	2408	21	7	14	0	18
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2RPT_A	-	-0.07	0.00	0.00	0	68	4	0	4	0	7
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2WRQ_Y	tRNA links to Rfam database...	0.94	0.89	1.00	8	1144	13	0	0	13	1
2WW9_D	-	0.12	0.10	0.17	1	735	8	1	4	3	9
2WW9_E	-	-0.03	0.00	0.00	0	168	5	0	4	1	5
2WW9_F	-	0.68	0.75	0.67	6	103	4	1	2	1	2
2WWQ_V	tRNA links to Rfam database...	0.78	0.74	0.82	14	1187	4	1	2	1	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	1808	27	13	14	0	11
2XQD_Y	tRNA links to Rfam database...	0.95	0.90	1.00	19	1110	1	0	0	1	2
2XXA_G	Bacteria_small_SRP links to Rfam database...	-0.02	0.00	0.00	0	2016	29	1	28	0	35
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.75	0.67	0.86	12	892	4	0	2	2	6
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
2YIE_Z	-	-0.02	0.00	0.00	0	591	11	5	6	0	8
2ZY6_A	-	0.66	0.78	0.58	7	264	5	3	2	0	2
2ZZM_B	tRNA links to Rfam database...	0.18	0.20	0.19	3	1342	22	4	9	9	12
2ZZN_D	tRNA links to Rfam database...	0.95	0.95	0.95	21	962	1	1	0	0	1
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3A3A_A	tRNA-Sec links to Rfam database...	0.95	0.90	1.00	27	1473	0	0	0	0	3
3ADB_C	-	0.95	0.91	1.00	30	1789	0	0	0	0	3
3AKZ_H	tRNA links to Rfam database...	0.77	0.75	0.79	15	1108	6	2	2	2	5
3AM1_B	-	0.93	0.86	1.00	25	1441	0	0	0	0	4
3AMU_B	tRNA links to Rfam database...	0.73	0.74	0.74	14	1138	8	0	5	3	5
3DW4_A	-	0.91	0.83	1.00	5	135	0	0	0	0	1
3G4S_9	5S_rRNA links to Rfam database...	0.41	0.46	0.38	12	2704	21	10	10	1	14
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.60	0.57	0.64	16	1424	10	0	9	1	12
3HAY_E	-	1.00	1.00	1.00	14	910	4	0	0	4	0
3HJW_D	-	0.53	0.56	0.53	9	592	8	2	6	0	7
3IAB_R	-	1.00	1.00	1.00	12	373	0	0	0	0	0
3ID5_D	-	0.59	0.60	0.60	3	224	4	0	2	2	2
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.28	0.25	0.35	7	1452	13	2	11	0	21
3IYQ_A	tmRNA links to Rfam database...	0.27	0.35	0.21	18	22353	80	40	29	11	33
3IZ4_A	tmRNA links to Rfam database...	0.39	0.39	0.39	37	25441	63	15	43	5	58
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	6	0	4	2	6
3J0L_h	-	0.44	0.38	0.52	12	2117	11	2	9	0	20
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_8	-	0.74	0.57	1.00	4	72	0	0	0	0	3
3J0L_a	-	0.39	0.36	0.44	4	402	6	4	1	1	7
3J0L_2	-	0.47	0.46	0.50	12	2226	18	1	11	6	14
3J0L_1	-	0.26	0.23	0.33	3	475	7	2	4	1	10
3J0L_7	-	0.69	0.70	0.70	7	509	4	1	2	1	3
3J16_L	tRNA links to Rfam database...	0.98	0.95	1.00	20	1139	0	0	0	0	1
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1092	19	4	15	0	20
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.67	0.63	10	2362	16	5	1	10	5
3JYX_4	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	3	4736	33	9	8	16	9
3KTW_C	-	0.43	0.40	0.48	10	1759	15	2	9	4	15
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NDB_M	-	0.33	0.32	0.35	14	3674	26	2	24	0	30
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	0.57	0.33	1.00	1	215	3	0	0	3	2
3NPB_A	SAM links to Rfam database...	0.66	0.59	0.73	22	2248	10	0	8	2	15
3O58_2	5S_rRNA links to Rfam database...	0.53	0.52	0.55	16	2725	16	3	10	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.12	0.14	0.11	3	4737	35	8	16	11	19
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.69	0.64	0.74	32	4797	13	3	8	2	18
3R4F_A	-	0.98	0.95	1.00	21	885	1	0	0	1	1
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.23	0.24	0.24	7	1504	22	5	17	0	22
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.66	0.69	0.65	11	1276	10	3	3	4	5
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.36	0.40	0.33	8	4492	28	4	12	12	12
4A1C_3	5S_rRNA links to Rfam database...	0.29	0.30	0.31	11	2727	26	4	21	1	26
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.77	0.60	1.00	9	487	0	0	0	0	6

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of PknotsRG - scored higher in this pairwise comparison

1. Total counts & total scores for PknotsRG

2. Individual counts for PknotsRG [ download as .csv ]

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

2. Individual counts for Vsfold4 [ download as .csv ]
