Overview

Metric	ProbKnot		McQFold
MCC	0.738	>	0.720
Average MCC ± 95% Confidence Intervals	0.781 ± 0.071	<	0.782 ± 0.065
Sensitivity	0.772	>	0.728
Positive Predictive Value	0.712	<	0.719
Total TP	1052	>	992
Total TN	115624	<	115721
Total FP	610	>	519
Total FP CONTRA	148	>	134
Total FP INCONS	277	>	254
Total FP COMP	185	>	131
Total FN	311	<	371
P-value	1.02208072244e-07

^top

Performance plots

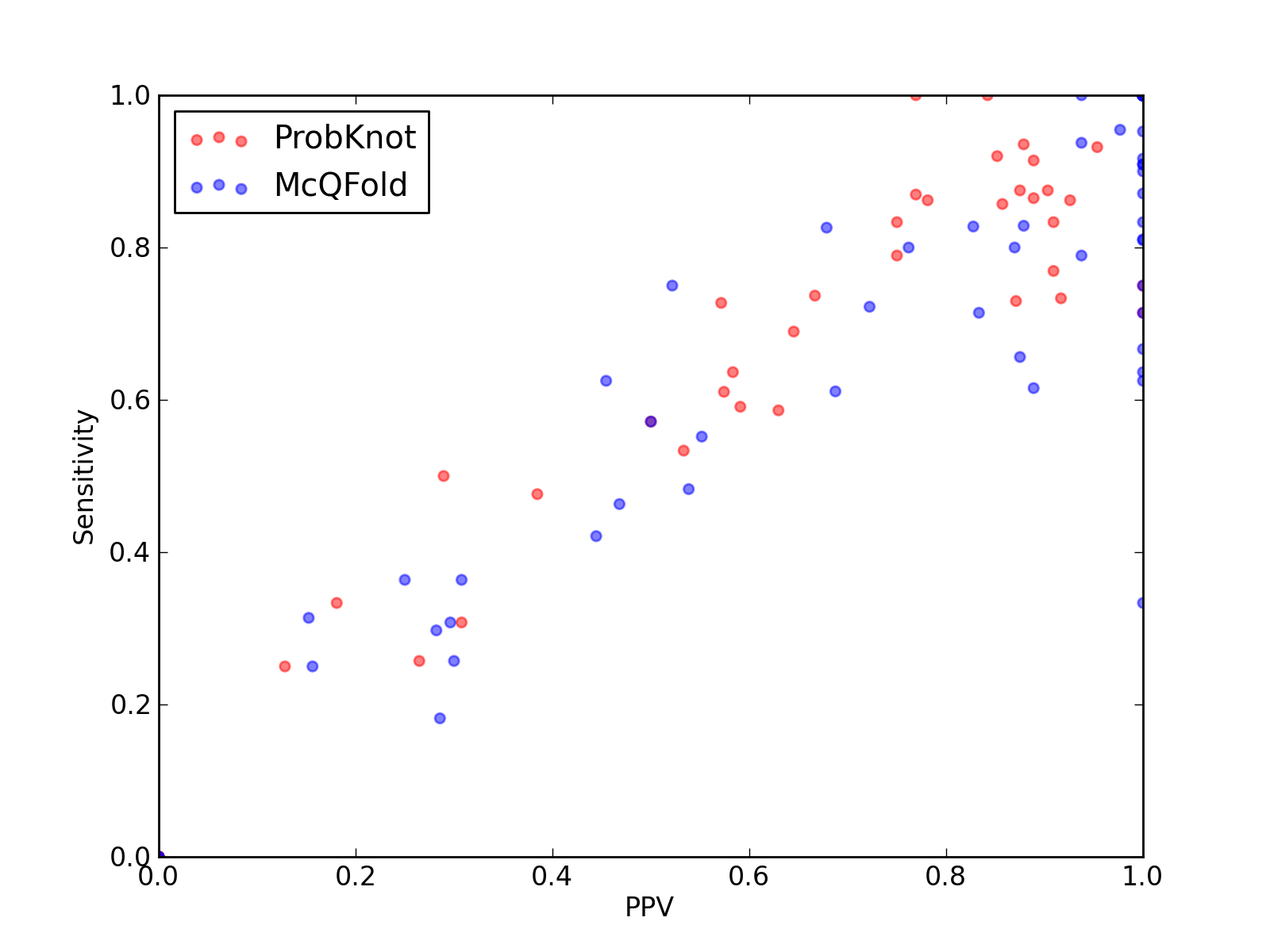

Comparison of performance of ProbKnot and McQFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for ProbKnot and McQFold).

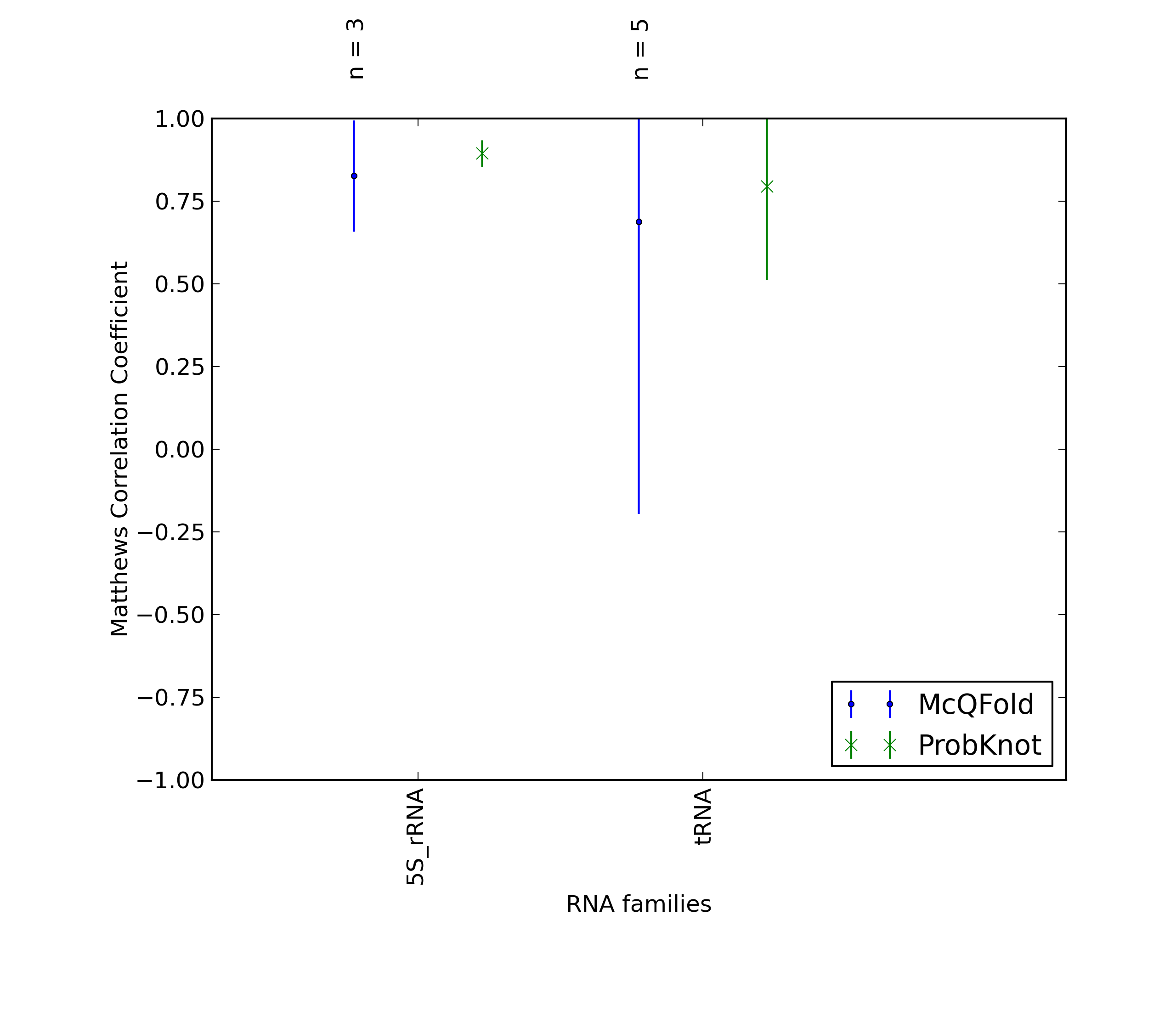

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for ProbKnot and McQFold).

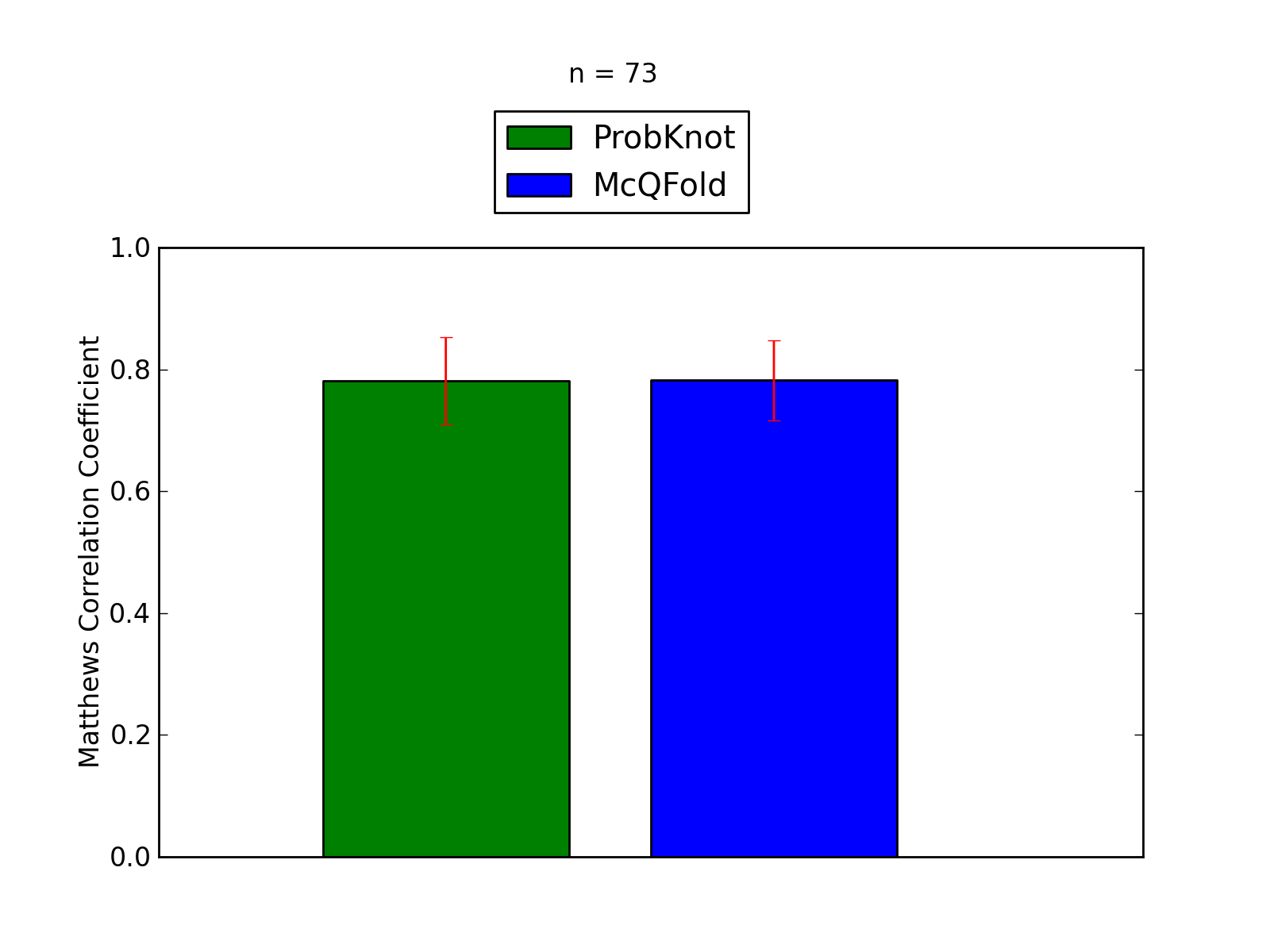

Comparison of average Matthews Correlation Coefficients (MCCs) for ProbKnot and McQFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for ProbKnot and McQFold).

^top

Performance of ProbKnot - scored higher in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	1052
Total TN	115624
Total FP	610
Total FP CONTRA	148
Total FP INCONS	277
Total FP COMP	185
Total FN	311

Total Scores
MCC	0.738
Average MCC ± 95% Confidence Intervals	0.781 ± 0.071
Sensitivity	0.772
Positive Predictive Value	0.712
Nr of predictions	73

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.82	0.87	0.77	20	1998	15	6	0	9	3
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.87	0.88	0.88	7	141	1	0	1	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	2	0	0	2	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.85	0.86	0.86	6	268	3	0	1	2	1
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.89	0.86	0.93	25	2413	9	0	2	7	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	1.00	1.00	1.00	21	1108	2	0	0	2	0
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.25	0.26	0.26	9	2011	26	1	24	1	26
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	0.53	0.57	0.50	4	536	7	1	3	3	3
3AKZ_H	tRNA links to Rfam database...	0.87	1.00	0.77	20	1101	9	6	0	3	0
3AM1_B	-	0.82	0.86	0.78	25	1434	7	3	4	0	4
3AMU_B	tRNA links to Rfam database...	0.77	0.79	0.75	15	1137	9	0	5	4	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.18	17	22346	97	41	36	20	34
3IZ4_A	tmRNA links to Rfam database...	0.59	0.61	0.57	58	25435	49	17	26	6	37
3IZF_C	5S_rRNA links to Rfam database...	0.90	0.91	0.89	32	2604	7	0	4	3	3
3J0L_a	-	0.60	0.64	0.58	7	399	6	4	1	1	4
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_1	-	0.83	0.77	0.91	10	473	5	0	1	4	3
3J0L_h	-	0.89	0.88	0.90	28	2109	3	0	3	0	4
3J0L_7	-	-0.02	0.00	0.00	0	506	13	3	10	0	10
3J0L_g	-	-0.02	0.00	0.00	0	171	7	1	4	2	2
3J0L_2	-	0.30	0.31	0.31	8	2224	27	1	17	9	18
3J16_L	tRNA links to Rfam database...	0.42	0.48	0.38	10	1133	16	3	13	0	11
3NDB_M	-	0.94	0.93	0.95	41	3671	8	0	2	6	3
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	-0.02	0.00	0.00	0	207	11	6	3	2	3
3NPB_A	SAM links to Rfam database...	0.79	0.73	0.87	27	2247	9	0	4	5	10
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.50	0.29	11	4726	42	10	17	15	11
3O58_2	5S_rRNA links to Rfam database...	0.91	0.94	0.88	29	2721	10	0	4	6	2
3OVB_D	-	1.00	1.00	1.00	11	215	2	0	0	2	0
3OVS_D	-	1.00	1.00	1.00	12	204	1	0	0	1	0
3P22_G	-	1.00	1.00	1.00	11	301	1	0	0	1	0
3PDR_A	ykoK links to Rfam database...	0.88	0.92	0.85	46	4786	10	5	3	2	4
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.87	0.83	0.91	20	844	2	2	0	0	4
3SD1_A	THF links to Rfam database...	0.66	0.69	0.65	20	1502	11	6	5	0	9
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	2	0	0	2	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	0.92	1.00	0.84	16	1274	11	3	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.25	0.13	5	4477	49	13	21	15	15
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.81	0.73	0.92	11	460	1	1	0	0	4
4ENC_A	crcB links to Rfam database...	0.52	0.53	0.53	8	481	8	0	7	1	7

^top

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	992
Total TN	115721
Total FP	519
Total FP CONTRA	134
Total FP INCONS	254
Total FP COMP	131
Total FN	371

Total Scores
MCC	0.720
Average MCC ± 95% Confidence Intervals	0.782 ± 0.065
Sensitivity	0.728
Positive Predictive Value	0.719
Nr of predictions	73

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.75	0.83	0.68	19	1996	15	7	2	6	4
2KX8_A	7SK links to Rfam database...	0.93	0.94	0.94	15	355	1	0	1	0	1
2KXM_A	-	0.78	0.63	1.00	5	144	0	0	0	0	3
2KZL_A	-	1.00	1.00	1.00	13	507	2	0	0	2	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	1	0	0	1	0
2L3C_B	-	1.00	1.00	1.00	14	225	1	0	0	1	0
2L3E_A	-	1.00	1.00	1.00	12	228	2	0	0	2	0
2L3J_B	mir-2985-2 links to Rfam database...	0.95	0.90	1.00	27	958	0	0	0	0	3
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	1	0	1	0	2
2LBS_A	-	1.00	1.00	1.00	14	193	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	1	4	0	7
2LDL_A	-	0.81	0.67	1.00	6	134	0	0	0	0	3
2LDT_A	-	0.79	0.64	1.00	7	155	0	0	0	0	4
2LHP_A	-	1.00	1.00	1.00	15	246	1	0	0	1	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.55	0.55	0.55	16	2411	15	5	8	2	13
2LQZ_A	-	1.00	1.00	1.00	8	124	3	0	0	3	0
2LWK_A	-	0.95	0.91	1.00	10	197	2	0	0	2	1
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.33	0.36	0.31	4	1822	27	2	7	18	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.27	0.26	0.30	9	2015	22	0	21	1	26
2Y8W_B	-	1.00	1.00	1.00	6	82	2	0	0	2	0
2Y9C_V	-	0.72	0.72	0.72	13	888	8	0	5	3	5
2YIE_Z	-	0.53	0.63	0.45	5	591	6	4	2	0	3
2YIE_X	-	0.53	0.57	0.50	4	536	6	1	3	2	3
3AKZ_H	tRNA links to Rfam database...	0.78	0.80	0.76	16	1106	7	2	3	2	4
3AM1_B	-	1.00	1.00	1.00	29	1437	1	0	0	1	0
3AMU_B	tRNA links to Rfam database...	0.86	0.79	0.94	15	1141	4	0	1	3	4
3IYQ_A	tmRNA links to Rfam database...	0.22	0.31	0.15	16	22335	100	45	44	11	35
3IZ4_A	tmRNA links to Rfam database...	0.46	0.46	0.47	44	25442	56	14	36	6	51
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	7	0	4	3	6
3J0L_a	-	0.21	0.18	0.29	2	404	6	3	2	1	9
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_1	-	0.73	0.62	0.89	8	475	4	0	1	3	5
3J0L_h	-	0.75	0.66	0.88	21	2116	3	0	3	0	11
3J0L_7	-	-0.02	0.00	0.00	0	509	10	2	8	0	10
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J0L_2	-	0.29	0.31	0.30	8	2223	21	1	18	2	18
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3NDB_M	-	0.97	0.95	0.98	42	3671	5	0	1	4	2
3NKB_B	-	0.42	0.42	0.44	8	717	10	2	8	0	11
3NMU_E	-	0.57	0.33	1.00	1	215	3	0	0	3	2
3NPB_A	SAM links to Rfam database...	0.90	0.81	1.00	30	2248	5	0	0	5	7
3O58_3	5_8S_rRNA links to Rfam database...	0.30	0.36	0.25	8	4732	27	15	9	3	14
3O58_2	5S_rRNA links to Rfam database...	0.93	0.87	1.00	27	2727	2	0	0	2	4
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.83	0.80	0.87	40	4794	9	2	4	3	10
3R4F_A	-	1.00	1.00	1.00	22	884	2	0	0	2	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	1	4	0	5
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	2	0	0	2	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.95	0.91	1.00	20	1256	2	0	0	2	2
3UZL_B	tRNA links to Rfam database...	0.62	0.75	0.52	12	1270	17	8	3	6	4
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	33	11	16	6	15
4A1C_3	5S_rRNA links to Rfam database...	0.28	0.30	0.28	11	2724	30	4	24	2	26
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
