Overview

Metric	RNAalifold(20)		RSpredict(seed)
MCC	0.775	>	0.298
Average MCC ± 95% Confidence Intervals	0.765 ± 0.083	>	0.246 ± 0.122
Sensitivity	0.682	>	0.156
Positive Predictive Value	0.884	>	0.582
Total TP	482	>	110
Total TN	74858	<	75214
Total FP	141	>	89
Total FP CONTRA	21	>	14
Total FP INCONS	42	<	65
Total FP COMP	78	>	10
Total FN	225	<	597
P-value	5.23657817852e-08

^top

Performance plots

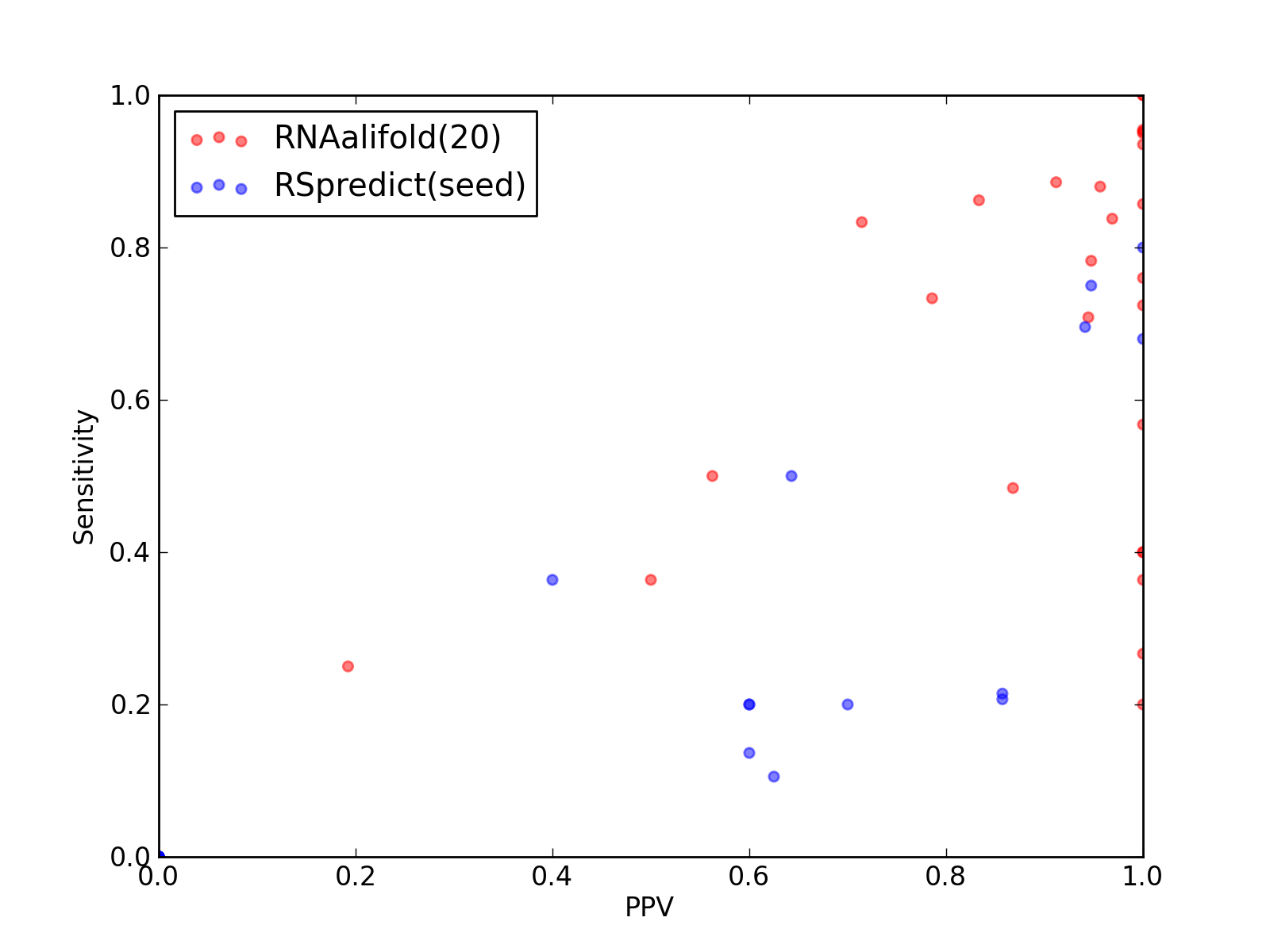

Comparison of performance of RNAalifold(20) and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(20) and RSpredict(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(20) and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(20) and RSpredict(seed)).

^top

Performance of RNAalifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(20)

Total Base Pair Counts
Total TP	482
Total TN	74858
Total FP	141
Total FP CONTRA	21
Total FP INCONS	42
Total FP COMP	78
Total FN	225

Total Scores
MCC	0.775
Average MCC ± 95% Confidence Intervals	0.765 ± 0.083
Sensitivity	0.682
Positive Predictive Value	0.884
Nr of predictions	27

^top

2. Individual counts for RNAalifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.62	0.40	1.00	4	170	0	0	0	0	6
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	3	0	0	3	7
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.20	1.00	7	2038	0	0	0	0	28
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3AMU_B	tRNA links to Rfam database...	1.00	1.00	1.00	19	1138	2	0	0	2	0
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.78	0.95	18	884	1	1	0	0	5
3IZ4_A	tmRNA links to Rfam database...	0.65	0.48	0.87	46	25483	15	4	3	8	49
3IZF_C	5S_rRNA links to Rfam database...	0.90	0.89	0.91	31	2606	6	0	3	3	4
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_3	5S_rRNA links to Rfam database...	0.76	0.73	0.79	11	2364	20	0	3	17	4
3JYX_4	5_8S_rRNA links to Rfam database...	0.77	0.83	0.71	10	4742	15	3	1	11	2
3LA5_A	Purine links to Rfam database...	0.87	0.76	1.00	19	935	0	0	0	0	6
3NPB_A	SAM links to Rfam database...	0.75	0.57	1.00	21	2257	4	0	0	4	16
3O58_2	5S_rRNA links to Rfam database...	0.97	0.94	1.00	29	2725	7	0	0	7	2
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.36	0.50	8	4748	9	3	5	1	14
3PDR_A	ykoK links to Rfam database...	0.92	0.88	0.96	44	4794	3	1	1	1	6
3RKF_A	Purine links to Rfam database...	0.81	0.71	0.94	17	848	1	0	1	0	7
3SD1_A	THF links to Rfam database...	0.84	0.86	0.83	25	1503	5	4	1	0	4
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.19	5	4490	23	5	16	2	15
4A1C_3	5S_rRNA links to Rfam database...	0.90	0.84	0.97	31	2731	1	0	1	0	6
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	2	0	0	2	8
4ENB_A	crcB links to Rfam database...	0.51	0.27	1.00	4	468	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	110
Total TN	75214
Total FP	89
Total FP CONTRA	14
Total FP INCONS	65
Total FP COMP	10
Total FN	597

Total Scores
MCC	0.298
Average MCC ± 95% Confidence Intervals	0.246 ± 0.122
Sensitivity	0.156
Positive Predictive Value	0.582
Nr of predictions	27

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.89	0.80	1.00	8	166	0	0	0	0	2
2L94_A	HIV_FE links to Rfam database...	0.55	0.50	0.64	9	343	6	0	5	1	9
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	1150	3	1	1	1	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.38	0.36	0.40	4	1825	8	4	2	2	7
2XQD_Y	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1124	5	0	5	0	21
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.37	0.20	0.70	7	2035	3	0	3	0	28
3A2K_C	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1106	2	0	2	0	22
3AMU_B	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1155	2	0	2	0	19
3GX2_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1442	1	0	1	0	22
3IVN_B	Purine links to Rfam database...	0.81	0.70	0.94	16	886	1	1	0	0	7
3IZ4_A	tmRNA links to Rfam database...	0.26	0.11	0.63	10	25520	7	2	4	1	85
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2635	5	0	5	0	35
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	1108	4	0	3	1	20
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2373	5	1	4	0	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4754	5	0	2	3	12
3LA5_A	Purine links to Rfam database...	0.82	0.68	1.00	17	937	0	0	0	0	8
3NPB_A	SAM links to Rfam database...	-0.01	0.00	0.00	0	2274	4	0	4	0	37
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2751	3	0	3	0	31
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.14	0.60	3	4759	2	0	2	0	19
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4832	8	0	8	0	50
3RKF_A	Purine links to Rfam database...	0.84	0.75	0.95	18	847	1	1	0	0	6
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4512	5	2	2	1	20
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2759	4	2	2	0	37
4AOB_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1430	1	0	1	0	23
4ENB_A	crcB links to Rfam database...	0.34	0.20	0.60	3	467	2	0	2	0	12
4ENC_A	crcB links to Rfam database...	0.34	0.20	0.60	3	491	2	0	2	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
