Overview

Metric	RNAalifold(seed)		MaxExpect
MCC	0.672	>	0.668
Average MCC ± 95% Confidence Intervals	0.674 ± 0.103	<	0.719 ± 0.119
Sensitivity	0.524	<	0.697
Positive Predictive Value	0.867	>	0.647
Total TP	373	<	496
Total TN	85790	>	85453
Total FP	81	<	371
Total FP CONTRA	25	<	100
Total FP INCONS	32	<	171
Total FP COMP	24	<	100
Total FN	339	>	216
P-value	0.657358697881

^top

Performance plots

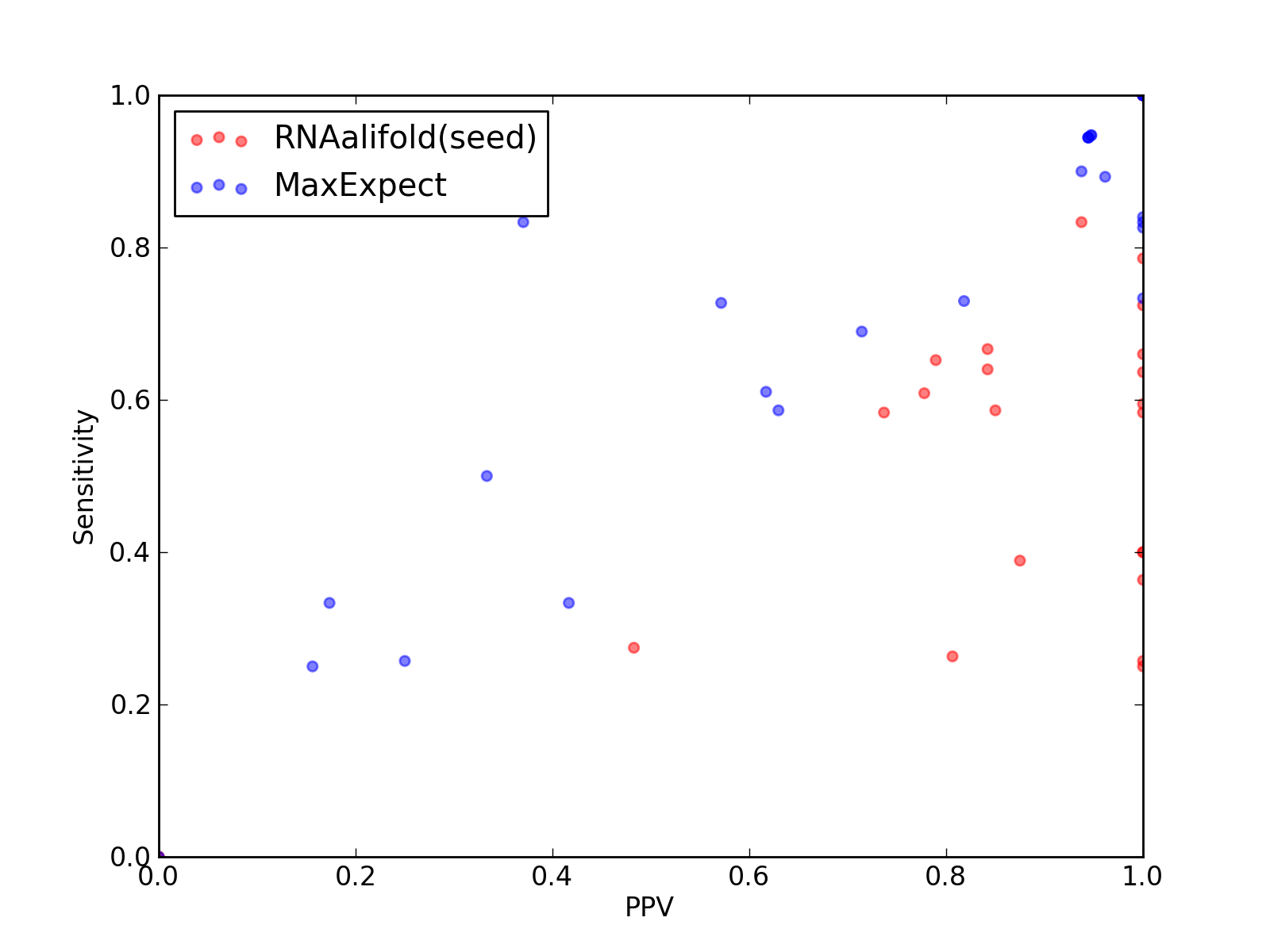

Comparison of performance of RNAalifold(seed) and MaxExpect. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and MaxExpect).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and MaxExpect).

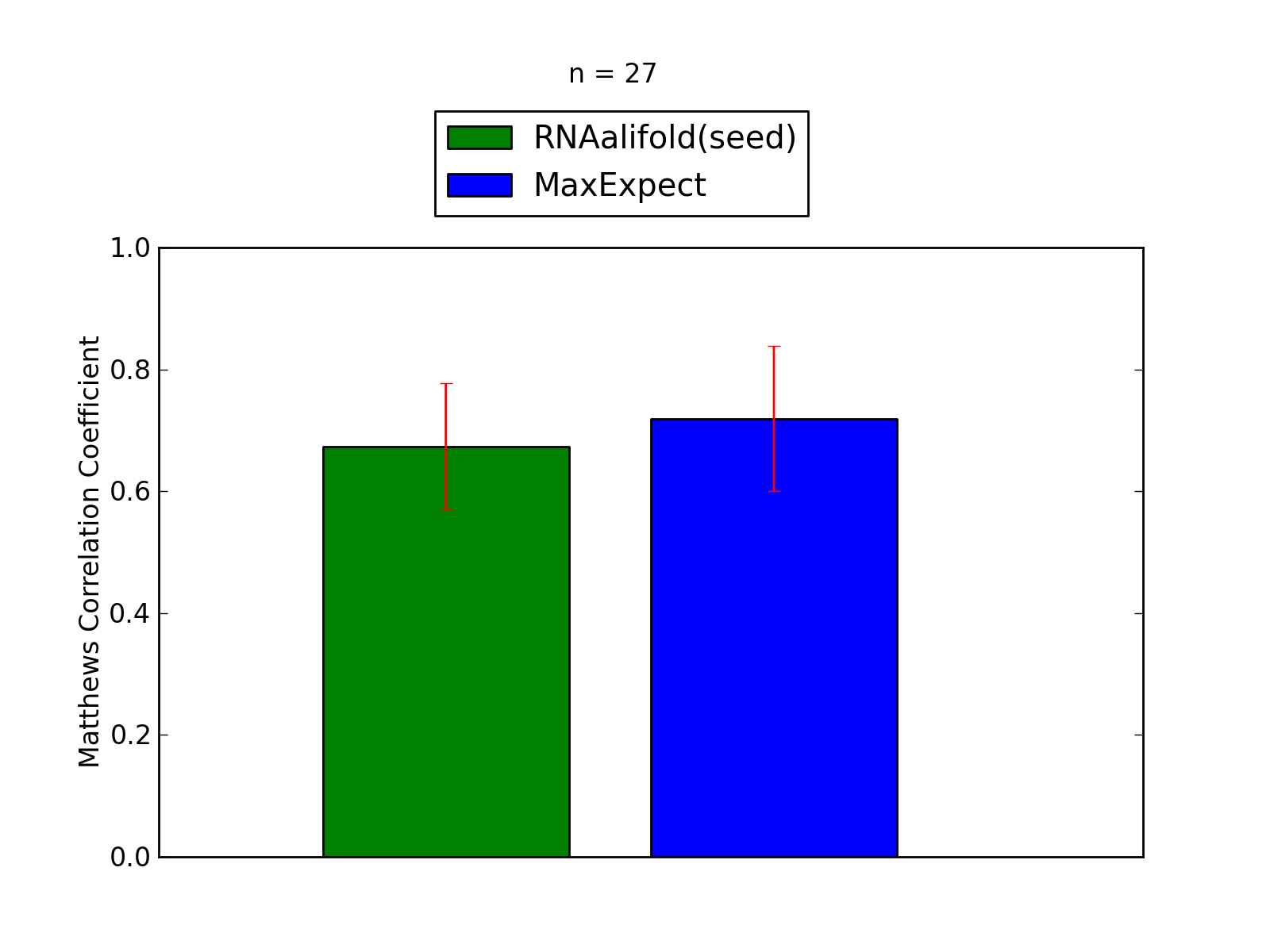

Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and MaxExpect. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and MaxExpect).

^top

Performance of RNAalifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	373
Total TN	85790
Total FP	81
Total FP CONTRA	25
Total FP INCONS	32
Total FP COMP	24
Total FN	339

Total Scores
MCC	0.672
Average MCC ± 95% Confidence Intervals	0.674 ± 0.103
Sensitivity	0.524
Positive Predictive Value	0.867
Nr of predictions	27

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	0.88	0.83	0.94	15	454	2	0	1	1	3
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	371	0	0	0	0	16
2L1F_B	Gammaretro_CES links to Rfam database...	0.65	0.58	0.74	14	772	5	0	5	0	10
2L1F_A	Gammaretro_CES links to Rfam database...	0.68	0.61	0.78	14	745	4	0	4	0	9
2L94_A	HIV_FE links to Rfam database...	0.57	0.39	0.88	7	349	2	0	1	1	11
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	516	12	0	12	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.80	0.64	1.00	7	1828	2	0	0	2	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.50	0.26	1.00	9	2036	0	0	0	0	26
3GX2_A	SAM links to Rfam database...	0.88	0.79	1.00	22	1427	1	0	0	1	6
3IVN_B	Purine links to Rfam database...	0.71	0.65	0.79	15	884	4	2	2	0	8
3IYQ_A	tmRNA links to Rfam database...	0.36	0.27	0.48	14	22411	19	13	2	4	37
3IZ4_A	tmRNA links to Rfam database...	0.46	0.26	0.81	25	25505	8	6	0	2	70
3JYX_4	5_8S_rRNA links to Rfam database...	0.76	0.58	1.00	7	4749	2	0	0	2	5
3LA5_A	Purine links to Rfam database...	0.73	0.64	0.84	16	935	3	1	2	0	9
3NPB_A	SAM links to Rfam database...	0.77	0.59	1.00	22	2256	3	0	0	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.60	0.36	1.00	8	4756	1	0	0	1	14
3PDR_A	ykoK links to Rfam database...	0.81	0.66	1.00	33	4807	1	0	0	1	17
3RKF_A	Purine links to Rfam database...	0.74	0.67	0.84	16	847	3	1	2	0	8
3SD1_A	THF links to Rfam database...	0.70	0.59	0.85	17	1513	3	2	1	0	12
4A1C_2	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	5	4511	2	0	0	2	15
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	2	0	0	2	8
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9

^top

Performance of MaxExpect - scored lower in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	496
Total TN	85453
Total FP	371
Total FP CONTRA	100
Total FP INCONS	171
Total FP COMP	100
Total FN	216

Total Scores
MCC	0.668
Average MCC ± 95% Confidence Intervals	0.719 ± 0.119
Sensitivity	0.697
Positive Predictive Value	0.647
Nr of predictions	27

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	449	2	0	1	1	1
2KUR_A	K10_TLS links to Rfam database...	0.95	0.95	0.95	18	448	1	0	1	0	1
2KUU_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	429	2	0	1	1	1
2KUV_A	K10_TLS links to Rfam database...	0.94	0.95	0.95	18	420	1	0	1	0	1
2KUW_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	452	2	0	1	1	1
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.24	0.26	0.25	9	2009	28	1	26	1	26
3GX2_A	SAM links to Rfam database...	0.93	0.89	0.96	25	1423	2	1	0	1	3
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.17	17	22342	96	41	40	15	34
3IZ4_A	tmRNA links to Rfam database...	0.61	0.61	0.62	58	25442	42	14	22	6	37
3JYX_4	5_8S_rRNA links to Rfam database...	0.55	0.83	0.37	10	4729	34	14	3	17	2
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.77	0.73	0.82	27	2245	10	0	6	4	10
3O58_3	5_8S_rRNA links to Rfam database...	0.40	0.50	0.33	11	4731	36	8	14	14	11
3PDR_A	ykoK links to Rfam database...	0.92	0.90	0.94	45	4792	5	1	2	2	5
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.70	0.69	0.71	20	1505	8	3	5	0	9
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	41	10	17	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
