Overview

Metric	RNAalifold(seed)		RSpredict(seed)
MCC	0.676	>	0.471
Average MCC ± 95% Confidence Intervals	0.673 ± 0.097	>	0.454 ± 0.131
Sensitivity	0.525	>	0.311
Positive Predictive Value	0.874	>	0.722
Total TP	395	>	234
Total TN	87442	<	87570
Total FP	81	<	108
Total FP CONTRA	25	>	20
Total FP INCONS	32	<	70
Total FP COMP	24	>	18
Total FN	357	<	518
P-value	3.56938820447e-08

^top

Performance plots

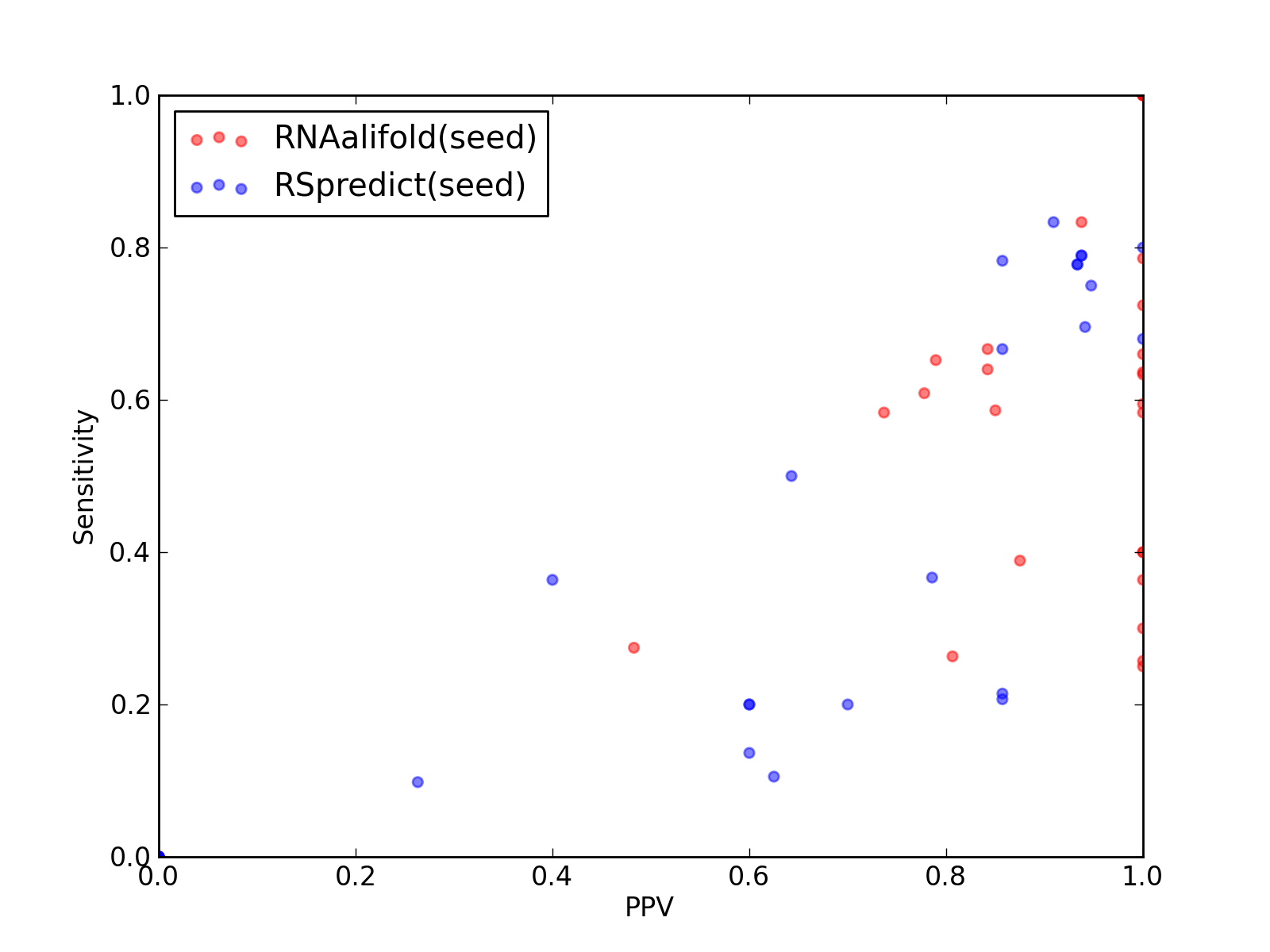

Comparison of performance of RNAalifold(seed) and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and RSpredict(seed)).

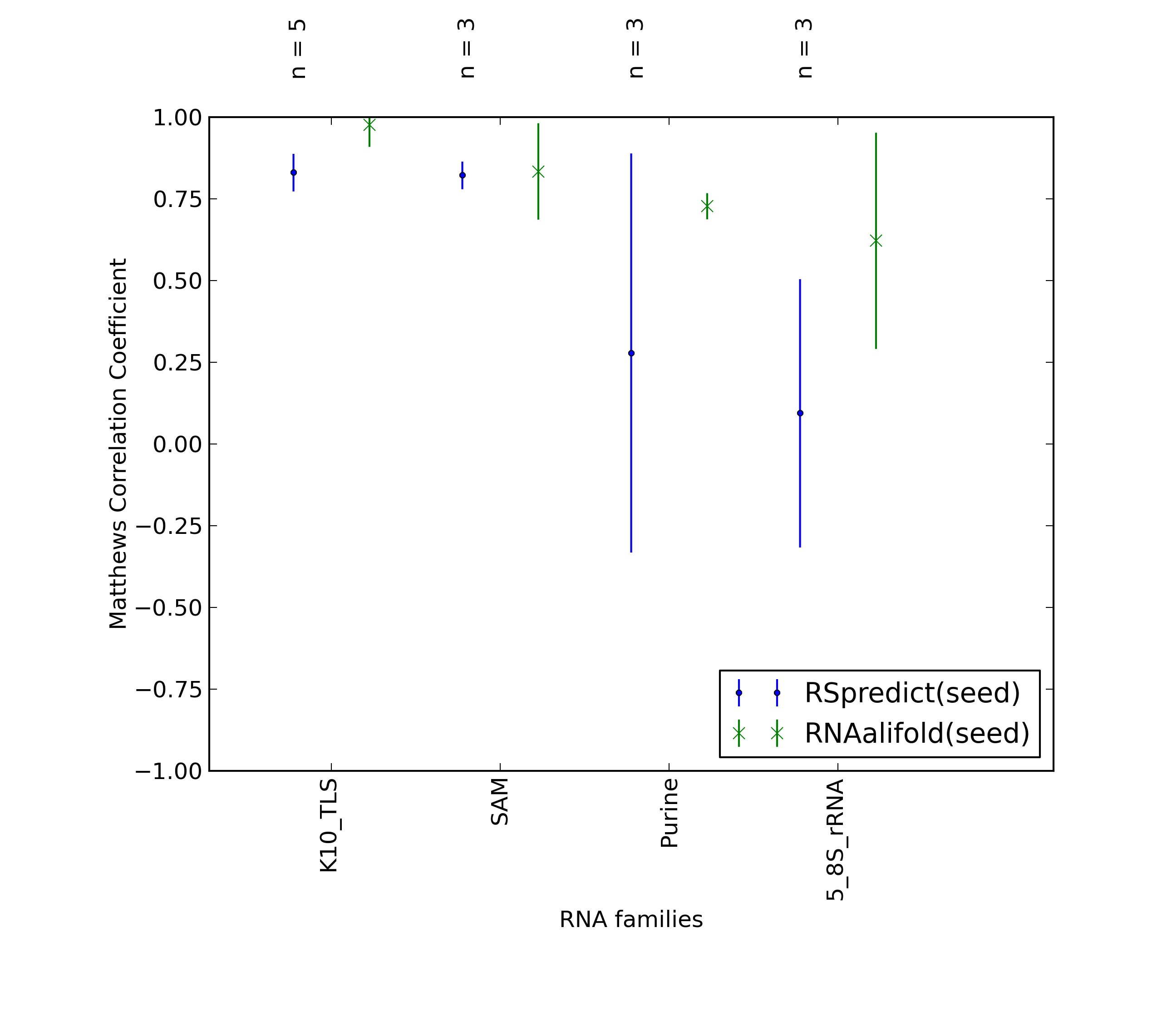

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and RSpredict(seed)).

^top

Performance of RNAalifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	395
Total TN	87442
Total FP	81
Total FP CONTRA	25
Total FP INCONS	32
Total FP COMP	24
Total FN	357

Total Scores
MCC	0.676
Average MCC ± 95% Confidence Intervals	0.673 ± 0.097
Sensitivity	0.525
Positive Predictive Value	0.874
Nr of predictions	29

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.54	0.30	1.00	3	171	0	0	0	0	7
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	0.88	0.83	0.94	15	454	2	0	1	1	3
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	371	0	0	0	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	0.68	0.61	0.78	14	745	4	0	4	0	9
2L1F_B	Gammaretro_CES links to Rfam database...	0.65	0.58	0.74	14	772	5	0	5	0	10
2L94_A	HIV_FE links to Rfam database...	0.57	0.39	0.88	7	349	2	0	1	1	11
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	516	12	0	12	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.80	0.64	1.00	7	1828	2	0	0	2	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.50	0.26	1.00	9	2036	0	0	0	0	26
3A3A_A	tRNA-Sec links to Rfam database...	0.79	0.63	1.00	19	1481	0	0	0	0	11
3GX2_A	SAM links to Rfam database...	0.88	0.79	1.00	22	1427	1	0	0	1	6
3IVN_B	Purine links to Rfam database...	0.71	0.65	0.79	15	884	4	2	2	0	8
3IYQ_A	tmRNA links to Rfam database...	0.36	0.27	0.48	14	22411	19	13	2	4	37
3IZ4_A	tmRNA links to Rfam database...	0.46	0.26	0.81	25	25505	8	6	0	2	70
3JYX_4	5_8S_rRNA links to Rfam database...	0.76	0.58	1.00	7	4749	2	0	0	2	5
3LA5_A	Purine links to Rfam database...	0.73	0.64	0.84	16	935	3	1	2	0	9
3NPB_A	SAM links to Rfam database...	0.77	0.59	1.00	22	2256	3	0	0	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.60	0.36	1.00	8	4756	1	0	0	1	14
3PDR_A	ykoK links to Rfam database...	0.81	0.66	1.00	33	4807	1	0	0	1	17
3RKF_A	Purine links to Rfam database...	0.74	0.67	0.84	16	847	3	1	2	0	8
3SD1_A	THF links to Rfam database...	0.70	0.59	0.85	17	1513	3	2	1	0	12
4A1C_2	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	5	4511	2	0	0	2	15
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	2	0	0	2	8
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	234
Total TN	87570
Total FP	108
Total FP CONTRA	20
Total FP INCONS	70
Total FP COMP	18
Total FN	518

Total Scores
MCC	0.471
Average MCC ± 95% Confidence Intervals	0.454 ± 0.131
Sensitivity	0.311
Positive Predictive Value	0.722
Nr of predictions	29

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.89	0.80	1.00	8	166	0	0	0	0	2
2KE6_A	K10_TLS links to Rfam database...	0.85	0.78	0.93	14	452	2	0	1	1	4
2KUR_A	K10_TLS links to Rfam database...	0.86	0.79	0.94	15	451	1	0	1	0	4
2KUU_A	K10_TLS links to Rfam database...	0.85	0.78	0.93	14	432	2	0	1	1	4
2KUV_A	K10_TLS links to Rfam database...	0.85	0.79	0.94	15	423	1	0	1	0	4
2KUW_A	K10_TLS links to Rfam database...	0.75	0.67	0.86	12	456	3	0	2	1	6
2KX8_A	7SK links to Rfam database...	-0.01	0.00	0.00	0	370	1	0	1	0	16
2L1F_A	Gammaretro_CES links to Rfam database...	0.81	0.78	0.86	18	742	3	0	3	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.87	0.83	0.91	20	769	2	0	2	0	4
2L94_A	HIV_FE links to Rfam database...	0.55	0.50	0.64	9	343	6	0	5	1	9
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	515	13	0	13	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.38	0.36	0.40	4	1825	8	4	2	2	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.37	0.20	0.70	7	2035	3	0	3	0	28
3A3A_A	tRNA-Sec links to Rfam database...	0.53	0.37	0.79	11	1486	3	0	3	0	19
3GX2_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1442	1	0	1	0	22
3IVN_B	Purine links to Rfam database...	0.81	0.70	0.94	16	886	1	1	0	0	7
3IYQ_A	tmRNA links to Rfam database...	0.16	0.10	0.26	5	22421	21	10	4	7	46
3IZ4_A	tmRNA links to Rfam database...	0.26	0.11	0.63	10	25520	7	2	4	1	85
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4754	5	0	2	3	12
3LA5_A	Purine links to Rfam database...	0.82	0.68	1.00	17	937	0	0	0	0	8
3NPB_A	SAM links to Rfam database...	-0.01	0.00	0.00	0	2274	4	0	4	0	37
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.14	0.60	3	4759	2	0	2	0	19
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4832	8	0	8	0	50
3RKF_A	Purine links to Rfam database...	0.84	0.75	0.95	18	847	1	1	0	0	6
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4512	5	2	2	1	20
4AOB_A	SAM links to Rfam database...	0.42	0.21	0.86	6	1430	1	0	1	0	23
4ENB_A	crcB links to Rfam database...	0.34	0.20	0.60	3	467	2	0	2	0	12
4ENC_A	crcB links to Rfam database...	0.34	0.20	0.60	3	491	2	0	2	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
