Overview

Metric	RNAfold		ProbKnot
MCC	0.744	>	0.741
Average MCC ± 95% Confidence Intervals	0.797 ± 0.067	>	0.784 ± 0.070
Sensitivity	0.767	<	0.774
Positive Predictive Value	0.727	>	0.715
Total TP	1056	<	1066
Total TN	115838	>	115799
Total FP	567	<	610
Total FP CONTRA	129	<	148
Total FP INCONS	267	<	277
Total FP COMP	171	<	185
Total FN	321	>	311
P-value	0.0466667757771

^top

Performance plots

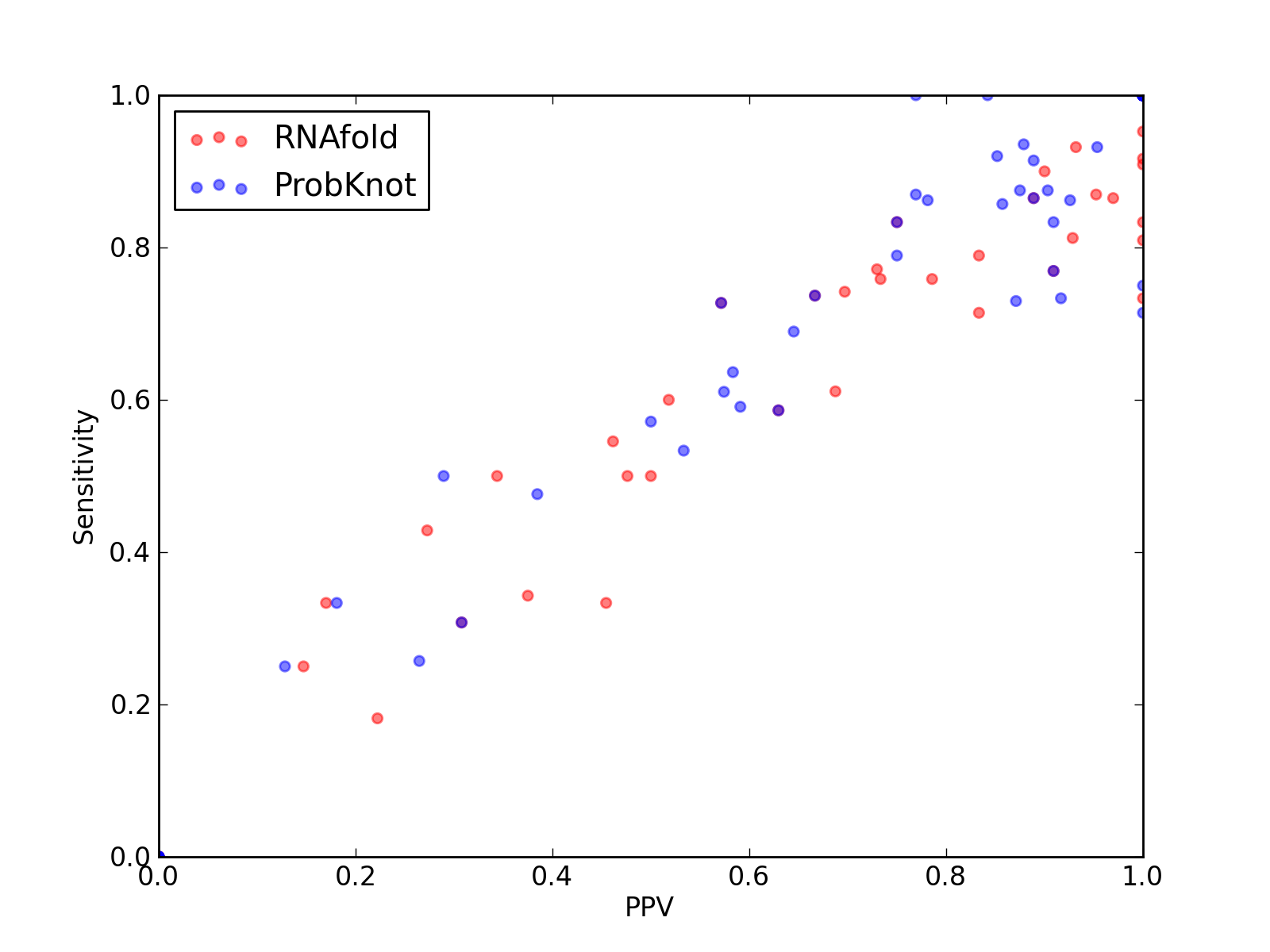

Comparison of performance of RNAfold and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAfold and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAfold and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAfold and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAfold and ProbKnot).

^top

Performance of RNAfold - scored higher in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	1056
Total TN	115838
Total FP	567
Total FP CONTRA	129
Total FP INCONS	267
Total FP COMP	171
Total FN	321

Total Scores
MCC	0.744
Average MCC ± 95% Confidence Intervals	0.797 ± 0.067
Sensitivity	0.767
Positive Predictive Value	0.727
Nr of predictions	74

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	1.00	1.00	1.00	8	141	0	0	0	0	0
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	0	5	0	7
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	1.00	1.00	1.00	29	2411	8	0	0	8	0
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RRC_A	-	1.00	1.00	1.00	7	68	0	0	0	0	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_X	-	0.33	0.43	0.27	3	533	11	3	5	3	4
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
3AKZ_H	tRNA links to Rfam database...	0.48	0.50	0.48	10	1106	13	4	7	2	10
3AM1_B	-	0.74	0.76	0.73	22	1436	8	3	5	0	7
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.17	17	22340	95	45	38	12	34
3IZ4_A	tmRNA links to Rfam database...	0.56	0.60	0.52	57	25426	57	26	27	4	38
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.77	0.73	27	2603	15	0	10	5	8
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_a	-	0.18	0.18	0.22	2	402	8	3	4	1	9
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_2	-	0.30	0.31	0.31	8	2224	25	2	16	7	18
3J0L_g	-	-0.01	0.00	0.00	0	173	5	1	2	2	2
3J0L_7	-	-0.02	0.00	0.00	0	507	12	2	10	0	10
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3NDB_M	-	0.93	0.93	0.93	41	3670	9	0	3	6	3
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	1.00	1.00	1.00	3	213	5	0	0	5	0
3NPB_A	SAM links to Rfam database...	0.91	0.86	0.97	32	2245	5	1	0	4	5
3O58_2	5S_rRNA links to Rfam database...	0.72	0.74	0.70	23	2721	19	0	10	9	8
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10

^top

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	1066
Total TN	115799
Total FP	610
Total FP CONTRA	148
Total FP INCONS	277
Total FP COMP	185
Total FN	311

Total Scores
MCC	0.741
Average MCC ± 95% Confidence Intervals	0.784 ± 0.070
Sensitivity	0.774
Positive Predictive Value	0.715
Nr of predictions	74

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.82	0.87	0.77	20	1998	15	6	0	9	3
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.87	0.88	0.88	7	141	1	0	1	0	1
2KZL_A	-	1.00	1.00	1.00	13	507	2	0	0	2	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	1.00	1.00	1.00	14	225	0	0	0	0	0
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.85	0.86	0.86	6	268	3	0	1	2	1
2LBS_A	-	1.00	1.00	1.00	14	193	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LHP_A	-	1.00	1.00	1.00	15	246	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	7	123	3	0	0	3	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.89	0.86	0.93	25	2413	9	0	2	7	4
2LQZ_A	-	1.00	1.00	1.00	8	124	2	0	0	2	0
2LWK_A	-	1.00	1.00	1.00	11	196	1	0	0	1	0
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	26	0	6	20	3
2XQD_Y	tRNA links to Rfam database...	1.00	1.00	1.00	21	1108	2	0	0	2	0
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.25	0.26	0.26	9	2011	26	1	24	1	26
2Y8W_B	-	1.00	1.00	1.00	6	82	1	0	0	1	0
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_X	-	0.53	0.57	0.50	4	536	7	1	3	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
3AKZ_H	tRNA links to Rfam database...	0.87	1.00	0.77	20	1101	9	6	0	3	0
3AM1_B	-	0.82	0.86	0.78	25	1434	7	3	4	0	4
3AMU_B	tRNA links to Rfam database...	0.77	0.79	0.75	15	1137	9	0	5	4	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.18	17	22346	97	41	36	20	34
3IZ4_A	tmRNA links to Rfam database...	0.59	0.61	0.57	58	25435	49	17	26	6	37
3IZF_C	5S_rRNA links to Rfam database...	0.90	0.91	0.89	32	2604	7	0	4	3	3
3J0L_h	-	0.89	0.88	0.90	28	2109	3	0	3	0	4
3J0L_1	-	0.83	0.77	0.91	10	473	5	0	1	4	3
3J0L_a	-	0.60	0.64	0.58	7	399	6	4	1	1	4
3J0L_8	-	1.00	1.00	1.00	7	69	0	0	0	0	0
3J0L_2	-	0.30	0.31	0.31	8	2224	27	1	17	9	18
3J0L_g	-	-0.02	0.00	0.00	0	171	7	1	4	2	2
3J0L_7	-	-0.02	0.00	0.00	0	506	13	3	10	0	10
3J16_L	tRNA links to Rfam database...	0.42	0.48	0.38	10	1133	16	3	13	0	11
3NDB_M	-	0.94	0.93	0.95	41	3671	8	0	2	6	3
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NMU_E	-	-0.02	0.00	0.00	0	207	11	6	3	2	3
3NPB_A	SAM links to Rfam database...	0.79	0.73	0.87	27	2247	9	0	4	5	10
3O58_2	5S_rRNA links to Rfam database...	0.91	0.94	0.88	29	2721	10	0	4	6	2
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.50	0.29	11	4726	42	10	17	15	11
3OVB_D	-	1.00	1.00	1.00	11	215	2	0	0	2	0
3OVS_D	-	1.00	1.00	1.00	12	204	1	0	0	1	0
3P22_G	-	1.00	1.00	1.00	11	301	1	0	0	1	0
3PDR_A	ykoK links to Rfam database...	0.88	0.92	0.85	46	4786	10	5	3	2	4
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.87	0.83	0.91	20	844	2	2	0	0	4
3SD1_A	THF links to Rfam database...	0.66	0.69	0.65	20	1502	11	6	5	0	9
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	142	0	0	0	0	0
3TRZ_Z	-	1.00	1.00	1.00	5	87	2	0	0	2	0
3TS0_U	-	1.00	1.00	1.00	6	112	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.58	0.59	0.59	13	1254	9	2	7	0	9
3UZL_B	tRNA links to Rfam database...	0.92	1.00	0.84	16	1274	11	3	0	8	0
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.25	0.13	5	4477	49	13	21	15	15
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.81	0.73	0.92	11	460	1	1	0	0	4
4ENC_A	crcB links to Rfam database...	0.52	0.53	0.53	8	481	8	0	7	1	7

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
