Overview

Metric	RNAfold		RSpredict(20)
MCC	0.683	>	0.663
Average MCC ± 95% Confidence Intervals	0.706 ± 0.105	>	0.653 ± 0.116
Sensitivity	0.699	>	0.593
Positive Predictive Value	0.674	<	0.748
Total TP	494	>	419
Total TN	74670	<	74843
Total FP	382	>	230
Total FP CONTRA	74	>	61
Total FP INCONS	165	>	80
Total FP COMP	143	>	89
Total FN	213	<	288
P-value	1.43482349379e-06

^top

Performance plots

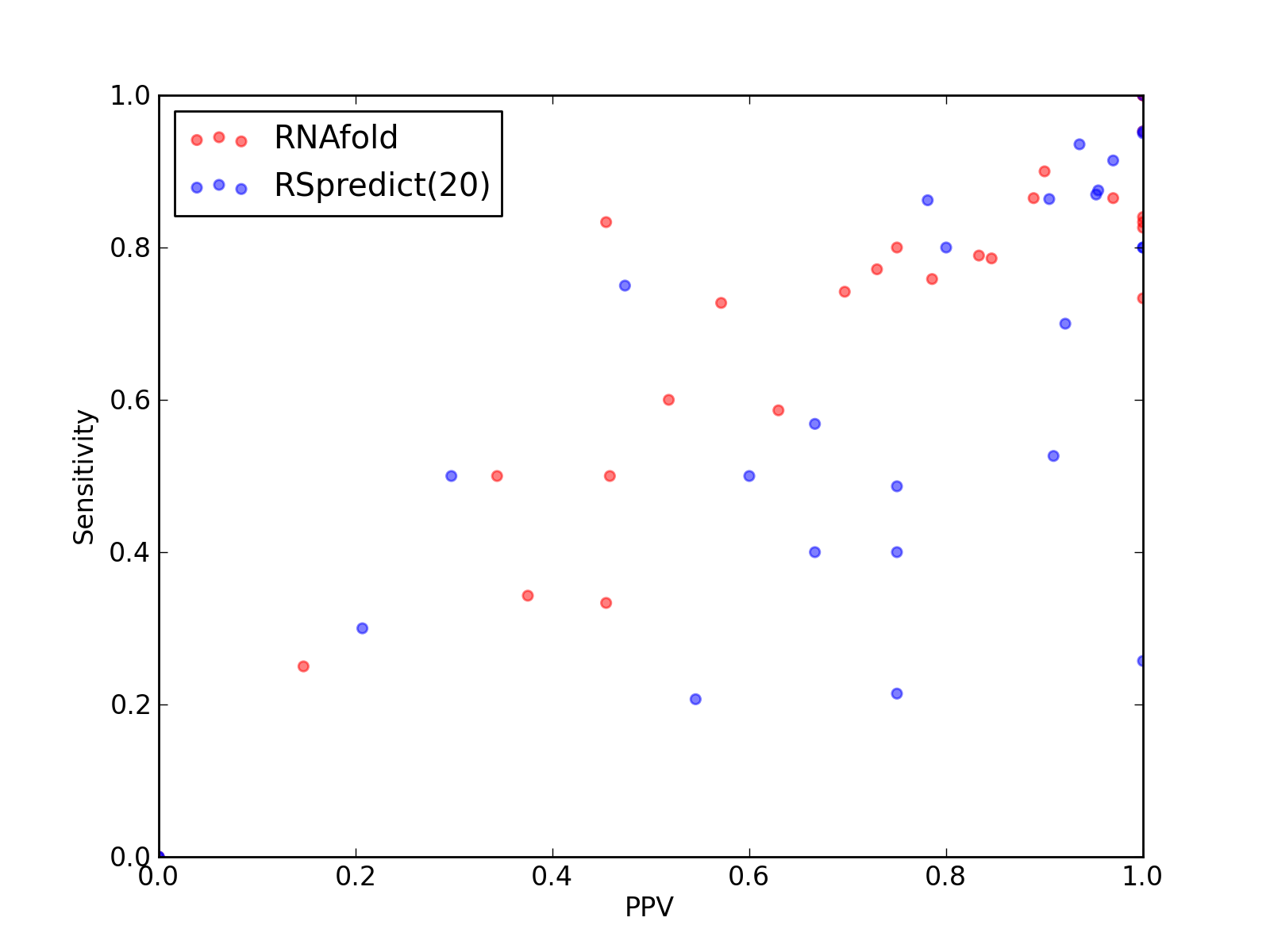

Comparison of performance of RNAfold and RSpredict(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAfold and RSpredict(20)).

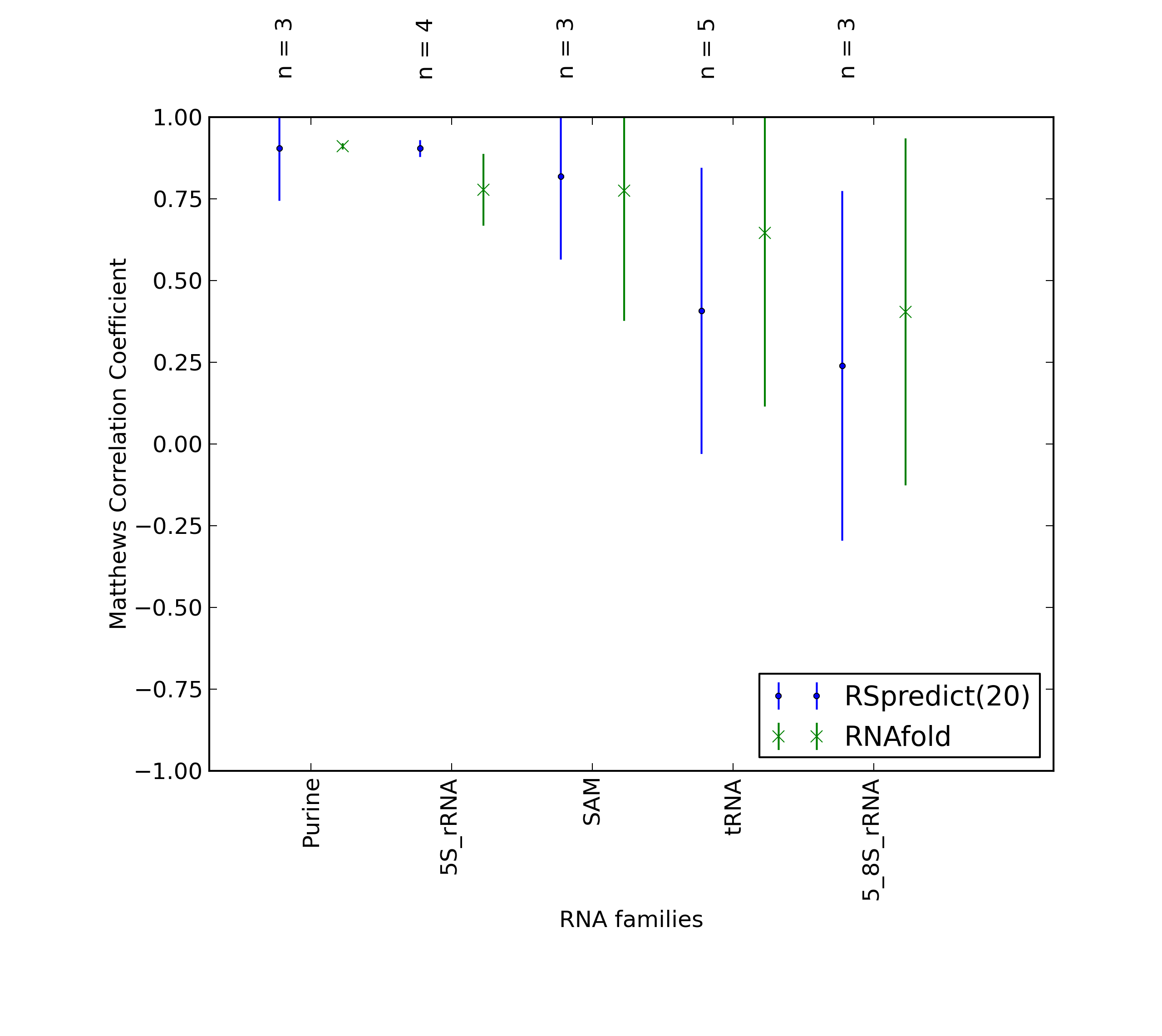

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAfold and RSpredict(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAfold and RSpredict(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAfold and RSpredict(20)).

^top

Performance of RNAfold - scored higher in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	494
Total TN	74670
Total FP	382
Total FP CONTRA	74
Total FP INCONS	165
Total FP COMP	143
Total FN	213

Total Scores
MCC	0.683
Average MCC ± 95% Confidence Intervals	0.706 ± 0.105
Sensitivity	0.699
Positive Predictive Value	0.674
Nr of predictions	27

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.56	0.60	0.52	57	25426	57	26	27	4	38
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.77	0.73	27	2603	15	0	10	5	8
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1089	22	4	18	0	20
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	27	0	4	23	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	33	10	2	21	2
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.91	0.86	0.97	32	2245	5	1	0	4	5
3O58_2	5S_rRNA links to Rfam database...	0.72	0.74	0.70	23	2721	19	0	10	9	8
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10

^top

Performance of RSpredict(20) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	419
Total TN	74843
Total FP	230
Total FP CONTRA	61
Total FP INCONS	80
Total FP COMP	89
Total FN	288

Total Scores
MCC	0.663
Average MCC ± 95% Confidence Intervals	0.653 ± 0.116
Sensitivity	0.593
Positive Predictive Value	0.748
Nr of predictions	27

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.89	0.80	1.00	8	166	0	0	0	0	2
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.60	9	342	7	0	6	1	9
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	1831	4	1	3	0	11
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.50	0.26	1.00	9	2036	0	0	0	0	26
3A2K_C	tRNA links to Rfam database...	0.88	0.86	0.90	19	1087	2	0	2	0	3
3AMU_B	tRNA links to Rfam database...	0.69	0.53	0.91	10	1146	2	0	1	1	9
3GX2_A	SAM links to Rfam database...	0.40	0.21	0.75	6	1441	2	1	1	0	22
3IVN_B	Purine links to Rfam database...	0.91	0.87	0.95	20	882	1	1	0	0	3
3IZ4_A	tmRNA links to Rfam database...	0.61	0.57	0.67	54	25455	38	13	14	11	41
3IZF_C	5S_rRNA links to Rfam database...	0.94	0.91	0.97	32	2607	4	0	1	3	3
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_3	5S_rRNA links to Rfam database...	0.80	0.80	0.80	12	2363	16	0	3	13	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.59	0.75	0.47	9	4737	33	9	1	23	3
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3NPB_A	SAM links to Rfam database...	-0.01	0.00	0.00	0	2272	6	1	5	0	37
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	10	0	2	8	2
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.50	0.30	11	4727	29	15	11	3	11
3PDR_A	ykoK links to Rfam database...	0.80	0.70	0.92	35	4802	5	1	2	2	15
3RKF_A	Purine links to Rfam database...	0.91	0.88	0.95	21	844	1	1	0	0	3
3SD1_A	THF links to Rfam database...	0.82	0.86	0.78	25	1501	7	5	2	0	4
4A1C_2	5_8S_rRNA links to Rfam database...	0.25	0.30	0.21	6	4487	30	12	11	7	14
4A1C_3	5S_rRNA links to Rfam database...	0.60	0.49	0.75	18	2739	8	0	6	2	19
4AOB_A	SAM links to Rfam database...	0.33	0.21	0.55	6	1426	5	1	4	0	23
4ENB_A	crcB links to Rfam database...	0.54	0.40	0.75	6	464	2	0	2	0	9
4ENC_A	crcB links to Rfam database...	0.51	0.40	0.67	6	487	3	0	3	0	9

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
