Overview

Metric	RNAshapes		CentroidAlifold(seed)
MCC	0.697	>	0.690
Average MCC ± 95% Confidence Intervals	0.732 ± 0.083	>	0.640 ± 0.076
Sensitivity	0.717	>	0.552
Positive Predictive Value	0.682	<	0.870
Total TP	763	>	587
Total TN	109919	<	110362
Total FP	533	>	164
Total FP CONTRA	114	>	36
Total FP INCONS	241	>	52
Total FP COMP	178	>	76
Total FN	301	<	477
P-value	0.122165152257

^top

Performance plots

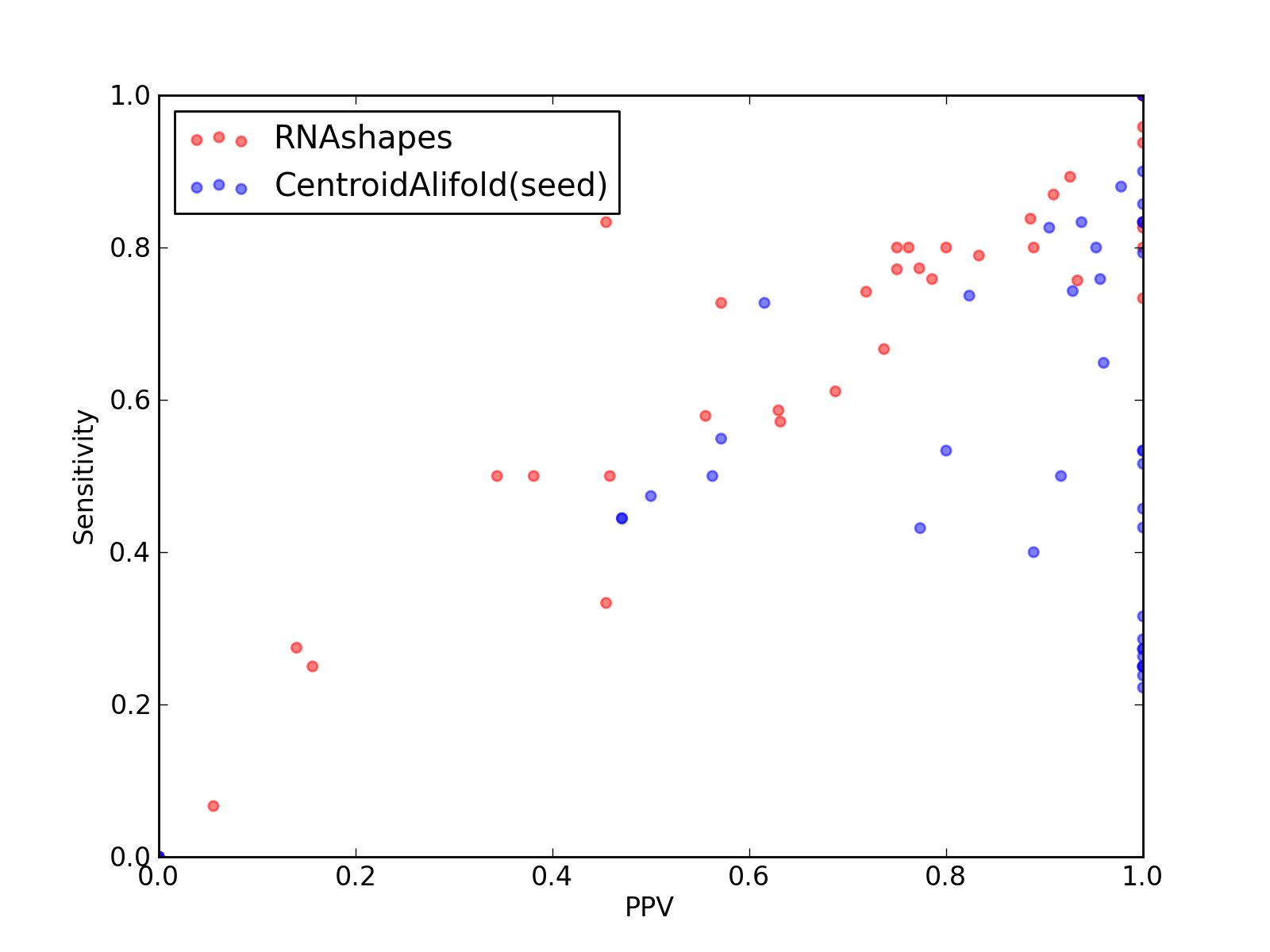

Comparison of performance of RNAshapes and CentroidAlifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAshapes and CentroidAlifold(seed)).

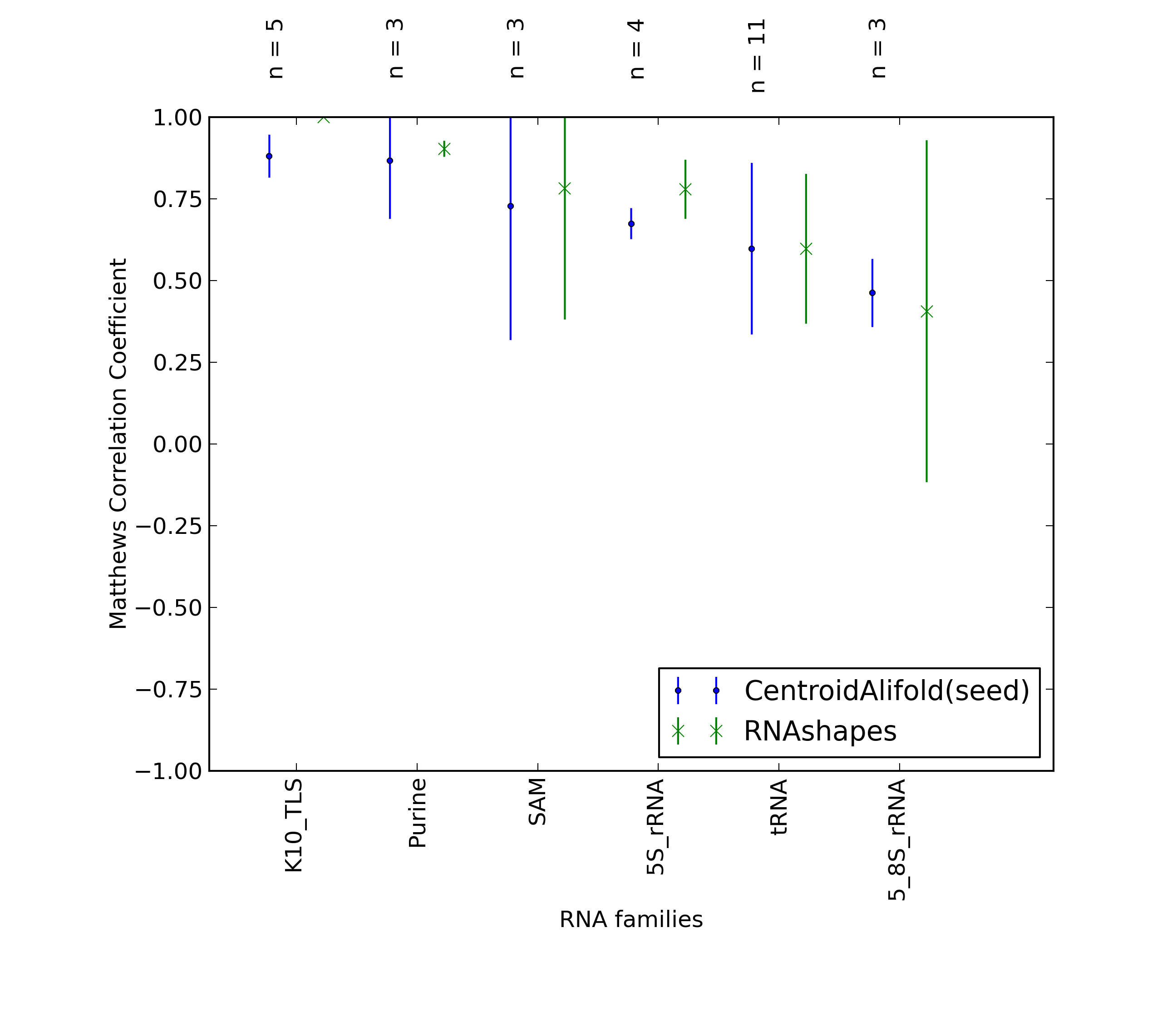

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAshapes and CentroidAlifold(seed)).

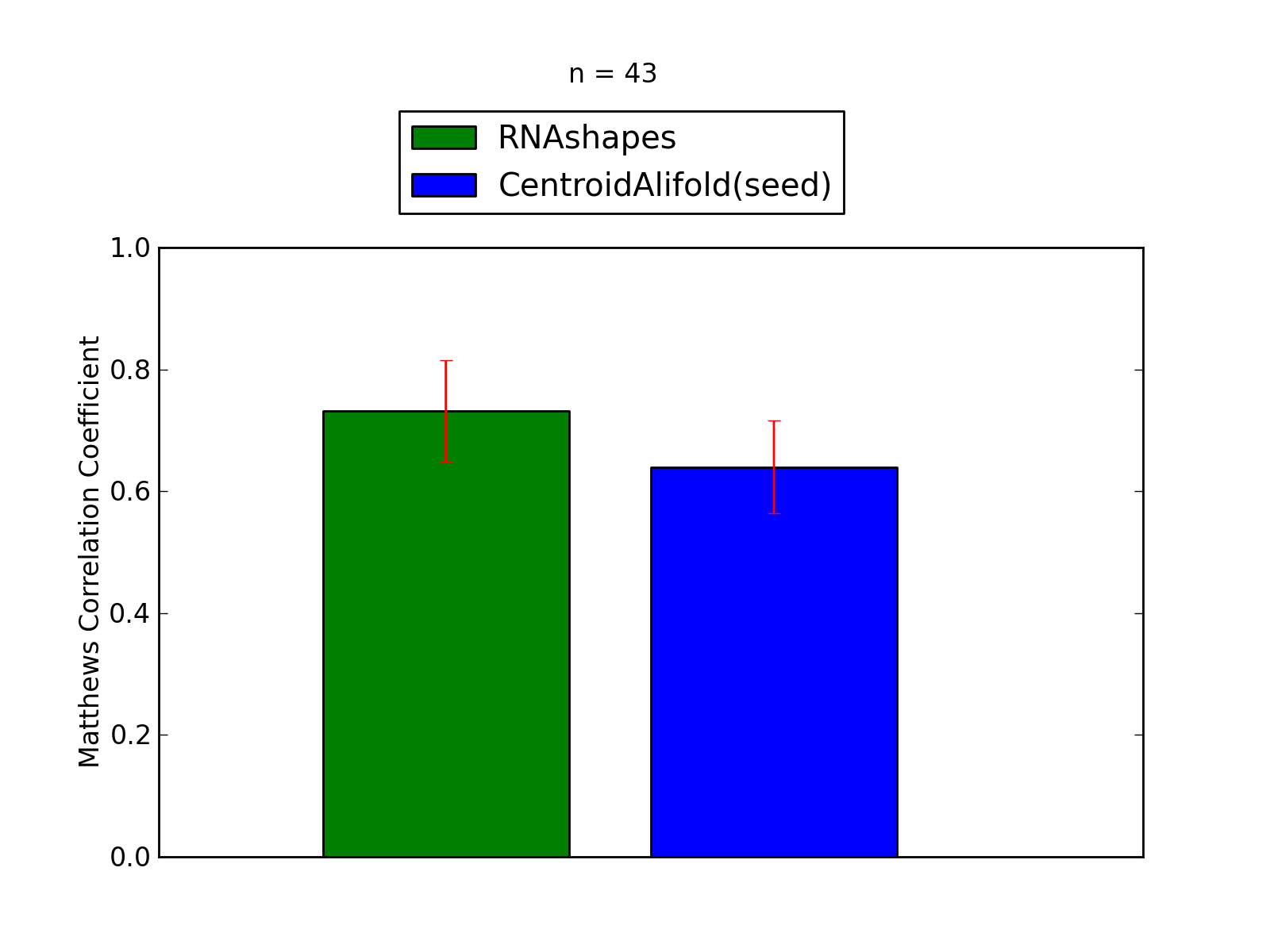

Comparison of average Matthews Correlation Coefficients (MCCs) for RNAshapes and CentroidAlifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAshapes and CentroidAlifold(seed)).

^top

Performance of RNAshapes - scored higher in this pairwise comparison

1. Total counts & total scores for RNAshapes

Total Base Pair Counts
Total TP	763
Total TN	109919
Total FP	533
Total FP CONTRA	114
Total FP INCONS	241
Total FP COMP	178
Total FN	301

Total Scores
MCC	0.697
Average MCC ± 95% Confidence Intervals	0.732 ± 0.083
Sensitivity	0.717
Positive Predictive Value	0.682
Nr of predictions	43

^top

2. Individual counts for RNAshapes [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	0.97	0.94	1.00	15	356	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	768	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.89	0.87	0.91	20	741	2	0	2	0	3
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	0	5	0	7
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	13	0	0	13	0
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	5	0	0	5	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	24	0	6	18	3
2XQD_Y	tRNA links to Rfam database...	0.70	0.67	0.74	14	1110	6	0	5	1	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	1.00	1.00	1.00	35	2010	1	0	0	1	0
2ZZM_B	tRNA links to Rfam database...	0.05	0.07	0.06	1	1340	25	4	13	8	14
2ZZN_D	tRNA links to Rfam database...	0.77	0.77	0.77	17	962	5	1	4	0	5
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.80	0.89	24	1473	3	0	3	0	6
3AKZ_H	tRNA links to Rfam database...	0.78	0.80	0.76	16	1106	7	2	3	2	4
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.91	0.89	0.93	25	1422	3	1	1	1	3
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.19	0.27	0.14	14	22340	95	43	43	9	37
3IZ4_A	tmRNA links to Rfam database...	0.57	0.58	0.56	55	25437	50	16	28	6	40
3IZF_C	5S_rRNA links to Rfam database...	0.76	0.77	0.75	27	2604	14	0	9	5	8
3J16_L	tRNA links to Rfam database...	0.59	0.57	0.63	12	1140	7	0	7	0	9
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1092	20	1	18	1	20
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	35	10	2	23	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	26	0	4	22	3
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3NPB_A	SAM links to Rfam database...	0.84	0.76	0.93	28	2248	5	1	1	3	9
3O58_2	5S_rRNA links to Rfam database...	0.73	0.74	0.72	23	2722	18	0	9	9	8
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	38	6	15	17	11
3PDR_A	ykoK links to Rfam database...	0.80	0.80	0.80	40	4790	12	3	7	2	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3UZL_B	tRNA links to Rfam database...	0.43	0.50	0.38	8	1272	17	4	9	4	8
4A1C_3	5S_rRNA links to Rfam database...	0.86	0.84	0.89	31	2728	7	0	4	3	6
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	41	11	16	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10

^top

Performance of CentroidAlifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	587
Total TN	110362
Total FP	164
Total FP CONTRA	36
Total FP INCONS	52
Total FP COMP	76
Total FN	477

Total Scores
MCC	0.690
Average MCC ± 95% Confidence Intervals	0.640 ± 0.076
Sensitivity	0.552
Positive Predictive Value	0.870
Nr of predictions	43

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.44	0.44	0.47	8	450	10	0	9	1	10
2KUR_A	K10_TLS links to Rfam database...	0.77	0.74	0.82	14	450	4	0	3	1	5
2KUU_A	K10_TLS links to Rfam database...	0.88	0.83	0.94	15	431	3	0	1	2	3
2KUV_A	K10_TLS links to Rfam database...	0.46	0.47	0.50	9	421	9	0	9	0	10
2KUW_A	K10_TLS links to Rfam database...	0.44	0.44	0.47	8	453	10	0	9	1	10
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	371	0	0	0	0	16
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
2WRQ_Y	tRNA links to Rfam database...	0.47	0.22	1.00	2	1150	4	0	0	4	7
2WWQ_V	tRNA links to Rfam database...	0.56	0.32	1.00	6	1198	0	0	0	0	13
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.67	0.73	0.62	8	1822	22	0	5	17	3
2XQD_Y	tRNA links to Rfam database...	0.48	0.24	1.00	5	1124	1	0	0	1	16
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.83	0.74	0.93	26	2017	4	0	2	2	9
2ZZM_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1358	6	0	0	6	15
2ZZN_D	tRNA links to Rfam database...	0.52	0.27	1.00	6	978	0	0	0	0	16
3A2K_C	tRNA links to Rfam database...	0.52	0.27	1.00	6	1102	0	0	0	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.95	0.90	1.00	27	1473	0	0	0	0	3
3AKZ_H	tRNA links to Rfam database...	0.50	0.25	1.00	5	1122	1	0	0	1	15
3AMU_B	tRNA links to Rfam database...	0.51	0.26	1.00	5	1152	1	0	0	1	14
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.56	0.55	0.57	28	22391	30	19	2	9	23
3IZ4_A	tmRNA links to Rfam database...	0.58	0.43	0.77	41	25483	17	12	0	5	54
3IZF_C	5S_rRNA links to Rfam database...	0.67	0.46	1.00	16	2624	0	0	0	0	19
3J16_L	tRNA links to Rfam database...	0.53	0.29	1.00	6	1153	0	0	0	0	15
3JYV_7	tRNA links to Rfam database...	0.50	0.25	1.00	5	1106	1	0	0	1	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.91	0.83	1.00	10	4746	3	0	0	3	2
3JYX_3	5S_rRNA links to Rfam database...	0.65	0.53	0.80	8	2368	8	0	2	6	7
3LA5_A	Purine links to Rfam database...	0.87	0.80	0.95	20	933	1	1	0	0	5
3NPB_A	SAM links to Rfam database...	0.79	0.65	0.96	24	2253	5	0	1	4	13
3O58_2	5S_rRNA links to Rfam database...	0.72	0.52	1.00	16	2738	0	0	0	0	15
3O58_3	5_8S_rRNA links to Rfam database...	0.68	0.50	0.92	11	4752	2	1	0	1	11
3PDR_A	ykoK links to Rfam database...	0.93	0.88	0.98	44	4795	3	0	1	2	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
3UZL_B	tRNA links to Rfam database...	0.50	0.25	1.00	4	1289	2	0	0	2	12
4A1C_3	5S_rRNA links to Rfam database...	0.66	0.43	1.00	16	2747	0	0	0	0	21
4A1C_2	5_8S_rRNA links to Rfam database...	0.60	0.40	0.89	8	4507	3	1	0	2	12
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.72	0.53	1.00	8	464	0	0	0	0	7
4ENC_A	crcB links to Rfam database...	0.73	0.53	1.00	8	488	0	0	0	0	7

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
