Overview

Metric	RNAsubopt		Cylofold
MCC	0.782	>	0.741
Average MCC ± 95% Confidence Intervals	0.790 ± 0.074	>	0.752 ± 0.068
Sensitivity	0.788	>	0.724
Positive Predictive Value	0.785	>	0.767
Total TP	872	>	802
Total TN	59453	<	59519
Total FP	361	>	330
Total FP CONTRA	49	<	65
Total FP INCONS	190	>	178
Total FP COMP	122	>	87
Total FN	235	<	305
P-value	3.56938820447e-08

^top

Performance plots

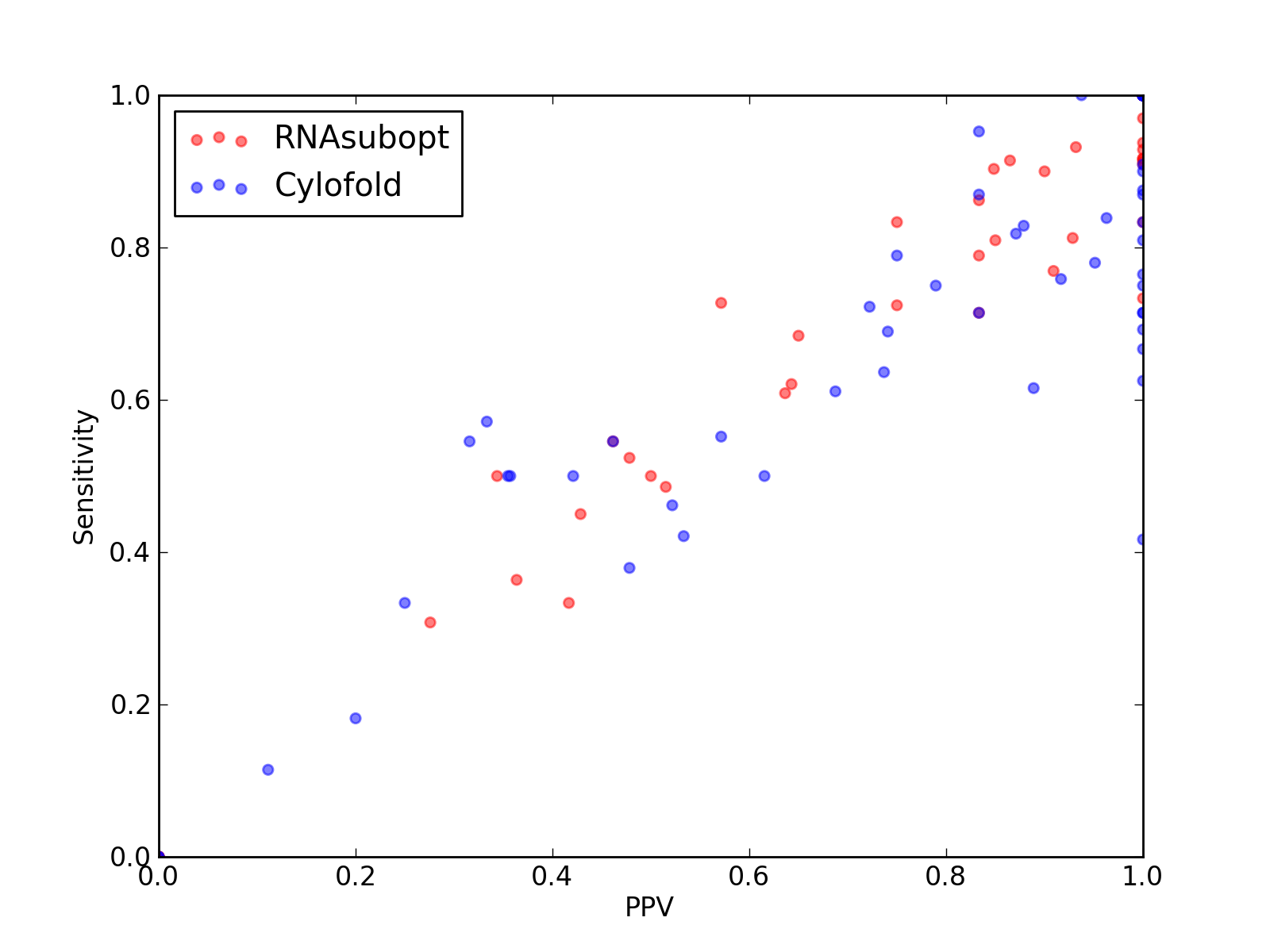

Comparison of performance of RNAsubopt and Cylofold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAsubopt and Cylofold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAsubopt and Cylofold).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAsubopt and Cylofold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAsubopt and Cylofold).

^top

Performance of RNAsubopt - scored higher in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	872
Total TN	59453
Total FP	361
Total FP CONTRA	49
Total FP INCONS	190
Total FP COMP	122
Total FN	235

Total Scores
MCC	0.782
Average MCC ± 95% Confidence Intervals	0.790 ± 0.074
Sensitivity	0.788
Positive Predictive Value	0.785
Nr of predictions	63

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.62	0.61	0.64	14	2002	15	5	3	7	9
2KX8_A	7SK links to Rfam database...	0.97	0.94	1.00	15	356	0	0	0	0	1
2KXM_A	-	1.00	1.00	1.00	8	141	0	0	0	0	0
2KZL_A	-	1.00	1.00	1.00	13	507	1	0	0	1	0
2L1F_A	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	21	742	0	0	0	0	2
2L1F_B	Gammaretro_CES links to Rfam database...	0.96	0.92	1.00	22	769	0	0	0	0	2
2L2K_A	-	1.00	1.00	1.00	17	332	0	0	0	0	0
2L3C_B	-	0.96	0.93	1.00	13	226	0	0	0	0	1
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	1.00	1.00	1.00	30	955	0	0	0	0	0
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	3	0	1	2	2
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2LDL_A	-	1.00	1.00	1.00	9	131	1	0	0	1	0
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.85	0.86	0.83	25	2410	14	0	5	9	4
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RRC_A	-	1.00	1.00	1.00	7	68	0	0	0	0	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XQD_Y	tRNA links to Rfam database...	0.83	0.81	0.85	17	1109	4	0	3	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.49	0.49	0.52	17	2012	17	1	15	1	18
2Y9C_V	-	0.79	0.83	0.75	15	886	8	0	5	3	3
2YIE_Z	-	-0.02	0.00	0.00	0	587	15	6	9	0	8
2YIE_X	-	1.00	1.00	1.00	7	537	4	0	0	4	0
3ADB_C	-	0.98	0.97	1.00	32	1787	0	0	0	0	1
3AKZ_H	tRNA links to Rfam database...	0.43	0.45	0.43	9	1106	14	3	9	2	11
3AM1_B	-	1.00	1.00	1.00	29	1437	0	0	0	0	0
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J0L_7	-	-0.02	0.00	0.00	0	507	12	2	10	0	10
3J0L_2	-	0.28	0.31	0.28	8	2221	25	2	19	4	18
3J0L_a	-	0.35	0.36	0.36	4	400	8	3	4	1	7
3J0L_1	-	0.83	0.77	0.91	10	473	4	0	1	3	3
3J0L_h	-	0.87	0.81	0.93	26	2112	4	1	1	2	6
3J0L_g	-	-0.01	0.00	0.00	0	173	5	1	2	2	2
3J16_L	tRNA links to Rfam database...	0.49	0.52	0.48	11	1136	12	3	9	0	10
3NDB_M	-	0.93	0.93	0.93	41	3670	9	0	3	6	3
3NKB_B	-	0.66	0.68	0.65	13	715	7	0	7	0	6
3NMU_E	-	1.00	1.00	1.00	3	213	5	0	0	5	0
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3O58_2	5S_rRNA links to Rfam database...	0.87	0.90	0.85	28	2721	13	0	5	8	3
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.73	0.72	0.75	21	1505	7	4	3	0	8
3SIU_F	-	1.00	1.00	1.00	8	137	0	0	0	0	0
3SN2_B	IRE_II links to Rfam database...	0.95	0.92	1.00	11	143	0	0	0	0	1
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.62	0.62	0.64	18	1409	11	4	6	1	11
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	7	0	7	0	10

^top

Performance of Cylofold - scored lower in this pairwise comparison

1. Total counts & total scores for Cylofold

Total Base Pair Counts
Total TP	802
Total TN	59519
Total FP	330
Total FP CONTRA	65
Total FP INCONS	178
Total FP COMP	87
Total FN	305

Total Scores
MCC	0.741
Average MCC ± 95% Confidence Intervals	0.752 ± 0.068
Sensitivity	0.724
Positive Predictive Value	0.767
Nr of predictions	63

^top

2. Individual counts for Cylofold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.85	0.87	0.83	20	2000	12	4	0	8	3
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2KXM_A	-	0.78	0.63	1.00	5	144	0	0	0	0	3
2KZL_A	-	0.83	0.69	1.00	9	511	1	0	0	1	4
2L1F_A	Gammaretro_CES links to Rfam database...	0.93	0.87	1.00	20	743	0	0	0	0	3
2L1F_B	Gammaretro_CES links to Rfam database...	0.93	0.88	1.00	21	770	0	0	0	0	3
2L2K_A	-	0.87	0.76	1.00	13	336	0	0	0	0	4
2L3C_B	-	0.84	0.71	1.00	10	229	0	0	0	0	4
2L3E_A	-	1.00	1.00	1.00	12	228	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	0.95	0.90	1.00	27	958	0	0	0	0	3
2L5Z_A	-	1.00	1.00	1.00	9	102	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LA5_A	-	0.77	0.71	0.83	5	269	1	0	1	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	1	4	0	7
2LDL_A	-	0.81	0.67	1.00	6	134	0	0	0	0	3
2LDT_A	-	1.00	1.00	1.00	11	151	0	0	0	0	0
2LI4_A	-	1.00	1.00	1.00	14	175	0	0	0	0	0
2LK3_A	-	1.00	1.00	1.00	9	91	0	0	0	0	0
2LKR_A	-	0.56	0.55	0.57	16	2412	13	4	8	1	13
2LWK_A	-	0.95	0.91	1.00	10	197	1	0	0	1	1
2RRC_A	-	0.83	0.71	1.00	5	70	0	0	0	0	2
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.41	0.55	0.32	6	1816	25	9	4	12	5
2XQD_Y	tRNA links to Rfam database...	0.89	0.95	0.83	20	1105	5	4	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.10	0.11	0.11	4	2009	32	2	30	0	31
2Y9C_V	-	0.72	0.72	0.72	13	888	8	0	5	3	5
2YIE_Z	-	-0.02	0.00	0.00	0	591	11	5	6	0	8
2YIE_X	-	0.43	0.57	0.33	4	532	10	2	6	2	3
3ADB_C	-	0.84	0.82	0.87	27	1788	4	0	4	0	6
3AKZ_H	tRNA links to Rfam database...	0.77	0.75	0.79	15	1108	7	0	4	3	5
3AM1_B	-	0.83	0.76	0.92	22	1442	2	0	2	0	7
3AMU_B	tRNA links to Rfam database...	0.77	0.79	0.75	15	1137	8	0	5	3	4
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	7	0	4	3	6
3J0L_7	-	0.41	0.50	0.36	5	505	10	3	6	1	5
3J0L_2	-	0.49	0.46	0.52	12	2227	18	0	11	7	14
3J0L_a	-	0.17	0.18	0.20	2	401	9	3	5	1	9
3J0L_1	-	0.73	0.62	0.89	8	475	3	0	1	2	5
3J0L_h	-	0.55	0.50	0.62	16	2114	10	2	8	0	16
3J0L_g	-	-0.01	0.00	0.00	0	174	4	0	2	2	2
3J16_L	tRNA links to Rfam database...	0.90	0.81	1.00	17	1142	0	0	0	0	4
3NDB_M	-	0.68	0.64	0.74	28	3676	14	2	8	4	16
3NKB_B	-	0.46	0.42	0.53	8	720	7	0	7	0	11
3NMU_E	-	0.28	0.33	0.25	1	212	6	1	2	3	2
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.50	0.35	11	4733	30	9	11	10	11
3O58_2	5S_rRNA links to Rfam database...	0.90	0.84	0.96	26	2727	3	0	1	2	5
3OVB_D	-	1.00	1.00	1.00	11	215	1	0	0	1	0
3OVS_D	-	1.00	1.00	1.00	12	204	0	0	0	0	0
3P22_G	-	1.00	1.00	1.00	11	301	0	0	0	0	0
3PDR_A	ykoK links to Rfam database...	0.86	0.78	0.95	39	4799	4	1	1	2	11
3R4F_A	-	1.00	1.00	1.00	22	884	1	0	0	1	0
3R9X_C	-	1.00	1.00	1.00	8	221	2	0	0	2	0
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.71	0.69	0.74	20	1506	7	2	5	0	9
3SIU_F	-	0.86	0.75	1.00	6	139	0	0	0	0	2
3SN2_B	IRE_II links to Rfam database...	0.63	0.42	1.00	5	149	0	0	0	0	7
3TRZ_Z	-	1.00	1.00	1.00	5	87	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	103	0	0	0	0	0
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3UZL_B	tRNA links to Rfam database...	0.45	0.50	0.42	8	1274	18	4	7	7	8
3VJR_D	-	1.00	1.00	1.00	12	239	0	0	0	0	0
4A4U_A	-	1.00	1.00	1.00	9	96	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.42	0.38	0.48	11	1414	13	3	9	1	18
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
