Overview

Metric	RNAsubopt		Murlet(seed)
MCC	0.722	>	0.620
Average MCC ± 95% Confidence Intervals	0.729 ± 0.114	>	0.616 ± 0.071
Sensitivity	0.734	>	0.442
Positive Predictive Value	0.719	<	0.879
Total TP	433	>	261
Total TN	38945	<	39250
Total FP	242	>	49
Total FP CONTRA	57	>	4
Total FP INCONS	112	>	32
Total FP COMP	73	>	13
Total FN	157	<	329
P-value	5.23657817852e-08

^top

Performance plots

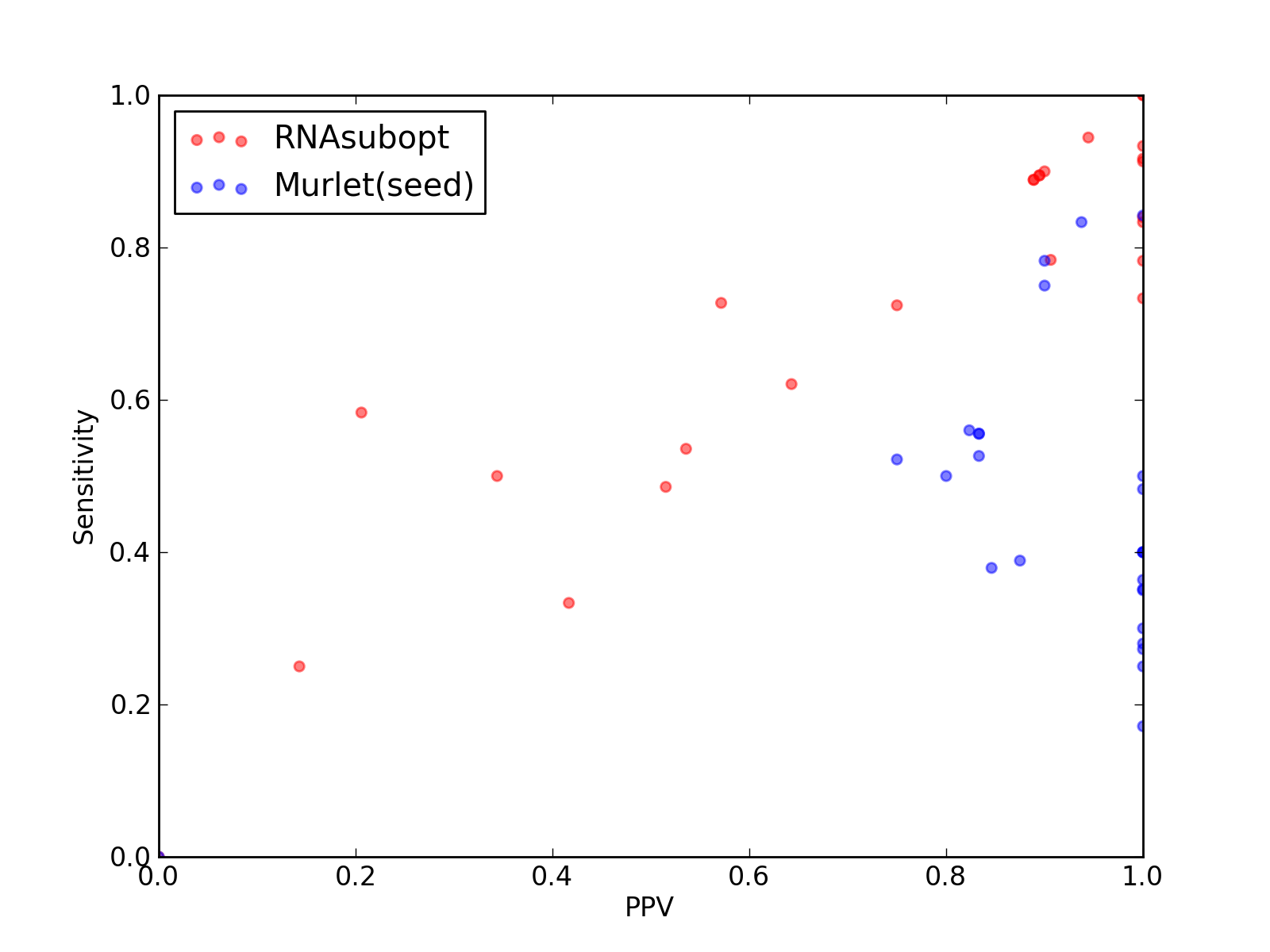

Comparison of performance of RNAsubopt and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAsubopt and Murlet(seed)).

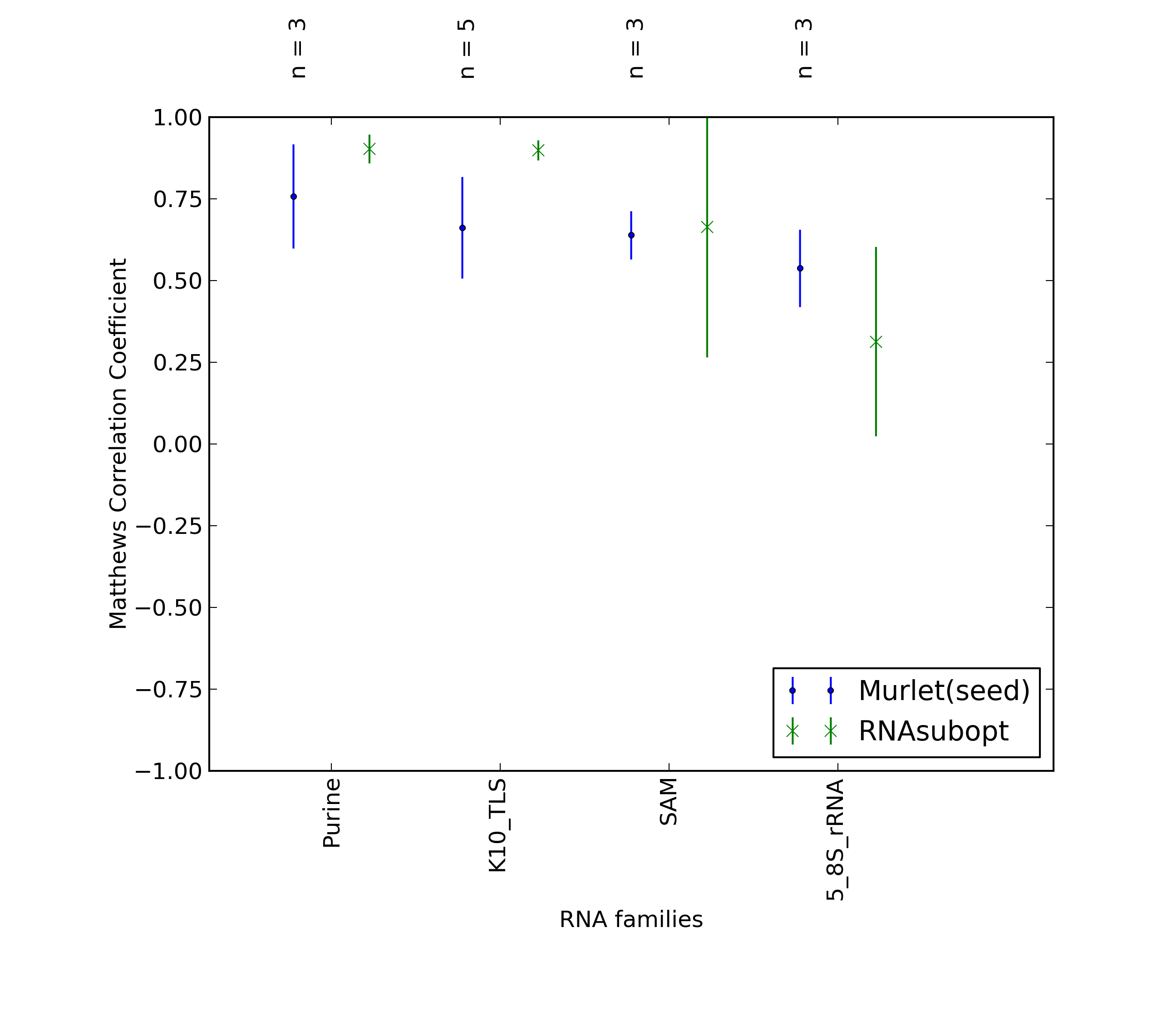

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAsubopt and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAsubopt and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAsubopt and Murlet(seed)).

^top

Performance of RNAsubopt - scored higher in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	433
Total TN	38945
Total FP	242
Total FP CONTRA	57
Total FP INCONS	112
Total FP COMP	73
Total FN	157

Total Scores
MCC	0.722
Average MCC ± 95% Confidence Intervals	0.729 ± 0.114
Sensitivity	0.734
Positive Predictive Value	0.719
Nr of predictions	26

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	449	3	0	2	1	2
2KUR_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	448	2	0	2	0	2
2KUU_A	K10_TLS links to Rfam database...	0.88	0.89	0.89	16	429	3	0	2	1	2
2KUV_A	K10_TLS links to Rfam database...	0.89	0.89	0.89	17	420	2	0	2	0	2
2KUW_A	K10_TLS links to Rfam database...	0.94	0.94	0.94	17	452	2	0	1	1	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	21	742	0	0	0	0	2
2L1F_B	Gammaretro_CES links to Rfam database...	0.96	0.92	1.00	22	769	0	0	0	0	2
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.49	0.49	0.52	17	2012	17	1	15	1	18
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.53	0.54	0.54	15	1421	14	4	9	1	13
3IVN_B	Purine links to Rfam database...	0.88	0.78	1.00	18	885	0	0	0	0	5
3JYX_4	5_8S_rRNA links to Rfam database...	0.34	0.58	0.21	7	4722	38	20	7	11	5
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.84	0.78	0.91	29	2246	8	0	3	5	8
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.73	0.72	0.75	21	1505	7	4	3	0	8
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4481	43	13	17	13	15
4AOB_A	SAM links to Rfam database...	0.62	0.62	0.64	18	1409	11	4	6	1	11
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	7	0	7	0	10

^top

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	261
Total TN	39250
Total FP	49
Total FP CONTRA	4
Total FP INCONS	32
Total FP COMP	13
Total FN	329

Total Scores
MCC	0.620
Average MCC ± 95% Confidence Intervals	0.616 ± 0.071
Sensitivity	0.442
Positive Predictive Value	0.879
Nr of predictions	26

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.54	0.30	1.00	3	171	0	0	0	0	7
2KE6_A	K10_TLS links to Rfam database...	0.67	0.56	0.83	10	455	2	0	2	0	8
2KUR_A	K10_TLS links to Rfam database...	0.65	0.53	0.83	10	455	2	0	2	0	9
2KUU_A	K10_TLS links to Rfam database...	0.67	0.56	0.83	10	435	2	0	2	0	8
2KUV_A	K10_TLS links to Rfam database...	0.91	0.84	1.00	16	423	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.88	0.83	0.94	15	454	2	0	1	1	3
2L1F_A	Gammaretro_CES links to Rfam database...	0.83	0.78	0.90	18	743	2	0	2	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.82	0.75	0.90	18	771	2	0	2	0	6
2L94_A	HIV_FE links to Rfam database...	0.57	0.39	0.88	7	349	2	0	1	1	11
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	516	12	0	12	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	4	1831	2	0	0	2	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	2039	0	0	0	0	29
3A3A_A	tRNA-Sec links to Rfam database...	0.63	0.40	1.00	12	1488	0	0	0	0	18
3GX2_A	SAM links to Rfam database...	0.70	0.50	1.00	14	1435	1	0	0	1	14
3IVN_B	Purine links to Rfam database...	0.62	0.52	0.75	12	887	4	2	2	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	3	4753	4	0	0	4	9
3LA5_A	Purine links to Rfam database...	0.67	0.56	0.82	14	937	3	1	2	0	11
3NPB_A	SAM links to Rfam database...	0.59	0.35	1.00	13	2265	2	0	0	2	24
3O58_3	5_8S_rRNA links to Rfam database...	0.52	0.27	1.00	6	4758	1	0	0	1	16
3PDR_A	ykoK links to Rfam database...	0.53	0.28	1.00	14	4826	0	0	0	0	36
3RKF_A	Purine links to Rfam database...	0.62	0.50	0.80	12	851	3	1	2	0	12
3SD1_A	THF links to Rfam database...	0.56	0.38	0.85	11	1520	2	0	2	0	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.59	0.35	1.00	7	4509	0	0	0	0	13
4AOB_A	SAM links to Rfam database...	0.69	0.48	1.00	14	1423	1	0	0	1	15
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
