Overview

Metric	RNAsubopt		RSpredict(20)
MCC	0.673	>	0.663
Average MCC ± 95% Confidence Intervals	0.690 ± 0.106	>	0.653 ± 0.116
Sensitivity	0.694	>	0.593
Positive Predictive Value	0.659	<	0.748
Total TP	491	>	419
Total TN	74658	<	74843
Total FP	382	>	230
Total FP CONTRA	87	>	61
Total FP INCONS	167	>	80
Total FP COMP	128	>	89
Total FN	216	<	288
P-value	2.71856013146e-06

^top

Performance plots

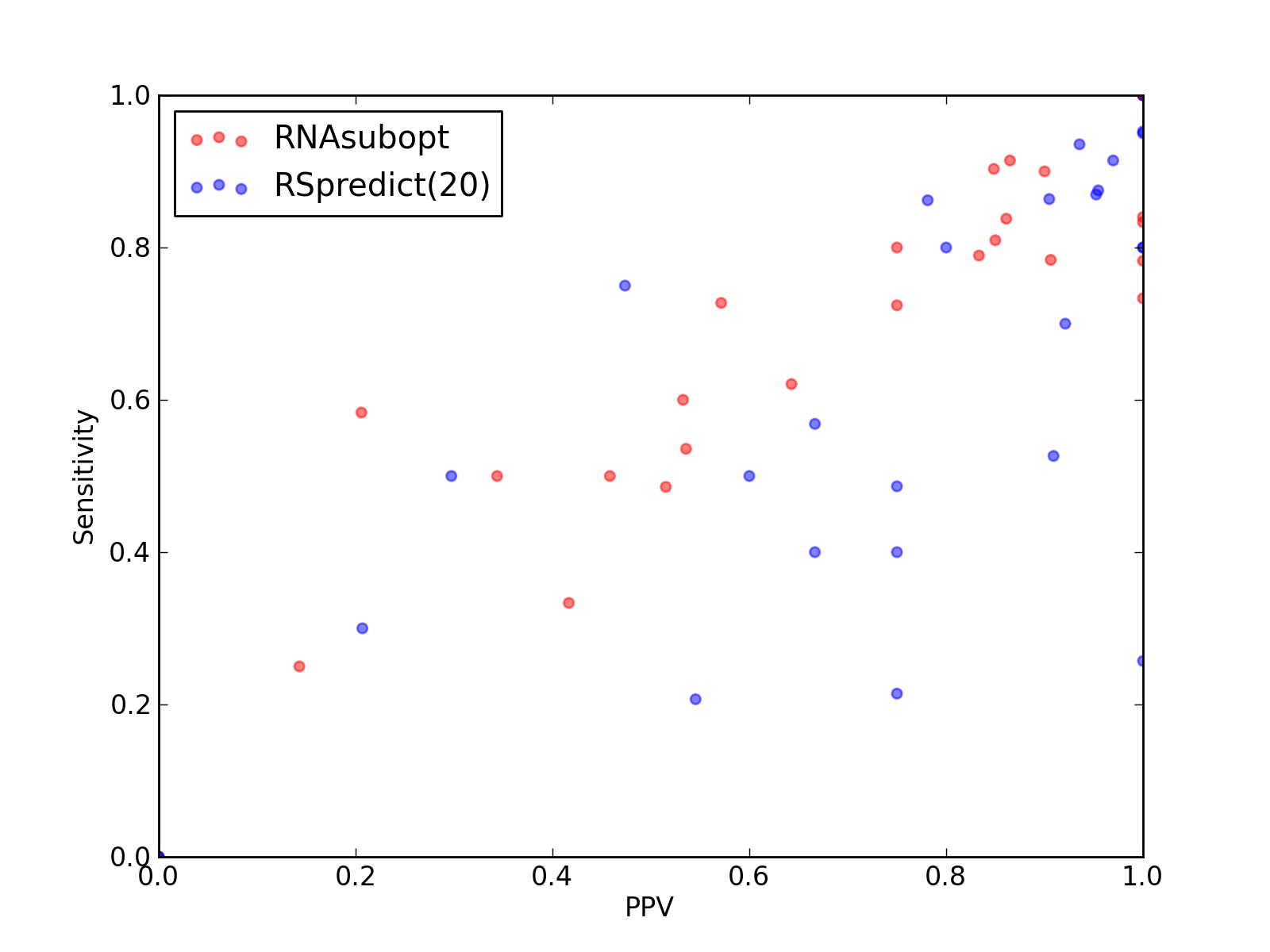

Comparison of performance of RNAsubopt and RSpredict(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAsubopt and RSpredict(20)).

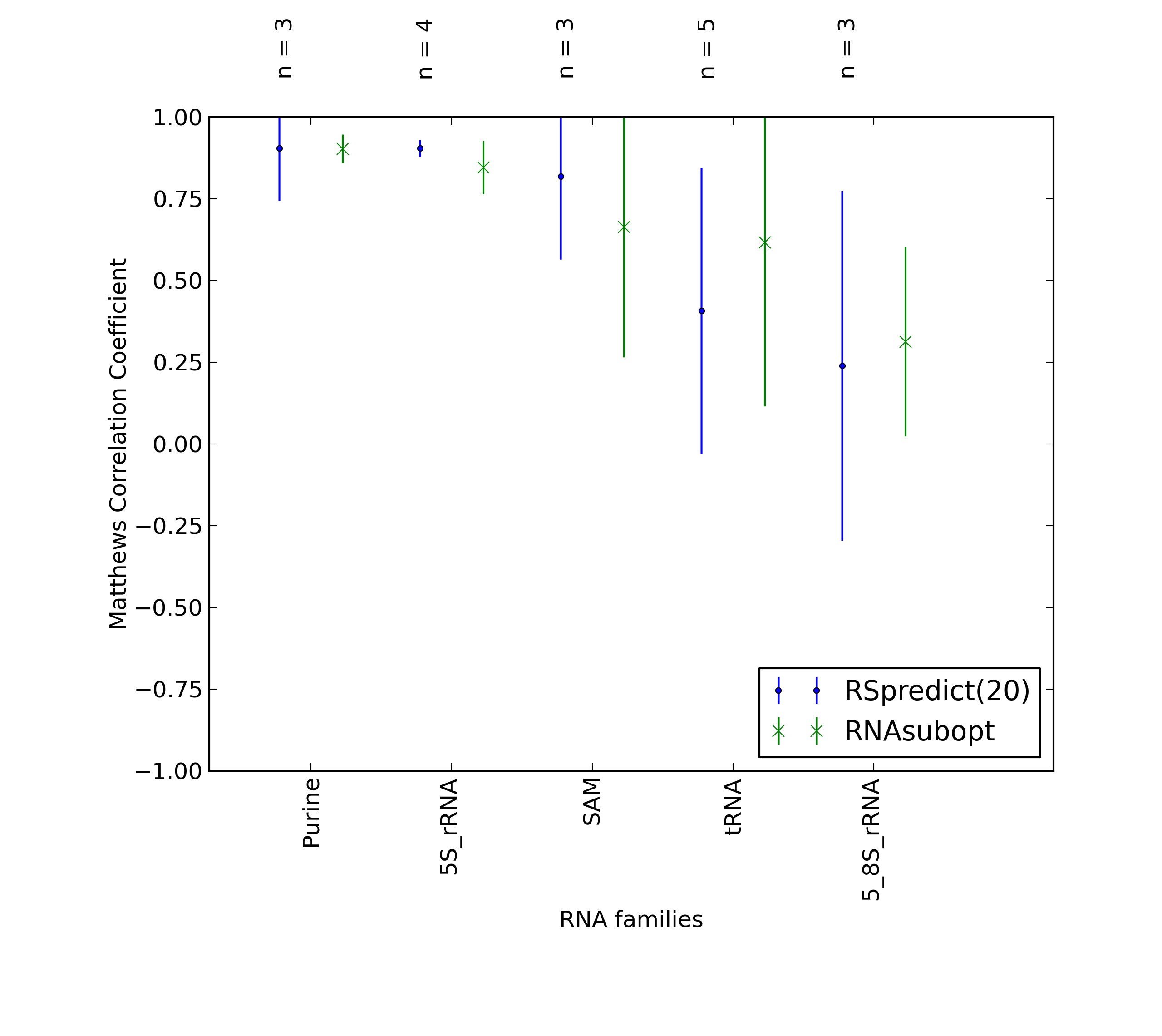

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAsubopt and RSpredict(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAsubopt and RSpredict(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAsubopt and RSpredict(20)).

^top

Performance of RNAsubopt - scored higher in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	491
Total TN	74658
Total FP	382
Total FP CONTRA	87
Total FP INCONS	167
Total FP COMP	128
Total FN	216

Total Scores
MCC	0.673
Average MCC ± 95% Confidence Intervals	0.690 ± 0.106
Sensitivity	0.694
Positive Predictive Value	0.659
Nr of predictions	27

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	13	0	0	13	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.64	0.73	0.57	8	1821	25	0	6	19	3
2XQD_Y	tRNA links to Rfam database...	0.83	0.81	0.85	17	1109	4	0	3	1	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.49	0.49	0.52	17	2012	17	1	15	1	18
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.53	0.54	0.54	15	1421	14	4	9	1	13
3IVN_B	Purine links to Rfam database...	0.88	0.78	1.00	18	885	0	0	0	0	5
3IZ4_A	tmRNA links to Rfam database...	0.56	0.60	0.53	57	25429	54	26	24	4	38
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1090	21	4	17	0	20
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	26	0	4	22	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.34	0.58	0.21	7	4722	38	20	7	11	5
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.84	0.78	0.91	29	2246	8	0	3	5	8
3O58_2	5S_rRNA links to Rfam database...	0.87	0.90	0.85	28	2721	13	0	5	8	3
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.73	0.72	0.75	21	1505	7	4	3	0	8
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4481	43	13	17	13	15
4A1C_3	5S_rRNA links to Rfam database...	0.85	0.84	0.86	31	2727	8	0	5	3	6
4AOB_A	SAM links to Rfam database...	0.62	0.62	0.64	18	1409	11	4	6	1	11
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	7	0	7	0	10

^top

Performance of RSpredict(20) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	419
Total TN	74843
Total FP	230
Total FP CONTRA	61
Total FP INCONS	80
Total FP COMP	89
Total FN	288

Total Scores
MCC	0.663
Average MCC ± 95% Confidence Intervals	0.653 ± 0.116
Sensitivity	0.593
Positive Predictive Value	0.748
Nr of predictions	27

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.89	0.80	1.00	8	166	0	0	0	0	2
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.60	9	342	7	0	6	1	9
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	1831	4	1	3	0	11
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.50	0.26	1.00	9	2036	0	0	0	0	26
3A2K_C	tRNA links to Rfam database...	0.88	0.86	0.90	19	1087	2	0	2	0	3
3AMU_B	tRNA links to Rfam database...	0.69	0.53	0.91	10	1146	2	0	1	1	9
3GX2_A	SAM links to Rfam database...	0.40	0.21	0.75	6	1441	2	1	1	0	22
3IVN_B	Purine links to Rfam database...	0.91	0.87	0.95	20	882	1	1	0	0	3
3IZ4_A	tmRNA links to Rfam database...	0.61	0.57	0.67	54	25455	38	13	14	11	41
3IZF_C	5S_rRNA links to Rfam database...	0.94	0.91	0.97	32	2607	4	0	1	3	3
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_3	5S_rRNA links to Rfam database...	0.80	0.80	0.80	12	2363	16	0	3	13	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.59	0.75	0.47	9	4737	33	9	1	23	3
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3NPB_A	SAM links to Rfam database...	-0.01	0.00	0.00	0	2272	6	1	5	0	37
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	10	0	2	8	2
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.50	0.30	11	4727	29	15	11	3	11
3PDR_A	ykoK links to Rfam database...	0.80	0.70	0.92	35	4802	5	1	2	2	15
3RKF_A	Purine links to Rfam database...	0.91	0.88	0.95	21	844	1	1	0	0	3
3SD1_A	THF links to Rfam database...	0.82	0.86	0.78	25	1501	7	5	2	0	4
4A1C_2	5_8S_rRNA links to Rfam database...	0.25	0.30	0.21	6	4487	30	12	11	7	14
4A1C_3	5S_rRNA links to Rfam database...	0.60	0.49	0.75	18	2739	8	0	6	2	19
4AOB_A	SAM links to Rfam database...	0.33	0.21	0.55	6	1426	5	1	4	0	23
4ENB_A	crcB links to Rfam database...	0.54	0.40	0.75	6	464	2	0	2	0	9
4ENC_A	crcB links to Rfam database...	0.51	0.40	0.67	6	487	3	0	3	0	9

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
