Overview

Metric	RSpredict(20)		Vsfold4
MCC	0.663	>	0.537
Average MCC ± 95% Confidence Intervals	0.653 ± 0.116	>	0.588 ± 0.134
Sensitivity	0.593	>	0.530
Positive Predictive Value	0.748	>	0.551
Total TP	419	>	375
Total TN	74843	>	74723
Total FP	230	<	389
Total FP CONTRA	61	<	77
Total FP INCONS	80	<	228
Total FP COMP	89	>	84
Total FN	288	<	332
P-value	5.19332990918e-08

^top

Performance plots

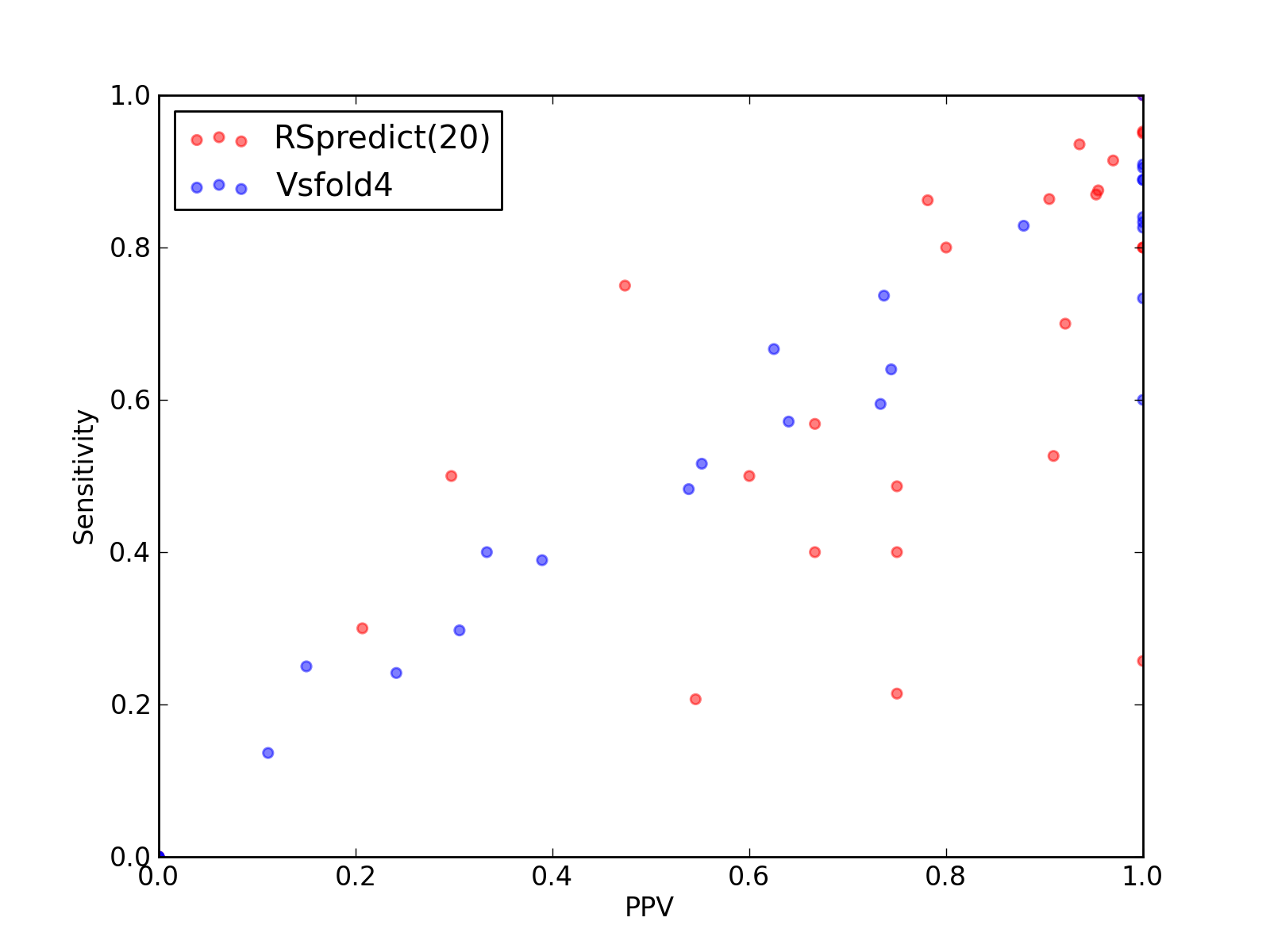

Comparison of performance of RSpredict(20) and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RSpredict(20) and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RSpredict(20) and Vsfold4).

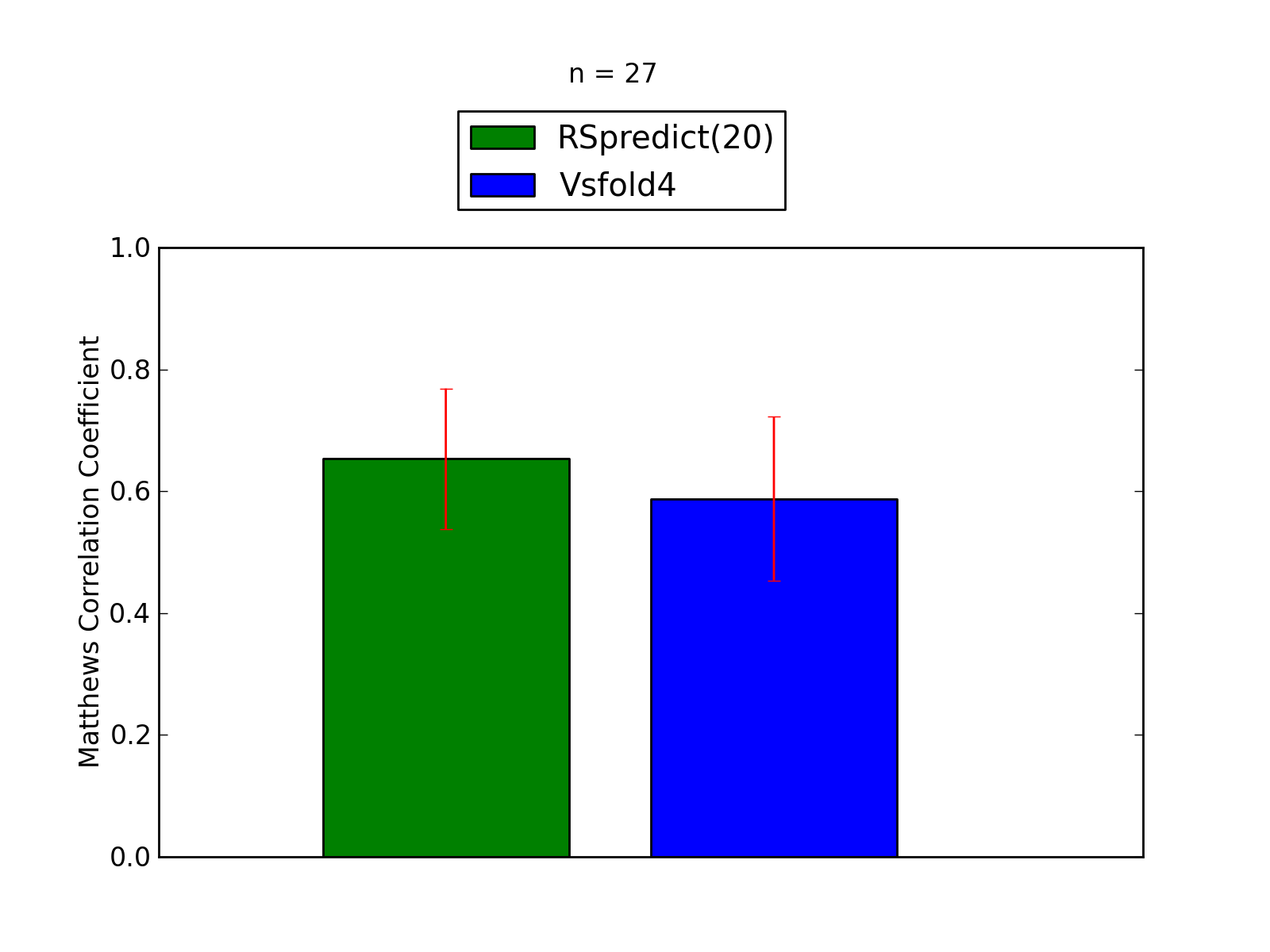

Comparison of average Matthews Correlation Coefficients (MCCs) for RSpredict(20) and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RSpredict(20) and Vsfold4).

^top

Performance of RSpredict(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	419
Total TN	74843
Total FP	230
Total FP CONTRA	61
Total FP INCONS	80
Total FP COMP	89
Total FN	288

Total Scores
MCC	0.663
Average MCC ± 95% Confidence Intervals	0.653 ± 0.116
Sensitivity	0.593
Positive Predictive Value	0.748
Nr of predictions	27

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.89	0.80	1.00	8	166	0	0	0	0	2
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.60	9	342	7	0	6	1	9
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	12	0	0	12	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	1831	4	1	3	0	11
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.50	0.26	1.00	9	2036	0	0	0	0	26
3A2K_C	tRNA links to Rfam database...	0.88	0.86	0.90	19	1087	2	0	2	0	3
3AMU_B	tRNA links to Rfam database...	0.69	0.53	0.91	10	1146	2	0	1	1	9
3GX2_A	SAM links to Rfam database...	0.40	0.21	0.75	6	1441	2	1	1	0	22
3IVN_B	Purine links to Rfam database...	0.91	0.87	0.95	20	882	1	1	0	0	3
3IZ4_A	tmRNA links to Rfam database...	0.61	0.57	0.67	54	25455	38	13	14	11	41
3IZF_C	5S_rRNA links to Rfam database...	0.94	0.91	0.97	32	2607	4	0	1	3	3
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3JYX_3	5S_rRNA links to Rfam database...	0.80	0.80	0.80	12	2363	16	0	3	13	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.59	0.75	0.47	9	4737	33	9	1	23	3
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3NPB_A	SAM links to Rfam database...	-0.01	0.00	0.00	0	2272	6	1	5	0	37
3O58_2	5S_rRNA links to Rfam database...	0.93	0.94	0.94	29	2723	10	0	2	8	2
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.50	0.30	11	4727	29	15	11	3	11
3PDR_A	ykoK links to Rfam database...	0.80	0.70	0.92	35	4802	5	1	2	2	15
3RKF_A	Purine links to Rfam database...	0.91	0.88	0.95	21	844	1	1	0	0	3
3SD1_A	THF links to Rfam database...	0.82	0.86	0.78	25	1501	7	5	2	0	4
4A1C_2	5_8S_rRNA links to Rfam database...	0.25	0.30	0.21	6	4487	30	12	11	7	14
4A1C_3	5S_rRNA links to Rfam database...	0.60	0.49	0.75	18	2739	8	0	6	2	19
4AOB_A	SAM links to Rfam database...	0.33	0.21	0.55	6	1426	5	1	4	0	23
4ENB_A	crcB links to Rfam database...	0.54	0.40	0.75	6	464	2	0	2	0	9
4ENC_A	crcB links to Rfam database...	0.51	0.40	0.67	6	487	3	0	3	0	9

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	375
Total TN	74723
Total FP	389
Total FP CONTRA	77
Total FP INCONS	228
Total FP COMP	84
Total FN	332

Total Scores
MCC	0.537
Average MCC ± 95% Confidence Intervals	0.588 ± 0.134
Sensitivity	0.530
Positive Predictive Value	0.551
Nr of predictions	27

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.94	0.89	1.00	16	341	1	0	0	1	2
2WRQ_Y	tRNA links to Rfam database...	0.94	0.89	1.00	8	1144	13	0	0	13	1
2XKV_B	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	1808	27	13	14	0	11
2XQD_Y	tRNA links to Rfam database...	0.95	0.90	1.00	19	1110	1	0	0	1	2
2XXA_G	Bacteria_small_SRP links to Rfam database...	-0.02	0.00	0.00	0	2016	29	1	28	0	35
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3AMU_B	tRNA links to Rfam database...	0.73	0.74	0.74	14	1138	8	0	5	3	5
3GX2_A	SAM links to Rfam database...	0.60	0.57	0.64	16	1424	10	0	9	1	12
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.39	0.39	0.39	37	25441	63	15	43	5	58
3IZF_C	5S_rRNA links to Rfam database...	0.85	0.83	0.88	29	2607	6	0	4	2	6
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1092	19	4	15	0	20
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.67	0.63	10	2362	16	5	1	10	5
3JYX_4	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	3	4736	33	9	8	16	9
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.66	0.59	0.73	22	2248	10	0	8	2	15
3O58_2	5S_rRNA links to Rfam database...	0.53	0.52	0.55	16	2725	16	3	10	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.12	0.14	0.11	3	4737	35	8	16	11	19
3PDR_A	ykoK links to Rfam database...	0.69	0.64	0.74	32	4797	13	3	8	2	18
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.23	0.24	0.24	7	1504	22	5	17	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.36	0.40	0.33	8	4492	28	4	12	12	12
4A1C_3	5S_rRNA links to Rfam database...	0.29	0.30	0.31	11	2727	26	4	21	1	26
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.77	0.60	1.00	9	487	0	0	0	0	6

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
