Overview

Metric	UNAFold		Carnac(seed)
MCC	0.783	>	0.299
Average MCC ± 95% Confidence Intervals	0.780 ± 0.102	>	0.169 ± 0.121
Sensitivity	0.784	>	0.090
Positive Predictive Value	0.788	<	1.000
Total TP	555	>	64
Total TN	49378	<	50018
Total FP	267	>	1
Total FP CONTRA	41	>	0
Total FP INCONS	108	>	0
Total FP COMP	118	>	1
Total FN	153	<	644
P-value	3.56938820447e-08

^top

Performance plots

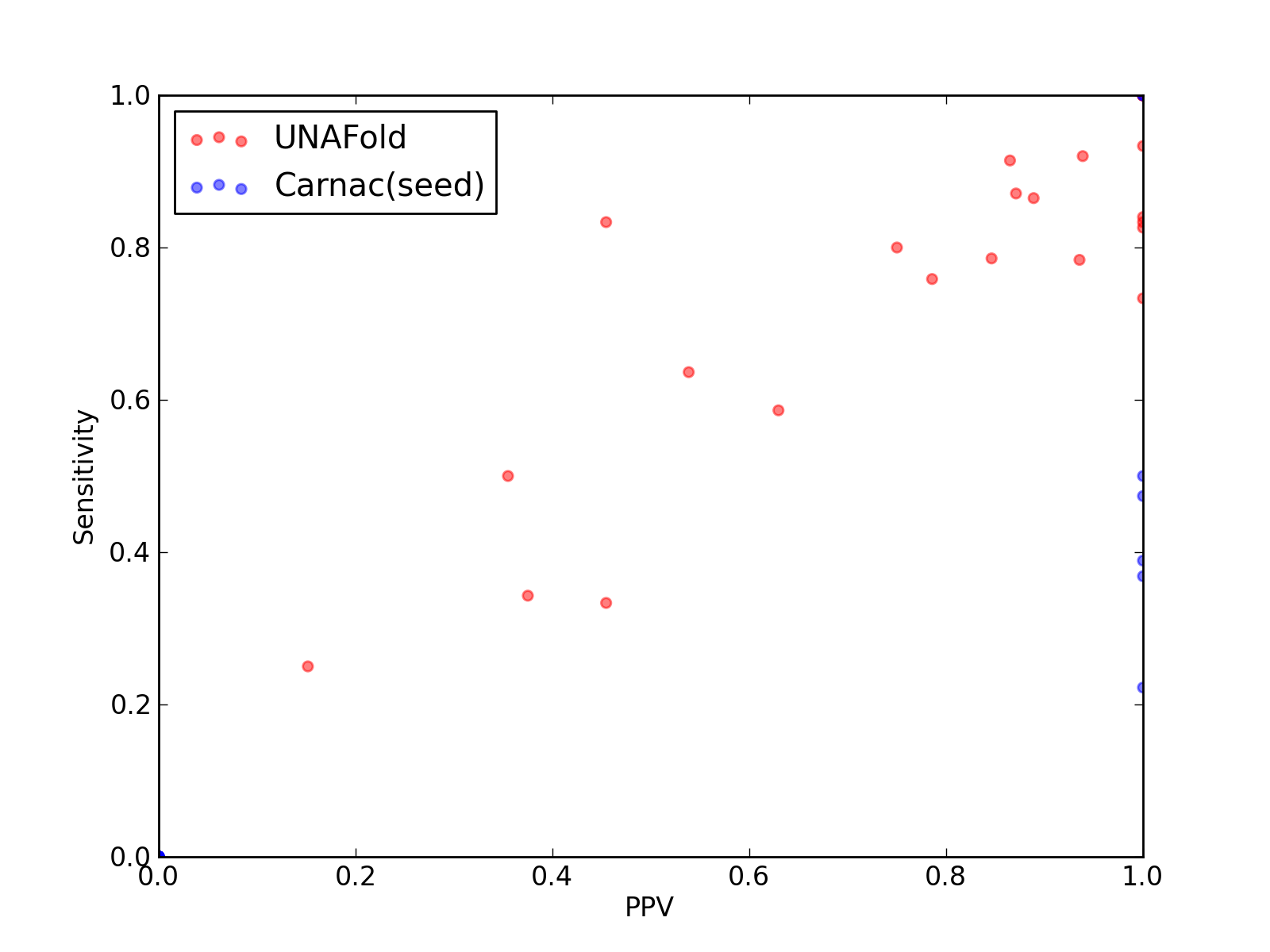

Comparison of performance of UNAFold and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for UNAFold and Carnac(seed)).

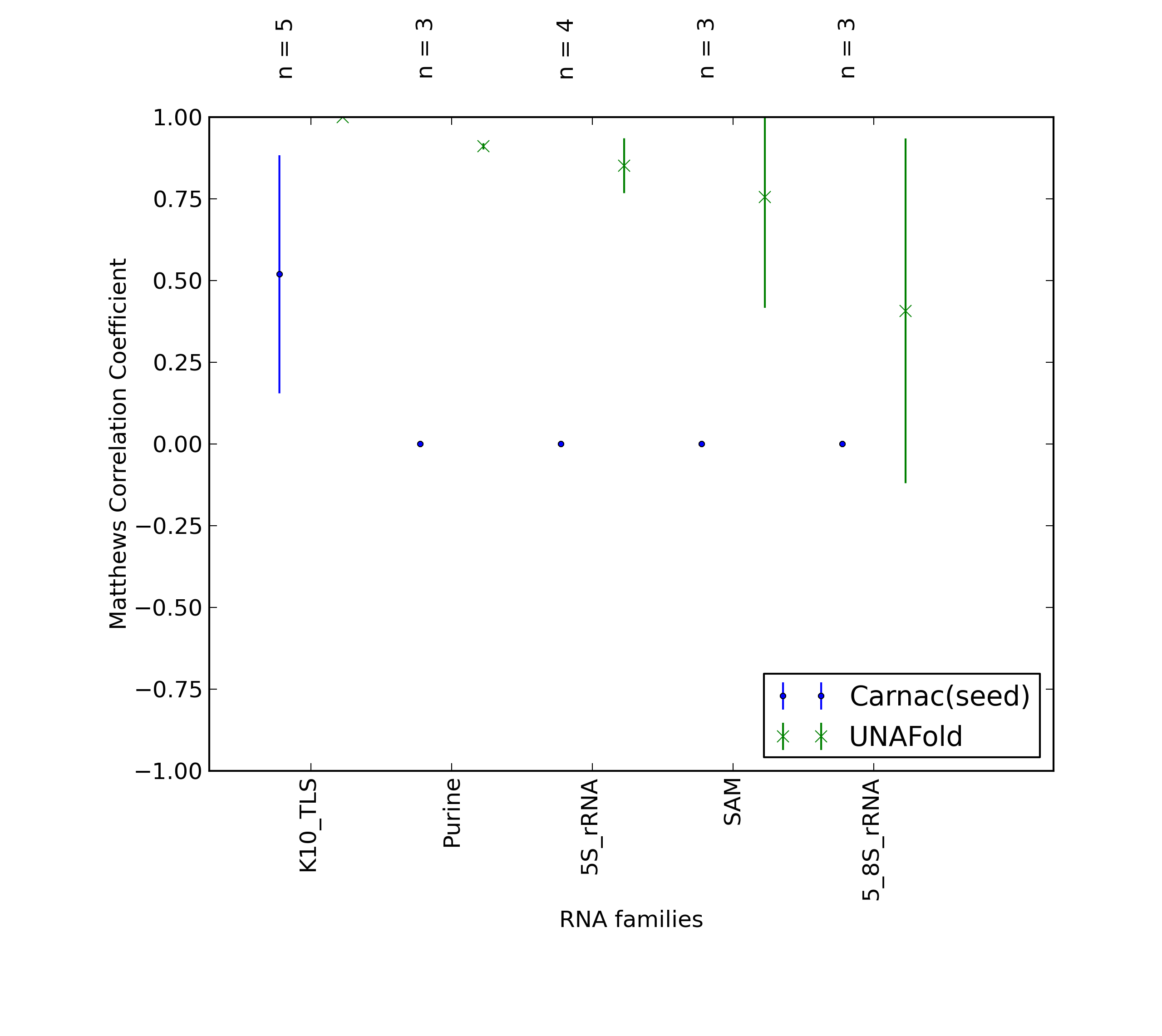

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for UNAFold and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for UNAFold and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for UNAFold and Carnac(seed)).

^top

Performance of UNAFold - scored higher in this pairwise comparison

1. Total counts & total scores for UNAFold

Total Base Pair Counts
Total TP	555
Total TN	49378
Total FP	267
Total FP CONTRA	41
Total FP INCONS	108
Total FP COMP	118
Total FN	153

Total Scores
MCC	0.783
Average MCC ± 95% Confidence Intervals	0.780 ± 0.102
Sensitivity	0.784
Positive Predictive Value	0.788
Nr of predictions	30

^top

2. Individual counts for UNAFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.58	0.64	0.54	7	1822	23	0	6	17	4
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	31	10	2	19	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	27	0	4	23	3
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	6	0	2	4	8
3O58_2	5S_rRNA links to Rfam database...	0.87	0.87	0.87	27	2723	12	0	4	8	4
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.50	0.35	11	4733	34	5	15	14	11
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	42	11	17	14	15
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	64
Total TN	50018
Total FP	1
Total FP CONTRA	0
Total FP INCONS	0
Total FP COMP	1
Total FN	644

Total Scores
MCC	0.299
Average MCC ± 95% Confidence Intervals	0.169 ± 0.121
Sensitivity	0.090
Positive Predictive Value	1.000
Nr of predictions	30

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	1.00	1.00	1.00	10	164	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.00	0.00	0.00	0	467	0	0	0	0	18
2KUR_A	K10_TLS links to Rfam database...	0.60	0.37	1.00	7	460	0	0	0	0	12
2KUU_A	K10_TLS links to Rfam database...	0.62	0.39	1.00	7	440	0	0	0	0	11
2KUV_A	K10_TLS links to Rfam database...	0.68	0.47	1.00	9	430	0	0	0	0	10
2KUW_A	K10_TLS links to Rfam database...	0.70	0.50	1.00	9	461	0	0	0	0	9
2L1F_A	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	763	0	0	0	0	23
2L1F_B	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	791	0	0	0	0	24
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.47	0.22	1.00	4	524	0	0	0	0	14
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	1835	0	0	0	0	11
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	2045	0	0	0	0	35
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1500	0	0	0	0	30
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1449	0	0	0	0	28
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	23
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2640	0	0	0	0	35
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4756	0	0	0	0	12
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2378	0	0	0	0	15
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	954	0	0	0	0	25
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	2278	0	0	0	0	37
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2754	0	0	0	0	31
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4764	0	0	0	0	22
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4840	0	0	0	0	50
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	866	0	0	0	0	24
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2763	0	0	0	0	37
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
