Overview

Metric	UNAFold		CentroidAlifold(seed)
MCC	0.697	>	0.690
Average MCC ± 95% Confidence Intervals	0.725 ± 0.090	>	0.640 ± 0.076
Sensitivity	0.718	>	0.552
Positive Predictive Value	0.682	<	0.870
Total TP	764	>	587
Total TN	109917	<	110362
Total FP	535	>	164
Total FP CONTRA	121	>	36
Total FP INCONS	235	>	52
Total FP COMP	179	>	76
Total FN	300	<	477
P-value	0.128796078713

^top

Performance plots

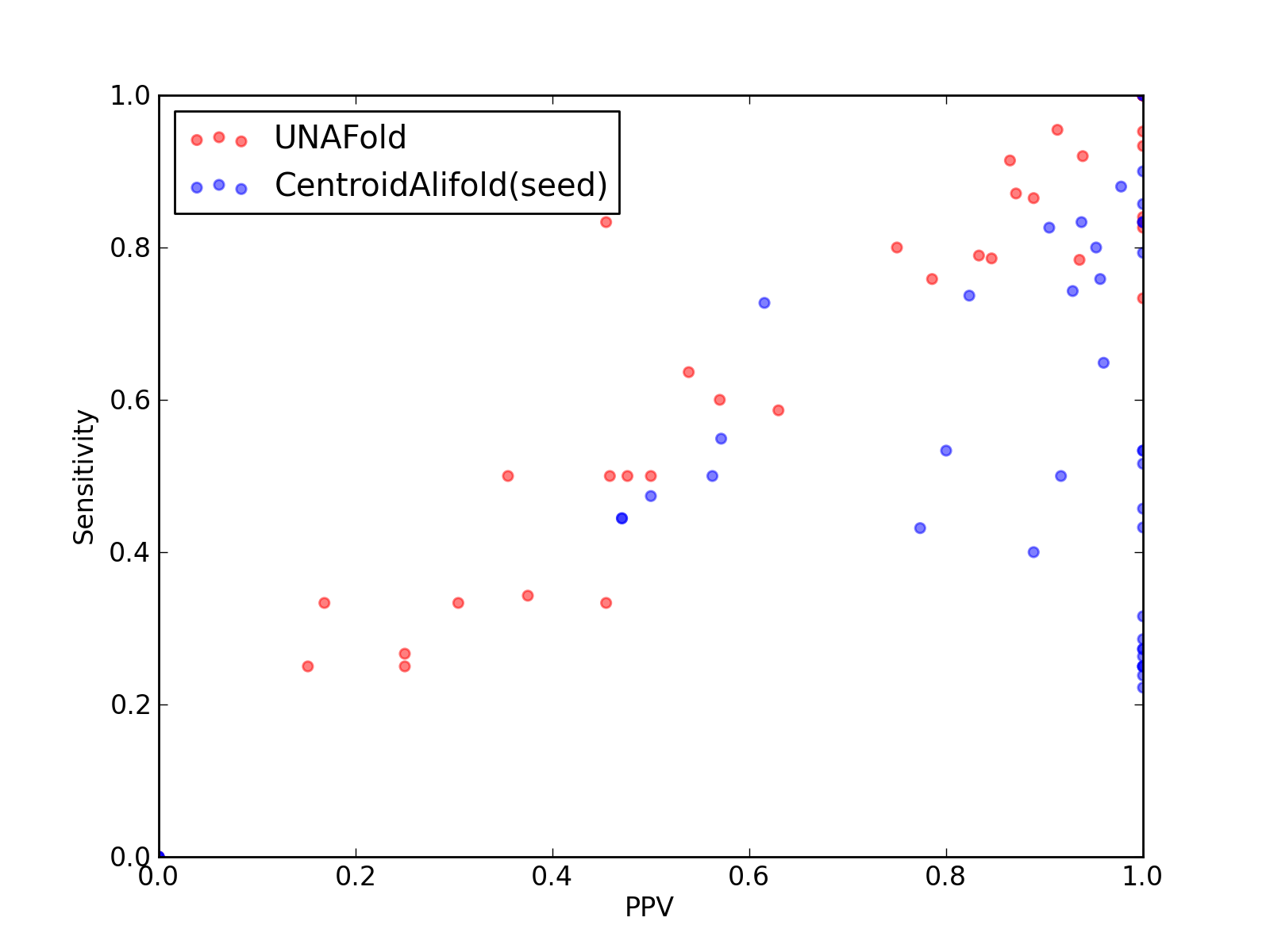

Comparison of performance of UNAFold and CentroidAlifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for UNAFold and CentroidAlifold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for UNAFold and CentroidAlifold(seed)).

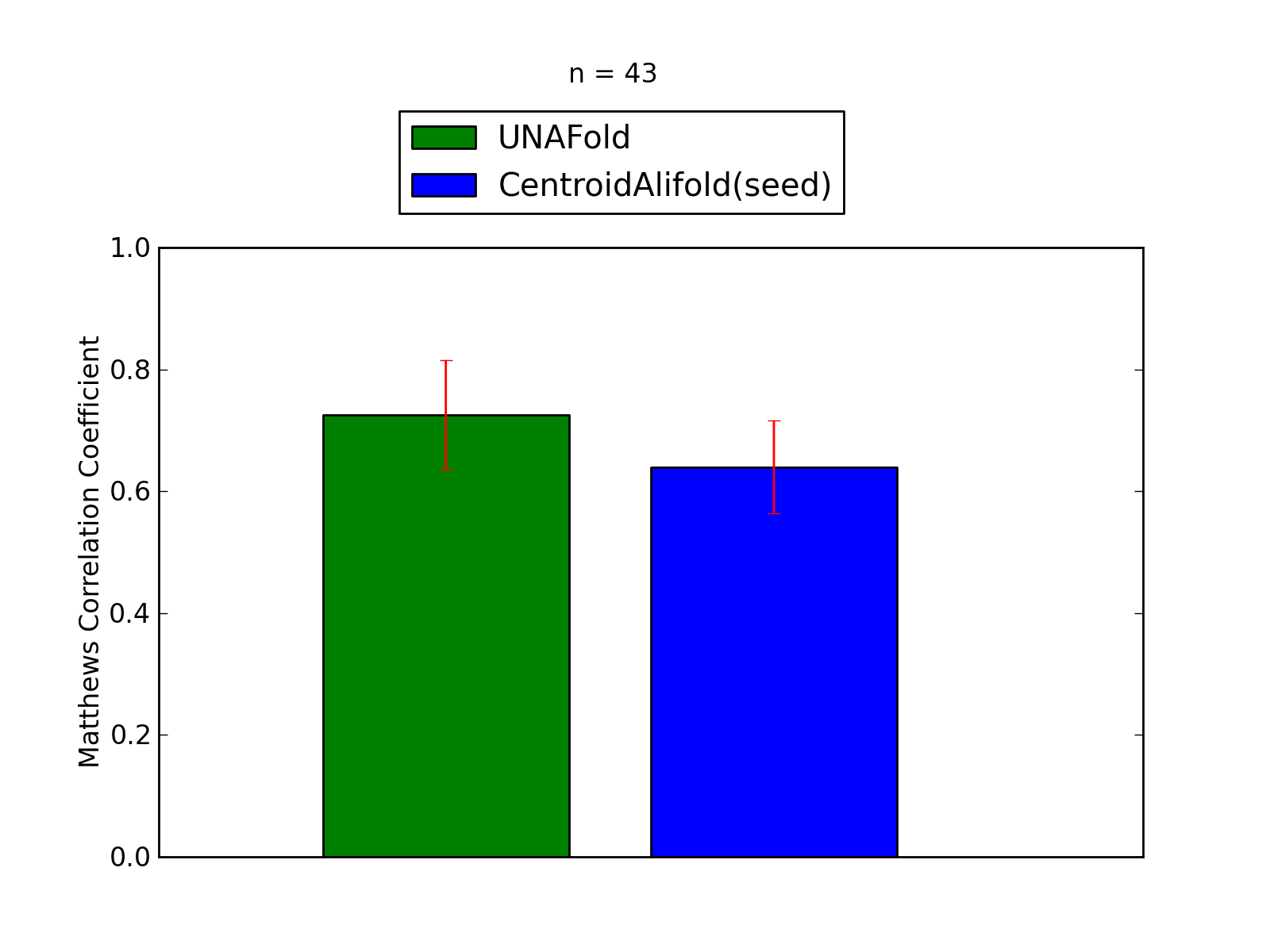

Comparison of average Matthews Correlation Coefficients (MCCs) for UNAFold and CentroidAlifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for UNAFold and CentroidAlifold(seed)).

^top

Performance of UNAFold - scored higher in this pairwise comparison

1. Total counts & total scores for UNAFold

Total Base Pair Counts
Total TP	764
Total TN	109917
Total FP	535
Total FP CONTRA	121
Total FP INCONS	235
Total FP COMP	179
Total FN	300

Total Scores
MCC	0.697
Average MCC ± 95% Confidence Intervals	0.725 ± 0.090
Sensitivity	0.718
Positive Predictive Value	0.682
Nr of predictions	43

^top

2. Individual counts for UNAFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	449	1	0	0	1	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	448	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	429	1	0	0	1	0
2KUV_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	420	0	0	0	0	0
2KUW_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	18	452	1	0	0	1	0
2KX8_A	7SK links to Rfam database...	1.00	1.00	1.00	16	355	0	0	0	0	0
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	1.00	1.00	1.00	18	339	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2WRQ_Y	tRNA links to Rfam database...	1.00	1.00	1.00	9	1143	14	0	0	14	0
2WWQ_V	tRNA links to Rfam database...	1.00	1.00	1.00	19	1185	3	0	0	3	0
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.58	0.64	0.54	7	1822	23	0	6	17	4
2XQD_Y	tRNA links to Rfam database...	0.98	0.95	1.00	20	1109	1	0	0	1	1
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.38	12	2013	21	1	19	1	23
2ZZM_B	tRNA links to Rfam database...	0.25	0.27	0.25	4	1342	20	3	9	8	11
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3AKZ_H	tRNA links to Rfam database...	0.48	0.50	0.48	10	1106	13	4	7	2	10
3AMU_B	tRNA links to Rfam database...	0.81	0.79	0.83	15	1139	6	0	3	3	4
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.23	0.33	0.17	17	22339	96	46	38	12	34
3IZ4_A	tmRNA links to Rfam database...	0.58	0.60	0.57	57	25436	53	12	31	10	38
3IZF_C	5S_rRNA links to Rfam database...	0.89	0.91	0.86	32	2603	9	0	5	4	3
3J16_L	tRNA links to Rfam database...	0.31	0.33	0.30	7	1136	16	3	13	0	14
3JYV_7	tRNA links to Rfam database...	0.24	0.25	0.25	5	1091	16	7	8	1	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.61	0.83	0.45	10	4734	31	10	2	19	2
3JYX_3	5S_rRNA links to Rfam database...	0.77	0.80	0.75	12	2362	27	0	4	23	3
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	6	0	2	4	8
3O58_2	5S_rRNA links to Rfam database...	0.87	0.87	0.87	27	2723	12	0	4	8	4
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.50	0.35	11	4733	34	5	15	14	11
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3UZL_B	tRNA links to Rfam database...	0.49	0.50	0.50	8	1277	15	0	8	7	8
4A1C_3	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	2727	7	0	4	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	42	11	17	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10

^top

Performance of CentroidAlifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	587
Total TN	110362
Total FP	164
Total FP CONTRA	36
Total FP INCONS	52
Total FP COMP	76
Total FN	477

Total Scores
MCC	0.690
Average MCC ± 95% Confidence Intervals	0.640 ± 0.076
Sensitivity	0.552
Positive Predictive Value	0.870
Nr of predictions	43

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.44	0.44	0.47	8	450	10	0	9	1	10
2KUR_A	K10_TLS links to Rfam database...	0.77	0.74	0.82	14	450	4	0	3	1	5
2KUU_A	K10_TLS links to Rfam database...	0.88	0.83	0.94	15	431	3	0	1	2	3
2KUV_A	K10_TLS links to Rfam database...	0.46	0.47	0.50	9	421	9	0	9	0	10
2KUW_A	K10_TLS links to Rfam database...	0.44	0.44	0.47	8	453	10	0	9	1	10
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	371	0	0	0	0	16
2L1F_B	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	24	767	0	0	0	0	0
2L1F_A	Gammaretro_CES links to Rfam database...	1.00	1.00	1.00	23	740	0	0	0	0	0
2L94_A	HIV_FE links to Rfam database...	0.51	0.50	0.56	9	341	8	0	7	1	9
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
2WRQ_Y	tRNA links to Rfam database...	0.47	0.22	1.00	2	1150	4	0	0	4	7
2WWQ_V	tRNA links to Rfam database...	0.56	0.32	1.00	6	1198	0	0	0	0	13
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.67	0.73	0.62	8	1822	22	0	5	17	3
2XQD_Y	tRNA links to Rfam database...	0.48	0.24	1.00	5	1124	1	0	0	1	16
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.83	0.74	0.93	26	2017	4	0	2	2	9
2ZZM_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	1358	6	0	0	6	15
2ZZN_D	tRNA links to Rfam database...	0.52	0.27	1.00	6	978	0	0	0	0	16
3A2K_C	tRNA links to Rfam database...	0.52	0.27	1.00	6	1102	0	0	0	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.95	0.90	1.00	27	1473	0	0	0	0	3
3AKZ_H	tRNA links to Rfam database...	0.50	0.25	1.00	5	1122	1	0	0	1	15
3AMU_B	tRNA links to Rfam database...	0.51	0.26	1.00	5	1152	1	0	0	1	14
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.56	0.55	0.57	28	22391	30	19	2	9	23
3IZ4_A	tmRNA links to Rfam database...	0.58	0.43	0.77	41	25483	17	12	0	5	54
3IZF_C	5S_rRNA links to Rfam database...	0.67	0.46	1.00	16	2624	0	0	0	0	19
3J16_L	tRNA links to Rfam database...	0.53	0.29	1.00	6	1153	0	0	0	0	15
3JYV_7	tRNA links to Rfam database...	0.50	0.25	1.00	5	1106	1	0	0	1	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.91	0.83	1.00	10	4746	3	0	0	3	2
3JYX_3	5S_rRNA links to Rfam database...	0.65	0.53	0.80	8	2368	8	0	2	6	7
3LA5_A	Purine links to Rfam database...	0.87	0.80	0.95	20	933	1	1	0	0	5
3NPB_A	SAM links to Rfam database...	0.79	0.65	0.96	24	2253	5	0	1	4	13
3O58_2	5S_rRNA links to Rfam database...	0.72	0.52	1.00	16	2738	0	0	0	0	15
3O58_3	5_8S_rRNA links to Rfam database...	0.68	0.50	0.92	11	4752	2	1	0	1	11
3PDR_A	ykoK links to Rfam database...	0.93	0.88	0.98	44	4795	3	0	1	2	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
3UZL_B	tRNA links to Rfam database...	0.50	0.25	1.00	4	1289	2	0	0	2	12
4A1C_3	5S_rRNA links to Rfam database...	0.66	0.43	1.00	16	2747	0	0	0	0	21
4A1C_2	5_8S_rRNA links to Rfam database...	0.60	0.40	0.89	8	4507	3	1	0	2	12
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.72	0.53	1.00	8	464	0	0	0	0	7
4ENC_A	crcB links to Rfam database...	0.73	0.53	1.00	8	488	0	0	0	0	7

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
