Overview

Metric	CentroidAlifold(20)		Vsfold5
MCC	0.680	>	0.418
Average MCC ± 95% Confidence Intervals	0.670 ± 0.063	>	0.455 ± 0.128
Sensitivity	0.520	>	0.358
Positive Predictive Value	0.892	>	0.493
Total TP	519	>	357
Total TN	201737	>	201595
Total FP	102	<	418
Total FP CONTRA	13	<	52
Total FP INCONS	50	<	315
Total FP COMP	39	<	51
Total FN	479	<	641
P-value	5.23657817852e-08

^top

Performance plots

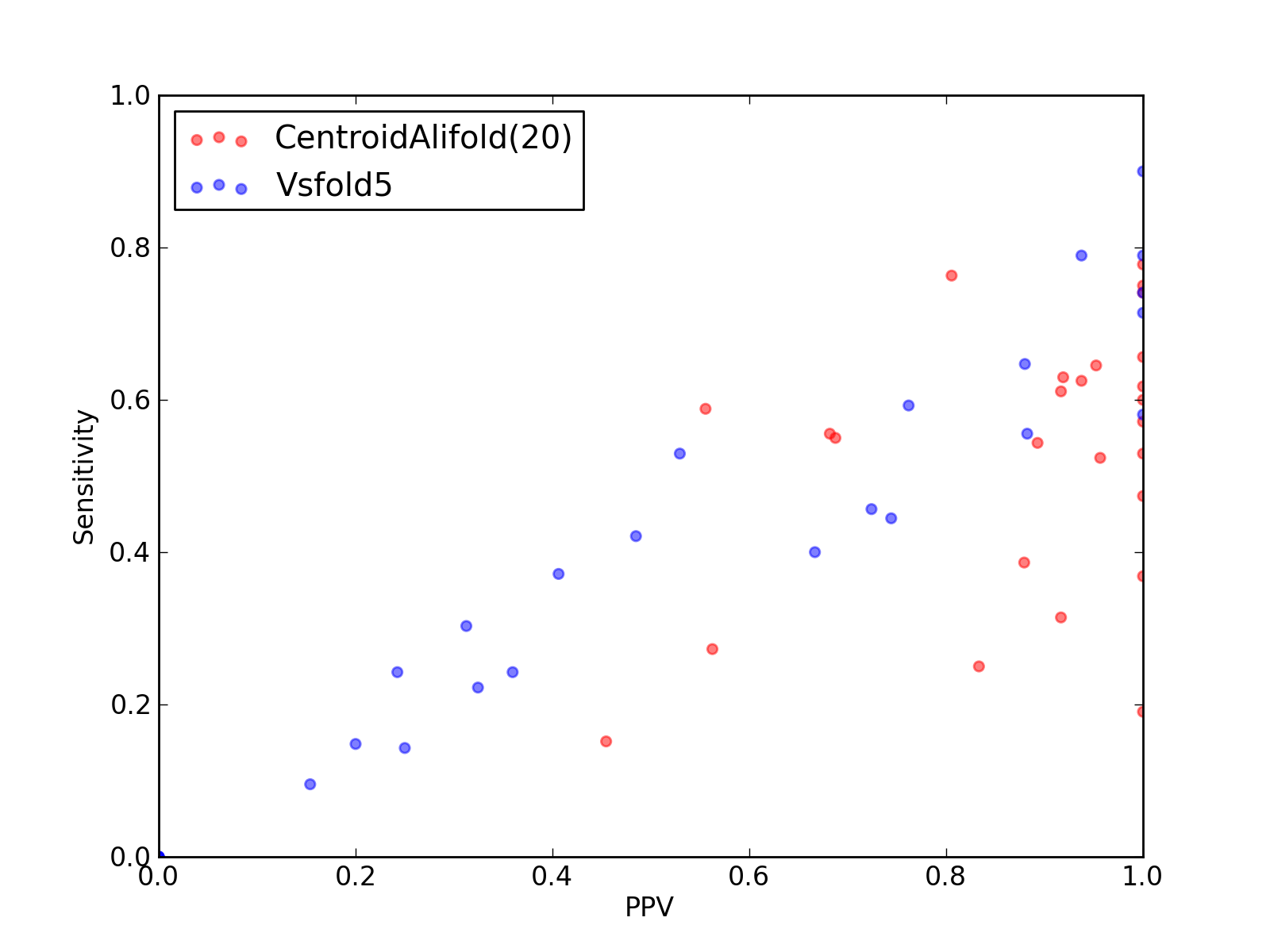

Comparison of performance of CentroidAlifold(20) and Vsfold5. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(20) and Vsfold5).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(20) and Vsfold5).

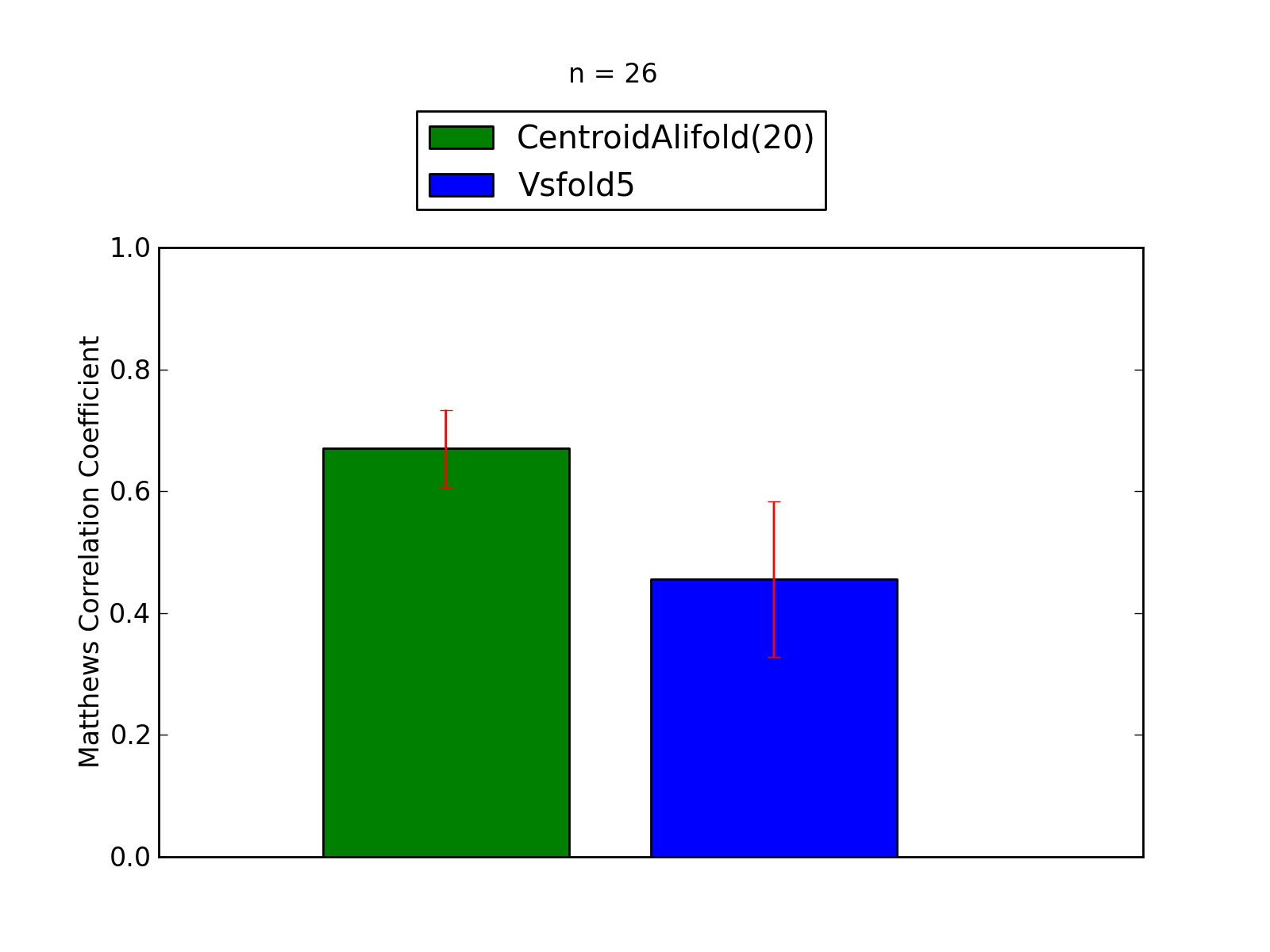

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(20) and Vsfold5. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(20) and Vsfold5).

^top

Performance of CentroidAlifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(20)

Total Base Pair Counts
Total TP	519
Total TN	201737
Total FP	102
Total FP CONTRA	13
Total FP INCONS	50
Total FP COMP	39
Total FN	479

Total Scores
MCC	0.680
Average MCC ± 95% Confidence Intervals	0.670 ± 0.063
Sensitivity	0.520
Positive Predictive Value	0.892
Nr of predictions	26

^top

2. Individual counts for CentroidAlifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.61	0.55	0.69	11	974	5	0	5	0	9
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.46	0.25	0.83	5	4554	6	0	1	5	15
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.44	0.19	1.00	8	5143	3	0	0	3	34
3A2K_C	tRNA links to Rfam database...	0.86	0.75	1.00	21	2905	0	0	0	0	7
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	1	0	0	1	7
3GX2_A	SAM links to Rfam database...	0.77	0.60	1.00	24	4347	1	0	0	1	16
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	1	0	0	11
3IZ4_A	tmRNA links to Rfam database...	0.58	0.39	0.88	51	70818	7	3	4	0	81
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.61	0.92	33	6867	4	0	3	1	21
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_3	5S_rRNA links to Rfam database...	0.61	0.56	0.68	15	6306	20	0	7	13	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.39	0.27	0.56	9	12230	9	0	7	2	24
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.70	0.54	0.89	25	6993	5	1	2	2	21
3O58_2	5S_rRNA links to Rfam database...	0.78	0.76	0.81	29	7224	9	2	5	2	9
3O58_3	5_8S_rRNA links to Rfam database...	0.54	0.31	0.92	11	12391	1	0	1	0	24
3PDR_A	ykoK links to Rfam database...	0.76	0.63	0.94	45	12832	5	0	3	2	27
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.71	0.52	0.96	22	3893	1	0	1	0	20
4A1C_2	5_8S_rRNA links to Rfam database...	0.26	0.15	0.45	5	11770	8	1	5	2	28
4A1C_3	5S_rRNA links to Rfam database...	0.76	0.63	0.92	34	7103	4	0	3	1	20
4AOB_A	SAM links to Rfam database...	0.75	0.57	1.00	24	4347	1	0	0	1	18
4ENB_A	crcB links to Rfam database...	0.69	0.47	1.00	9	1266	0	0	0	0	10
4ENC_A	crcB links to Rfam database...	0.60	0.37	1.00	7	1319	0	0	0	0	12

^top

Performance of Vsfold5 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold5

Total Base Pair Counts
Total TP	357
Total TN	201595
Total FP	418
Total FP CONTRA	52
Total FP INCONS	315
Total FP COMP	51
Total FN	641

Total Scores
MCC	0.418
Average MCC ± 95% Confidence Intervals	0.455 ± 0.128
Sensitivity	0.358
Positive Predictive Value	0.493
Nr of predictions	26

^top

2. Individual counts for Vsfold5 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.95	0.90	1.00	18	972	0	0	0	0	2
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	12	5	3	4	8
2XKV_B	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	4528	32	12	20	0	20
2XQD_Y	tRNA links to Rfam database...	0.86	0.74	1.00	20	2830	0	0	0	0	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	5120	31	2	29	0	42
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3AMU_B	tRNA links to Rfam database...	0.67	0.59	0.76	16	2982	7	0	5	2	11
3GX2_A	SAM links to Rfam database...	0.51	0.40	0.67	16	4347	9	0	8	1	24
3IVN_B	Purine links to Rfam database...	0.76	0.58	1.00	18	2328	0	0	0	0	13
3IZ4_A	tmRNA links to Rfam database...	0.29	0.24	0.36	32	70787	62	8	49	5	100
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.56	0.88	30	6869	4	0	4	0	24
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2831	19	0	19	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.17	0.15	0.20	4	6308	18	4	12	2	23
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	32	3	19	10	23
3LA5_A	Purine links to Rfam database...	-0.01	0.00	0.00	0	2469	16	0	16	0	34
3NPB_A	SAM links to Rfam database...	0.57	0.46	0.72	21	6992	9	1	7	1	25
3O58_2	5S_rRNA links to Rfam database...	0.45	0.42	0.48	16	7227	19	3	14	2	22
3O58_3	5_8S_rRNA links to Rfam database...	0.39	0.37	0.41	13	12371	28	7	12	9	22
3PDR_A	ykoK links to Rfam database...	0.57	0.44	0.74	32	12837	13	0	11	2	40
3RKF_A	Purine links to Rfam database...	0.75	0.65	0.88	22	2186	3	0	3	0	12
3SD1_A	THF links to Rfam database...	0.11	0.10	0.15	4	3890	22	0	22	0	38
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.24	0.24	8	11748	37	3	22	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.26	0.22	0.32	12	7103	25	2	23	0	42
4AOB_A	SAM links to Rfam database...	0.18	0.14	0.25	6	4347	19	1	17	1	36
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
