Overview

Metric	CentroidAlifold(seed)		Murlet(seed)
MCC	0.695	>	0.540
Average MCC ± 95% Confidence Intervals	0.659 ± 0.087	>	0.547 ± 0.077
Sensitivity	0.549	>	0.338
Positive Predictive Value	0.883	>	0.867
Total TP	424	>	261
Total TN	103913	<	104092
Total FP	81	>	46
Total FP CONTRA	2	<	5
Total FP INCONS	54	>	35
Total FP COMP	25	>	6
Total FN	348	<	511
P-value	5.10776592382e-08

^top

Performance plots

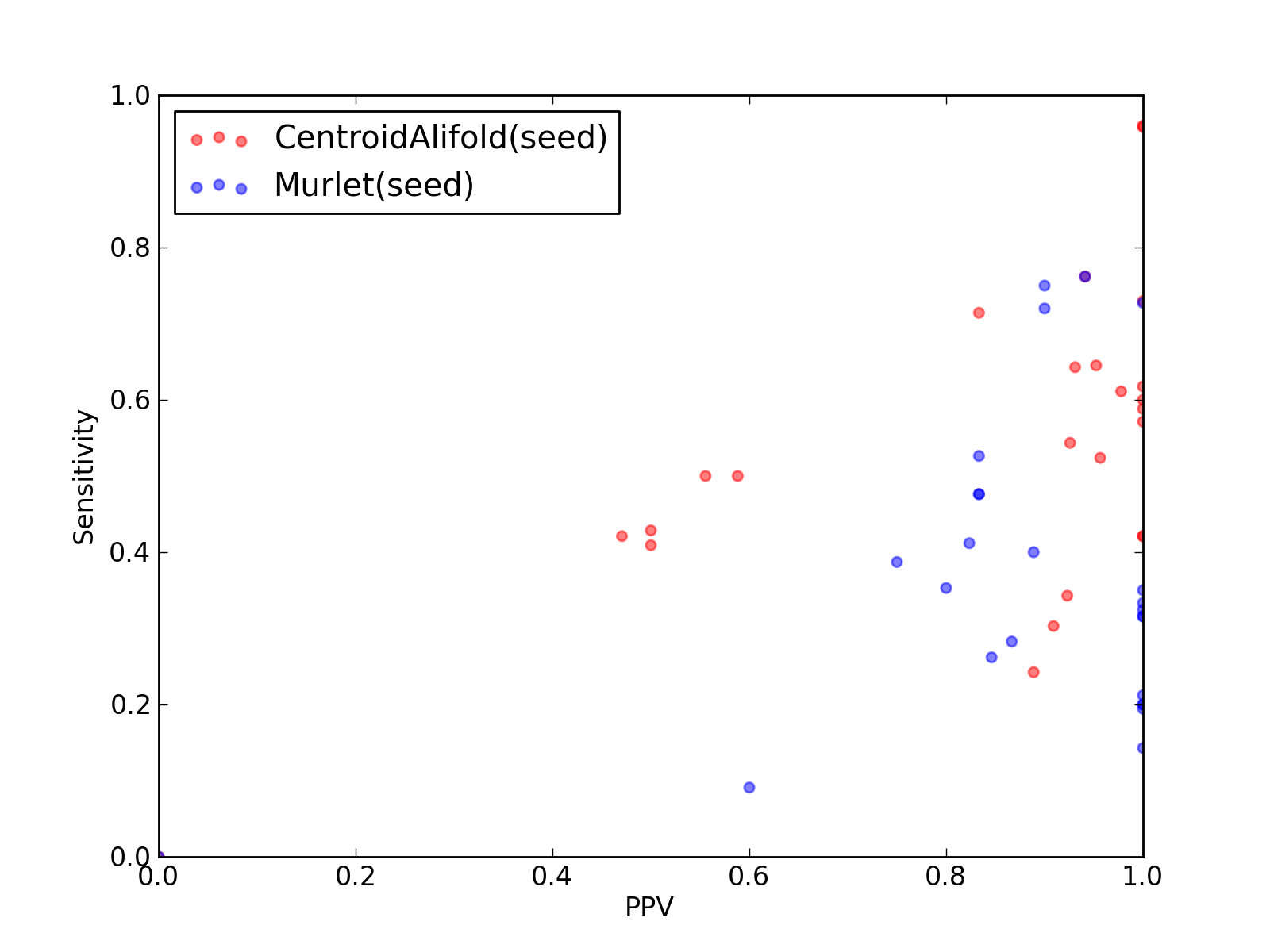

Comparison of performance of CentroidAlifold(seed) and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and Murlet(seed)).

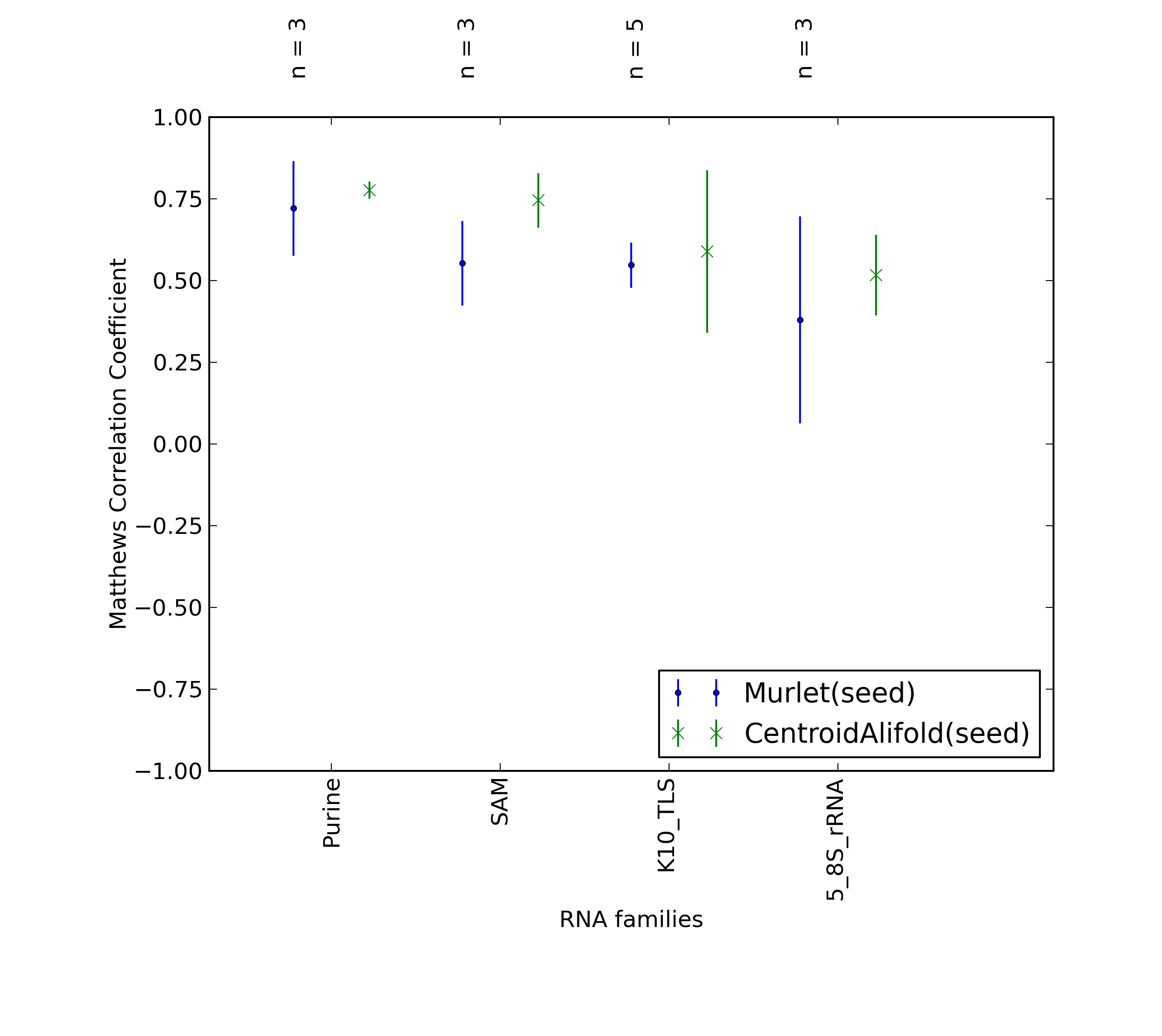

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and Murlet(seed)).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	424
Total TN	103913
Total FP	81
Total FP CONTRA	2
Total FP INCONS	54
Total FP COMP	25
Total FN	348

Total Scores
MCC	0.695
Average MCC ± 95% Confidence Intervals	0.659 ± 0.087
Sensitivity	0.549
Positive Predictive Value	0.883
Nr of predictions	25

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.44	0.42	0.47	8	1111	10	0	9	1	11
2KUR_A	K10_TLS links to Rfam database...	0.77	0.71	0.83	15	1110	3	0	3	0	6
2KUU_A	K10_TLS links to Rfam database...	0.84	0.76	0.94	16	1111	2	0	1	1	5
2KUV_A	K10_TLS links to Rfam database...	0.44	0.41	0.50	9	1110	9	0	9	0	13
2KUW_A	K10_TLS links to Rfam database...	0.45	0.43	0.50	9	1110	9	0	9	0	12
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.59	10	973	7	0	7	0	10
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	1540	0	0	0	0	20
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.53	0.50	0.56	10	4542	20	0	8	12	10
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.77	0.64	0.93	27	5122	3	0	2	1	15
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3GX2_A	SAM links to Rfam database...	0.77	0.60	1.00	24	4347	1	0	0	1	16
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	1	0	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.52	0.30	0.91	10	12235	3	0	1	2	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.71	0.54	0.93	25	6994	4	1	1	2	21
3O58_3	5_8S_rRNA links to Rfam database...	0.56	0.34	0.92	12	12390	1	0	1	0	23
3PDR_A	ykoK links to Rfam database...	0.77	0.61	0.98	44	12835	3	0	1	2	28
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.71	0.52	0.96	22	3893	1	0	1	0	20
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.24	0.89	8	11772	3	0	1	2	25
4AOB_A	SAM links to Rfam database...	0.75	0.57	1.00	24	4347	1	0	0	1	18
4ENB_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1267	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.65	0.42	1.00	8	1318	0	0	0	0	11

^top

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	261
Total TN	104092
Total FP	46
Total FP CONTRA	5
Total FP INCONS	35
Total FP COMP	6
Total FN	511

Total Scores
MCC	0.540
Average MCC ± 95% Confidence Intervals	0.547 ± 0.077
Sensitivity	0.338
Positive Predictive Value	0.867
Nr of predictions	25

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KE6_A	K10_TLS links to Rfam database...	0.66	0.53	0.83	10	1116	2	0	2	0	9
2KUR_A	K10_TLS links to Rfam database...	0.63	0.48	0.83	10	1116	2	0	2	0	11
2KUU_A	K10_TLS links to Rfam database...	0.63	0.48	0.83	10	1116	2	0	2	0	11
2KUV_A	K10_TLS links to Rfam database...	0.85	0.73	1.00	16	1112	0	0	0	0	6
2KUW_A	K10_TLS links to Rfam database...	0.84	0.76	0.94	16	1111	1	0	1	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.82	0.75	0.90	18	2060	2	0	2	0	6
2L1F_B	Gammaretro_CES links to Rfam database...	0.80	0.72	0.90	18	2125	2	0	2	0	7
2L94_A	HIV_FE links to Rfam database...	0.59	0.40	0.89	8	981	1	0	1	0	12
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1528	12	0	12	0	20
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	4	4556	2	0	0	2	16
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.38	0.14	1.00	6	5145	0	0	0	0	36
3A3A_A	tRNA-Sec links to Rfam database...	0.57	0.32	1.00	12	3643	0	0	0	0	25
3GX2_A	SAM links to Rfam database...	0.59	0.35	1.00	14	4357	1	0	0	1	26
3IVN_B	Purine links to Rfam database...	0.53	0.39	0.75	12	2330	4	2	2	0	19
3JYX_4	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12241	4	0	2	2	30
3LA5_A	Purine links to Rfam database...	0.58	0.41	0.82	14	2468	3	1	2	0	20
3NPB_A	SAM links to Rfam database...	0.49	0.28	0.87	13	7006	2	1	1	0	33
3O58_3	5_8S_rRNA links to Rfam database...	0.45	0.20	1.00	7	12396	0	0	0	0	28
3PDR_A	ykoK links to Rfam database...	0.44	0.19	1.00	14	12866	0	0	0	0	58
3RKF_A	Purine links to Rfam database...	0.53	0.35	0.80	12	2196	3	1	2	0	22
3SD1_A	THF links to Rfam database...	0.47	0.26	0.85	11	3903	2	0	2	0	31
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	11774	0	0	0	0	26
4AOB_A	SAM links to Rfam database...	0.58	0.33	1.00	14	4357	1	0	0	1	28
4ENB_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1269	0	0	0	0	13
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
