Overview

Metric	MXScarna(seed)		RSpredict(20)
MCC	0.668	>	0.547
Average MCC ± 95% Confidence Intervals	0.656 ± 0.058	>	0.540 ± 0.098
Sensitivity	0.556	>	0.428
Positive Predictive Value	0.805	>	0.702
Total TP	561	>	432
Total TN	202028	<	202110
Total FP	208	<	217
Total FP CONTRA	28	<	42
Total FP INCONS	108	<	141
Total FP COMP	72	>	34
Total FN	448	<	577
P-value	5.06544643719e-08

^top

Performance plots

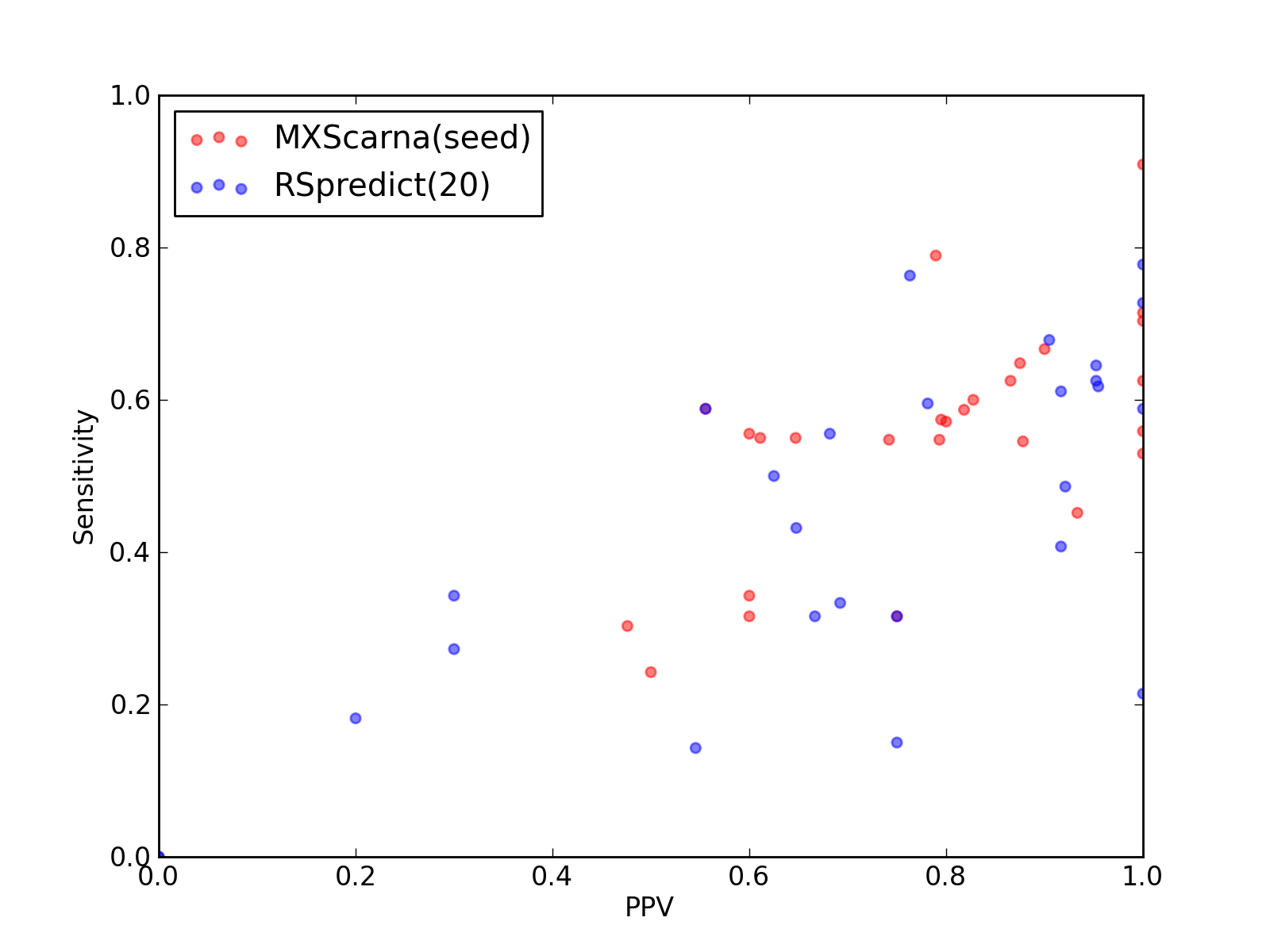

Comparison of performance of MXScarna(seed) and RSpredict(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and RSpredict(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and RSpredict(20)).

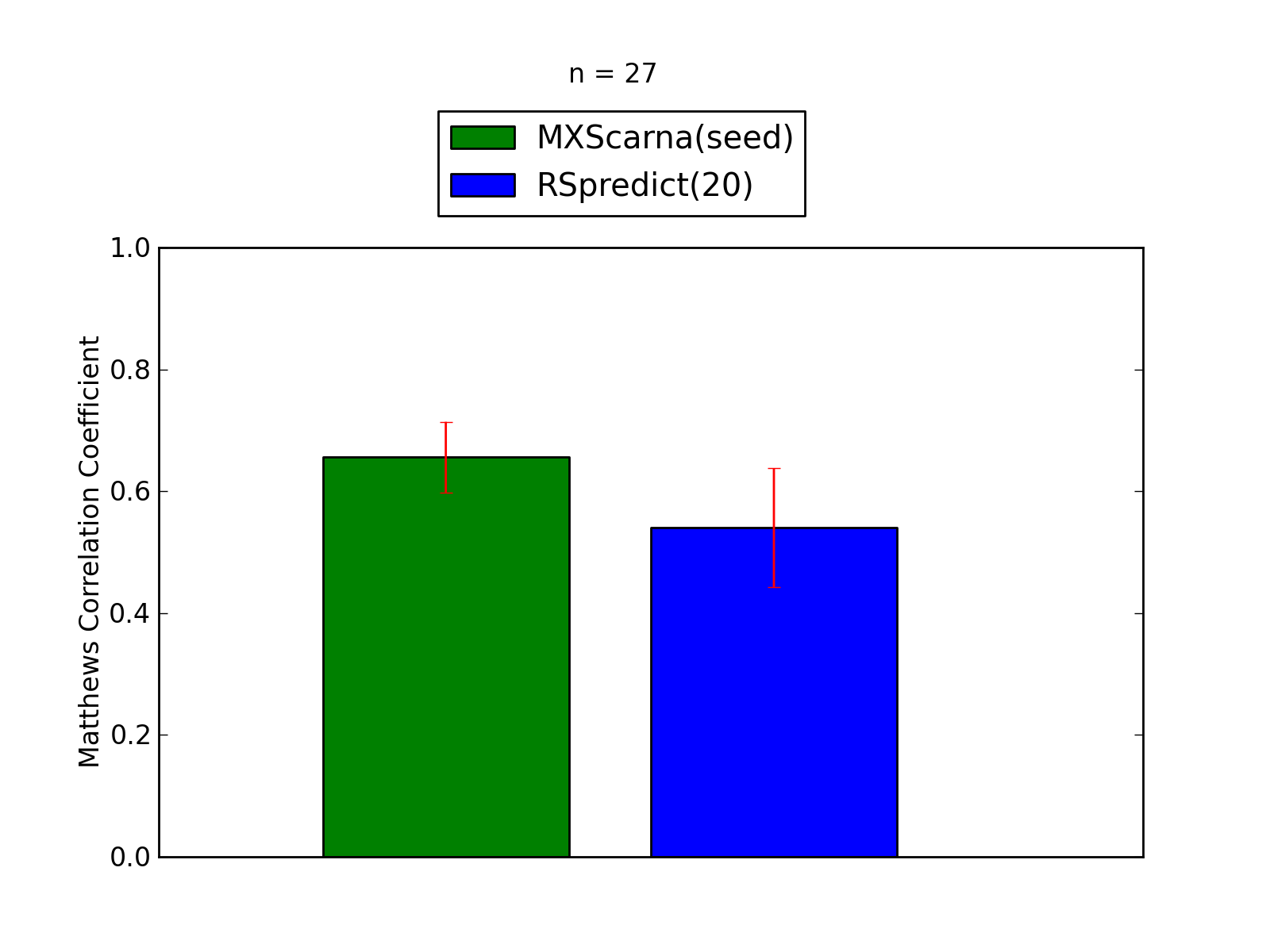

Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and RSpredict(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and RSpredict(20)).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	561
Total TN	202028
Total FP	208
Total FP CONTRA	28
Total FP INCONS	108
Total FP COMP	72
Total FN	448

Total Scores
MCC	0.668
Average MCC ± 95% Confidence Intervals	0.656 ± 0.058
Sensitivity	0.556
Positive Predictive Value	0.805
Nr of predictions	27

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.57	0.55	0.61	11	972	7	0	7	0	9
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.59	0.55	0.65	11	4543	18	0	6	12	9
2XQD_Y	tRNA links to Rfam database...	0.77	0.67	0.90	18	2830	2	0	2	0	9
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.67	0.57	0.80	24	5121	7	0	6	1	18
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3AMU_B	tRNA links to Rfam database...	0.84	0.70	1.00	19	2984	1	0	0	1	8
3GX2_A	SAM links to Rfam database...	0.70	0.60	0.83	24	4342	6	0	5	1	16
3IVN_B	Purine links to Rfam database...	0.65	0.45	0.93	14	2331	1	1	0	0	17
3IZ4_A	tmRNA links to Rfam database...	0.69	0.55	0.88	72	70794	11	3	7	1	60
3IZF_C	5S_rRNA links to Rfam database...	0.67	0.57	0.79	31	6864	9	1	7	1	23
3JYV_7	tRNA links to Rfam database...	0.79	0.63	1.00	20	2830	0	0	0	0	12
3JYX_3	5S_rRNA links to Rfam database...	0.58	0.56	0.60	15	6303	21	1	9	11	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.38	0.30	0.48	10	12225	21	3	8	10	23
3LA5_A	Purine links to Rfam database...	0.75	0.56	1.00	19	2466	0	0	0	0	15
3NPB_A	SAM links to Rfam database...	0.69	0.59	0.82	27	6988	9	2	4	3	19
3O58_2	5S_rRNA links to Rfam database...	0.79	0.79	0.79	30	7222	10	4	4	2	8
3O58_3	5_8S_rRNA links to Rfam database...	0.45	0.34	0.60	12	12383	19	2	6	11	23
3PDR_A	ykoK links to Rfam database...	0.73	0.63	0.87	45	12828	9	2	5	2	27
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.63	0.55	0.74	23	3885	8	1	7	0	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.35	0.24	0.50	8	11765	20	1	7	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.75	0.65	0.88	35	7100	5	1	4	0	19
4AOB_A	SAM links to Rfam database...	0.66	0.55	0.79	23	4342	7	0	6	1	19
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1316	4	1	3	0	13

^top

Performance of RSpredict(20) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	432
Total TN	202110
Total FP	217
Total FP CONTRA	42
Total FP INCONS	141
Total FP COMP	34
Total FN	577

Total Scores
MCC	0.547
Average MCC ± 95% Confidence Intervals	0.540 ± 0.098
Sensitivity	0.428
Positive Predictive Value	0.702
Nr of predictions	27

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.85	0.73	1.00	8	398	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.55	0.50	0.63	10	974	6	0	6	0	10
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4556	4	0	4	0	20
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.46	0.21	1.00	9	5142	0	0	0	0	33
3A2K_C	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	2	0	2	0	9
3AMU_B	tRNA links to Rfam database...	0.61	0.41	0.92	11	2991	1	0	1	0	16
3GX2_A	SAM links to Rfam database...	0.33	0.15	0.75	6	4363	2	0	2	0	34
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	0	1	0	11
3IZ4_A	tmRNA links to Rfam database...	0.53	0.43	0.65	57	70788	35	8	23	4	75
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.61	0.92	33	6867	3	1	2	0	21
3JYV_7	tRNA links to Rfam database...	0.77	0.63	0.95	20	2829	1	0	1	0	12
3JYX_3	5S_rRNA links to Rfam database...	0.61	0.56	0.68	15	6306	13	0	7	6	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.28	0.27	0.30	9	12216	33	5	16	12	24
3LA5_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2465	0	0	0	0	14
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7015	6	1	5	0	46
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.32	0.34	0.30	12	12363	28	12	16	0	23
3PDR_A	ykoK links to Rfam database...	0.67	0.49	0.92	35	12842	5	0	3	2	37
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.68	0.60	0.78	25	3884	7	1	6	0	17
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.18	0.20	6	11751	30	6	18	6	27
4A1C_3	5S_rRNA links to Rfam database...	0.48	0.33	0.69	18	7114	8	0	8	0	36
4AOB_A	SAM links to Rfam database...	0.28	0.14	0.55	6	4360	5	0	5	0	36
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.45	0.32	0.67	6	1317	3	0	3	0	13

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
