Overview

Metric	Murlet(seed)		MCFold
MCC	0.540	>	0.538
Average MCC ± 95% Confidence Intervals	0.546 ± 0.080	<	0.597 ± 0.133
Sensitivity	0.341	<	0.554
Positive Predictive Value	0.862	>	0.529
Total TP	237	<	385
Total TN	93132	>	92679
Total FP	43	<	393
Total FP CONTRA	4	<	45
Total FP INCONS	34	<	298
Total FP COMP	5	<	50
Total FN	458	>	310
P-value	0.523470400498

^top

Performance plots

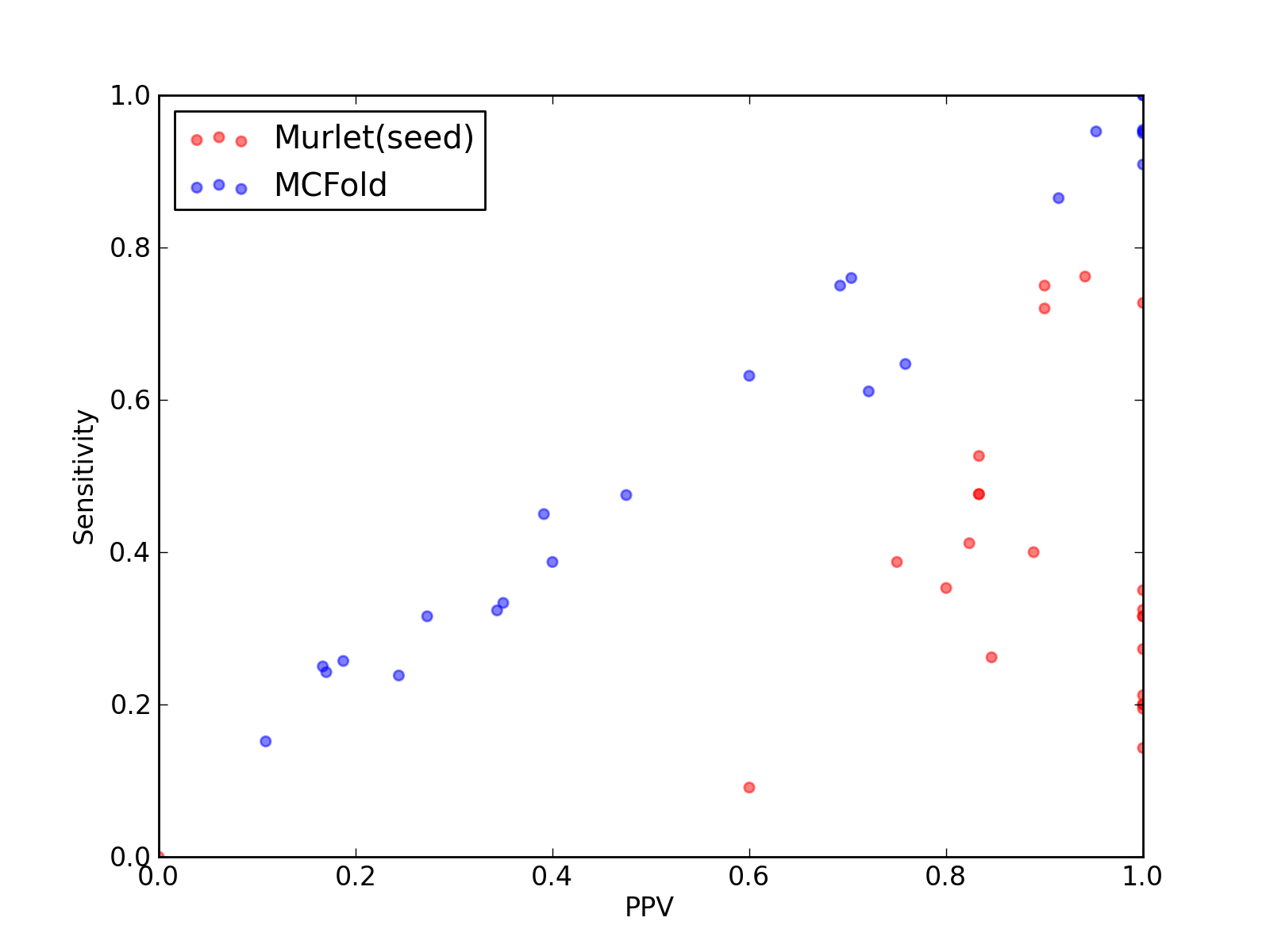

Comparison of performance of Murlet(seed) and MCFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Murlet(seed) and MCFold).

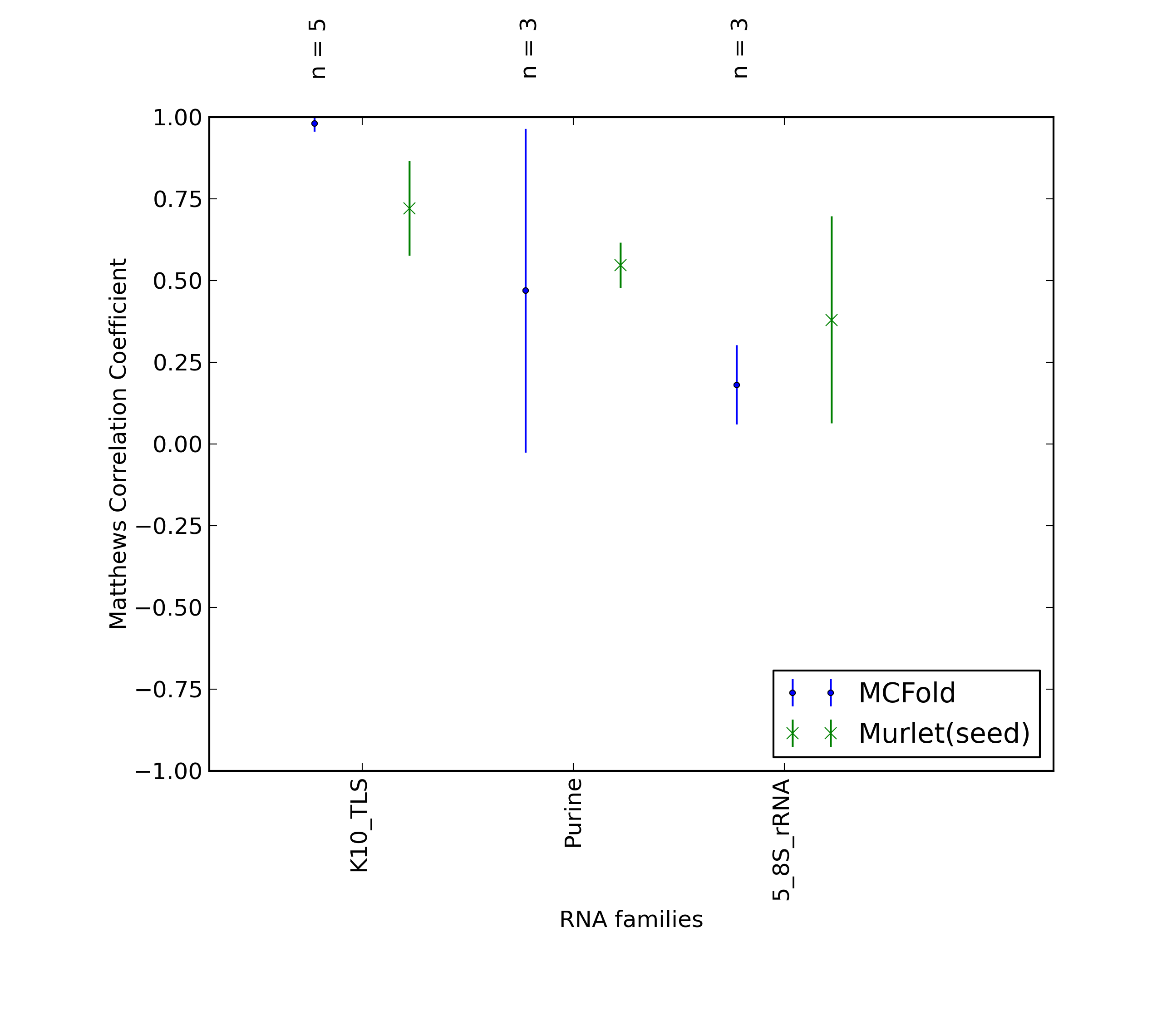

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Murlet(seed) and MCFold).

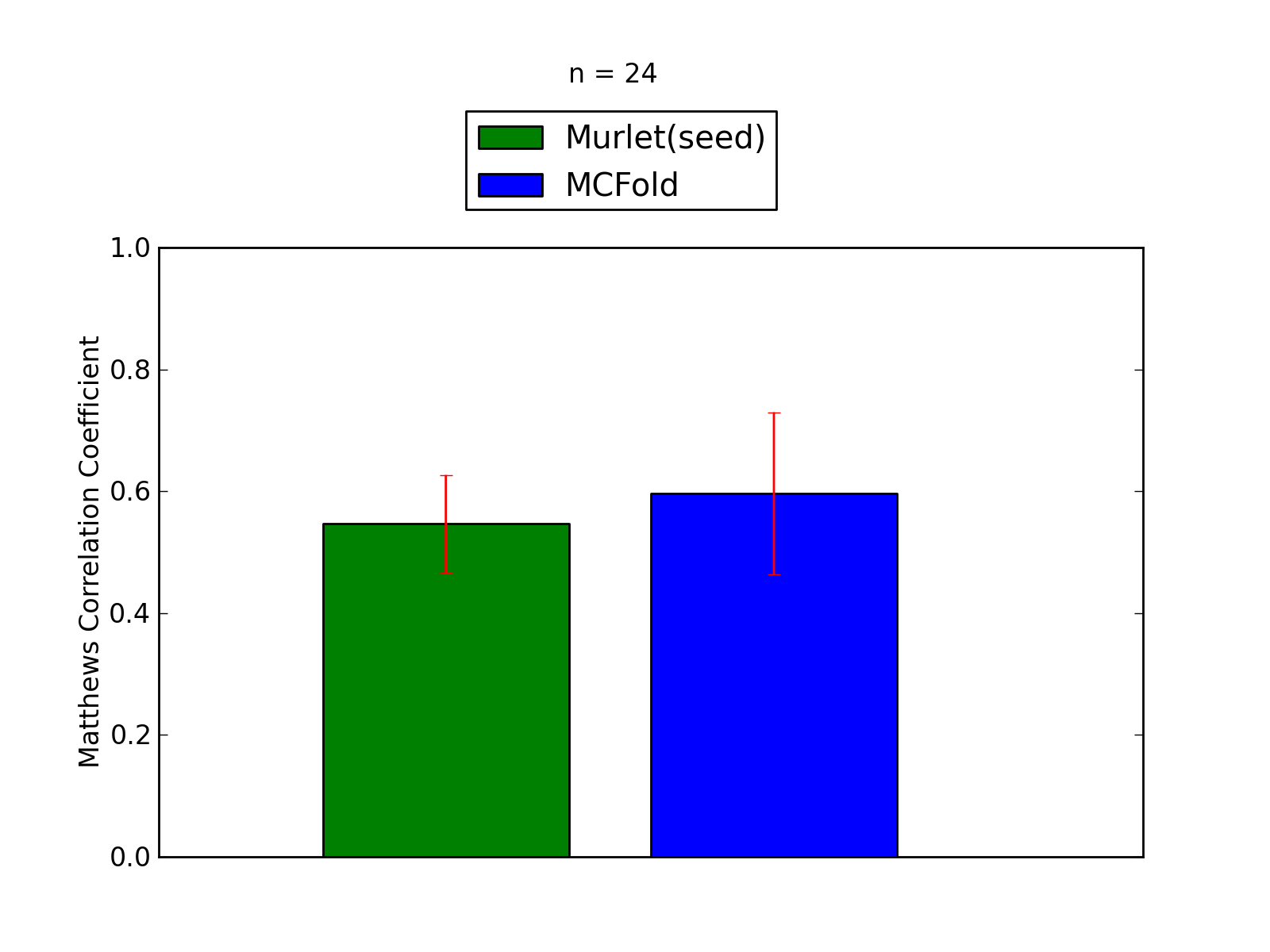

Comparison of average Matthews Correlation Coefficients (MCCs) for Murlet(seed) and MCFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Murlet(seed) and MCFold).

^top

Performance of Murlet(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	237
Total TN	93132
Total FP	43
Total FP CONTRA	4
Total FP INCONS	34
Total FP COMP	5
Total FN	458

Total Scores
MCC	0.540
Average MCC ± 95% Confidence Intervals	0.546 ± 0.080
Sensitivity	0.341
Positive Predictive Value	0.862
Nr of predictions	24

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.52	0.27	1.00	3	403	0	0	0	0	8
2KE6_A	K10_TLS links to Rfam database...	0.66	0.53	0.83	10	1116	2	0	2	0	9
2KUR_A	K10_TLS links to Rfam database...	0.63	0.48	0.83	10	1116	2	0	2	0	11
2KUU_A	K10_TLS links to Rfam database...	0.63	0.48	0.83	10	1116	2	0	2	0	11
2KUV_A	K10_TLS links to Rfam database...	0.85	0.73	1.00	16	1112	0	0	0	0	6
2KUW_A	K10_TLS links to Rfam database...	0.84	0.76	0.94	16	1111	1	0	1	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.82	0.75	0.90	18	2060	2	0	2	0	6
2L1F_B	Gammaretro_CES links to Rfam database...	0.80	0.72	0.90	18	2125	2	0	2	0	7
2L94_A	HIV_FE links to Rfam database...	0.59	0.40	0.89	8	981	1	0	1	0	12
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1528	12	0	12	0	20
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	4	4556	2	0	0	2	16
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.38	0.14	1.00	6	5145	0	0	0	0	36
3A3A_A	tRNA-Sec links to Rfam database...	0.57	0.32	1.00	12	3643	0	0	0	0	25
3GX2_A	SAM links to Rfam database...	0.59	0.35	1.00	14	4357	1	0	0	1	26
3IVN_B	Purine links to Rfam database...	0.53	0.39	0.75	12	2330	4	2	2	0	19
3JYX_4	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12241	4	0	2	2	30
3LA5_A	Purine links to Rfam database...	0.58	0.41	0.82	14	2468	3	1	2	0	20
3O58_3	5_8S_rRNA links to Rfam database...	0.45	0.20	1.00	7	12396	0	0	0	0	28
3PDR_A	ykoK links to Rfam database...	0.44	0.19	1.00	14	12866	0	0	0	0	58
3RKF_A	Purine links to Rfam database...	0.53	0.35	0.80	12	2196	3	1	2	0	22
3SD1_A	THF links to Rfam database...	0.47	0.26	0.85	11	3903	2	0	2	0	31
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	11774	0	0	0	0	26
4ENB_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1269	0	0	0	0	13
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13

^top

Performance of MCFold - scored lower in this pairwise comparison

1. Total counts & total scores for MCFold

Total Base Pair Counts
Total TP	385
Total TN	92679
Total FP	393
Total FP CONTRA	45
Total FP INCONS	298
Total FP COMP	50
Total FN	310

Total Scores
MCC	0.538
Average MCC ± 95% Confidence Intervals	0.597 ± 0.133
Sensitivity	0.554
Positive Predictive Value	0.529
Nr of predictions	24

^top

2. Individual counts for MCFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	1	0	0	1	1
2KE6_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	19	1109	2	0	0	2	0
2KUR_A	K10_TLS links to Rfam database...	1.00	1.00	1.00	21	1107	0	0	0	0	0
2KUU_A	K10_TLS links to Rfam database...	0.98	0.95	1.00	20	1108	1	0	0	1	1
2KUV_A	K10_TLS links to Rfam database...	0.98	0.95	1.00	21	1107	0	0	0	0	1
2KUW_A	K10_TLS links to Rfam database...	0.95	0.95	0.95	20	1107	1	0	1	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.72	0.75	0.69	18	2054	9	0	8	1	6
2L1F_B	Gammaretro_CES links to Rfam database...	0.73	0.76	0.70	19	2118	9	0	8	1	6
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.45	0.39	9	1517	16	0	14	2	11
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.20	0.25	0.17	5	4530	37	2	23	12	15
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.23	0.24	0.24	10	5110	32	1	30	1	32
3A3A_A	tRNA-Sec links to Rfam database...	0.89	0.86	0.91	32	3620	3	1	2	0	5
3GX2_A	SAM links to Rfam database...	0.47	0.48	0.48	19	4331	22	0	21	1	21
3IVN_B	Purine links to Rfam database...	0.39	0.39	0.40	12	2316	18	0	18	0	19
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.24	0.17	8	12199	43	16	23	4	25
3LA5_A	Purine links to Rfam database...	0.32	0.32	0.34	11	2453	21	1	20	0	23
3O58_3	5_8S_rRNA links to Rfam database...	0.22	0.26	0.19	9	12355	45	9	30	6	26
3PDR_A	ykoK links to Rfam database...	0.66	0.61	0.72	44	12819	19	0	17	2	28
3RKF_A	Purine links to Rfam database...	0.70	0.65	0.76	22	2182	7	1	6	0	12
3SD1_A	THF links to Rfam database...	0.33	0.33	0.35	14	3876	26	0	26	0	28
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.11	5	11735	56	10	31	15	28
4ENB_A	crcB links to Rfam database...	0.61	0.63	0.60	12	1255	8	2	6	0	7
4ENC_A	crcB links to Rfam database...	0.28	0.32	0.27	6	1304	17	2	14	1	13

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
