Overview

Metric	RDfolder		RSpredict(seed)
MCC	0.556	>	0.440
Average MCC ± 95% Confidence Intervals	0.572 ± 0.124	>	0.374 ± 0.127
Sensitivity	0.462	>	0.265
Positive Predictive Value	0.678	<	0.742
Total TP	377	>	216
Total TN	72474	<	72739
Total FP	191	>	80
Total FP CONTRA	20	>	4
Total FP INCONS	159	>	71
Total FP COMP	12	>	5
Total FN	439	<	600
P-value	5.23657817852e-08

^top

Performance plots

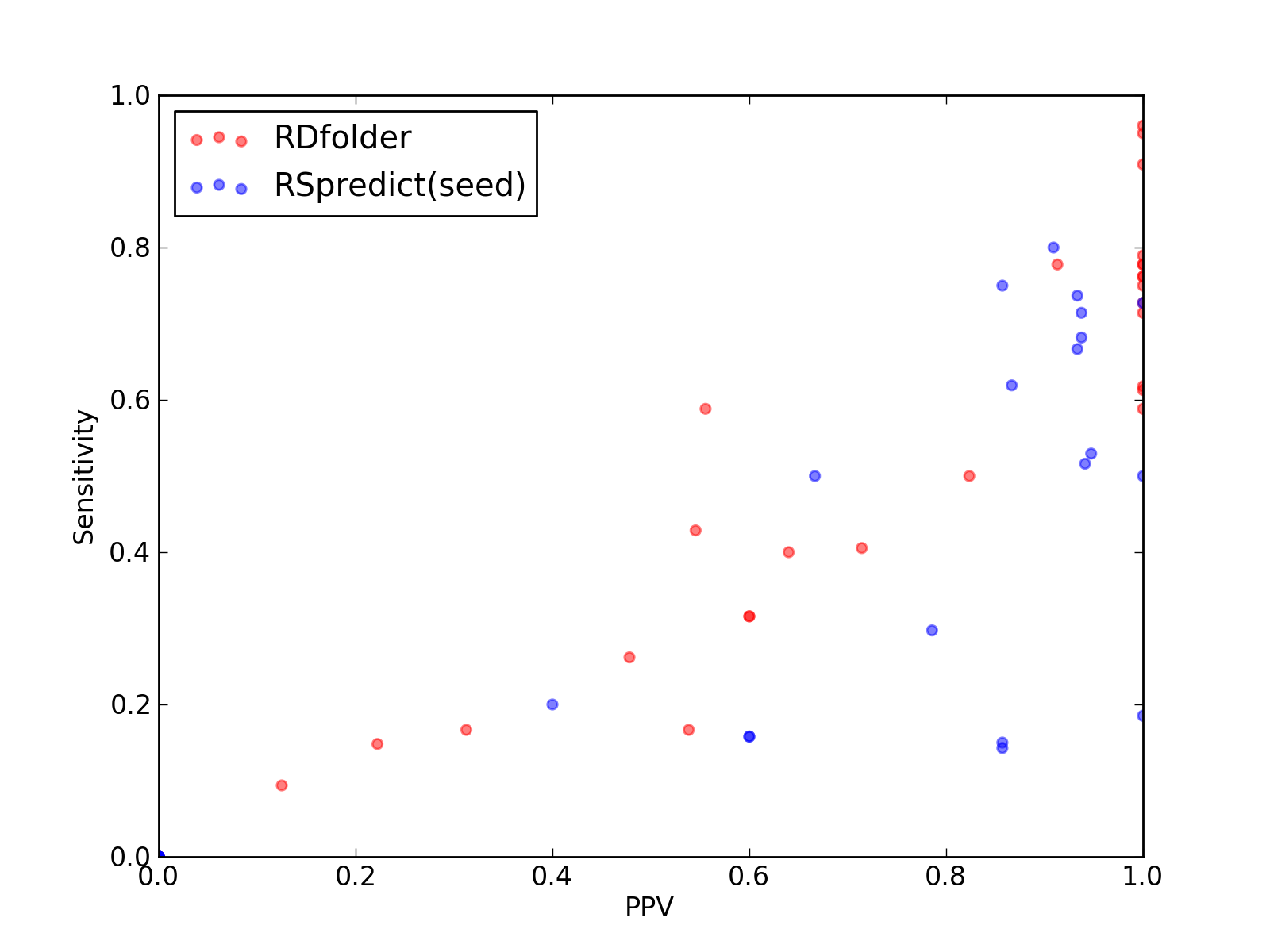

Comparison of performance of RDfolder and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RDfolder and RSpredict(seed)).

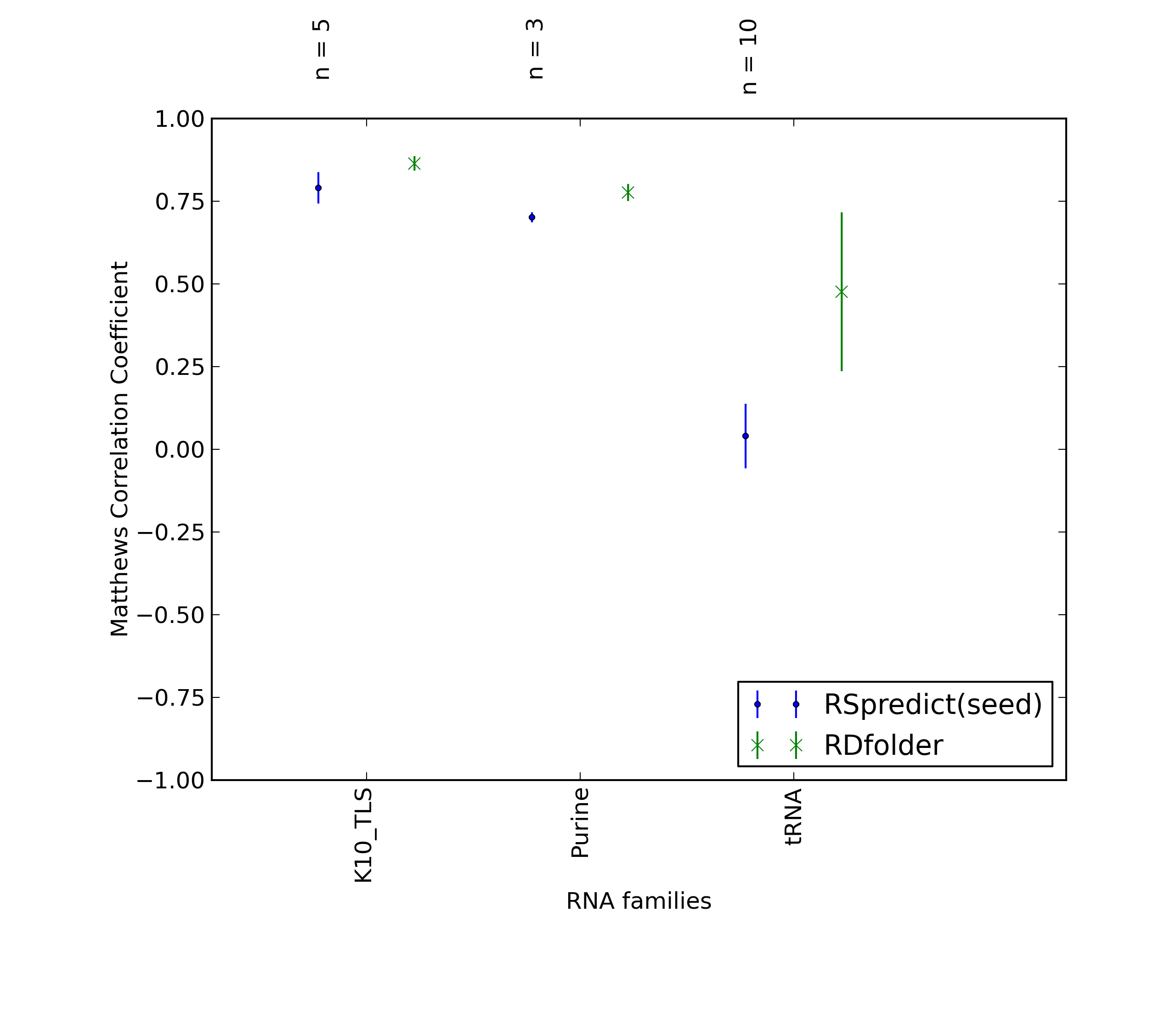

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RDfolder and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RDfolder and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RDfolder and RSpredict(seed)).

^top

Performance of RDfolder - scored higher in this pairwise comparison

1. Total counts & total scores for RDfolder

Total Base Pair Counts
Total TP	377
Total TN	72474
Total FP	191
Total FP CONTRA	20
Total FP INCONS	159
Total FP COMP	12
Total FN	439

Total Scores
MCC	0.556
Average MCC ± 95% Confidence Intervals	0.572 ± 0.124
Sensitivity	0.462
Positive Predictive Value	0.678
Nr of predictions	31

^top

2. Individual counts for RDfolder [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.89	0.79	1.00	15	1113	1	0	0	1	4
2KUR_A	K10_TLS links to Rfam database...	0.87	0.76	1.00	16	1112	0	0	0	0	5
2KUU_A	K10_TLS links to Rfam database...	0.84	0.71	1.00	15	1113	1	0	0	1	6
2KUV_A	K10_TLS links to Rfam database...	0.85	0.73	1.00	16	1112	0	0	0	0	6
2KUW_A	K10_TLS links to Rfam database...	0.87	0.76	1.00	16	1112	0	0	0	0	5
2KX8_A	7SK links to Rfam database...	0.88	0.78	1.00	14	847	0	0	0	0	4
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	-0.01	0.00	0.00	0	2067	13	2	11	0	24
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1526	14	2	12	0	20
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WWQ_V	tRNA links to Rfam database...	0.64	0.50	0.82	14	2909	4	0	3	1	14
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4538	22	5	17	0	20
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2ZZM_B	tRNA links to Rfam database...	0.10	0.09	0.13	3	3462	21	1	20	0	29
2ZZN_D	tRNA links to Rfam database...	0.84	0.78	0.91	21	2462	2	0	2	0	6
3A2K_C	tRNA links to Rfam database...	0.86	0.75	1.00	21	2905	0	0	0	0	7
3A3A_A	tRNA-Sec links to Rfam database...	0.53	0.41	0.71	15	3634	6	0	6	0	22
3AKZ_H	tRNA links to Rfam database...	0.48	0.43	0.55	12	2679	11	1	9	1	16
3AMU_B	tRNA links to Rfam database...	0.18	0.15	0.22	4	2985	16	2	12	2	23
3GX2_A	SAM links to Rfam database...	0.50	0.40	0.64	16	4346	10	1	8	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3J16_L	tRNA links to Rfam database...	0.22	0.17	0.31	5	2759	11	0	11	0	25
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2830	20	0	20	0	32
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.30	0.17	0.54	7	3903	6	0	6	0	35
4AOB_A	SAM links to Rfam database...	0.35	0.26	0.48	11	4348	13	1	11	1	31
4ENB_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1265	4	0	4	0	13
4ENC_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1316	4	0	4	0	13

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	216
Total TN	72739
Total FP	80
Total FP CONTRA	4
Total FP INCONS	71
Total FP COMP	5
Total FN	600

Total Scores
MCC	0.440
Average MCC ± 95% Confidence Intervals	0.374 ± 0.127
Sensitivity	0.265
Positive Predictive Value	0.742
Nr of predictions	31

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.85	0.73	1.00	8	398	0	0	0	0	3
2KE6_A	K10_TLS links to Rfam database...	0.83	0.74	0.93	14	1113	2	0	1	1	5
2KUR_A	K10_TLS links to Rfam database...	0.82	0.71	0.94	15	1112	1	0	1	0	6
2KUU_A	K10_TLS links to Rfam database...	0.79	0.67	0.93	14	1113	2	0	1	1	7
2KUV_A	K10_TLS links to Rfam database...	0.80	0.68	0.94	15	1112	1	0	1	0	7
2KUW_A	K10_TLS links to Rfam database...	0.73	0.62	0.87	13	1113	2	0	2	0	8
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	860	1	0	1	0	18
2L1F_B	Gammaretro_CES links to Rfam database...	0.85	0.80	0.91	20	2123	2	0	2	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.80	0.75	0.86	18	2059	3	0	3	0	6
2L94_A	HIV_FE links to Rfam database...	0.57	0.50	0.67	10	975	5	0	5	0	10
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2848	3	1	1	1	17
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	2920	6	1	5	0	28
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.28	0.20	0.40	4	4550	8	2	4	2	16
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2845	5	0	5	0	27
2ZZM_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3482	4	0	4	0	32
2ZZN_D	tRNA links to Rfam database...	0.43	0.19	1.00	5	2480	0	0	0	0	22
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2924	2	0	2	0	28
3A3A_A	tRNA-Sec links to Rfam database...	0.48	0.30	0.79	11	3641	3	0	3	0	26
3AKZ_H	tRNA links to Rfam database...	0.00	0.00	0.00	0	2699	2	0	2	0	28
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3001	2	0	2	0	27
3GX2_A	SAM links to Rfam database...	0.36	0.15	0.86	6	4364	1	0	1	0	34
3IVN_B	Purine links to Rfam database...	0.69	0.52	0.94	16	2329	1	0	1	0	15
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2774	1	0	1	0	30
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	32
3LA5_A	Purine links to Rfam database...	0.70	0.50	1.00	17	2468	0	0	0	0	17
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
4AOB_A	SAM links to Rfam database...	0.35	0.14	0.86	6	4364	1	0	1	0	36
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
