Overview

Metric	RNAalifold(20)		CentroidFold
MCC	0.642	>	0.597
Average MCC ± 95% Confidence Intervals	0.635 ± 0.073	>	0.605 ± 0.088
Sensitivity	0.492	<	0.506
Positive Predictive Value	0.842	>	0.707
Total TP	491	<	505
Total TN	201736	>	201605
Total FP	128	<	255
Total FP CONTRA	20	<	37
Total FP INCONS	72	<	172
Total FP COMP	36	<	46
Total FN	507	>	493
P-value	5.1503931209e-08

^top

Performance plots

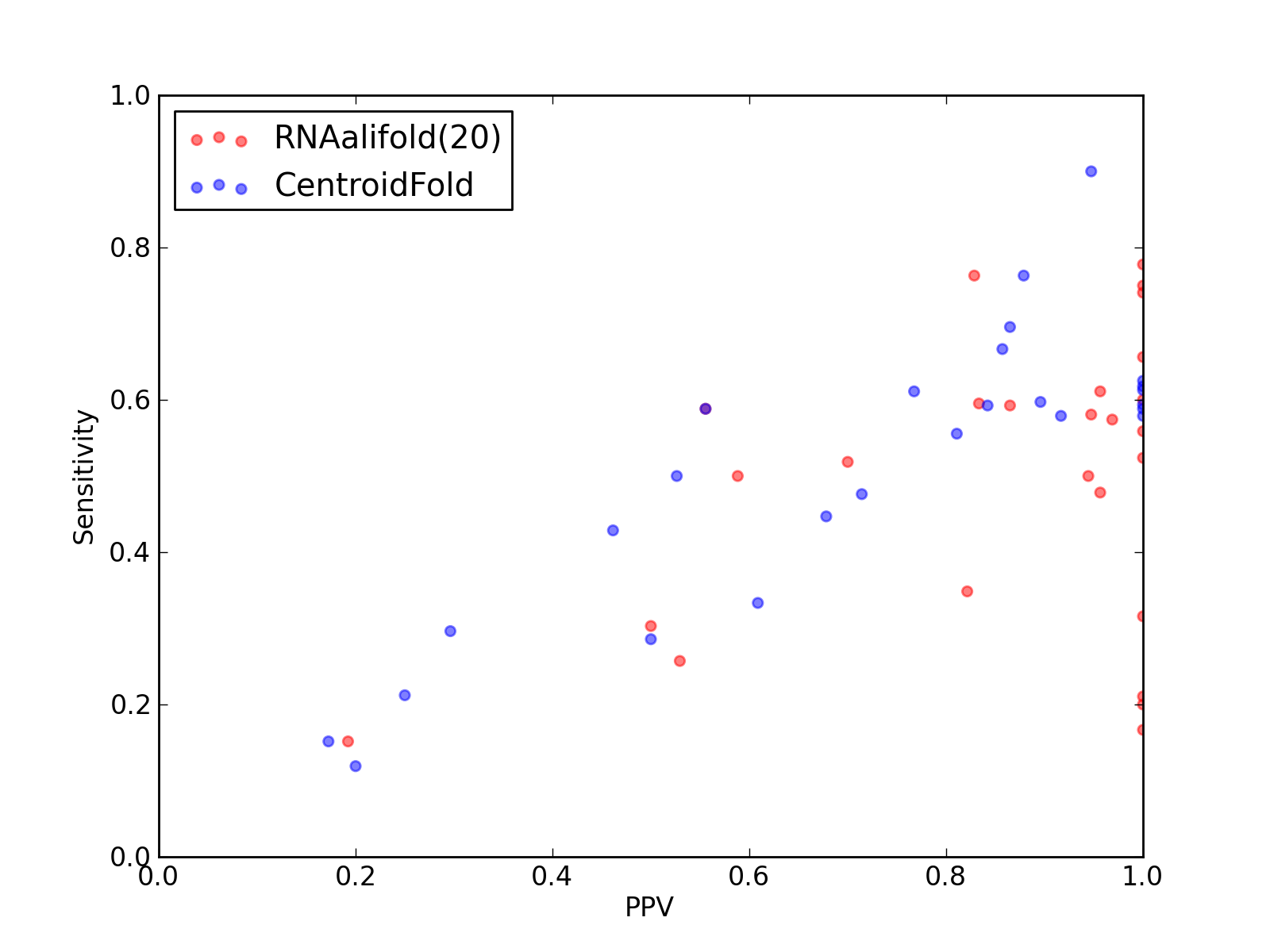

Comparison of performance of RNAalifold(20) and CentroidFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(20) and CentroidFold).

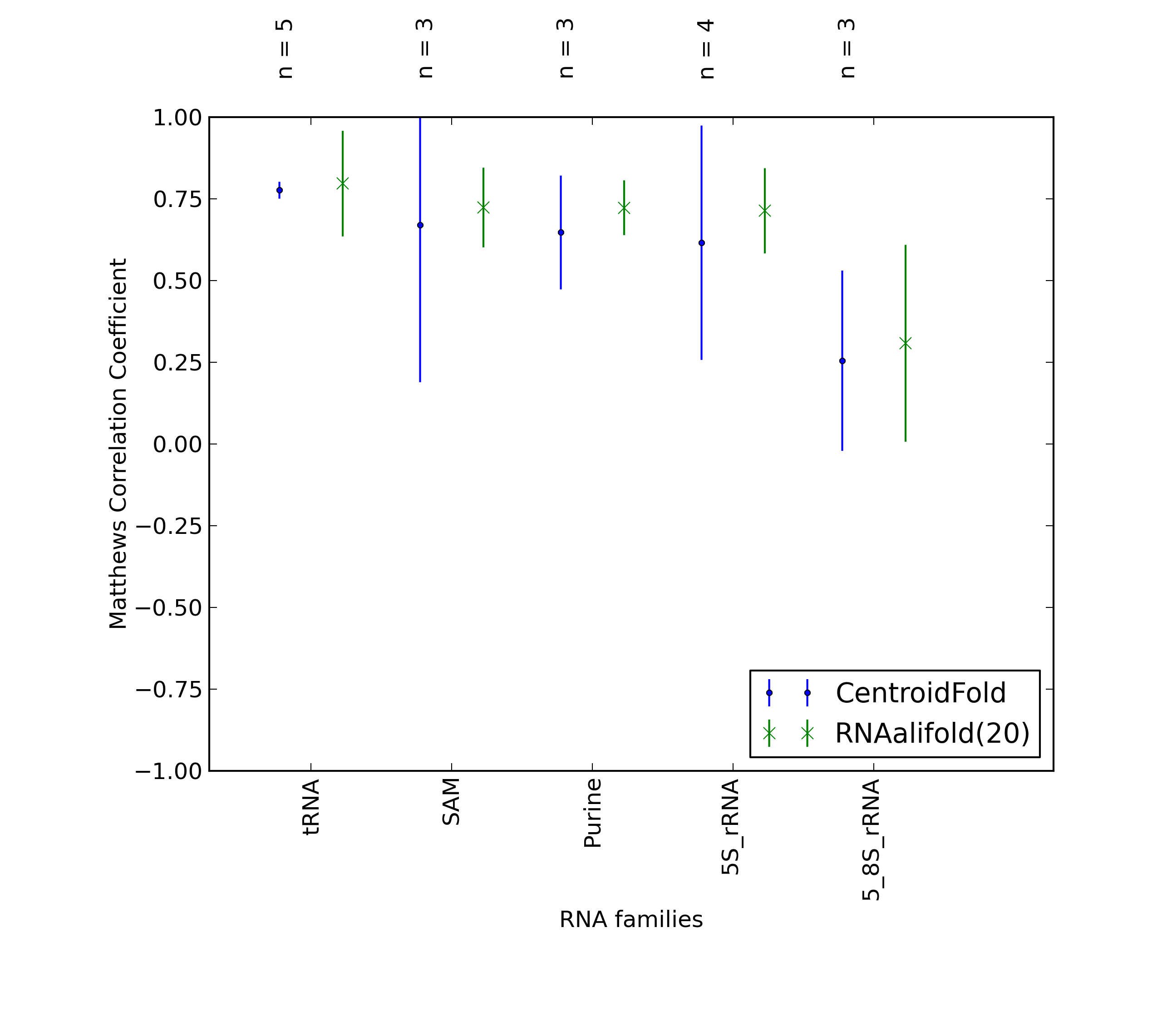

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(20) and CentroidFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and CentroidFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(20) and CentroidFold).

^top

Performance of RNAalifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(20)

Total Base Pair Counts
Total TP	491
Total TN	201736
Total FP	128
Total FP CONTRA	20
Total FP INCONS	72
Total FP COMP	36
Total FN	507

Total Scores
MCC	0.642
Average MCC ± 95% Confidence Intervals	0.635 ± 0.073
Sensitivity	0.492
Positive Predictive Value	0.842
Nr of predictions	26

^top

2. Individual counts for RNAalifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.59	10	973	7	0	7	0	10
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	4	4556	3	0	0	3	16
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	7	5144	0	0	0	0	35
3A2K_C	tRNA links to Rfam database...	0.86	0.75	1.00	21	2905	0	0	0	0	7
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	1	0	0	1	7
3GX2_A	SAM links to Rfam database...	0.77	0.60	1.00	24	4347	1	0	0	1	16
3IVN_B	Purine links to Rfam database...	0.74	0.58	0.95	18	2327	1	1	0	0	13
3IZ4_A	tmRNA links to Rfam database...	0.53	0.35	0.82	46	70820	15	4	6	5	86
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.59	0.86	32	6866	5	1	4	0	22
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.52	0.70	14	6308	17	0	6	11	13
3JYX_4	5_8S_rRNA links to Rfam database...	0.39	0.30	0.50	10	12226	15	0	10	5	23
3LA5_A	Purine links to Rfam database...	0.75	0.56	1.00	19	2466	0	0	0	0	15
3NPB_A	SAM links to Rfam database...	0.68	0.48	0.96	22	6998	3	1	0	2	24
3O58_2	5S_rRNA links to Rfam database...	0.79	0.76	0.83	29	7225	7	3	3	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.37	0.26	0.53	9	12386	8	2	6	0	26
3PDR_A	ykoK links to Rfam database...	0.76	0.61	0.96	44	12834	3	0	2	1	28
3RKF_A	Purine links to Rfam database...	0.68	0.50	0.94	17	2193	1	0	1	0	17
3SD1_A	THF links to Rfam database...	0.70	0.60	0.83	25	3886	5	1	4	0	17
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	11755	23	2	19	2	28
4A1C_3	5S_rRNA links to Rfam database...	0.74	0.57	0.97	31	7108	1	0	1	0	23
4AOB_A	SAM links to Rfam database...	0.72	0.52	1.00	22	4349	1	0	0	1	20
4ENB_A	crcB links to Rfam database...	0.46	0.21	1.00	4	1271	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13

^top

Performance of CentroidFold - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	505
Total TN	201605
Total FP	255
Total FP CONTRA	37
Total FP INCONS	172
Total FP COMP	46
Total FN	493

Total Scores
MCC	0.597
Average MCC ± 95% Confidence Intervals	0.605 ± 0.088
Sensitivity	0.506
Positive Predictive Value	0.707
Nr of predictions	26

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	25	0	9	16	10
2XQD_Y	tRNA links to Rfam database...	0.75	0.67	0.86	18	2829	3	0	3	0	9
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.15	0.12	0.20	5	5126	20	1	19	0	37
3A2K_C	tRNA links to Rfam database...	0.44	0.43	0.46	12	2900	14	2	12	0	16
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3GX2_A	SAM links to Rfam database...	0.79	0.63	1.00	25	4346	1	0	0	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.55	0.45	0.68	59	70789	33	4	24	5	73
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.61	0.77	33	6860	10	1	9	0	21
3JYV_7	tRNA links to Rfam database...	0.77	0.59	1.00	19	2831	0	0	0	0	13
3JYX_3	5S_rRNA links to Rfam database...	0.29	0.30	0.30	8	6301	20	8	11	1	19
3JYX_4	5_8S_rRNA links to Rfam database...	0.23	0.21	0.25	7	12218	25	5	16	4	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.77	0.70	0.86	32	6984	7	1	4	2	14
3O58_2	5S_rRNA links to Rfam database...	0.82	0.76	0.88	29	7227	7	1	3	3	9
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.29	0.50	10	12383	10	0	10	0	25
3PDR_A	ykoK links to Rfam database...	0.73	0.60	0.90	43	12832	7	0	5	2	29
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11752	29	5	19	5	28
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.56	0.81	30	7103	7	1	6	0	24
4AOB_A	SAM links to Rfam database...	0.45	0.33	0.61	14	4348	10	1	8	1	28
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
