CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	RNAwolf		RSpredict(seed)
MCC	0.414	>	0.193
Average MCC ± 95% Confidence Intervals	0.434 ± 0.143	>	0.149 ± 0.159
Sensitivity	0.375	>	0.084
Positive Predictive Value	0.467	>	0.455
Total TP	134	>	30
Total TN	42621	<	42842
Total FP	167	>	37
Total FP CONTRA	16	>	2
Total FP INCONS	137	>	34
Total FP COMP	14	>	1
Total FN	223	<	327
P-value	1.27752322258e-08

Comparison of performance of RNAwolf and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAwolf and RSpredict(seed)).

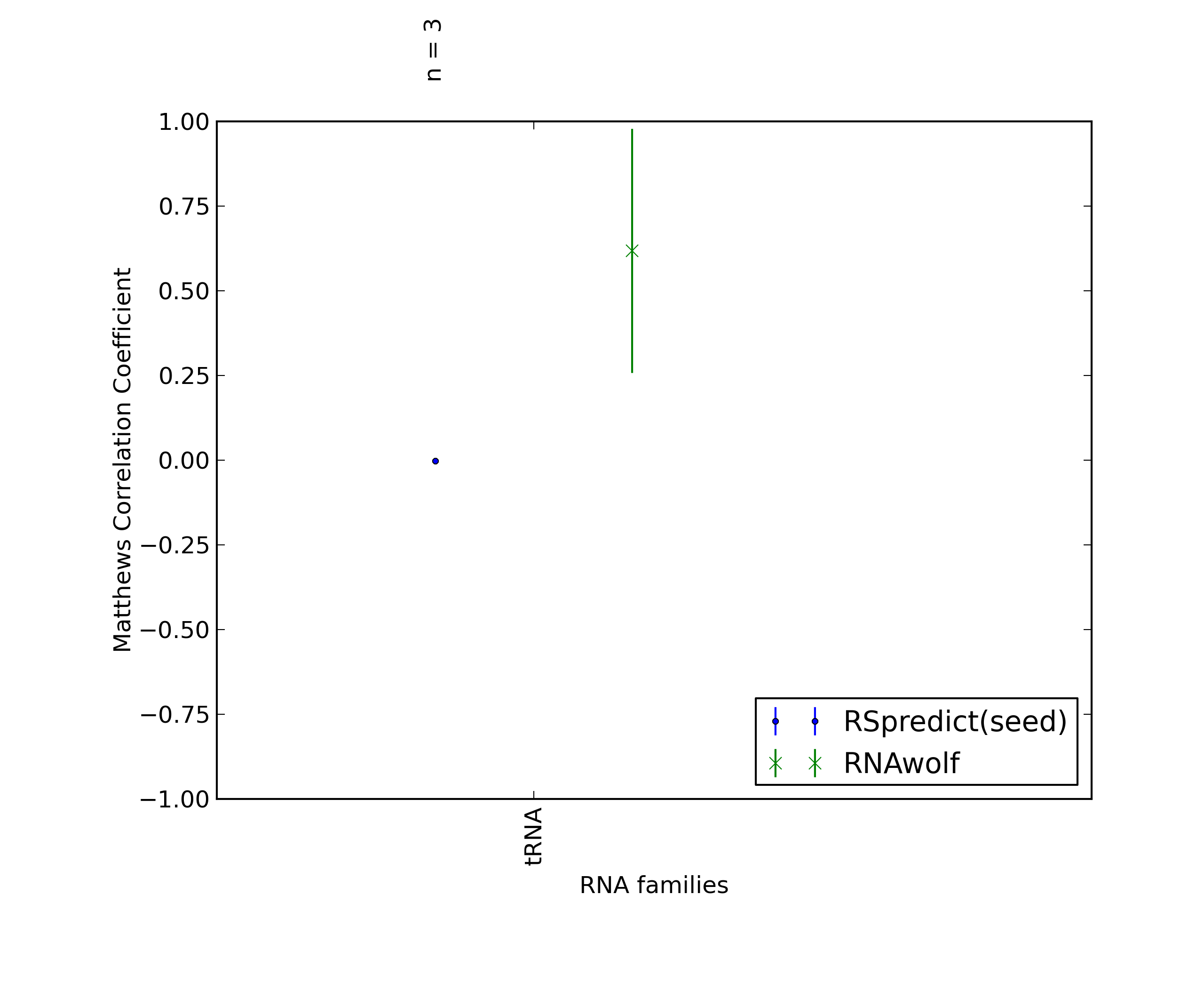

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAwolf and RSpredict(seed)).

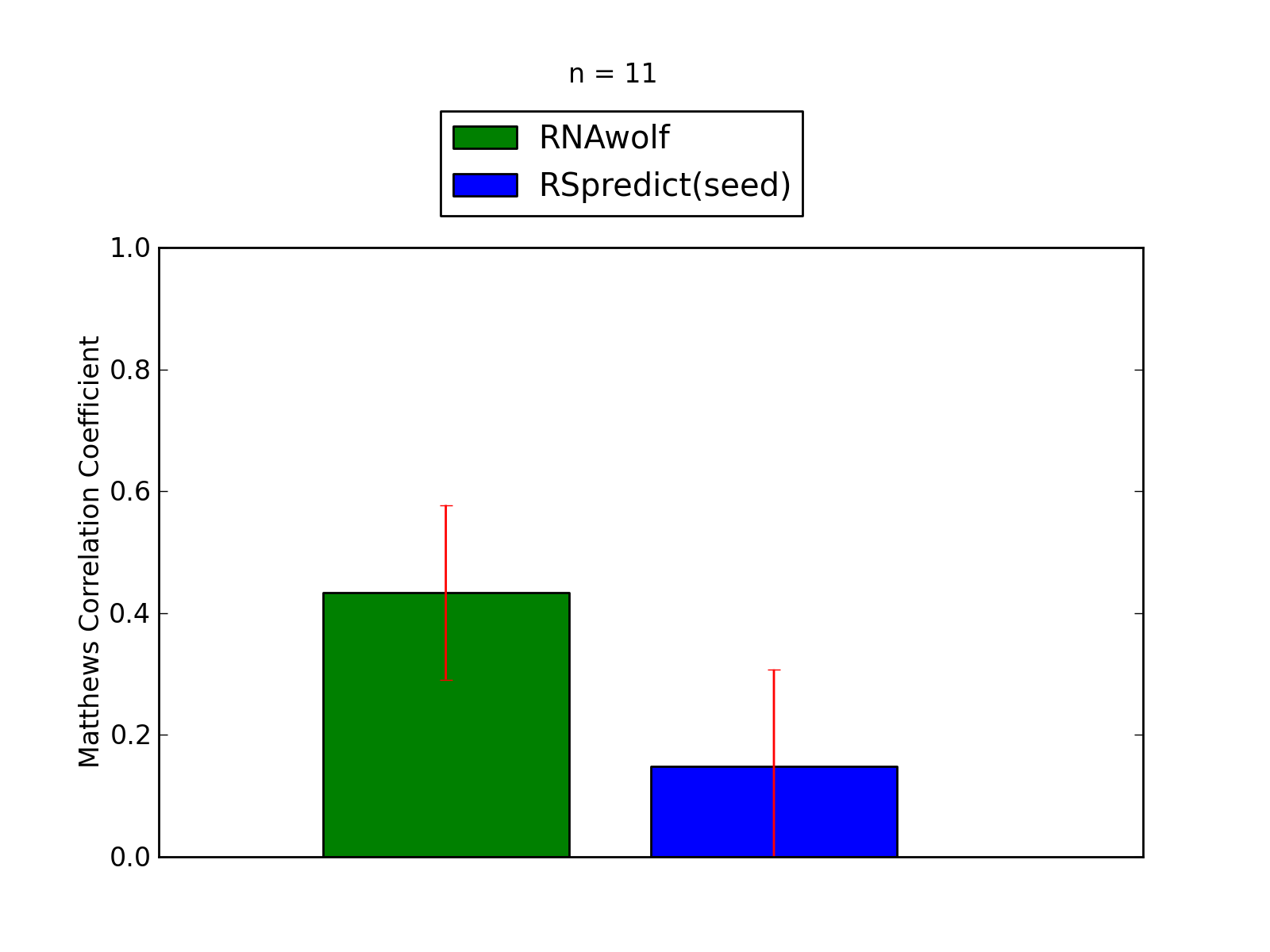

Comparison of average Matthews Correlation Coefficients (MCCs) for RNAwolf and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAwolf and RSpredict(seed)).

Total Scores
MCC	0.414
Average MCC ± 95% Confidence Intervals	0.434 ± 0.143
Sensitivity	0.375
Positive Predictive Value	0.467
Nr of predictions	11

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.52	0.50	0.56	10	1522	8	0	8	0	10
3AMU_B	tRNA links to Rfam database...	0.68	0.63	0.74	17	2980	9	0	6	3	10
3J16_L	tRNA links to Rfam database...	0.45	0.40	0.52	12	2752	11	0	11	0	18
3RKF_A	Purine links to Rfam database...	0.72	0.62	0.84	21	2186	4	0	4	0	13
3SD1_A	THF links to Rfam database...	0.46	0.43	0.50	18	3880	18	0	18	0	24
3UZL_B	tRNA links to Rfam database...	0.72	0.59	0.88	22	3545	4	1	2	1	15
4A1C_3	5S_rRNA links to Rfam database...	0.23	0.20	0.28	11	7101	28	2	26	0	43
4A1C_2	5_8S_rRNA links to Rfam database...	0.08	0.09	0.08	3	11741	46	10	27	9	30
4AOB_A	SAM links to Rfam database...	0.23	0.19	0.30	8	4344	20	1	18	1	34
4ENB_A	crcB links to Rfam database...	0.35	0.32	0.40	6	1260	9	1	8	0	13
4ENC_A	crcB links to Rfam database...	0.34	0.32	0.38	6	1310	10	1	9	0	13

Total Scores
MCC	0.193
Average MCC ± 95% Confidence Intervals	0.149 ± 0.159
Sensitivity	0.084
Positive Predictive Value	0.455
Nr of predictions	11

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3001	2	0	2	0	27
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2774	1	0	1	0	30
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3564	6	0	6	0	37
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7136	4	1	3	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11777	5	1	3	1	33
4AOB_A	SAM links to Rfam database...	0.35	0.14	0.86	6	4364	1	0	1	0	36
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
