Metric	Afold		Vsfold4
MCC	0.564	>	0.554
Average MCC ± 95% Confidence Intervals	0.572 ± 0.153	<	0.622 ± 0.155
Sensitivity	0.604	>	0.557
Positive Predictive Value	0.533	<	0.558
Total TP	331	>	305
Total TN	73151	<	73225
Total FP	350	>	283
Total FP CONTRA	106	>	77
Total FP INCONS	184	>	165
Total FP COMP	60	>	41
Total FN	217	<	243
P-value	1.35125075749e-05

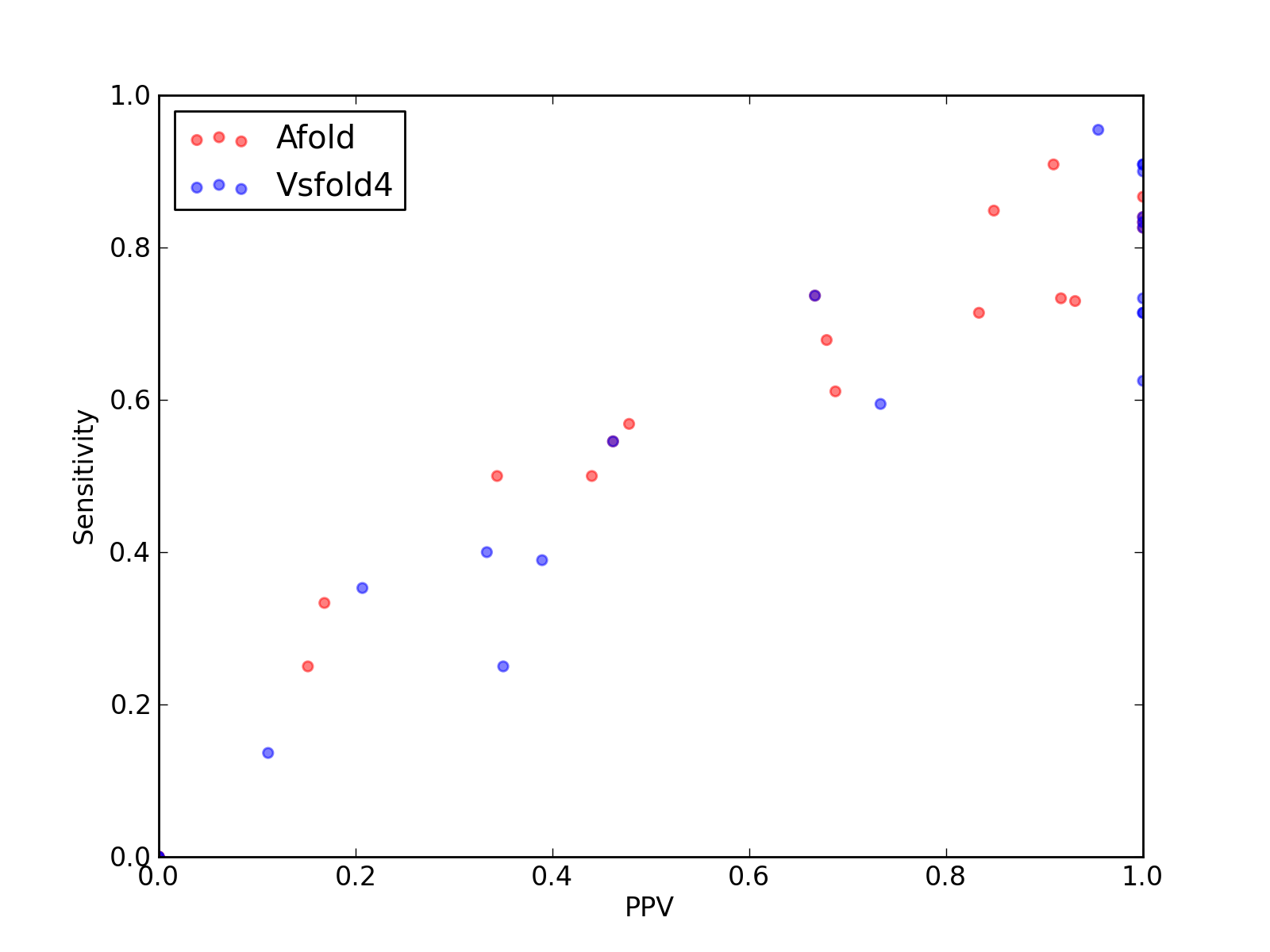

Comparison of performance of Afold and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Afold and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Afold and Vsfold4).
Comparison of average Matthews Correlation Coefficients (MCCs) for Afold and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Afold and Vsfold4).

Total Scores
MCC	0.564
Average MCC ± 95% Confidence Intervals	0.572 ± 0.153
Sensitivity	0.604
Positive Predictive Value	0.533
Nr of predictions	21

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	-0.03	0.00	0.00	0	228	8	1	7	0	8
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	6	0	5	1	7
2RP0_A	-	0.76	0.71	0.83	5	110	1	0	1	0	2
2ZZN_D	tRNA links to Rfam database...	0.91	0.91	0.91	20	962	3	2	0	1	2
3A2K_C	tRNA links to Rfam database...	0.46	0.50	0.44	11	1083	14	3	11	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.93	0.87	1.00	26	1474	0	0	0	0	4
3ADB_C	-	0.85	0.85	0.85	28	1786	6	0	5	1	5
3GCA_A	-	-0.04	0.00	0.00	0	151	9	1	6	2	7
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.67	0.68	0.68	19	1444	9	1	8	0	9
3IYQ_A	tmRNA links to Rfam database...	0.23	0.33	0.17	17	22339	97	47	37	13	34
3IZ4_A	tmRNA links to Rfam database...	0.52	0.57	0.48	54	25423	63	27	32	4	41
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1088	23	4	19	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NPB_A	SAM links to Rfam database...	0.82	0.73	0.93	27	2249	6	0	2	4	10
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	38	6	15	17	11
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	43	11	17	15	15
4ENB_A	crcB links to Rfam database...	0.81	0.73	0.92	11	460	3	0	1	2	4

Total Scores
MCC	0.554
Average MCC ± 95% Confidence Intervals	0.622 ± 0.155
Sensitivity	0.557
Positive Predictive Value	0.558
Nr of predictions	21

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	0.79	0.63	1.00	5	231	0	0	0	0	3
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	515	13	0	13	0	18
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2ZZN_D	tRNA links to Rfam database...	0.95	0.95	0.95	21	962	1	1	0	0	1
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3A3A_A	tRNA-Sec links to Rfam database...	0.95	0.90	1.00	27	1473	0	0	0	0	3
3ADB_C	-	0.95	0.91	1.00	30	1789	0	0	0	0	3
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.28	0.25	0.35	7	1452	13	2	11	0	21
3IYQ_A	tmRNA links to Rfam database...	0.27	0.35	0.21	18	22353	80	40	29	11	33
3IZ4_A	tmRNA links to Rfam database...	0.39	0.39	0.39	37	25441	63	15	43	5	58
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1092	19	4	15	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NPB_A	SAM links to Rfam database...	0.66	0.59	0.73	22	2248	10	0	8	2	15
3O58_3	5_8S_rRNA links to Rfam database...	0.12	0.14	0.11	3	4737	35	8	16	11	19
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
4A1C_2	5_8S_rRNA links to Rfam database...	0.36	0.40	0.33	8	4492	28	4	12	12	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
