CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	RNAalifold(seed)		RDfolder
MCC	0.698	>	0.586
Average MCC ± 95% Confidence Intervals	0.664 ± 0.184	>	0.561 ± 0.213
Sensitivity	0.585	>	0.513
Positive Predictive Value	0.847	>	0.688
Total TP	138	>	121
Total TN	9975	>	9962
Total FP	28	<	57
Total FP CONTRA	6	<	9
Total FP INCONS	19	<	46
Total FP COMP	3	>	2
Total FN	98	<	115
P-value	1.69265863073e-08

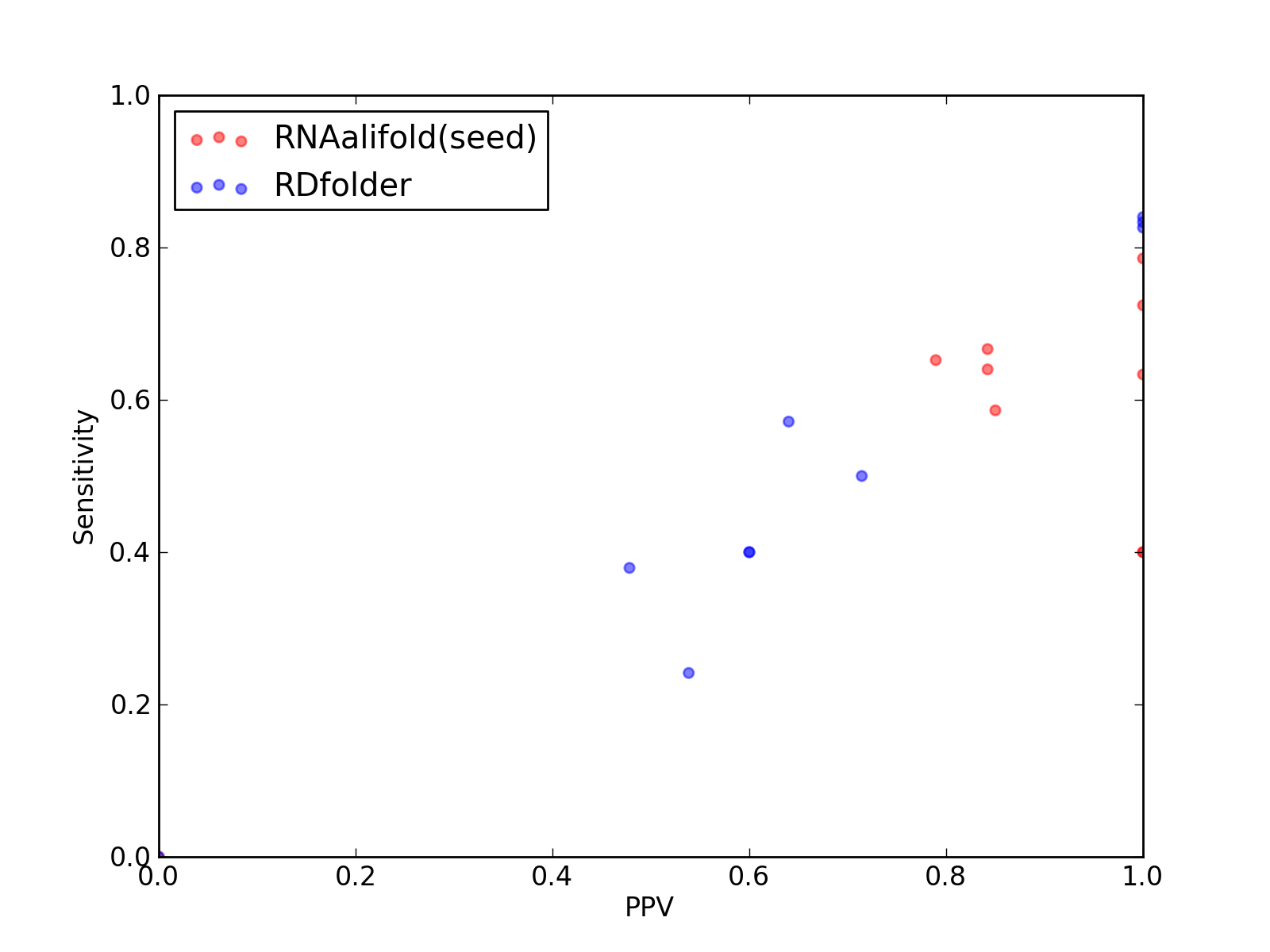

Comparison of performance of RNAalifold(seed) and RDfolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and RDfolder).

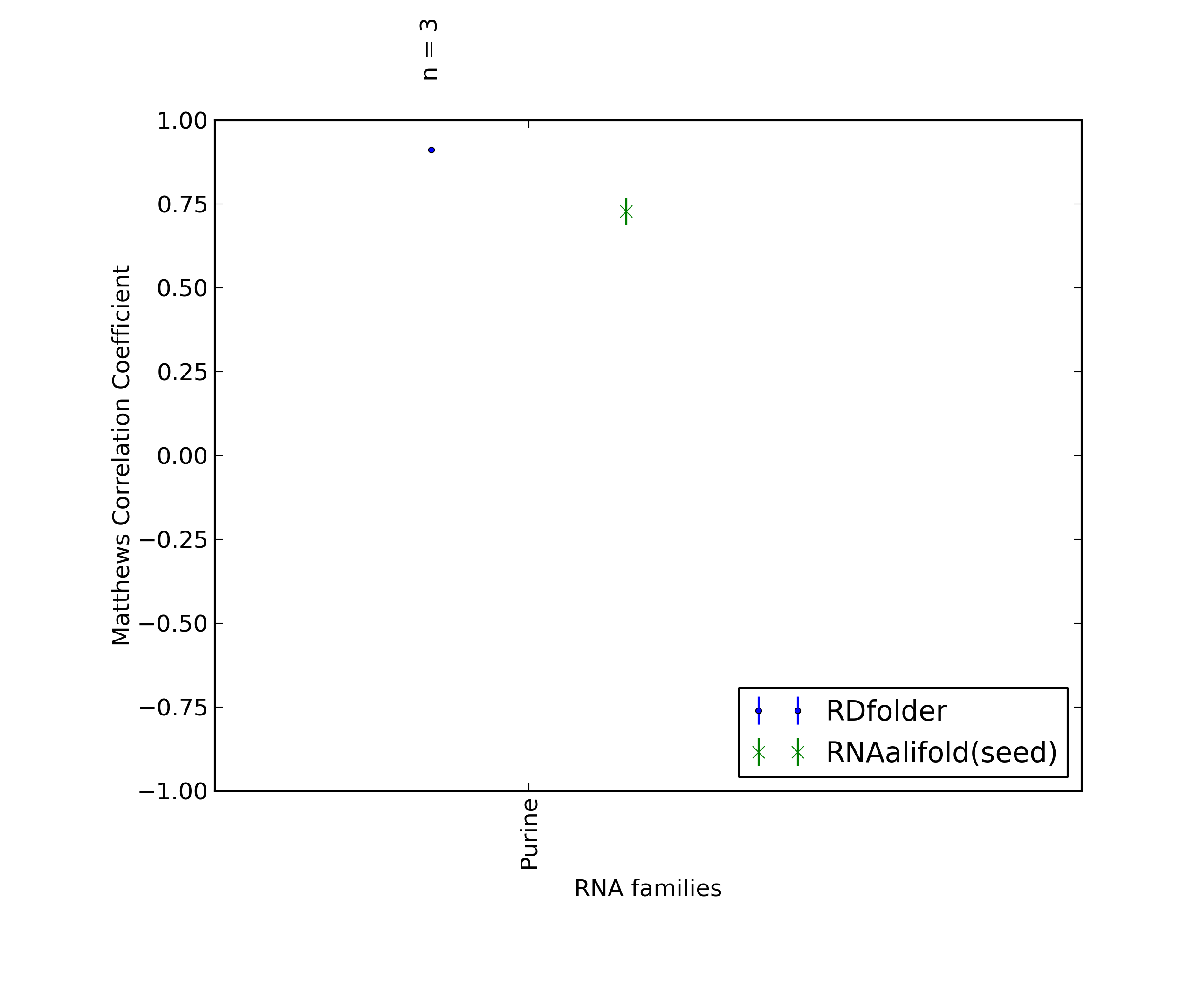

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and RDfolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and RDfolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and RDfolder).

Total Scores
MCC	0.698
Average MCC ± 95% Confidence Intervals	0.664 ± 0.184
Sensitivity	0.585
Positive Predictive Value	0.847
Nr of predictions	10

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	516	12	0	12	0	18
3A3A_A	tRNA-Sec links to Rfam database...	0.79	0.63	1.00	19	1481	0	0	0	0	11
3GX2_A	SAM links to Rfam database...	0.88	0.79	1.00	22	1427	1	0	0	1	6
3IVN_B	Purine links to Rfam database...	0.71	0.65	0.79	15	884	4	2	2	0	8
3LA5_A	Purine links to Rfam database...	0.73	0.64	0.84	16	935	3	1	2	0	9
3RKF_A	Purine links to Rfam database...	0.74	0.67	0.84	16	847	3	1	2	0	8
3SD1_A	THF links to Rfam database...	0.70	0.59	0.85	17	1513	3	2	1	0	12
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	2	0	0	2	8
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9

Total Scores
MCC	0.586
Average MCC ± 95% Confidence Intervals	0.561 ± 0.213
Sensitivity	0.513
Positive Predictive Value	0.688
Nr of predictions	10

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	514	14	3	11	0	18
3A3A_A	tRNA-Sec links to Rfam database...	0.59	0.50	0.71	15	1479	6	0	6	0	15
3GX2_A	SAM links to Rfam database...	0.60	0.57	0.64	16	1424	10	2	7	1	12
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.35	0.24	0.54	7	1520	6	1	5	0	22
4AOB_A	SAM links to Rfam database...	0.42	0.38	0.48	11	1414	13	3	9	1	18
4ENB_A	crcB links to Rfam database...	0.48	0.40	0.60	6	462	4	0	4	0	9
4ENC_A	crcB links to Rfam database...	0.48	0.40	0.60	6	486	4	0	4	0	9

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
