CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	Sfold		MCFold
MCC	0.680	>	0.527
Average MCC ± 95% Confidence Intervals	0.649 ± 0.131	>	0.498 ± 0.118
Sensitivity	0.654	>	0.563
Positive Predictive Value	0.717	>	0.508
Total TP	304	>	262
Total TN	30004	>	29912
Total FP	146	<	299
Total FP CONTRA	32	<	68
Total FP INCONS	88	<	186
Total FP COMP	26	<	45
Total FN	161	<	203
P-value	5.10776592382e-08

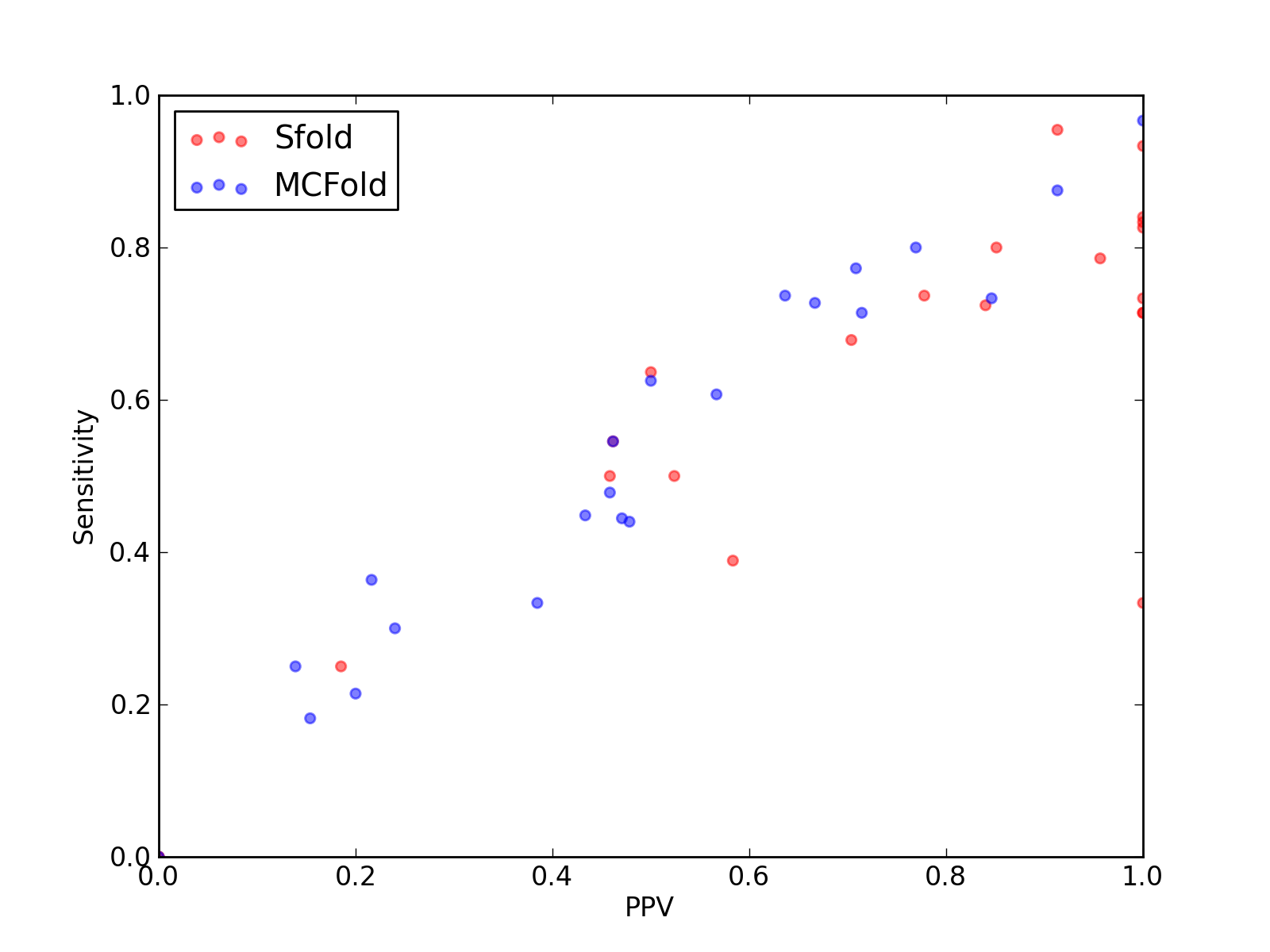

Comparison of performance of Sfold and MCFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Sfold and MCFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Sfold and MCFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Sfold and MCFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Sfold and MCFold).

Total Scores
MCC	0.680
Average MCC ± 95% Confidence Intervals	0.649 ± 0.131
Sensitivity	0.654
Positive Predictive Value	0.717
Nr of predictions	22

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	-0.03	0.00	0.00	0	229	7	1	6	0	8
2LC8_A	GP_knot1 links to Rfam database...	0.46	0.39	0.58	7	516	5	0	5	0	11
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	3	2	0	1	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.86	0.79	0.96	22	1426	2	1	0	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.69	0.68	0.70	19	1445	9	1	7	1	9
3J0L_a	-	0.55	0.64	0.50	7	397	8	5	2	1	4
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1095	16	2	14	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.75	0.74	0.78	14	717	4	0	4	0	5
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.50	0.52	11	4743	18	2	8	8	11
3PDR_A	ykoK links to Rfam database...	0.82	0.80	0.85	40	4793	9	2	5	2	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.78	0.72	0.84	21	1508	4	2	2	0	8
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
4A1C_2	5_8S_rRNA links to Rfam database...	0.21	0.25	0.19	5	4489	34	8	14	12	15
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.57	0.33	1.00	5	491	0	0	0	0	10

Total Scores
MCC	0.527
Average MCC ± 95% Confidence Intervals	0.498 ± 0.118
Sensitivity	0.563
Positive Predictive Value	0.508
Nr of predictions	22

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	0.54	0.63	0.50	5	226	5	2	3	0	3
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.44	0.47	8	511	10	0	9	1	10
2RP0_A	-	0.70	0.71	0.71	5	109	2	1	1	0	2
2ZZN_D	tRNA links to Rfam database...	0.69	0.73	0.67	16	960	11	1	7	3	6
3A2K_C	tRNA links to Rfam database...	0.49	0.55	0.46	12	1082	14	3	11	0	10
3A3A_A	tRNA-Sec links to Rfam database...	0.98	0.97	1.00	29	1471	0	0	0	0	1
3GCA_A	-	-0.05	0.00	0.00	0	150	8	4	4	0	7
3GX2_A	SAM links to Rfam database...	0.58	0.61	0.57	17	1419	15	1	12	2	11
3IVN_B	Purine links to Rfam database...	0.45	0.48	0.46	11	879	14	5	8	1	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.19	0.21	0.20	6	1442	24	5	19	0	22
3J0L_a	-	0.14	0.18	0.15	2	398	13	1	10	2	9
3JYV_7	tRNA links to Rfam database...	0.25	0.30	0.24	6	1086	20	8	11	1	14
3LA5_A	Purine links to Rfam database...	0.44	0.44	0.48	11	931	12	2	10	0	14
3NKB_B	-	0.68	0.74	0.64	14	713	8	2	6	0	5
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.36	0.22	8	4727	39	14	15	10	14
3PDR_A	ykoK links to Rfam database...	0.78	0.80	0.77	40	4788	14	5	7	2	10
3RKF_A	Purine links to Rfam database...	0.89	0.88	0.91	21	843	3	0	2	1	3
3SD1_A	THF links to Rfam database...	0.43	0.45	0.43	13	1503	17	1	16	0	16
3U4M_B	-	0.74	0.77	0.71	17	1252	10	1	6	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4480	45	12	19	14	15
4ENB_A	crcB links to Rfam database...	0.78	0.73	0.85	11	459	4	0	2	2	4
4ENC_A	crcB links to Rfam database...	0.34	0.33	0.38	5	483	11	0	8	3	10

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
