Metric	Afold		RNAalifold(seed)
MCC	0.519	>	0.483
Average MCC ± 95% Confidence Intervals	0.619 ± 0.149	>	0.462 ± 0.129
Sensitivity	0.485	>	0.288
Positive Predictive Value	0.558	<	0.814
Total TP	280	>	166
Total TN	189330	<	189628
Total FP	269	>	47
Total FP CONTRA	47	>	11
Total FP INCONS	175	>	27
Total FP COMP	47	>	9
Total FN	297	<	411
P-value	1.61358433984e-08

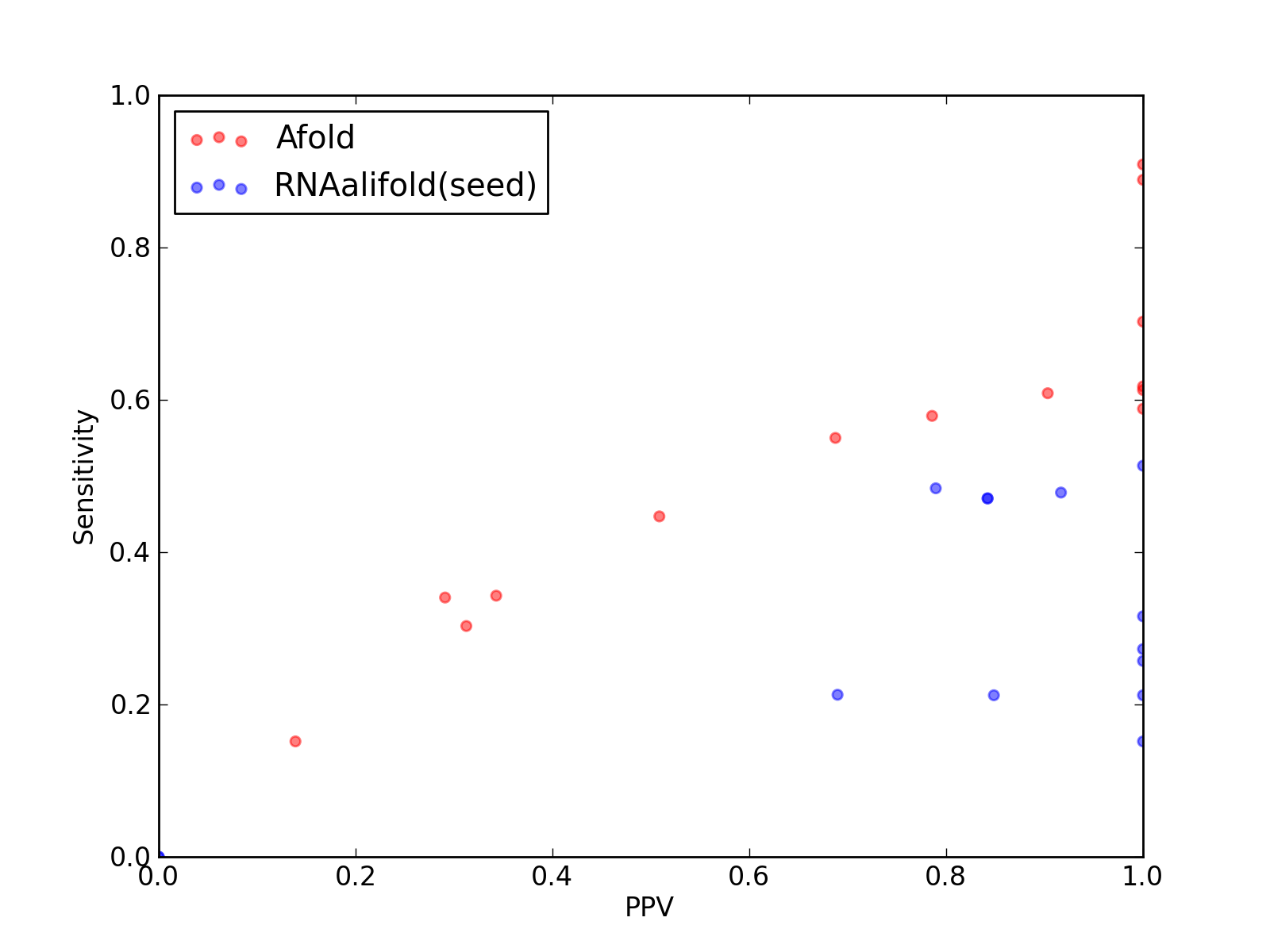

Comparison of performance of Afold and RNAalifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Afold and RNAalifold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Afold and RNAalifold(seed)).

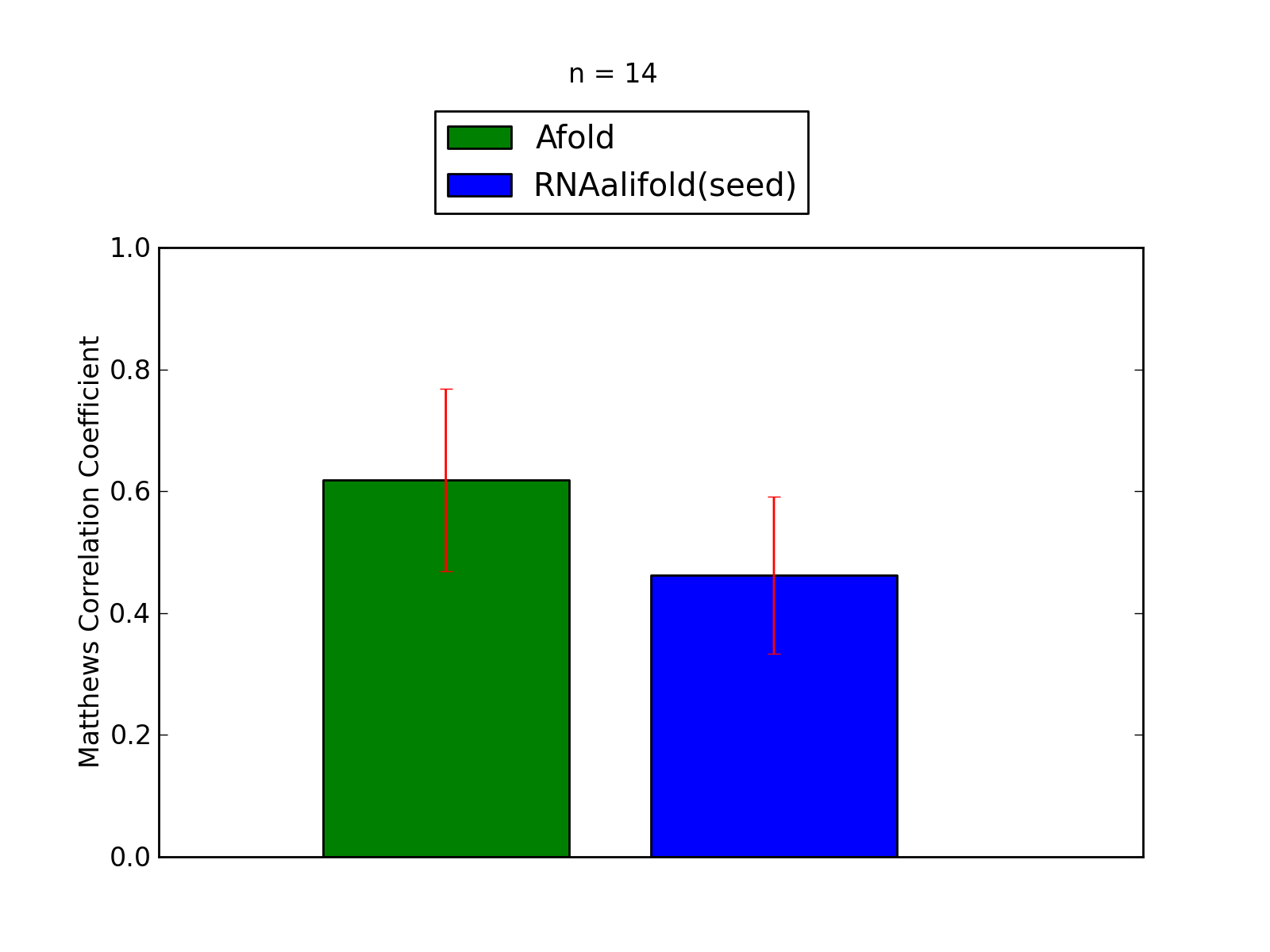

Comparison of average Matthews Correlation Coefficients (MCCs) for Afold and RNAalifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Afold and RNAalifold(seed)).

Total Scores
MCC	0.519
Average MCC ± 95% Confidence Intervals	0.619 ± 0.149
Sensitivity	0.485
Positive Predictive Value	0.558
Nr of predictions	14

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	6	0	5	1	9
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.70	1.00	26	3629	0	0	0	0	11
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IYQ_A	tmRNA links to Rfam database...	0.31	0.34	0.29	32	60616	82	23	55	4	62
3IZ4_A	tmRNA links to Rfam database...	0.48	0.45	0.51	59	70760	58	11	46	1	73
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	35	5	17	13	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.74	0.61	0.90	28	6990	5	0	3	2	18
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	37	2	21	14	23
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	43	5	26	12	28
4ENB_A	crcB links to Rfam database...	0.67	0.58	0.79	11	1261	3	1	2	0	8

Total Scores
MCC	0.483
Average MCC ± 95% Confidence Intervals	0.462 ± 0.129
Sensitivity	0.288
Positive Predictive Value	0.814
Nr of predictions	14

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.52	0.27	1.00	3	403	0	0	0	0	8
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1528	12	0	12	0	20
3A3A_A	tRNA-Sec links to Rfam database...	0.71	0.51	1.00	19	3636	0	0	0	0	18
3IVN_B	Purine links to Rfam database...	0.61	0.48	0.79	15	2327	4	2	2	0	16
3IYQ_A	tmRNA links to Rfam database...	0.38	0.21	0.69	20	60697	13	5	4	4	74
3IZ4_A	tmRNA links to Rfam database...	0.42	0.21	0.85	28	70843	5	1	4	0	104
3JYX_4	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	12239	2	0	0	2	26
3LA5_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2466	3	1	2	0	18
3NPB_A	SAM links to Rfam database...	0.66	0.48	0.92	22	6997	3	1	1	1	24
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.26	1.00	9	12394	0	0	0	0	26
3RKF_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2192	3	1	2	0	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.39	0.15	1.00	5	11776	2	0	0	2	28
4ENB_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1269	0	0	0	0	13

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
