Overview

Metric	Afold		Vsfold4
MCC	0.528	>	0.468
Average MCC ± 95% Confidence Intervals	0.525 ± 0.092	>	0.502 ± 0.092
Sensitivity	0.478	>	0.395
Positive Predictive Value	0.587	>	0.560
Total TP	643	>	531
Total TN	276180	<	276326
Total FP	522	>	469
Total FP CONTRA	67	>	48
Total FP INCONS	385	>	370
Total FP COMP	70	>	51
Total FN	702	<	814
P-value	3.56938820447e-08

^top

Performance plots

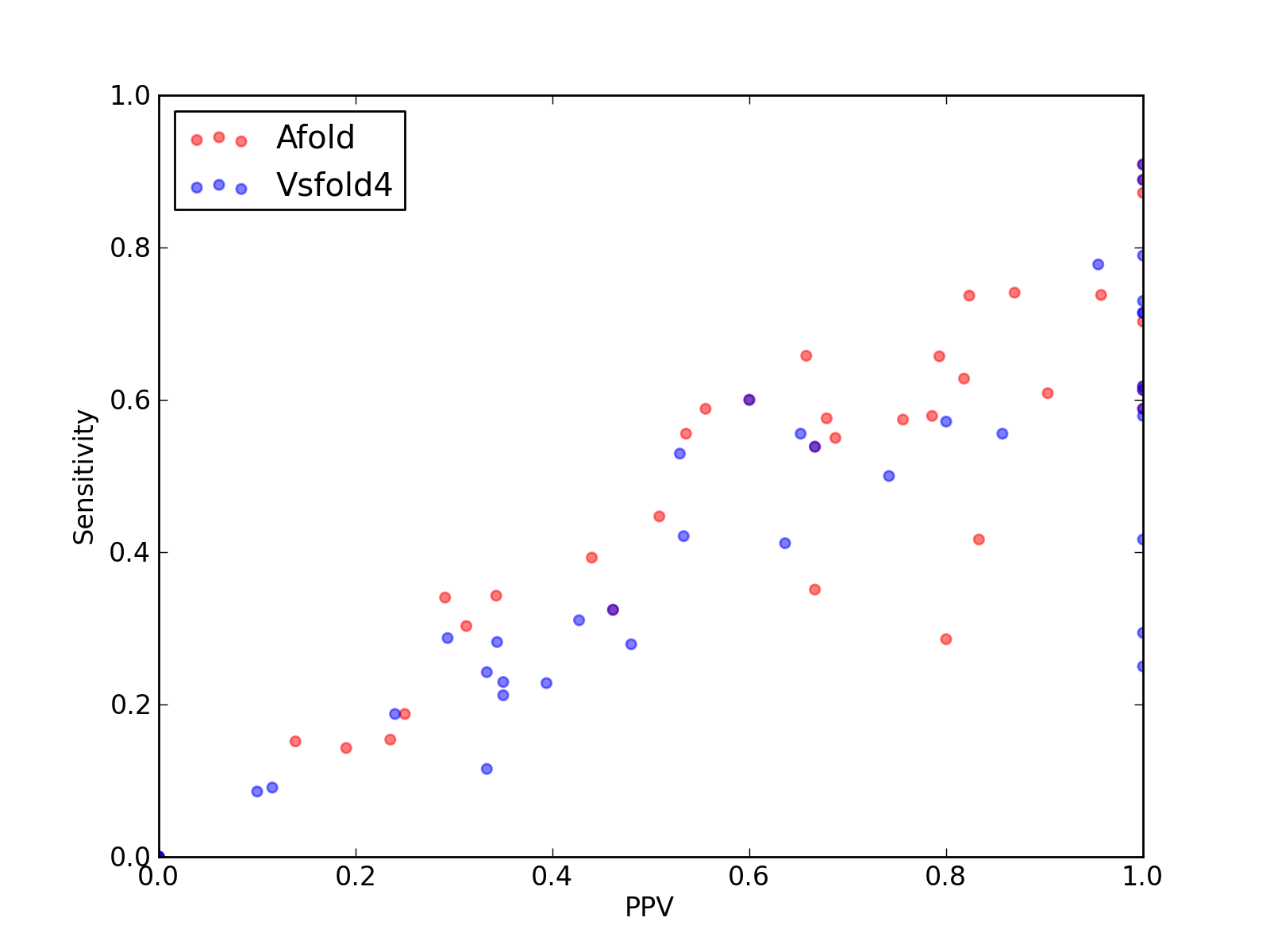

Comparison of performance of Afold and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Afold and Vsfold4).

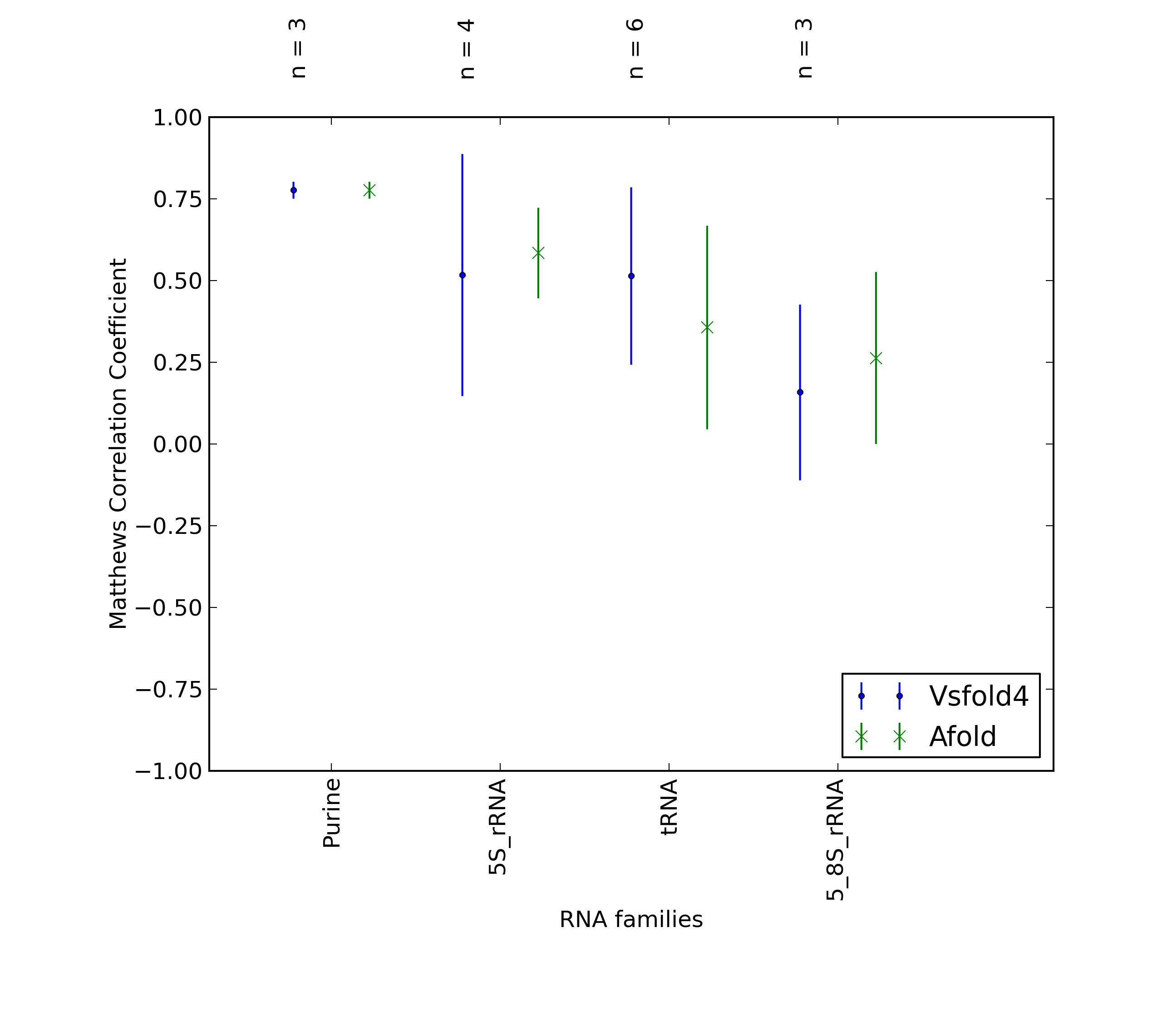

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Afold and Vsfold4).

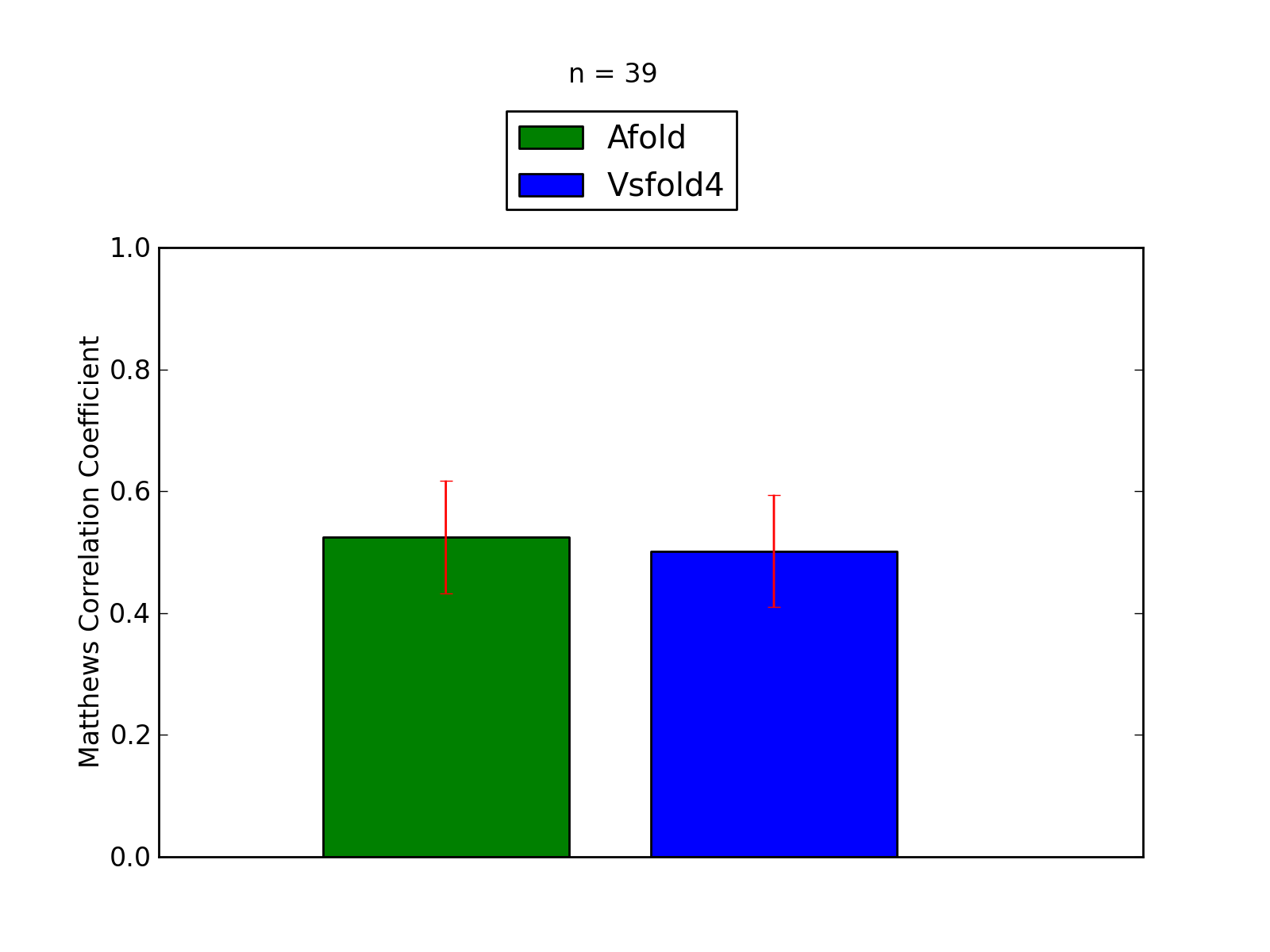

Comparison of average Matthews Correlation Coefficients (MCCs) for Afold and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Afold and Vsfold4).

^top

Performance of Afold - scored higher in this pairwise comparison

1. Total counts & total scores for Afold

Total Base Pair Counts
Total TP	643
Total TN	276180
Total FP	522
Total FP CONTRA	67
Total FP INCONS	385
Total FP COMP	70
Total FN	702

Total Scores
MCC	0.528
Average MCC ± 95% Confidence Intervals	0.525 ± 0.092
Sensitivity	0.478
Positive Predictive Value	0.587
Nr of predictions	39

^top

2. Individual counts for Afold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	-0.02	0.00	0.00	0	622	8	0	8	0	20
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	6	0	5	1	9
2LKR_A	-	0.93	0.87	1.00	34	6071	3	0	0	3	5
2RP0_A	-	0.58	0.42	0.83	5	345	1	0	1	0	7
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.18	0.15	0.24	4	1936	13	0	13	0	22
2WW9_E	-	0.47	0.29	0.80	4	556	1	0	1	0	10
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.80	0.74	0.87	20	2462	3	0	3	0	7
3A2K_C	tRNA links to Rfam database...	0.41	0.39	0.44	11	2901	14	2	12	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.70	1.00	26	3629	0	0	0	0	11
3ADB_C	-	0.78	0.74	0.82	28	4152	6	0	6	0	10
3AKZ_H	tRNA links to Rfam database...	0.16	0.14	0.19	4	2680	17	2	15	0	24
3AM1_B	-	0.72	0.66	0.79	23	3211	6	0	6	0	12
3G4S_9	5S_rRNA links to Rfam database...	0.48	0.35	0.67	20	7351	11	1	9	1	37
3GCA_A	-	-0.02	0.00	0.00	0	519	9	0	9	0	17
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.62	0.58	0.68	19	4250	9	0	9	0	14
3IYQ_A	tmRNA links to Rfam database...	0.31	0.34	0.29	32	60616	82	23	55	4	62
3IZ4_A	tmRNA links to Rfam database...	0.48	0.45	0.51	59	70760	58	11	46	1	73
3IZF_C	5S_rRNA links to Rfam database...	0.66	0.57	0.76	31	6862	10	1	9	0	23
3J0L_7	-	-0.01	0.00	0.00	0	1210	15	1	14	0	17
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2827	23	1	22	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.54	0.56	0.54	15	6300	24	1	12	11	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	35	5	17	13	23
3KTW_C	-	0.71	0.63	0.82	27	4527	7	2	4	1	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.84	0.74	0.96	45	9133	3	0	2	1	16
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.74	0.61	0.90	28	6990	5	0	3	2	18
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	37	2	21	14	23
3O58_2	5S_rRNA links to Rfam database...	0.66	0.66	0.66	25	7222	14	4	9	1	13
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	43	5	26	12	28
4ENB_A	crcB links to Rfam database...	0.67	0.58	0.79	11	1261	3	1	2	0	8

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	531
Total TN	276326
Total FP	469
Total FP CONTRA	48
Total FP INCONS	370
Total FP COMP	51
Total FN	814

Total Scores
MCC	0.468
Average MCC ± 95% Confidence Intervals	0.502 ± 0.092
Sensitivity	0.395
Positive Predictive Value	0.560
Nr of predictions	39

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	0.49	0.25	1.00	5	625	0	0	0	0	15
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2LKR_A	-	0.31	0.28	0.34	11	6073	21	3	18	0	28
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	12	5	3	4	8
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.19	0.12	0.33	3	1944	6	0	6	0	23
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.24	6	3461	19	0	19	0	26
2ZZN_D	tRNA links to Rfam database...	0.86	0.78	0.95	21	2463	1	0	1	0	6
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3ADB_C	-	0.89	0.79	1.00	30	4156	0	0	0	0	8
3AKZ_H	tRNA links to Rfam database...	0.67	0.57	0.80	16	2681	5	1	3	1	12
3AM1_B	-	0.84	0.71	1.00	25	3215	0	0	0	0	10
3G4S_9	5S_rRNA links to Rfam database...	0.30	0.23	0.39	13	7348	20	1	19	0	44
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.27	0.21	0.35	7	4258	13	1	12	0	26
3IYQ_A	tmRNA links to Rfam database...	0.29	0.29	0.29	27	60634	71	13	52	6	67
3IZ4_A	tmRNA links to Rfam database...	0.36	0.31	0.43	41	70780	59	7	48	4	91
3IZF_C	5S_rRNA links to Rfam database...	0.69	0.56	0.86	30	6868	5	0	5	0	24
3J0L_7	-	0.51	0.41	0.64	7	1214	4	0	4	0	10
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2831	19	0	19	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.56	0.65	15	6305	11	4	4	3	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.10	0.09	0.12	3	12220	33	2	21	10	30
3KTW_C	-	0.36	0.28	0.48	12	4535	13	3	10	0	31
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.28	0.23	0.35	14	9140	26	0	26	0	47
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.61	0.50	0.74	23	6990	9	0	8	1	23
3O58_3	5_8S_rRNA links to Rfam database...	0.09	0.09	0.10	3	12373	35	5	22	8	32
3O58_2	5S_rRNA links to Rfam database...	0.47	0.42	0.53	16	7230	16	3	11	2	22
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
4A1C_2	5_8S_rRNA links to Rfam database...	0.28	0.24	0.33	8	11757	28	0	16	12	25
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
