Overview

Metric	Carnac(20)		PknotsRG
MCC	0.601	>	0.581
Average MCC ± 95% Confidence Intervals	0.577 ± 0.090	<	0.609 ± 0.098
Sensitivity	0.397	<	0.516
Positive Predictive Value	0.914	>	0.659
Total TP	391	<	508
Total TN	198977	>	198634
Total FP	58	<	322
Total FP CONTRA	8	<	43
Total FP INCONS	29	<	220
Total FP COMP	21	<	59
Total FN	593	>	476
P-value	8.68922211961e-08

^top

Performance plots

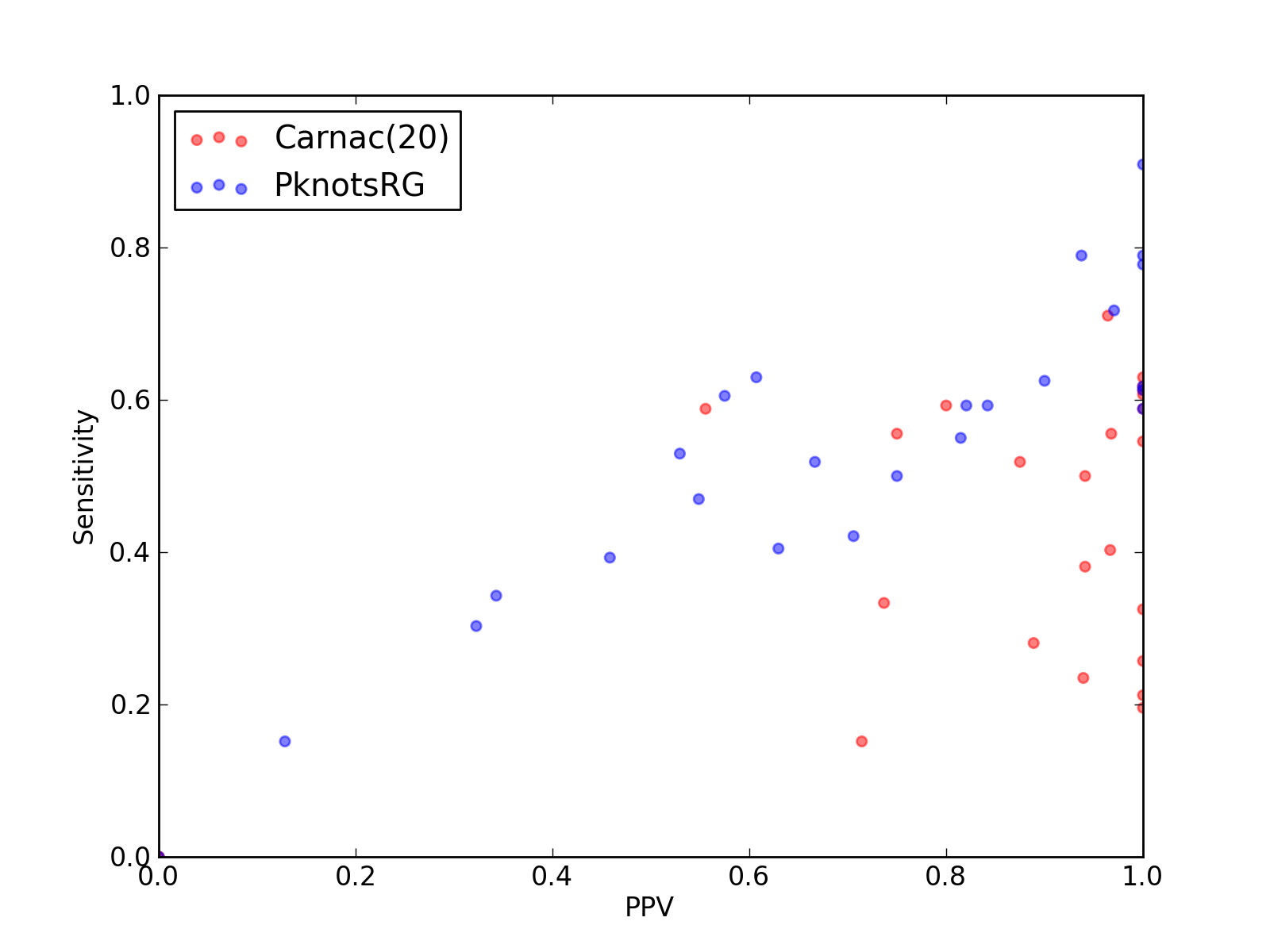

Comparison of performance of Carnac(20) and PknotsRG. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Carnac(20) and PknotsRG).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Carnac(20) and PknotsRG).
Comparison of average Matthews Correlation Coefficients (MCCs) for Carnac(20) and PknotsRG. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Carnac(20) and PknotsRG).

^top

Performance of Carnac(20) - scored higher in this pairwise comparison

1. Total counts & total scores for Carnac(20)

Total Base Pair Counts
Total TP	391
Total TN	198977
Total FP	58
Total FP CONTRA	8
Total FP INCONS	29
Total FP COMP	21
Total FN	593

Total Scores
MCC	0.601
Average MCC ± 95% Confidence Intervals	0.577 ± 0.090
Sensitivity	0.397
Positive Predictive Value	0.914
Nr of predictions	25

^top

2. Individual counts for Carnac(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.73	0.55	1.00	6	400	0	0	0	0	5
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2XQD_Y	tRNA links to Rfam database...	0.79	0.63	1.00	17	2833	0	0	0	0	10
3A2K_C	tRNA links to Rfam database...	0.78	0.61	1.00	17	2909	0	0	0	0	11
3AMU_B	tRNA links to Rfam database...	0.69	0.59	0.80	16	2983	6	0	4	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.50	0.28	0.89	16	7363	2	1	1	0	41
3GX2_A	SAM links to Rfam database...	0.57	0.33	1.00	13	4358	0	0	0	0	27
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.47	0.23	0.94	31	70843	2	0	2	0	101
3IZF_C	5S_rRNA links to Rfam database...	0.73	0.56	0.97	30	6872	1	0	1	0	24
3JYV_7	tRNA links to Rfam database...	0.68	0.50	0.94	16	2833	1	0	1	0	16
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.56	0.75	15	6308	10	1	4	5	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	12239	2	0	0	2	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.44	0.20	1.00	9	7012	2	0	0	2	37
3O58_2	5S_rRNA links to Rfam database...	0.83	0.71	0.96	27	7232	2	0	1	1	11
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.26	1.00	9	12394	0	0	0	0	26
3PDR_A	ykoK links to Rfam database...	0.62	0.40	0.97	29	12850	3	0	1	2	43
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.60	0.38	0.94	16	3899	1	0	1	0	26
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.52	0.88	28	7108	4	0	4	0	26
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.15	0.71	5	11774	3	0	2	1	28
4AOB_A	SAM links to Rfam database...	0.49	0.33	0.74	14	4352	6	1	4	1	28
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19

^top

Performance of PknotsRG - scored lower in this pairwise comparison

1. Total counts & total scores for PknotsRG

Total Base Pair Counts
Total TP	508
Total TN	198634
Total FP	322
Total FP CONTRA	43
Total FP INCONS	220
Total FP COMP	59
Total FN	476

Total Scores
MCC	0.581
Average MCC ± 95% Confidence Intervals	0.609 ± 0.098
Sensitivity	0.516
Positive Predictive Value	0.659
Nr of predictions	25

^top

2. Individual counts for PknotsRG [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	13	5	3	5	8
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.54	0.42	0.71	24	7347	10	1	9	0	33
3GX2_A	SAM links to Rfam database...	0.67	0.55	0.81	22	4344	6	0	5	1	18
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.55	62	70763	52	10	41	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.59	0.52	0.67	28	6861	14	1	13	0	26
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2828	22	1	21	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.32	10	12215	33	5	16	12	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.83	0.72	0.97	33	6987	3	0	1	2	13
3O58_2	5S_rRNA links to Rfam database...	0.59	0.61	0.58	23	7220	19	4	13	2	15
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.50	0.75	21	3888	7	1	6	0	21
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.13	5	11742	43	5	29	9	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
