Overview

Metric	Carnac(20)		Vsfold4
MCC	0.601	>	0.473
Average MCC ± 95% Confidence Intervals	0.577 ± 0.090	>	0.522 ± 0.110
Sensitivity	0.397	>	0.393
Positive Predictive Value	0.914	>	0.574
Total TP	391	>	387
Total TN	198977	>	198731
Total FP	58	<	337
Total FP CONTRA	8	<	31
Total FP INCONS	29	<	256
Total FP COMP	21	<	50
Total FN	593	<	597
P-value	5.23657817852e-08

^top

Performance plots

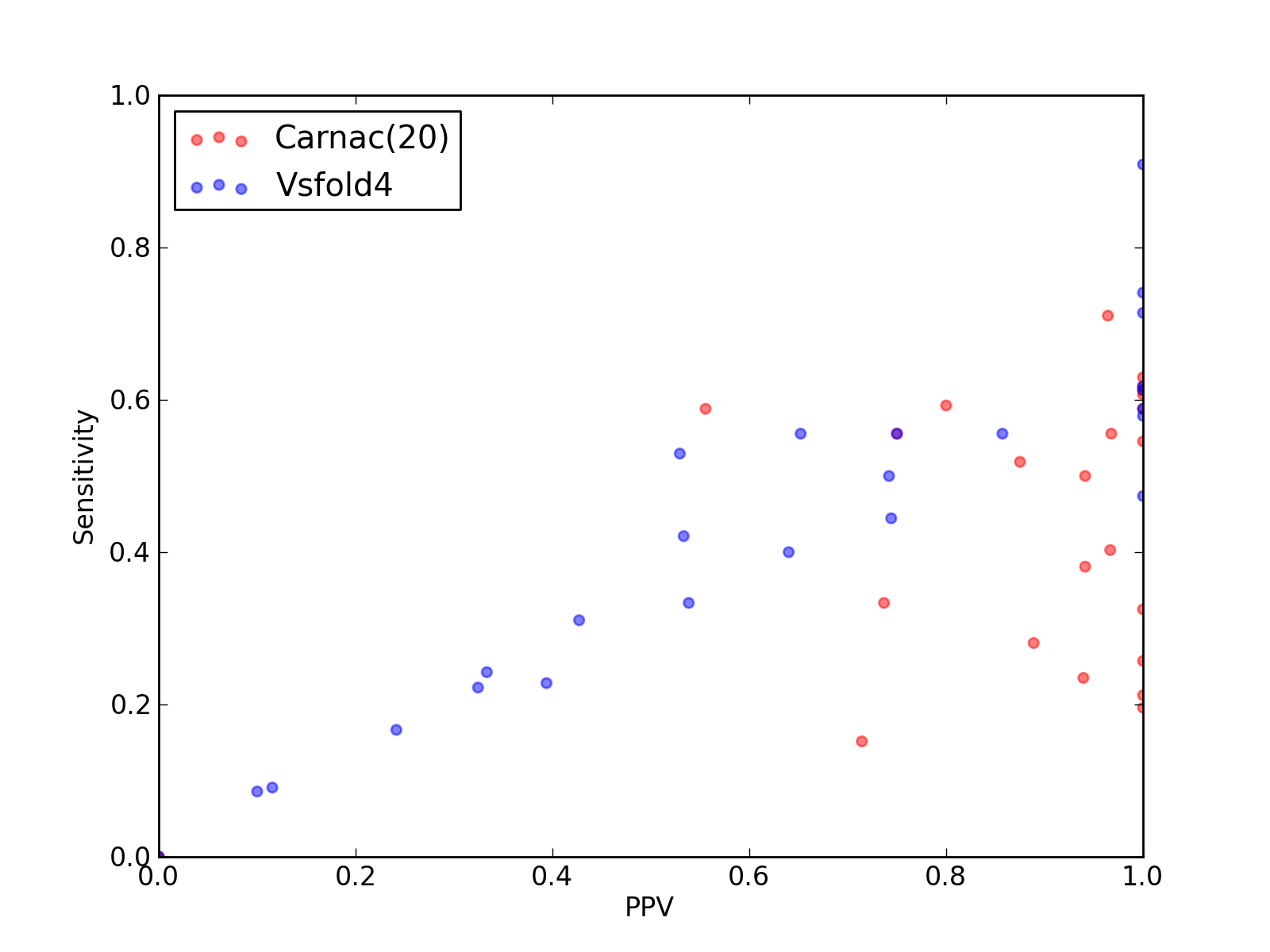

Comparison of performance of Carnac(20) and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Carnac(20) and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Carnac(20) and Vsfold4).
Comparison of average Matthews Correlation Coefficients (MCCs) for Carnac(20) and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Carnac(20) and Vsfold4).

^top

Performance of Carnac(20) - scored higher in this pairwise comparison

1. Total counts & total scores for Carnac(20)

Total Base Pair Counts
Total TP	391
Total TN	198977
Total FP	58
Total FP CONTRA	8
Total FP INCONS	29
Total FP COMP	21
Total FN	593

Total Scores
MCC	0.601
Average MCC ± 95% Confidence Intervals	0.577 ± 0.090
Sensitivity	0.397
Positive Predictive Value	0.914
Nr of predictions	25

^top

2. Individual counts for Carnac(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.73	0.55	1.00	6	400	0	0	0	0	5
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2XQD_Y	tRNA links to Rfam database...	0.79	0.63	1.00	17	2833	0	0	0	0	10
3A2K_C	tRNA links to Rfam database...	0.78	0.61	1.00	17	2909	0	0	0	0	11
3AMU_B	tRNA links to Rfam database...	0.69	0.59	0.80	16	2983	6	0	4	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.50	0.28	0.89	16	7363	2	1	1	0	41
3GX2_A	SAM links to Rfam database...	0.57	0.33	1.00	13	4358	0	0	0	0	27
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.47	0.23	0.94	31	70843	2	0	2	0	101
3IZF_C	5S_rRNA links to Rfam database...	0.73	0.56	0.97	30	6872	1	0	1	0	24
3JYV_7	tRNA links to Rfam database...	0.68	0.50	0.94	16	2833	1	0	1	0	16
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.56	0.75	15	6308	10	1	4	5	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	12239	2	0	0	2	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.44	0.20	1.00	9	7012	2	0	0	2	37
3O58_2	5S_rRNA links to Rfam database...	0.83	0.71	0.96	27	7232	2	0	1	1	11
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.26	1.00	9	12394	0	0	0	0	26
3PDR_A	ykoK links to Rfam database...	0.62	0.40	0.97	29	12850	3	0	1	2	43
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.60	0.38	0.94	16	3899	1	0	1	0	26
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.52	0.88	28	7108	4	0	4	0	26
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.15	0.71	5	11774	3	0	2	1	28
4AOB_A	SAM links to Rfam database...	0.49	0.33	0.74	14	4352	6	1	4	1	28
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	387
Total TN	198731
Total FP	337
Total FP CONTRA	31
Total FP INCONS	256
Total FP COMP	50
Total FN	597

Total Scores
MCC	0.473
Average MCC ± 95% Confidence Intervals	0.522 ± 0.110
Sensitivity	0.393
Positive Predictive Value	0.574
Nr of predictions	25

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	12	5	3	4	8
2XQD_Y	tRNA links to Rfam database...	0.86	0.74	1.00	20	2830	0	0	0	0	7
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3AMU_B	tRNA links to Rfam database...	0.64	0.56	0.75	15	2983	7	0	5	2	12
3G4S_9	5S_rRNA links to Rfam database...	0.30	0.23	0.39	13	7348	20	1	19	0	44
3GX2_A	SAM links to Rfam database...	0.50	0.40	0.64	16	4346	10	0	9	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.36	0.31	0.43	41	70780	59	7	48	4	91
3IZF_C	5S_rRNA links to Rfam database...	0.69	0.56	0.86	30	6868	5	0	5	0	24
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2831	19	0	19	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.56	0.65	15	6305	11	4	4	3	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.10	0.09	0.12	3	12220	33	2	21	10	30
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.61	0.50	0.74	23	6990	9	0	8	1	23
3O58_2	5S_rRNA links to Rfam database...	0.47	0.42	0.53	16	7230	16	3	11	2	22
3O58_3	5_8S_rRNA links to Rfam database...	0.09	0.09	0.10	3	12373	35	5	22	8	32
3PDR_A	ykoK links to Rfam database...	0.57	0.44	0.74	32	12837	13	0	11	2	40
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.19	0.17	0.24	7	3887	22	1	21	0	35
4A1C_3	5S_rRNA links to Rfam database...	0.26	0.22	0.32	12	7103	25	2	23	0	42
4A1C_2	5_8S_rRNA links to Rfam database...	0.28	0.24	0.33	8	11757	28	0	16	12	25
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.69	0.47	1.00	9	1317	0	0	0	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
