Overview

Metric	CentroidFold		RNAfold
MCC	0.517	>	0.448
Average MCC ± 95% Confidence Intervals	0.566 ± 0.069	>	0.537 ± 0.070
Sensitivity	0.434	>	0.408
Positive Predictive Value	0.616	>	0.493
Total TP	1691	>	1588
Total TN	9404947	>	9404468
Total FP	1175	<	1804
Total FP CONTRA	237	<	278
Total FP INCONS	815	<	1356
Total FP COMP	123	<	170
Total FN	2201	<	2304
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of CentroidFold and RNAfold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and RNAfold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and RNAfold).

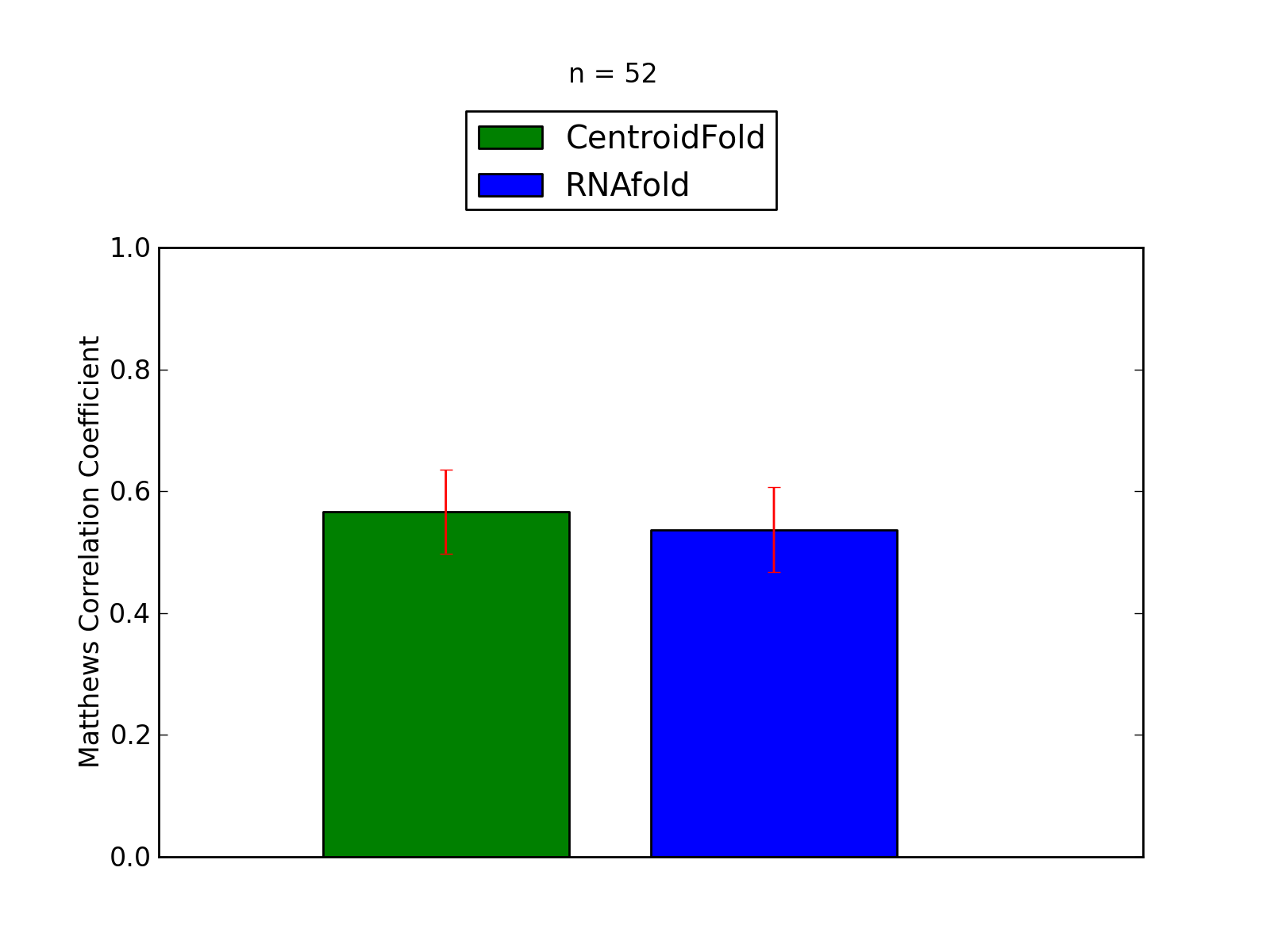

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and RNAfold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and RNAfold).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	1691
Total TN	9404947
Total FP	1175
Total FP CONTRA	237
Total FP INCONS	815
Total FP COMP	123
Total FN	2201

Total Scores
MCC	0.517
Average MCC ± 95% Confidence Intervals	0.566 ± 0.069
Sensitivity	0.434
Positive Predictive Value	0.616
Nr of predictions	52

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.42	0.26	0.71	5	623	2	0	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.49	0.35	0.70	7	1530	3	1	2	0	13
2LKR_A	-	0.82	0.74	0.91	29	6073	4	0	3	1	10
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.29	0.12	0.75	3	1949	1	0	1	0	23
2WW9_E	-	0.00	0.00	0.00	0	561	0	0	0	0	14
2WWQ_V	tRNA links to Rfam database...	0.80	0.68	0.95	19	2906	3	0	1	2	9
2XQD_Y	tRNA links to Rfam database...	0.75	0.67	0.86	18	2829	3	0	3	0	9
2ZZM_B	tRNA links to Rfam database...	0.18	0.16	0.23	5	3464	17	3	14	0	27
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.44	0.43	0.46	12	2900	14	2	12	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.92	0.84	1.00	32	4154	0	0	0	0	6
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3GX2_A	SAM links to Rfam database...	0.79	0.63	1.00	25	4346	1	0	0	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.80	0.67	0.96	22	4255	1	0	1	0	11
3IYQ_A	tmRNA links to Rfam database...	0.36	0.37	0.34	35	60624	71	17	50	4	59
3IZ4_A	tmRNA links to Rfam database...	0.55	0.45	0.68	59	70789	33	4	24	5	73
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.61	0.77	33	6860	10	1	9	0	21
3J0L_7	-	-0.01	0.00	0.00	0	1220	5	0	5	0	17
3J0L_a	-	0.41	0.31	0.56	5	1119	4	2	2	0	11
3J0L_g	-	0.00	0.00	0.00	0	465	0	0	0	0	4
3J0L_2	-	0.25	0.24	0.28	8	6187	24	0	21	3	25
3J16_L	tRNA links to Rfam database...	0.50	0.40	0.63	12	2756	7	0	7	0	18
3JYV_7	tRNA links to Rfam database...	0.77	0.59	1.00	19	2831	0	0	0	0	13
3JYX_3	5S_rRNA links to Rfam database...	0.29	0.30	0.30	8	6301	20	8	11	1	19
3JYX_5	-	0.36	0.33	0.40	294	5022122	510	149	300	61	599
3JYX_4	5_8S_rRNA links to Rfam database...	0.23	0.21	0.25	7	12218	25	5	16	4	26
3KIY_A	-	0.53	0.41	0.69	505	4053393	246	24	206	16	736
3KTW_C	-	0.45	0.40	0.53	17	4528	16	2	13	1	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.80	0.70	0.91	43	9133	5	0	4	1	18
3NKB_B	-	0.57	0.50	0.65	13	1996	7	0	7	0	13
3NPB_A	SAM links to Rfam database...	0.77	0.70	0.86	32	6984	7	1	4	2	14
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.29	0.50	10	12383	10	0	10	0	25
3O58_2	5S_rRNA links to Rfam database...	0.82	0.76	0.88	29	7227	7	1	3	3	9
3PDR_A	ykoK links to Rfam database...	0.73	0.60	0.90	43	12832	7	0	5	2	29
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3U4M_B	-	0.57	0.46	0.71	17	3136	7	0	7	0	20
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.56	0.81	30	7103	7	1	6	0	24
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11752	29	5	19	5	28
4AOB_A	SAM links to Rfam database...	0.45	0.33	0.61	14	4348	10	1	8	1	28
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8

^top

Performance of RNAfold - scored lower in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	1588
Total TN	9404468
Total FP	1804
Total FP CONTRA	278
Total FP INCONS	1356
Total FP COMP	170
Total FN	2304

Total Scores
MCC	0.448
Average MCC ± 95% Confidence Intervals	0.537 ± 0.070
Sensitivity	0.408
Positive Predictive Value	0.493
Nr of predictions	52

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LKR_A	-	0.93	0.87	1.00	34	6071	3	0	0	3	5
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.14	0.12	0.19	3	1937	13	0	13	0	23
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.33	0.32	0.35	12	4152	22	0	22	0	26
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3GX2_A	SAM links to Rfam database...	0.68	0.55	0.85	22	4345	5	0	4	1	18
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.63	0.58	0.70	19	4251	9	0	8	1	14
3IYQ_A	tmRNA links to Rfam database...	0.31	0.34	0.29	32	60616	80	24	54	2	62
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.55	62	70763	52	10	41	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.59	0.52	0.67	28	6861	14	1	13	0	26
3J0L_7	-	-0.01	0.00	0.00	0	1213	12	0	12	0	17
3J0L_a	-	0.23	0.19	0.30	3	1118	7	1	6	0	13
3J0L_g	-	-0.01	0.00	0.00	0	460	5	1	4	0	4
3J0L_2	-	0.25	0.24	0.26	8	6185	25	2	21	2	25
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2828	22	1	21	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3JYX_5	-	0.31	0.32	0.31	285	5021945	718	179	456	83	608
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.32	10	12215	33	5	16	12	23
3KIY_A	-	0.41	0.35	0.48	431	4053222	484	22	453	9	810
3KTW_C	-	0.73	0.63	0.84	27	4528	6	2	3	1	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.77	0.69	0.86	42	9131	8	0	7	1	19
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.83	0.72	0.97	33	6987	4	0	1	3	13
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3O58_2	5S_rRNA links to Rfam database...	0.59	0.61	0.58	23	7220	19	4	13	2	15
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11744	43	5	27	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
